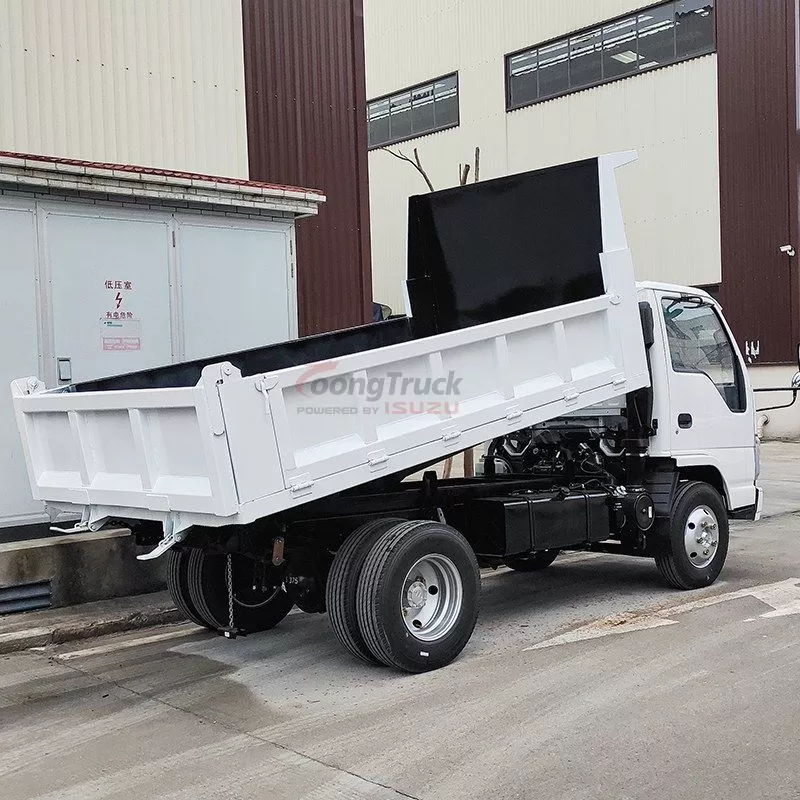

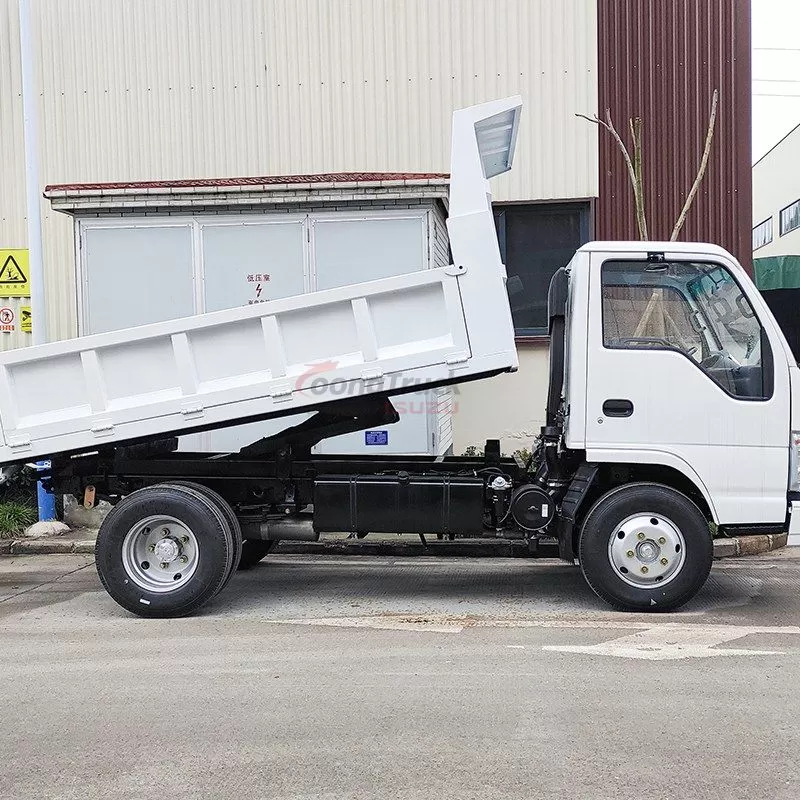

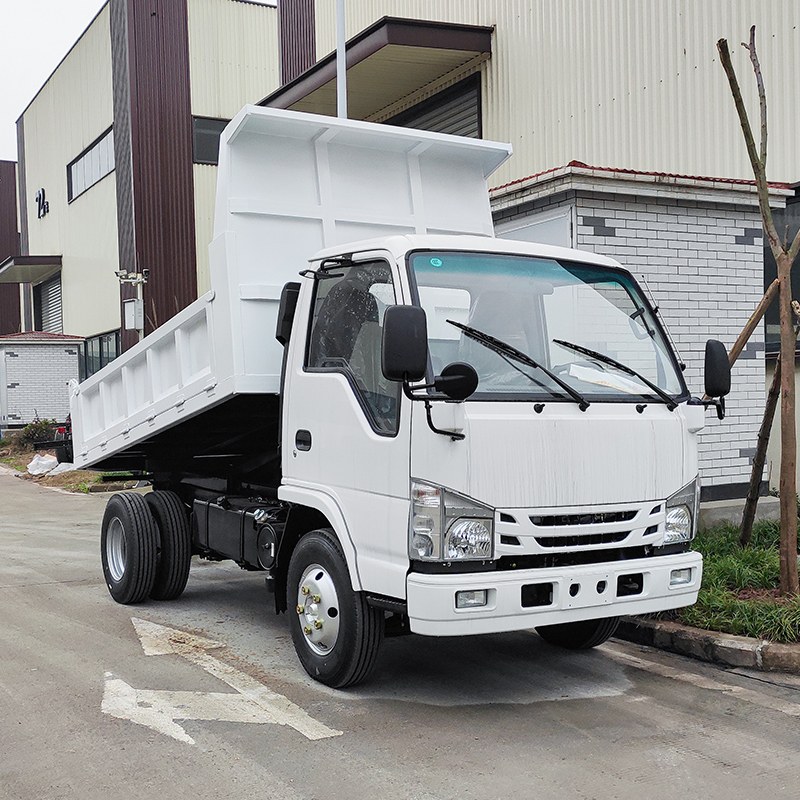

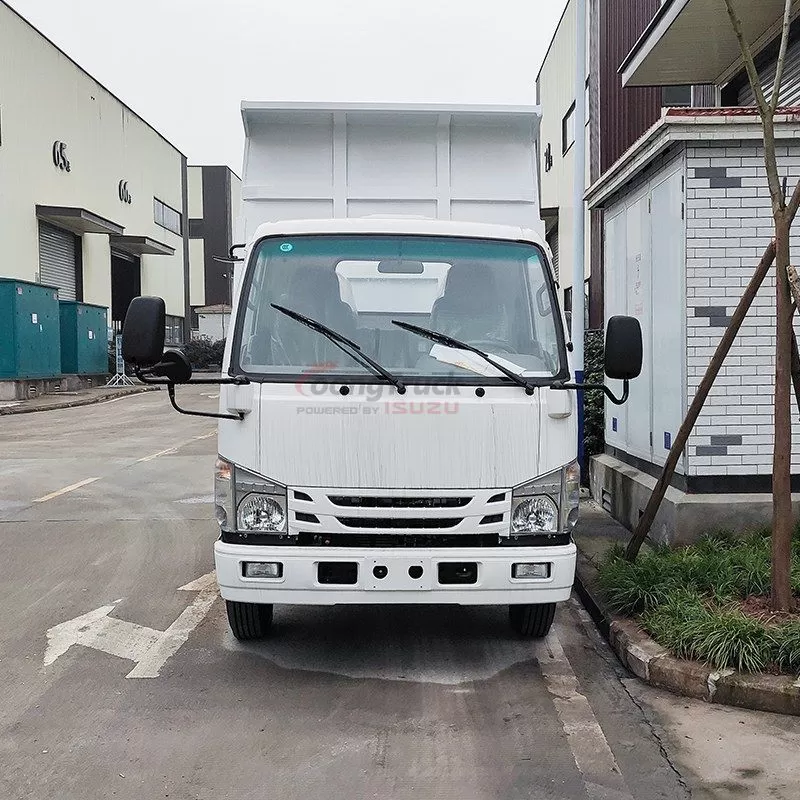

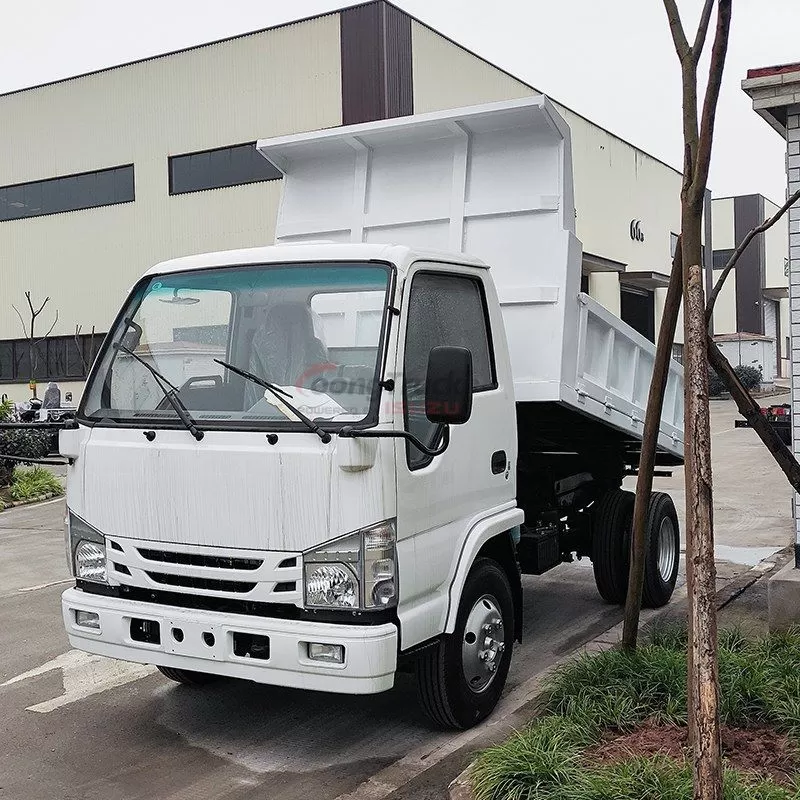

Isuzu Dump Truck

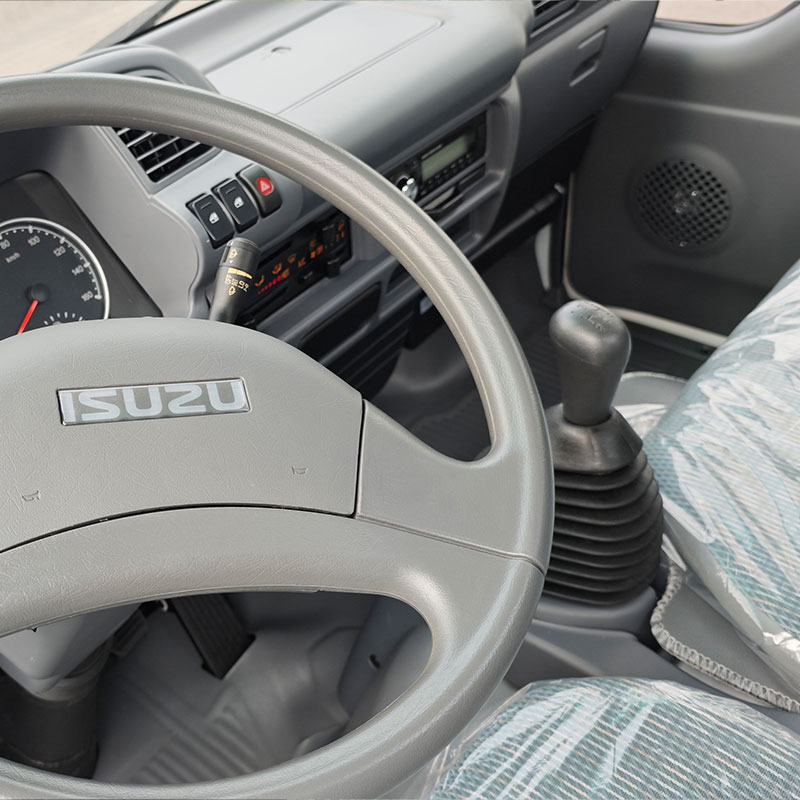

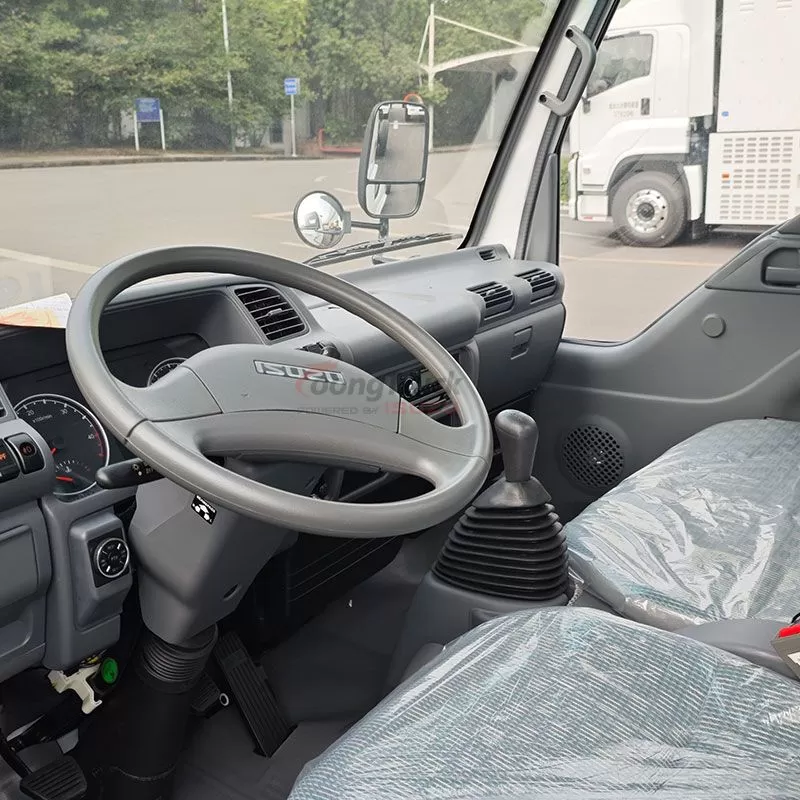

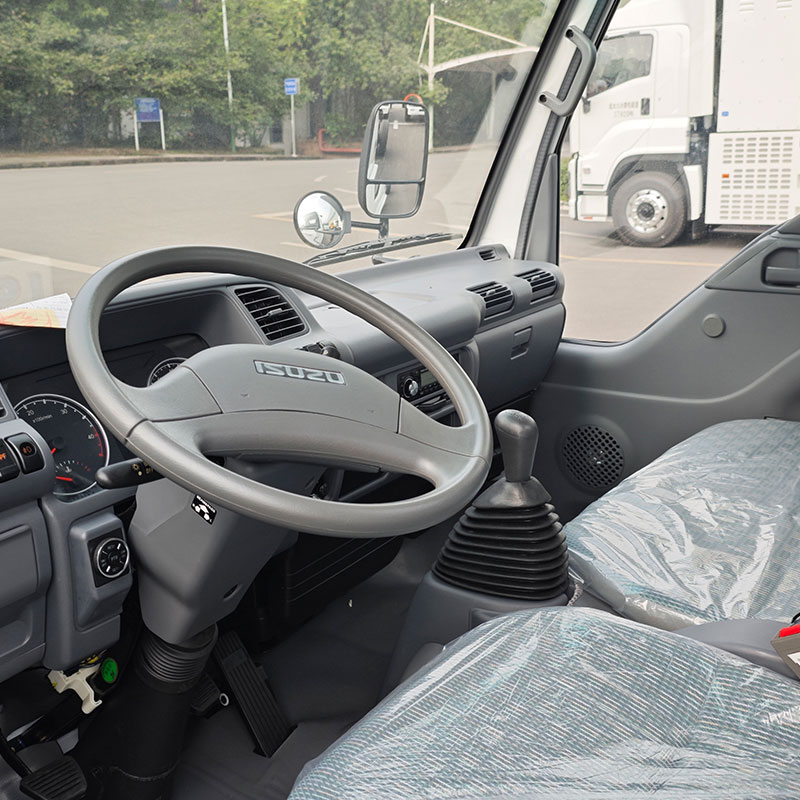

This 100P dump truck is equipped with 120HP 4KH1CN6LB engine, manual MSB-5 transmission with 5 forward gears and 1 reverse gear, newly developed chassis with 2 seats, wheelbase 2765mm, GVW 6720kg; multi-function steering wheel, rear view camera, modern body design, low fuel consumption, low maintenance cost,highly manoeuvrable.
| Work capacity: | 2～3tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu 100P dump truck |
100P Dump Truck Parameters
| I. General Information | |
| Reference Overall Dimensions(mm): | 5230X1880X2200 |
| Capacity(CBM) / Payload(kg): | 3m³/3000kg |
| GVW(kg): | 6720 |

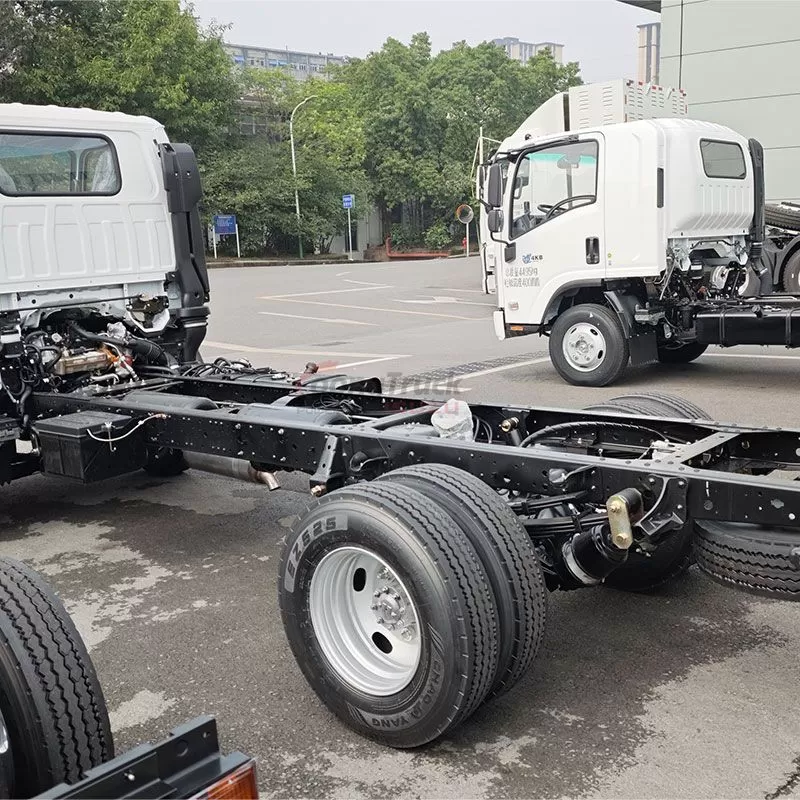

| II. Chassis | |
| Chassis Model: | ISUZU NKR 100P |
| Drive Type: | 4x2 |
| Wheelbase(mm): | 2765 |
| Cabin: | Single |
| Seats: | 2 |
| Tire Model: | 7.00R16LT 14PR |

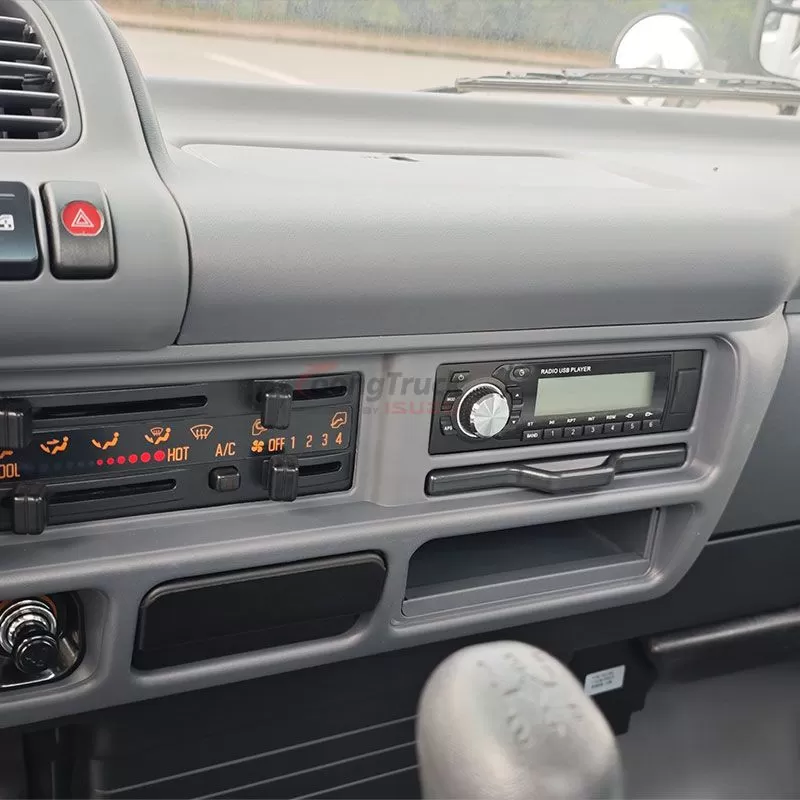

| Standard Configuration: | A/C, ABS, power steering, etc. |

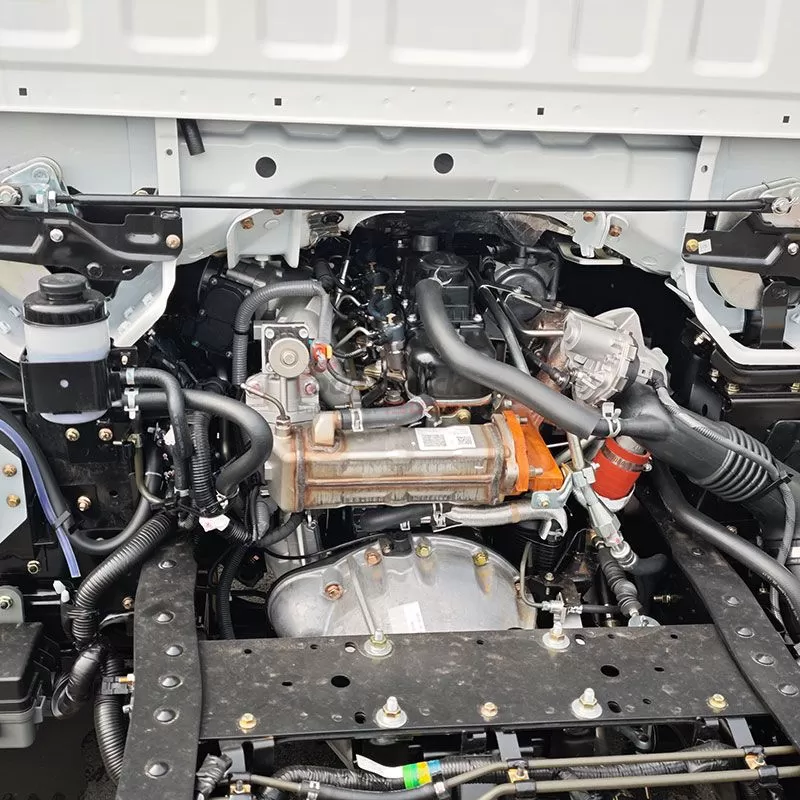

| III. Engine | |
| Model: | 4KH1CN6LB |
| Power(HP/kw): | 120HP/88kw |
| Displacement(L): | 2.999L |
| Engine Type: | 4-cylinder in-line, turbocharged, etc. |
| Fuel Type: | Diesel |
| Emission Standard: | Euro3/Euro4/Euro5/Euro6 |

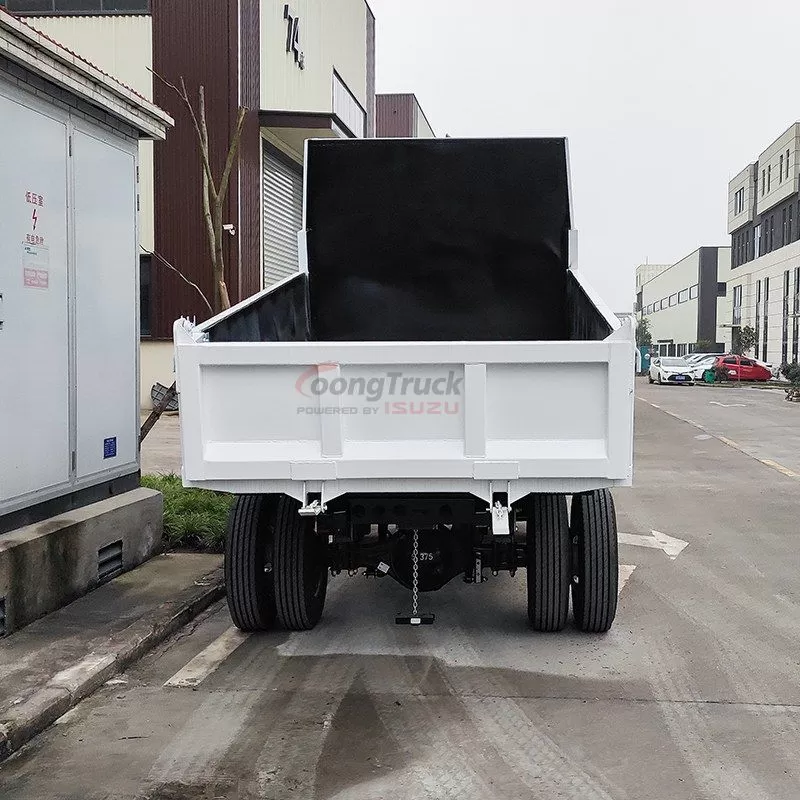

| IV. Upper Body Specifications | |
| Size(mm): | 3200x1900x500 |

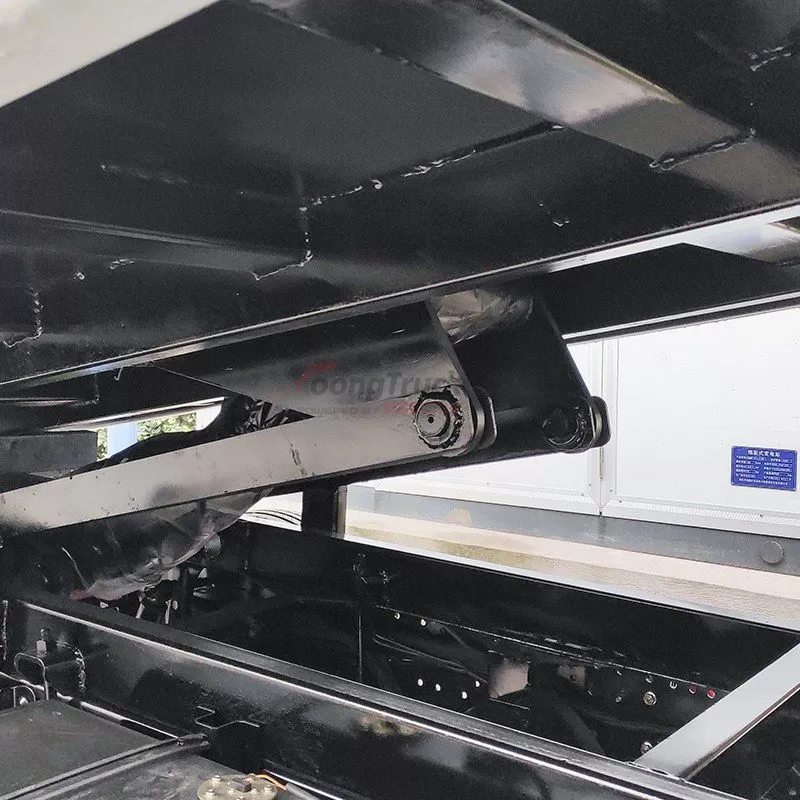

| Unloading Way: | Domestic Single or Double cylinder abdominal lift |
| Thickness(mm): | Bottom plate 4mm/side plate 3mm |
| V.Optional Configurations | |
| For more optional configurations and requirements, please contact our sales manager directly. | |
