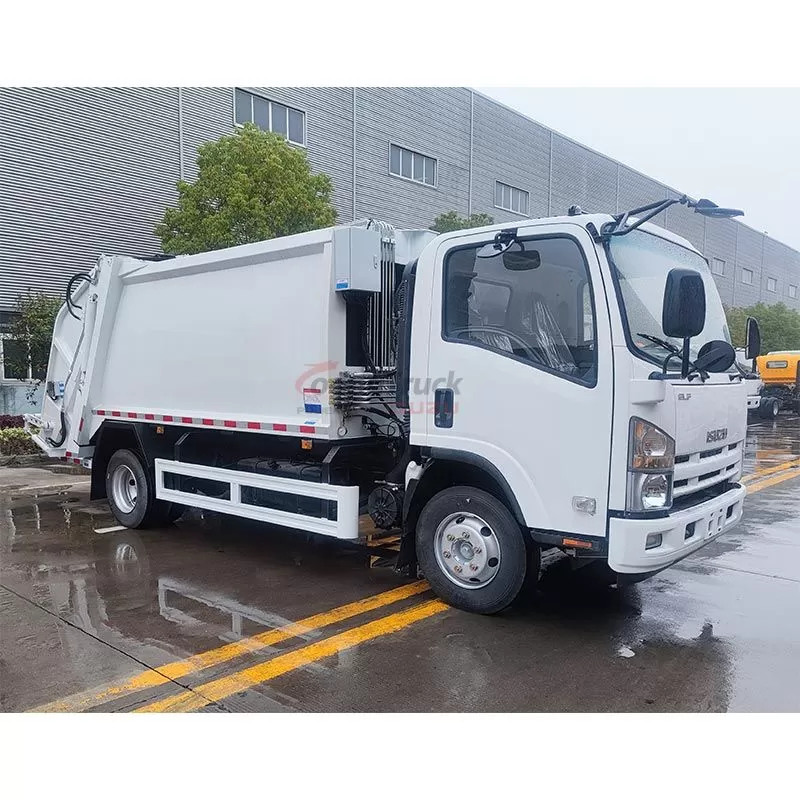

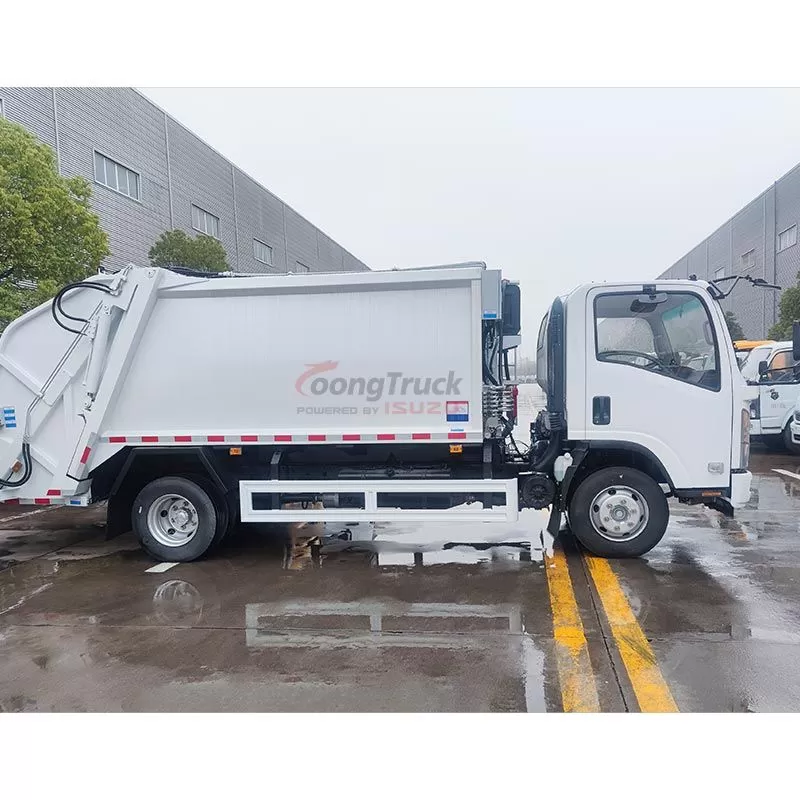

The ISUZU NPR light-duty garbage compactor truck is a city service garbage truck with excellent performance. It is equipped with a 4HK1-TCG61 engine with a maximum power of 190 horsepower and a displacement of 5.19L. It adopts a 4-cylinder in-line turbocharged intercooler design. The total weight of the vehicle is 11 tons, and the actual load capacity is 4.9 tons. The chassis is 4*2 drive and the wheelbase is 4175mm. The garbage bin has a capacity of 10 cubic meters and is made of curved integral steel plates. The bottom and side plates are both 4mm thick Q235 special steel, and the compression ratio reaches 1:3.4. It is equipped with a 6-front and 1-rear gearbox, with a maximum speedof 90km/h and a fuel tank capacity of 100L. The garbage loading and unloading system adopts PLC automatic control.

Lead Time:	30 Days
Work capacity:	6 CBM
Engine power:	190 HP
Engine type:	4HK1-TCG61
Axle drive:	4x2, left hand drive
Gear box:	MLD 6-speed,manual
Remarks:	Stainless steel waste water collection tanks

Inquire Now

PRODUCT DETAILS

MODEL		NPR 700P Compressed Garbage Truck

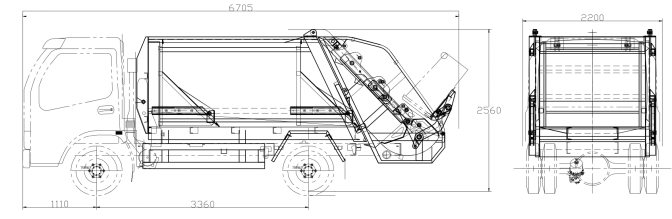

	Overall dimensions(mm)	694022502800
Engine	Engine Model	ISUZU 4HK1-TCG61
	Displacement (ml)	5193ml
	Rated power(hp)	189
	Number of cylinder	4 Cylinders
	Emission Standard	Emission:Engine working on the Euro 3 or Euro 4 engine
	Fuel type	Diesel
Transmission	Control	Manual

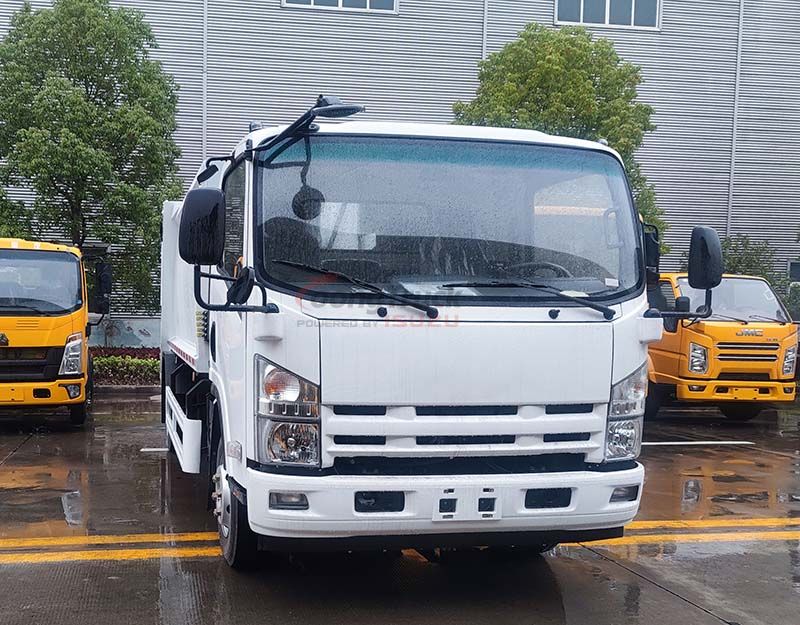

Cab	Cabin	Single
	Passengers	1+2
	Configuration	air conditioner, USB radio interface,cab can be flipped.
	Color	White,other color is optional
Chassis parameters	Wheelbase(mm)	3360
	Chassis dimensions(mm)	5995x2170x2310
	Drive Type	4x2
	Approach/departure angle	21/11°
	Maximum speed(km/h)	110
	Front/rear wheel track(mm)	1680/1650
	Front/rear suspension(mm)	1110/1525
	Suspension	Multi leaf springs
	Rated voltage	24V DC
	Approach/departure angle	15/15°
	Maximum speed	110km/h
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Tire	Size	235/75R17.5 16PR
	Number	6+1 nos
CONFIGURATION	Power steering
	Radio
	Seat belts
	A/C
Refuse compactor structure parameters

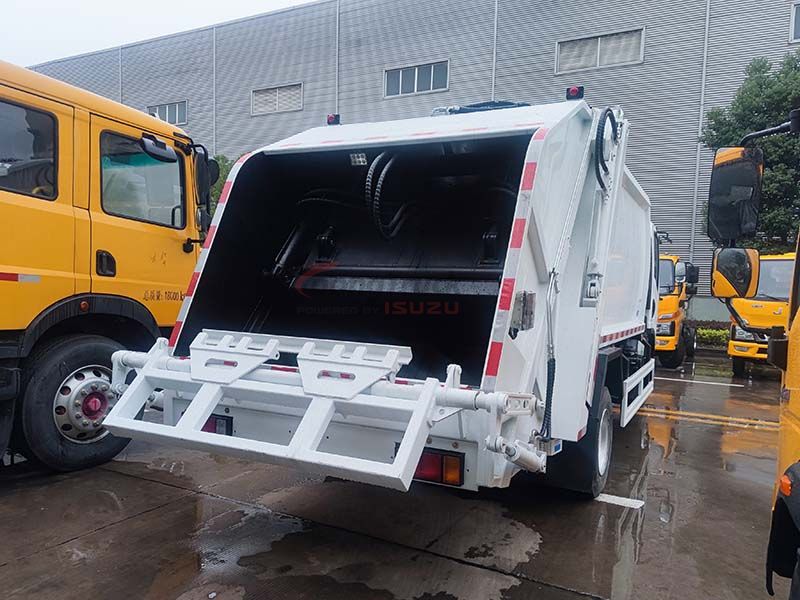

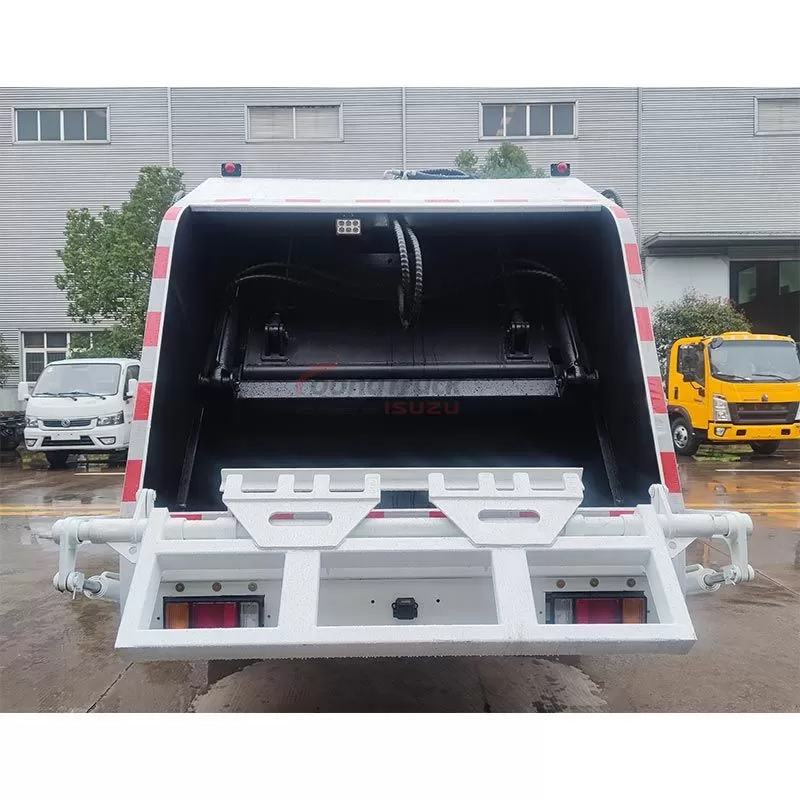

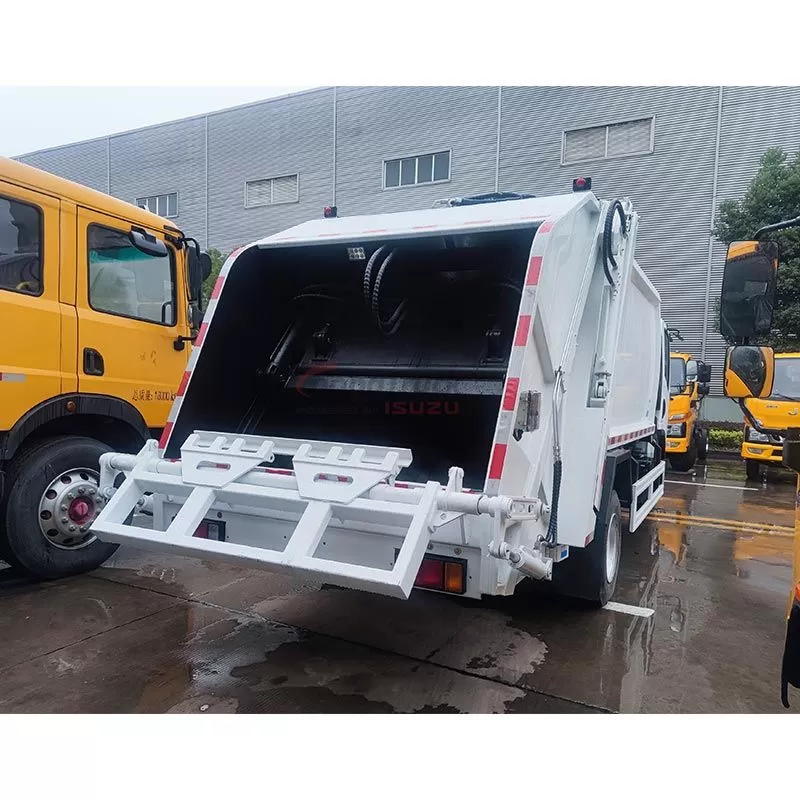

Equipment	Structure	Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems.

	System of loading	Mechanized, rear loading
	Modes of the pressing	Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic.

Body	Loading capacity	6m³
	Material	Q355 high strength steel
	Standard configuration Description	The cabinet is an arc-shaped cabinet made of Q355 high-strength steel. The cabinet material has 4 sides and 4 bottoms. The working time of the loading cycle is ≤30, the working time of the unloading cycle is ≤20, the electronic control system is a domestic CNA electronic control system, a pressure closing valve, and two operating modes: manual and electronic control. The lift cylinder of the filler is equipped with a hydraulic lock, the flip frame can flip two 240L national standard plastic trash cans at the same time, and the whole vehicle is equipped with two sewage tanks. The compression method is bidirectional peristaltic compression.
Optional Configuration	Custom Rely on customer request,so it will extra cost	1. Optional voice prompts in the cab 2.Optional video in the cab 3.Integral pneumatic sealing cover behind the filler 4.Filler with flip triangle bucket 5.Filler with fully sealed garbage bucket
