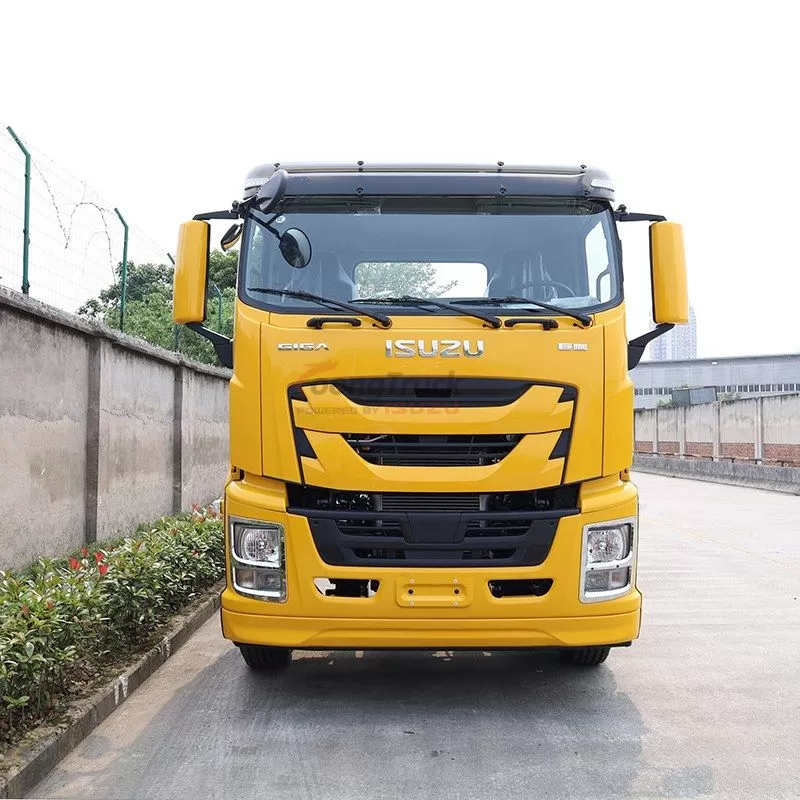

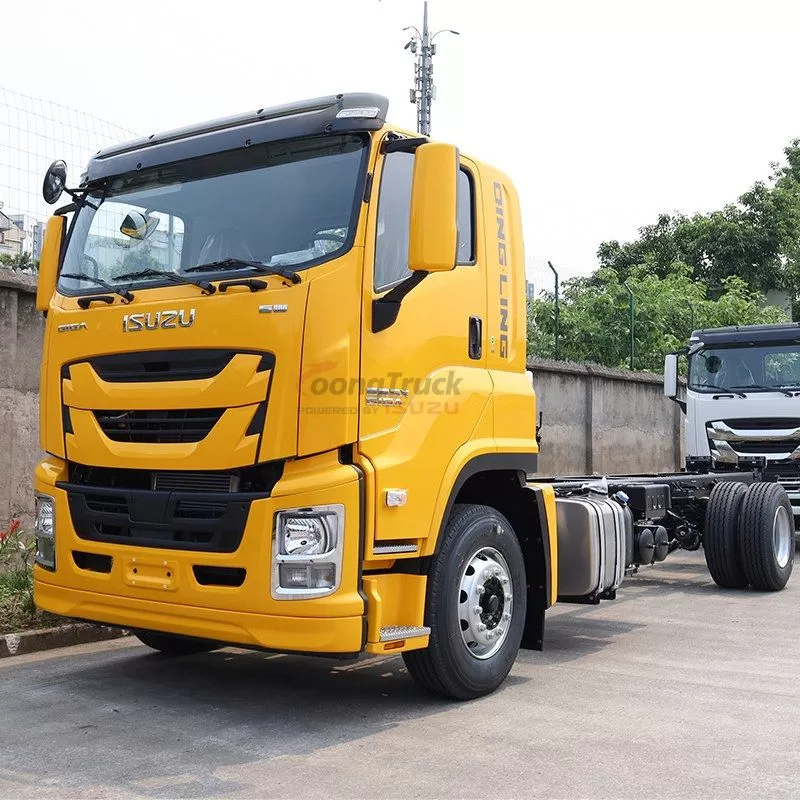

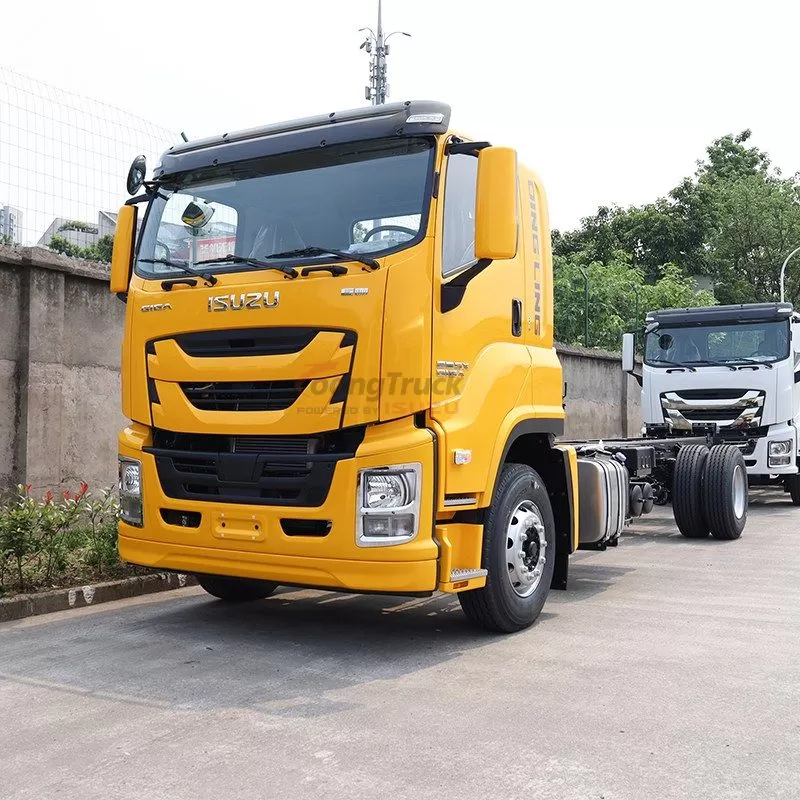

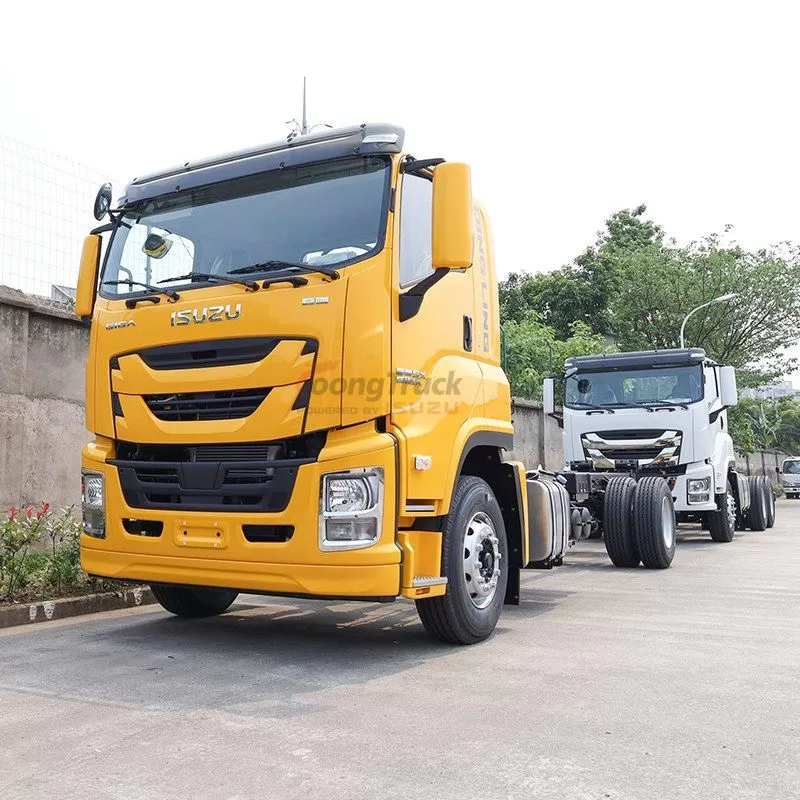

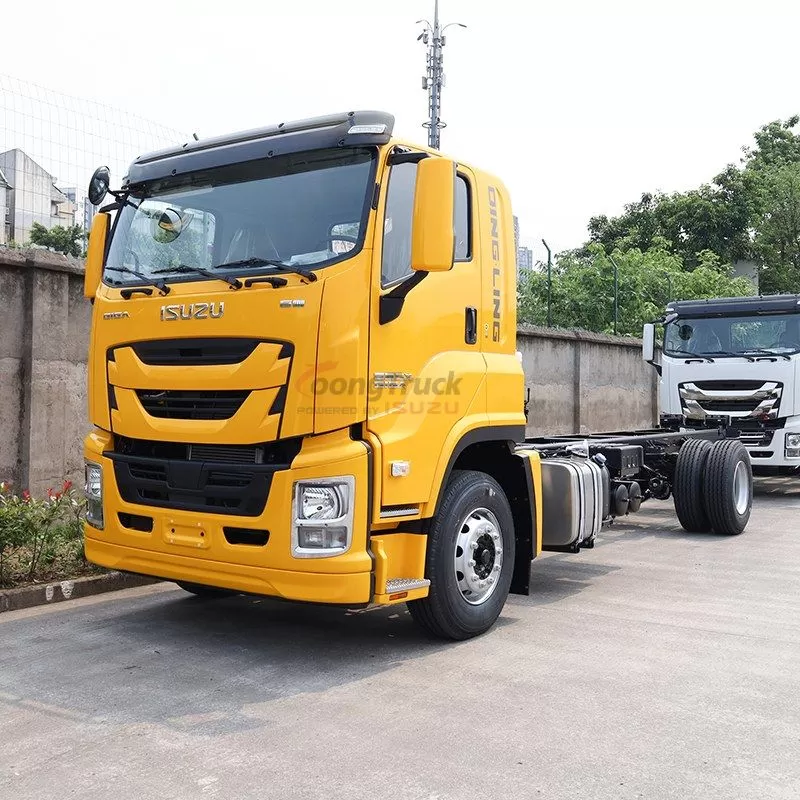

Isuzu Heavy duty Truck GIGA VC66 4X2 chassis 350hp-520hp

Isuzu Heavy duty Truck GIGA VC66 4X2 chassis 350hp-520hp

Isuzu GIGA chassis is a heavy-duty commercial vehicle chassis designed for applications that require high load-bearing capacity and stable performance. It is an 15-ton giant that combines powerful power, robust structure and excellent performance. It ensures excellent stability and reliability even under complex road conditions. It is a new benchmark in the field of special vehicles and leads the development trend of the industry.

Work capacity:	10～15 tons
Engine power:	350-520HP
Engine type:	6UZ1-TCG60
Axle drive:	4X2,LHD
Gear box:	ZF 12-speed,manual
Remarks:	New Isuzu GIGA cabin chassis

Inquire Now Next Product

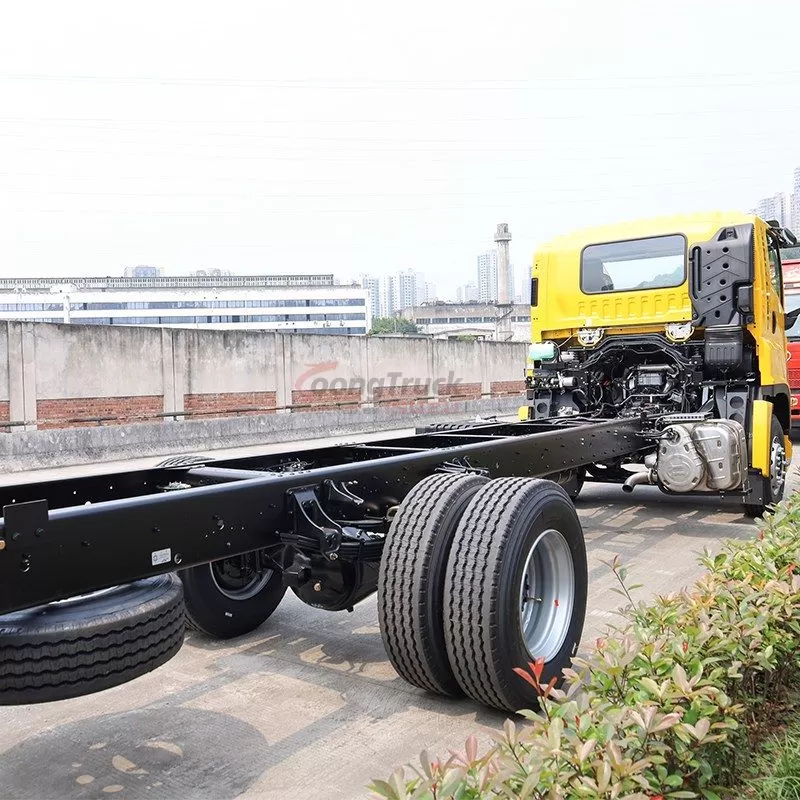

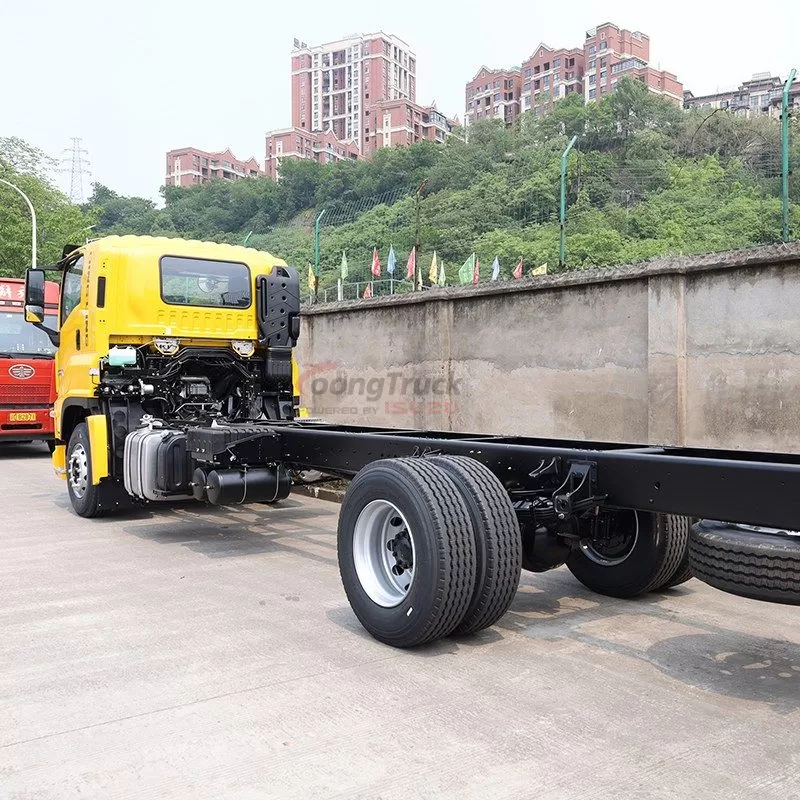

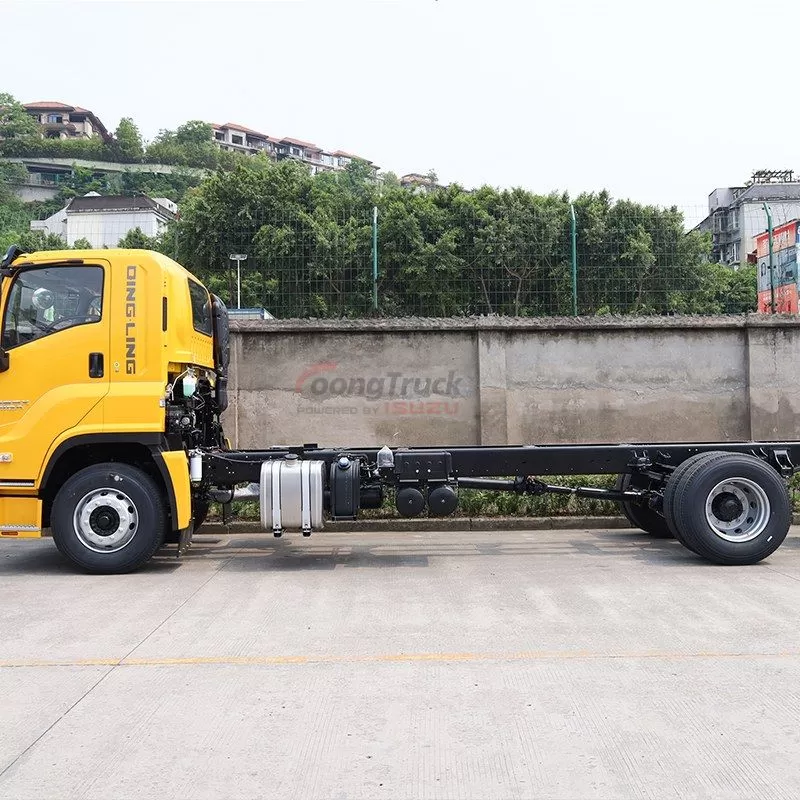

VC66 GIGA CHASSIS Parameters

General information

Chassis model

VC66

Wheelbase(mm)

5600

Drive Type

4X2

GVW (kg)

22000

Curb Weight (kg)

7200

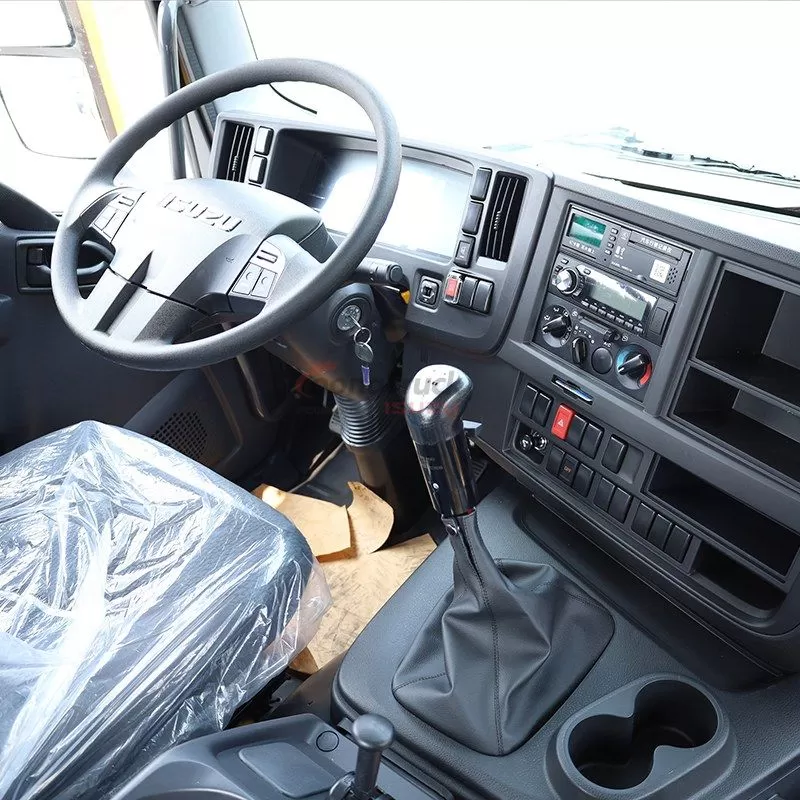

Cabin

Single cabin with sleeper

Driver and Passenger

Engine

Model

6UZ1-TCG61 380HP

Type

6 Cylinders in line,
high presure, electrical common-rail diesel fuel injection system,
water cooling , turbo charging, inter cooling.

Emission Standard

Euro 5/6

Displacement (L)

9.839L

Rated Power (kw/rpm)

279kW

Max. Torque (N.m/rpm)

1765/1000

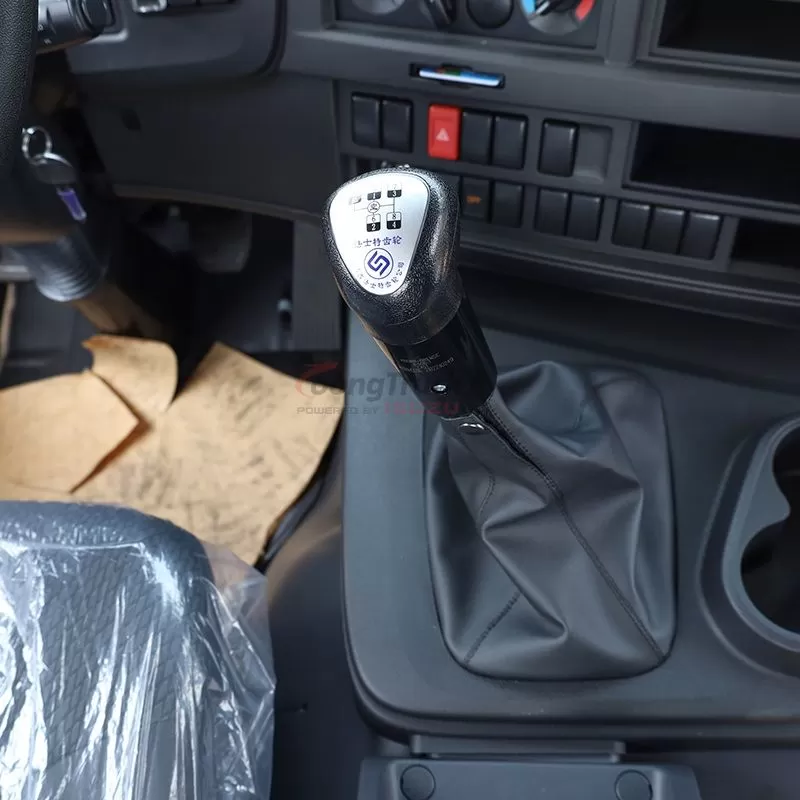

Transmission

Model

Manual, ZF8S2030TO

8 Forward + 2 Reverse

Brake System

Brake(Air/Oil)

Air brake

Parking brake

Air cut brake valve

Max. Speed (km/h)

100

Standard Configuration

Tires

385/65R22.5 20PR

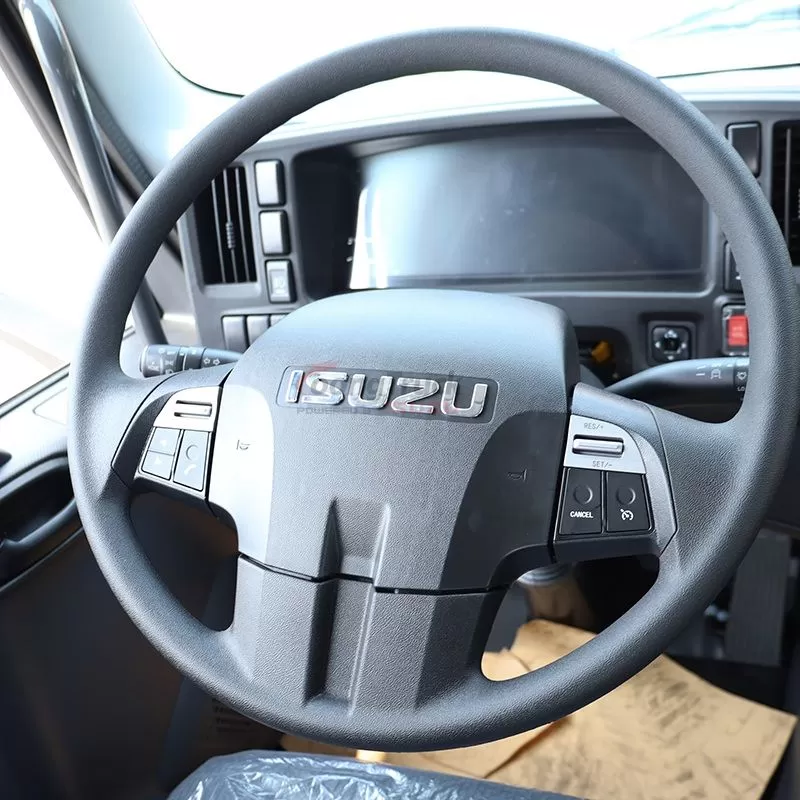

Power steering

YES

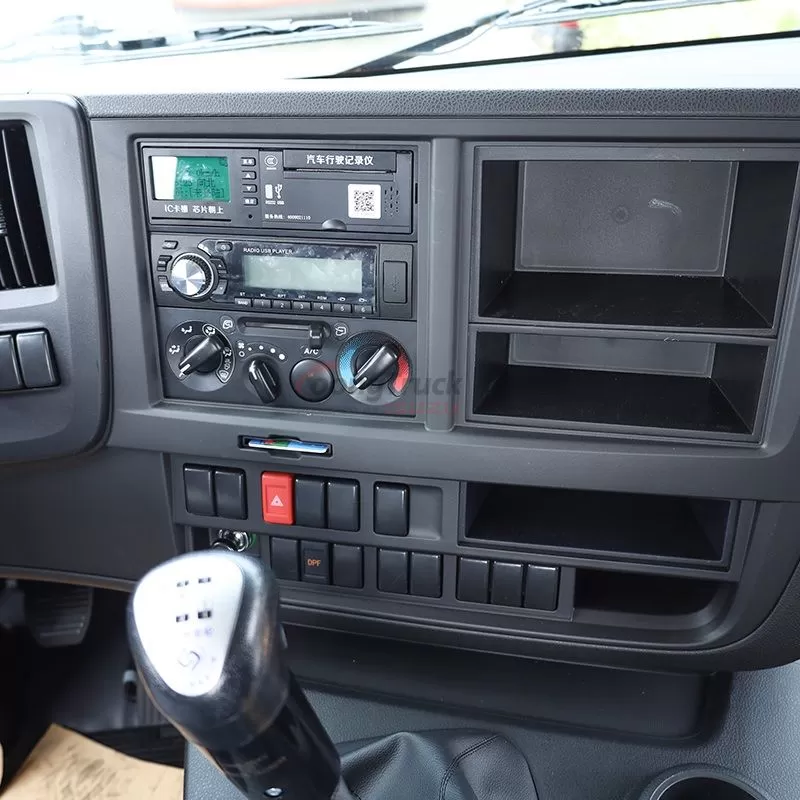

Radio

YES

ABS

YES

A/C

YES

Tilted cabin

YES

Central lock

YES

Electric window

YES

Retarder

YES

Aluminum alloy wheels

YES

Deflector

YES

Dimensions

Length OAL (mm)

8865

Width OW (mm)

2540

Height OH (mm)

3080

Front Tread AW (mm)

2140

Rear Tread CW (mm)

1855

1. ● means standard configuration. means option configurtaion
2. All above information is for reference only, and will be updated timely without notice;
3. The listed models are part of the full products range, any special request will be available on request.
