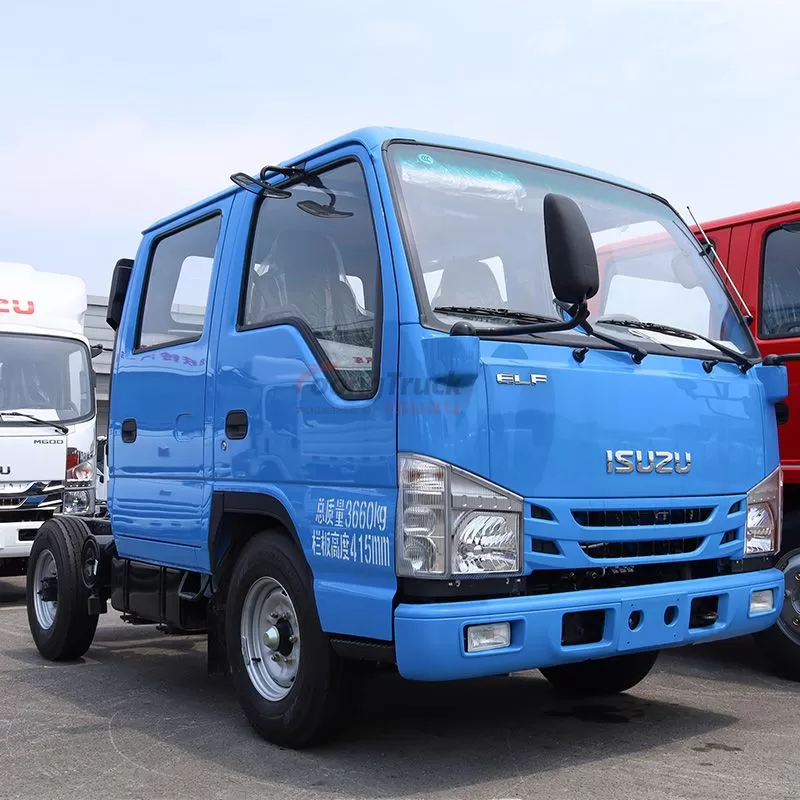

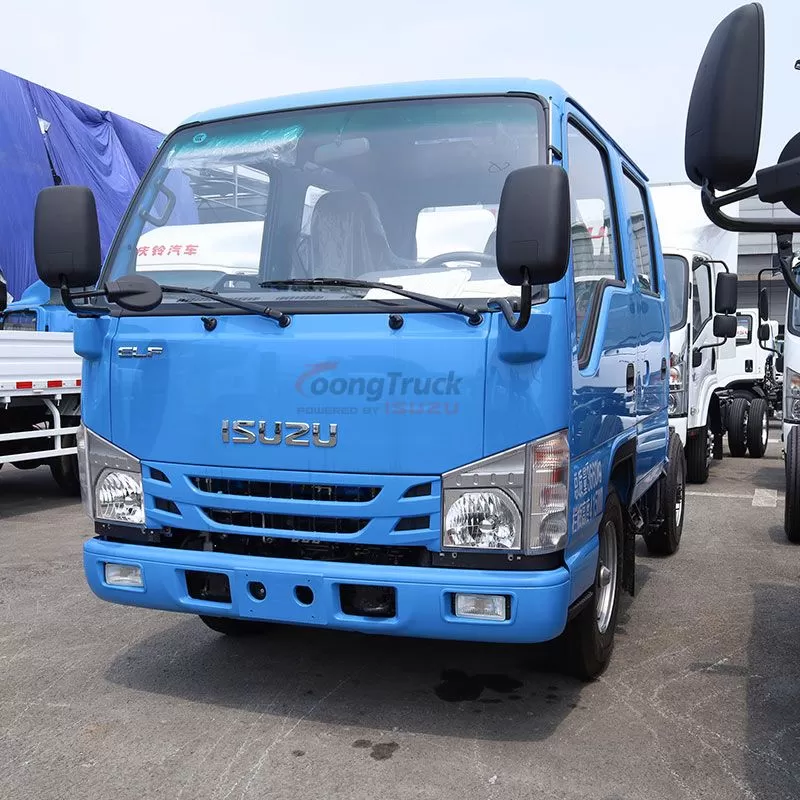

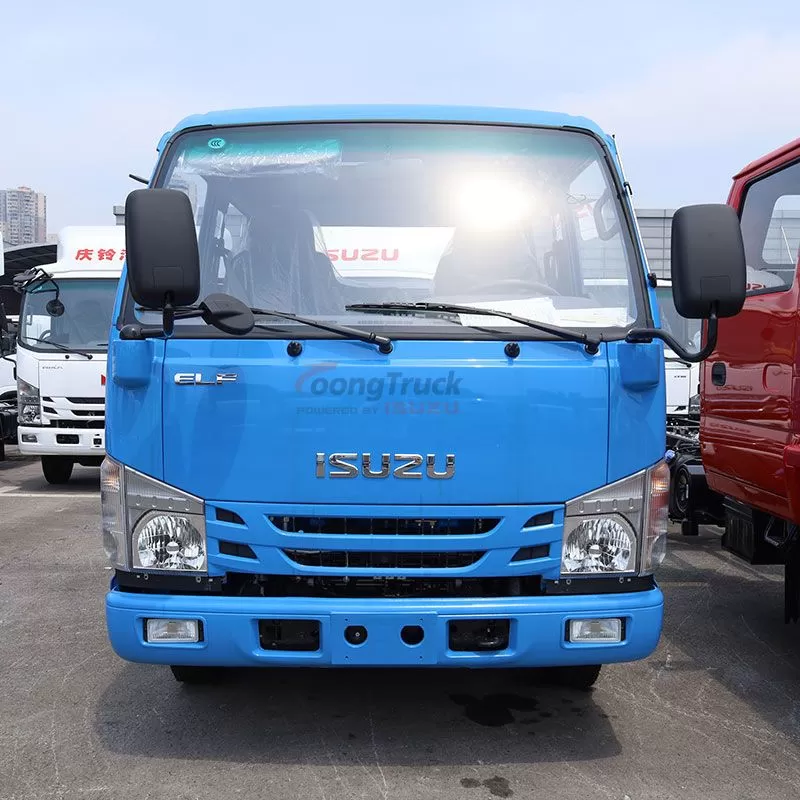

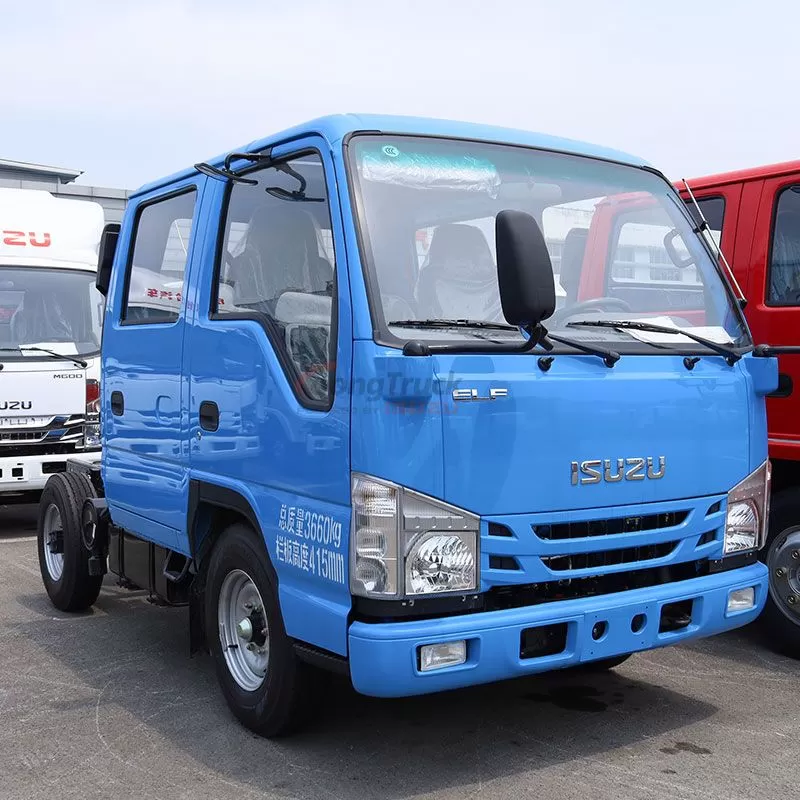

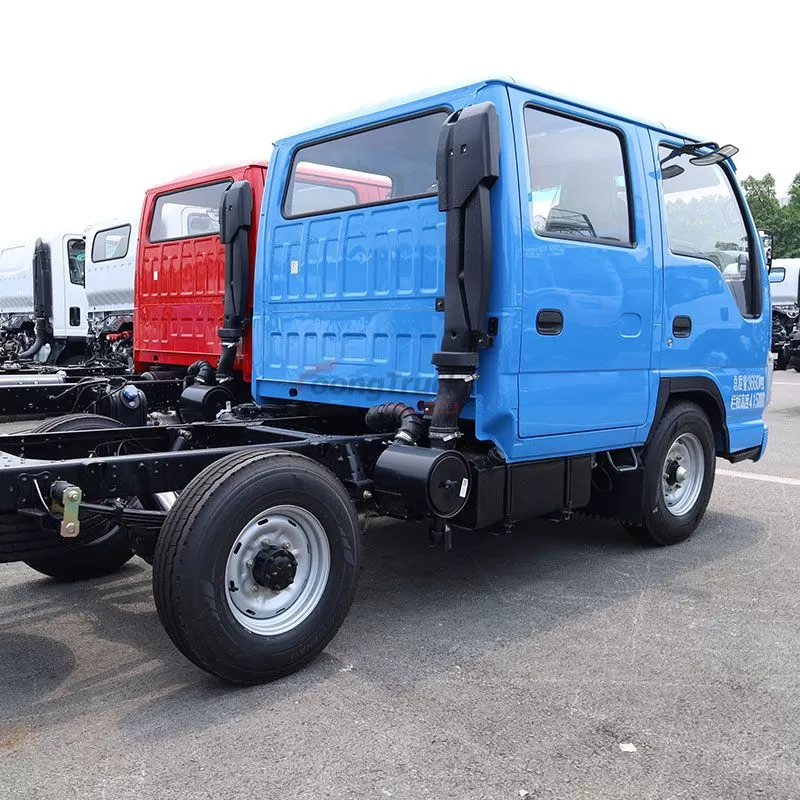

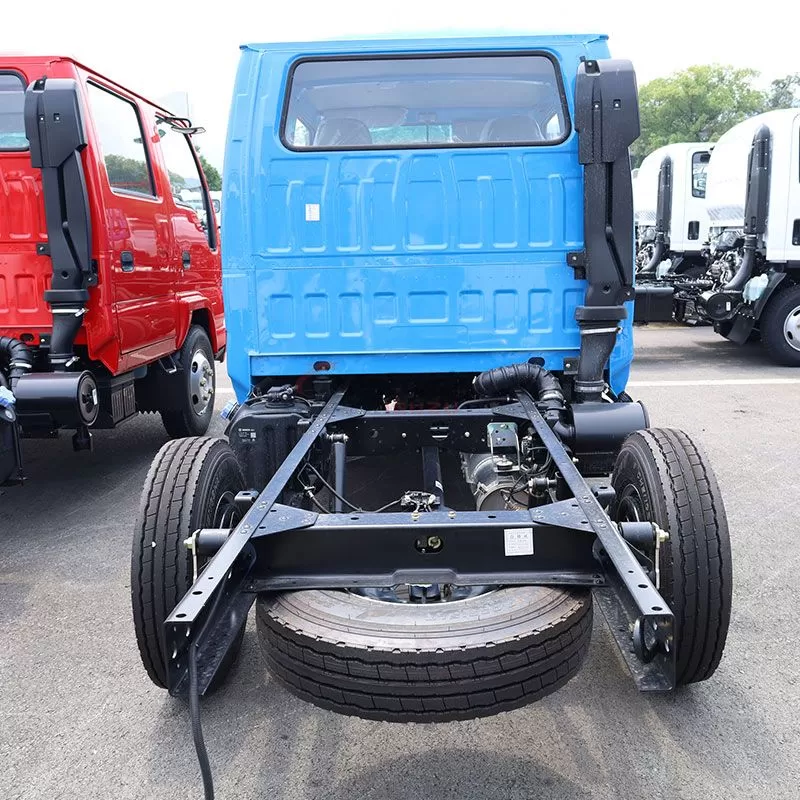

Isuzu Truck Chassis

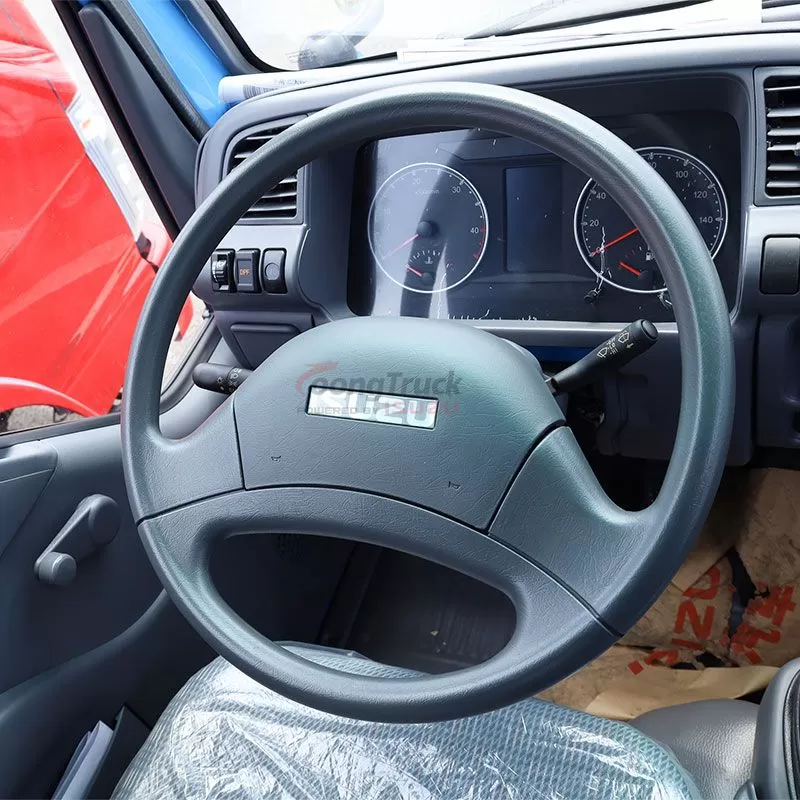

This 100P chassis is equipped with 120HP 4KH1CN6LB engine, manual MSB-5 transmission with 5 forward gears and 1 reverse gear, newly developed chassis with 2 seats, wheelbase 3360mm, GVW 7020kg; multi-function steering wheel, rear view camera, modern body design, low fuel consumption, low maintenance cost,highly manoeuvrable.
| Work capacity: | 1～4tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu 100P light truck chassis |
100P Light Chassis Truck Parameters
| MODEL | ISUZU 100P NKR DOUBLE Cabin CHASSIS(LHD) | |||||||||
| GENERAL INFORMATION 总体信息 | GVW (kg) | 7020 | ||||||||
| Curb Weight (kg) 整备质量 | 3360 | |||||||||
| Payload (kg) 载重 | 2250 | |||||||||
| 发动机 Engine | Model 型号 | Isuzu 4KH1CN6LB | ||||||||
| Displacement (L) 排量 | 3 | |||||||||
| Max. Power (kw/rpm) 发动机功率 | 120hp | |||||||||
| Number of cylinder 缸数 | 4 Cylinders | |||||||||
| Injection system 喷射系统 | Electrical injection | |||||||||
| Emission Standard 排放标准 | Euro 6（Cancel all post-treatment (no AdBlue, no SCR, no DPF) | |||||||||
| Cabin 驾驶室 | Cabin 驾驶室 | Double Cabin | ||||||||
| Passengers 乘坐人数 | 2+3 | |||||||||
| CHASSIS 底盘 | Drive Type 驱动形式 | 4X2 | ||||||||
| Brake 制动方式 | oil brake | |||||||||
| Transmission变速箱 | Transmission变速箱 | MSB-5S | ||||||||
| Tire 轮胎 | Standard 型号 | 7.00R16LT 14PR | ||||||||
| 配置CONFIGURATION | Power steering 动力转向 |  YES | ||||||||

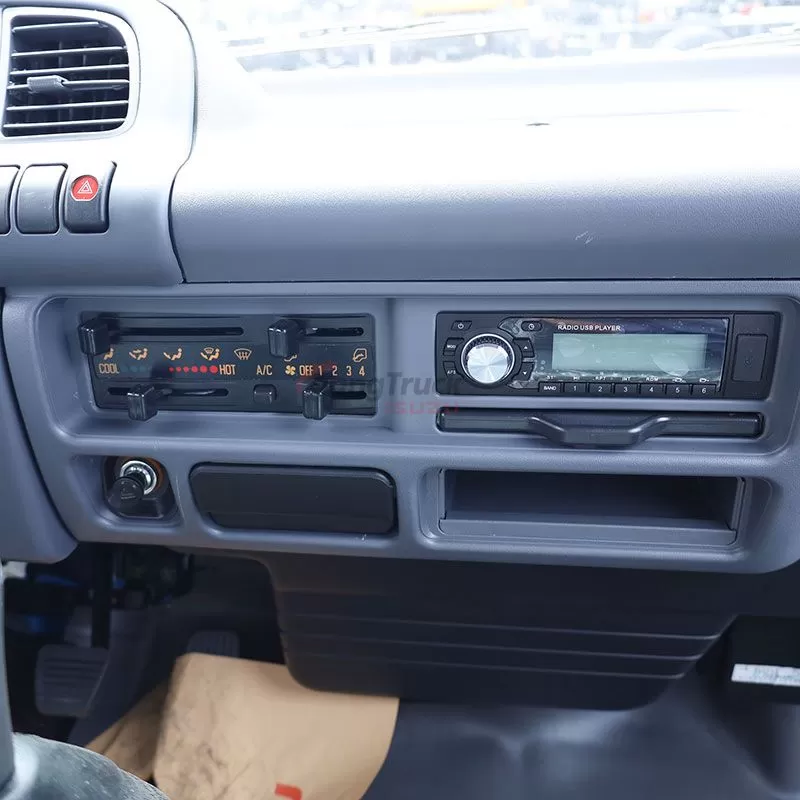

| Radio 收音机 | YES | |||||||||
| Central lock | YES | |||||||||
| Electric windows | YES | |||||||||
| A/C 空调 | YES | |||||||||
| ABS | YES | |||||||||
| CHASSIS DIMENSION | units：mm | |||||||||
| Dimension 尺寸 | Wheelbase/WB 轴距 | 3360 | ||||||||
| Overall Length/OAL 整车长度 | 5900 | |||||||||
| Overall Width/OW 整车宽度 | 1880 | |||||||||
| Overall Height/OH 整车高度 | 2220 | |||||||||
| Front wheel distance 前轮距 | 1504 | |||||||||
| Rear wheel distance 后轮距 | 1425 | |||||||||
