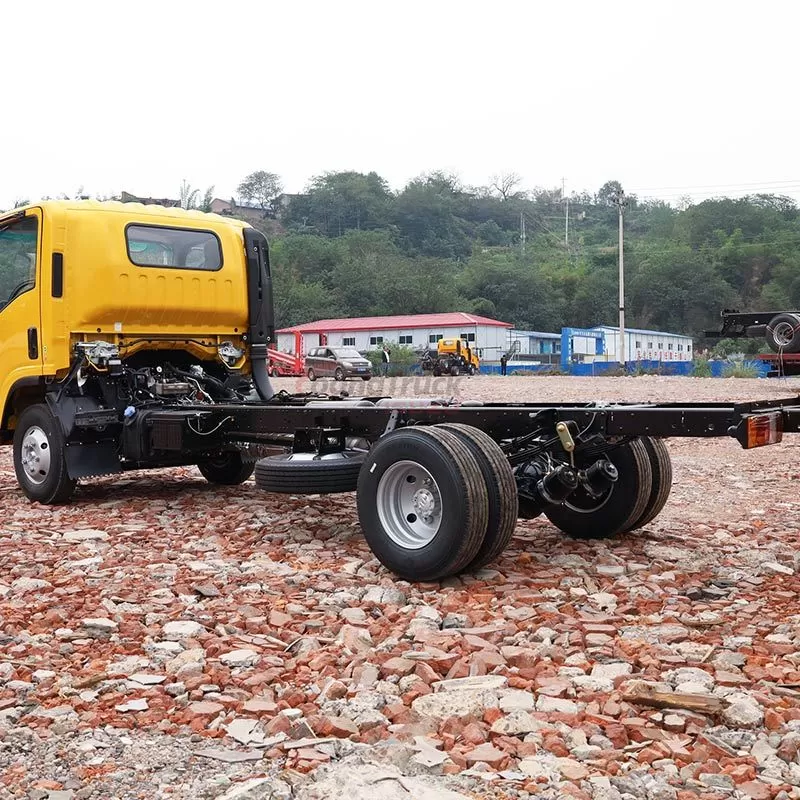

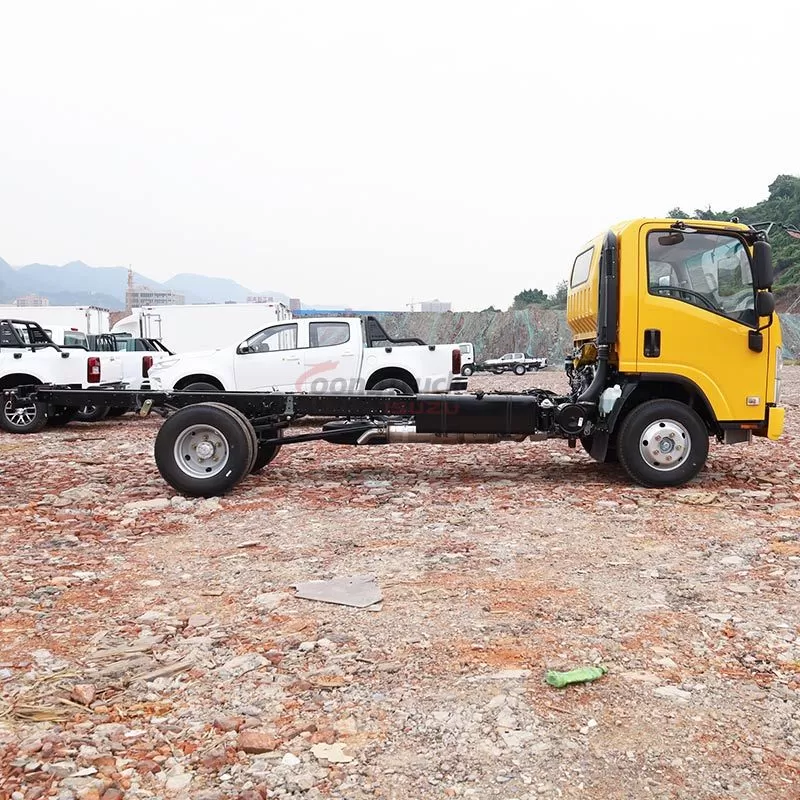

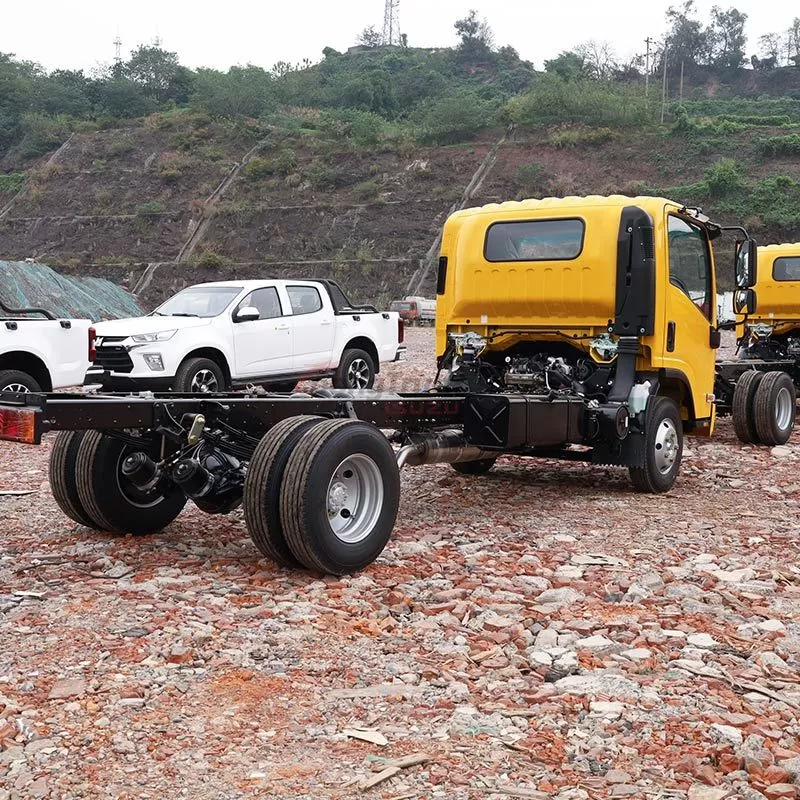

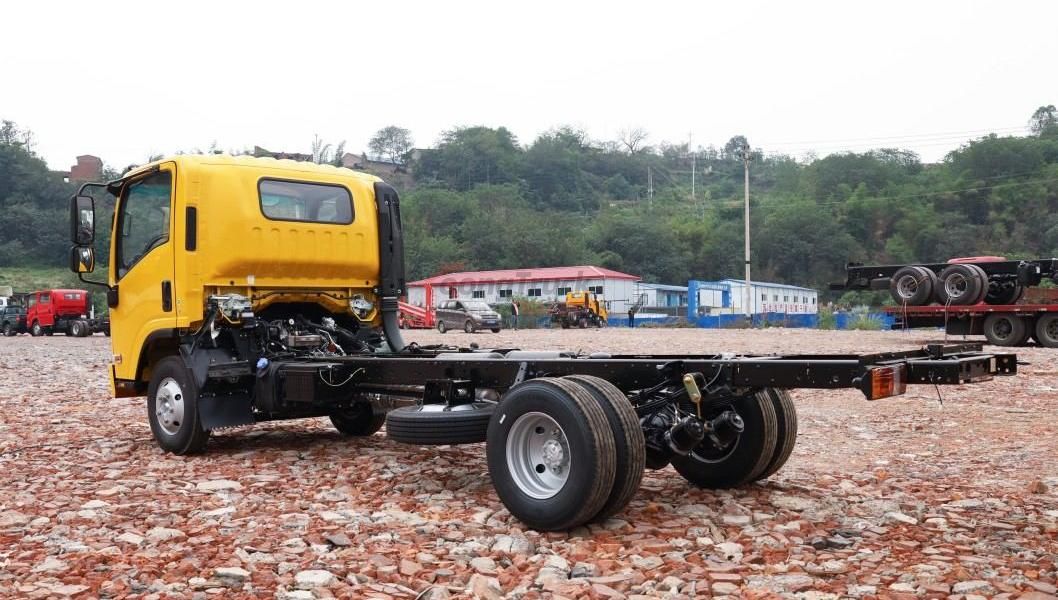

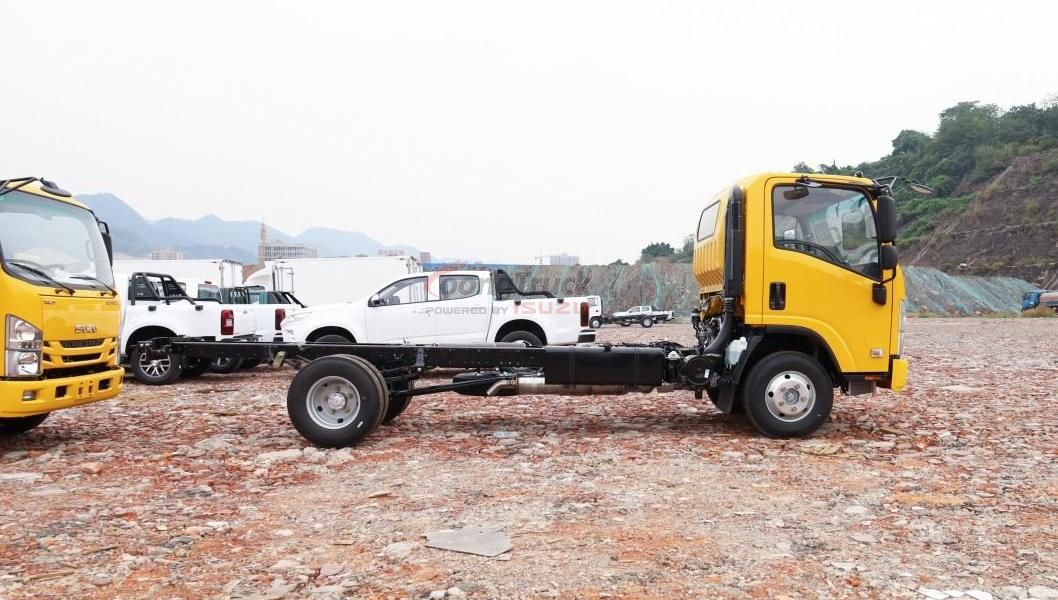

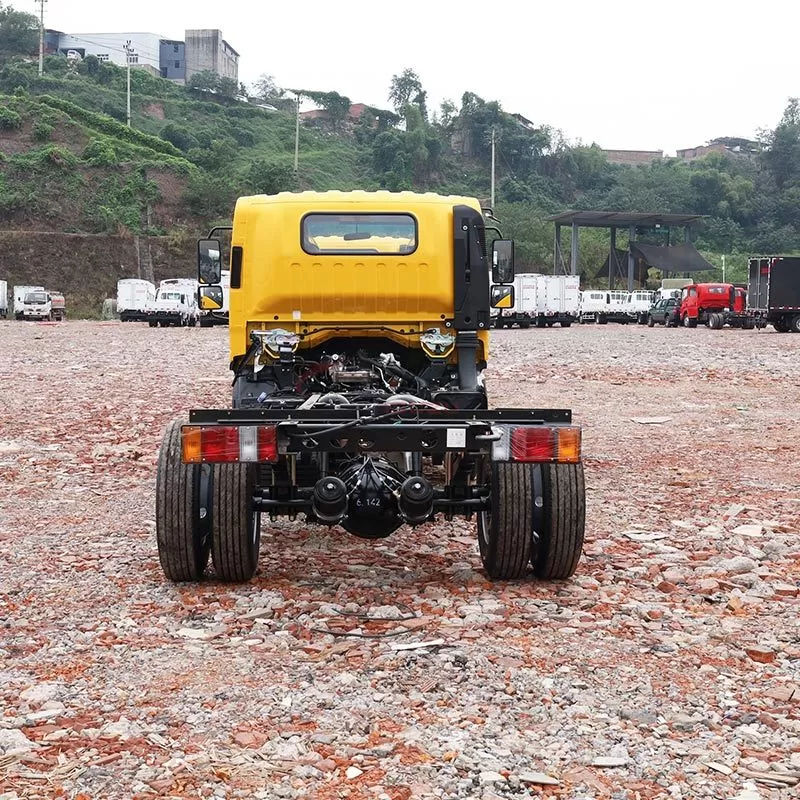

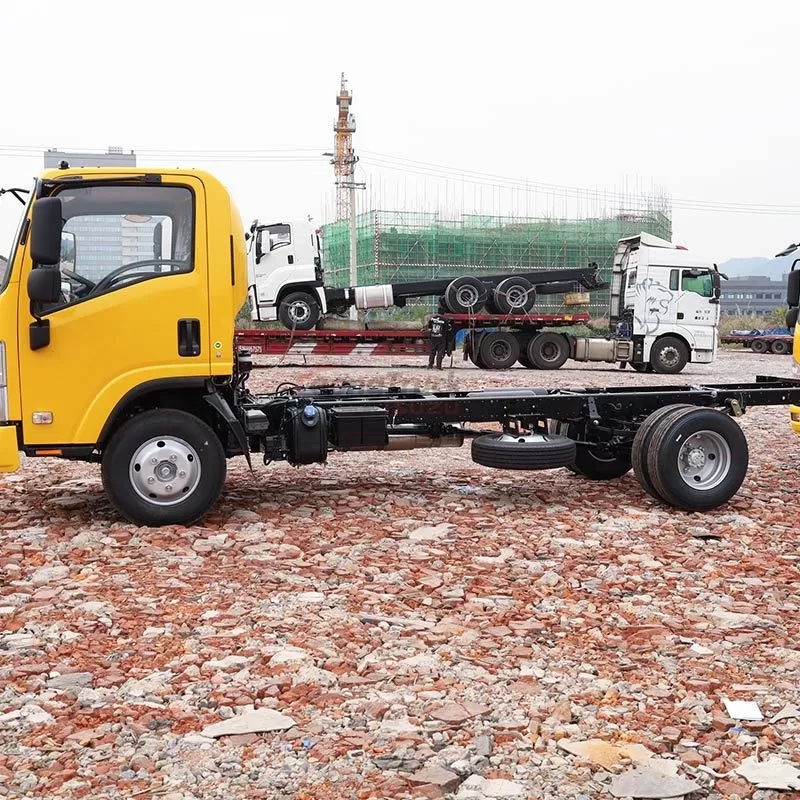

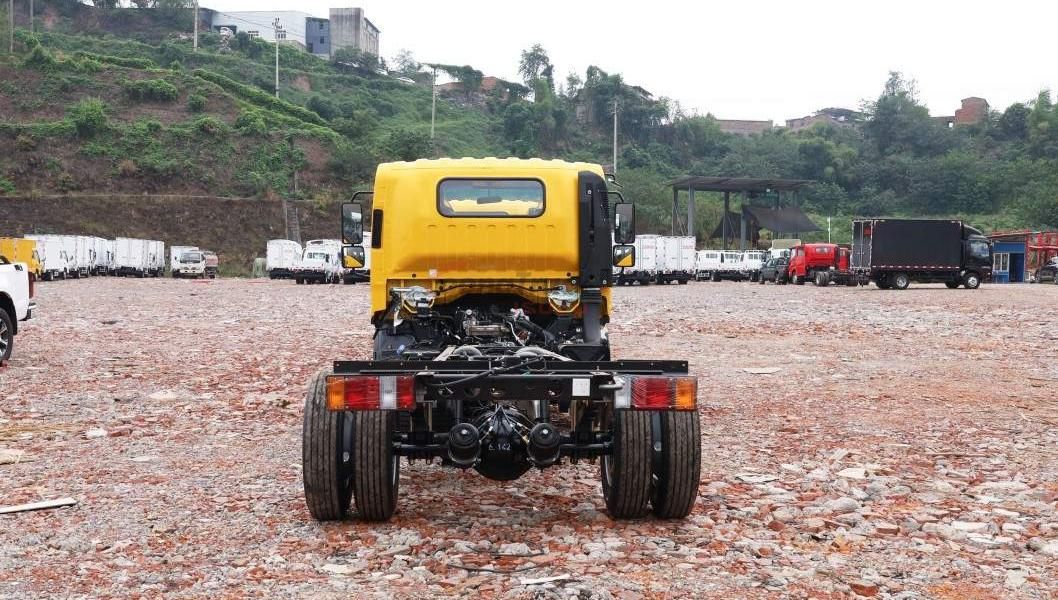

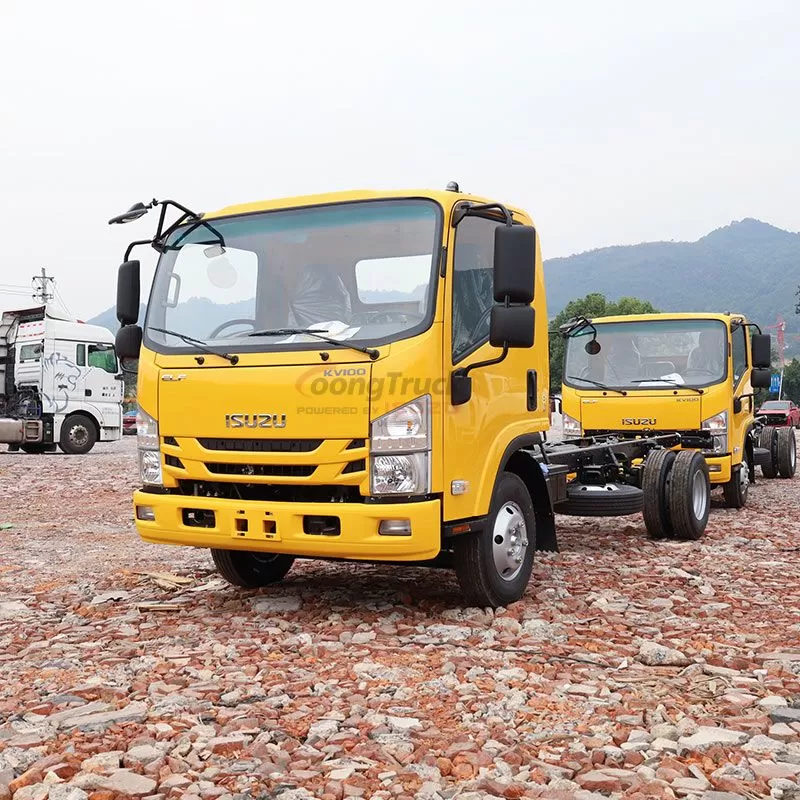

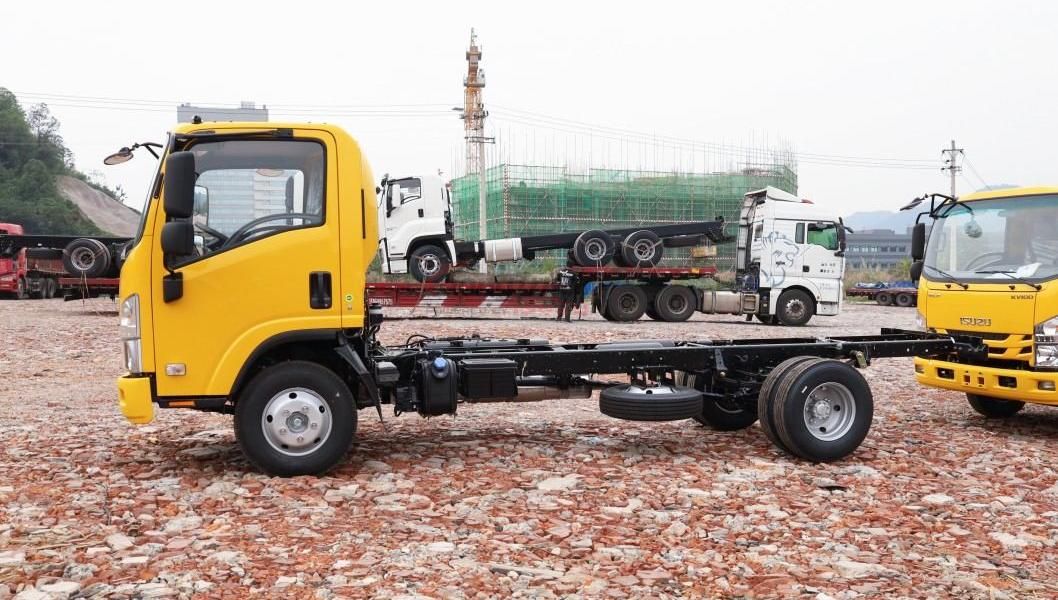

Isuzu Truck Chassis
Model: Isuzu KV100/KV600
| Vehicle Type: | LHD Truck |
| Payload Capacity: | 3.6-8.3T |
| Engine Model: | 4KH1CN6LB/Optional 4KH1N6MD |
| Engine Power: | 88kw/120hp Optional 103kw/140hp |
| Max. Torque: | 290N.m/Optional 360N.m |
| Transmission: | Manual, 5 Forward + 1 Reverse |
| Drive: | 4x2 |
PRODUCT DETAILS
Isuzu KV100 light cargo truck with 4KH1 engine also called Isuzu KV100 chassis,Isuzu KV100 light-duty chassis,Isuzu KV100 NPR caogo truck chassis,Isuzu 120HP KV100 light truck chassis,Isuzu KV100 3x cabin truck chassis, is an economical, practical, efficient and reliable light commercial vehicle chassis, suitable for urban freight and short-distance delivery business. The 120-horsepower powertrain provides strong power support for the vehicle, and the lightweight structural design improves the operating efficiency and fuel economy of the vehicle. The chassis has stable control, comfortable driving, excellent safety performance and reliability, and is favored by the majority of users. Isuzu KV100 light cargo truck with 4KH1 engine provides users with a reliable and efficient commercial transportation solution, injecting vitality and innovation into the urban logistics and transportation industry.
Isuzu KV100 3x cabin truck chassis is a high-quality chassis designed for light commercial vehicles. It combines Isuzu's years of technical accumulation and commercial vehicle market demand to provide users with efficient and reliable transportation solutions. The KV100 chassis is equipped with a 120-horsepower powertrain, has excellent handling and stability, and is very suitable for short-distance urban distribution and freight business.
| For Body Length (M) Reference | 3.4 | 4.2 | 4.3 | 5.1 | |||||
| General Information | Wheelbase(mm) | 2765 | 3360 | 3365 | 3815 | ||||
| GVW (kg) | 7120 | 7300 | 8280 | 7300 | |||||
| Curb Weight (kg) | 2170 | 2300 | 2560 | 2350 | |||||
| Max Speed (km/h) | 95/100/105/115 | ||||||||
| Engine | Model | 4KH1CN6LB/Optional 4KH1N6MD | |||||||
| Displacement (L) | 2.999 | ||||||||
| Max. Power (kw/hp) | 88kw/120hp Optional 103kw/140hp | ||||||||
| Max. Torque (N.m) | 290N.m/Optional 360N.m | ||||||||
| Number of Cylinder | 4 | ||||||||
| Emission Standard | Euro3/Euro4/Euro5/Euro6 | ||||||||
| Fuel Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | ||||||||
| Cabin | Cabin | Single/ Optional Single Cabin with Bed | |||||||
| Passengers | 3 | ||||||||
| Chassis | Drive Type | 4x2 | |||||||
| Brake | Oil Brake/Air Brake | ||||||||

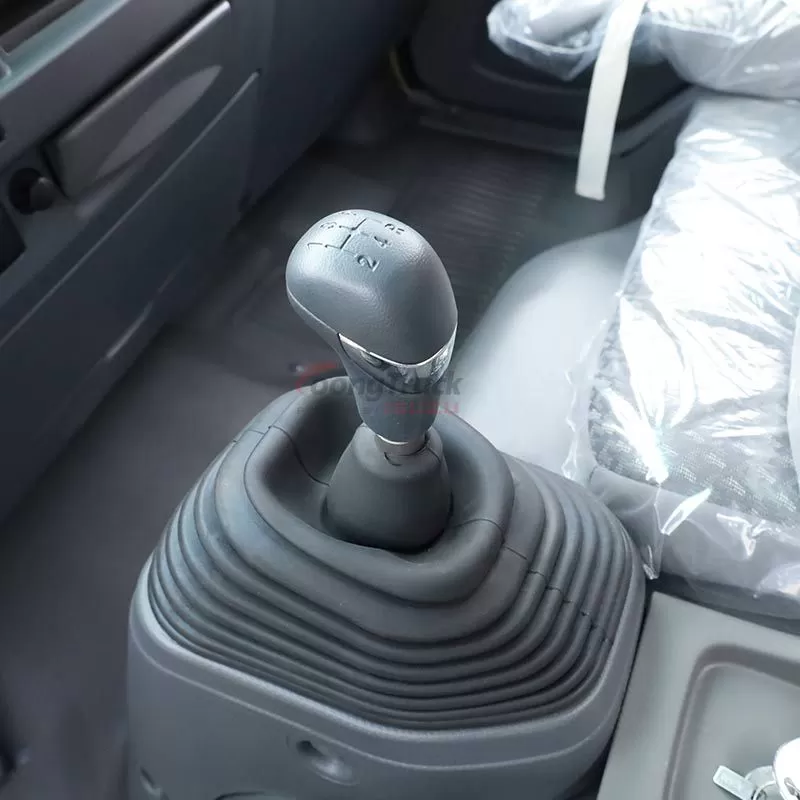

| Transmission | Type | Manual, 5 Forward + 1 Reverse | |||||||
| Tire | Number of Tires | 6 | |||||||
| Standard | 7.00R16LT 14PR | ||||||||

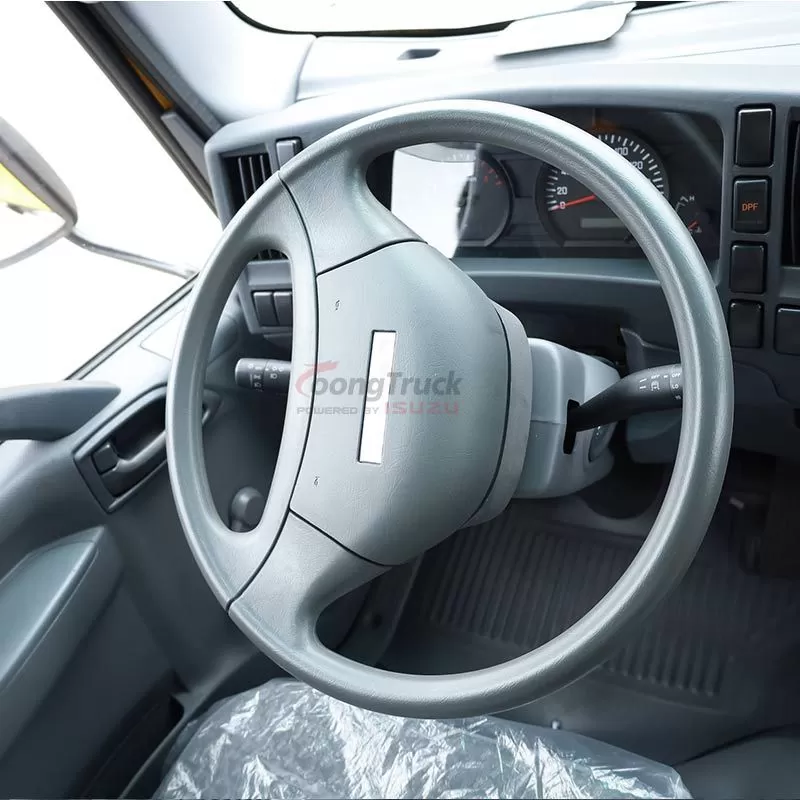

| Standard Configuration | Power Steering | ● | |||||||
| Radio | ● | ||||||||
| Seat Belts | ● | ||||||||
| ABS | ● | ||||||||
| A/C | ● | ||||||||
| Electric Window | ● | ||||||||
| Central Lock | ● | ||||||||
| Tilt Cab | ● | ||||||||
| Option Configuration | MP5 Touch Screen | ○ | |||||||
| Remote Control Key | ○ | ||||||||
| Deflector | ○ | ||||||||
| CHASSIS DIMENSION | units：mm | ||||||||
| Dimensions | Wheelbase/WB | 2765 | 3360 | 3360 | 3815 | ||||
| Overall Length/OAL | 5325 | 5995 | 5875 | 6760 | |||||
| Overall Width/OW | 2030 | 2030 | 2130 | 2030 | |||||
| Overall Height/OH | 2280 | 2280 | 2315 | 2280 | |||||
| Front Tread/AW | 1685 | 1685 | 1690 | 1685 | |||||
| Rear Tread/CW | 1525 | 1525 | 1655 | 1525 | |||||
| 1. ● means standard configuration. ○ means have extra cost for optional 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range, any special request will be available on request. | |||||||||
The Isuzu 120HP KV100 light truck chassis is a chassis designed for light commercial vehicles. It is equipped with a 120-horsepower powertrain, has excellent handling performance and stability, and is suitable for short-distance urban freight and distribution operations. The chassis combines Isuzu's advanced technology and high-quality quality to provide users with efficient and reliable transportation solutions.

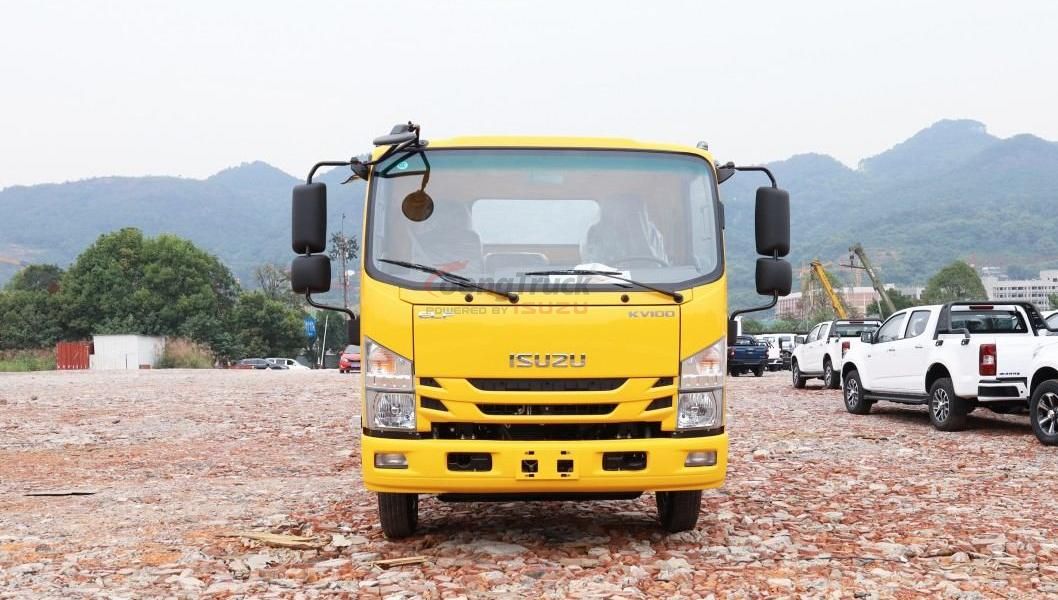

First of all, the Isuzu KV100 chassis focuses on lightweight and structural strength in design. The overall weight of the vehicle is light and the structure is sturdy and durable. The chassis is made of high-strength steel, which improves the safety and collision resistance of the vehicle and ensures that the vehicle can still maintain stable driving under harsh road conditions. The chassis structure is reasonably designed, which reduces the vehicle's air resistance and improves the vehicle's fuel economy and operating efficiency. The vehicle is a new N series light truck with a new cab shape, using headlight follow-up steering technology. The new NKR cab is more beautiful, comfortable and safe. The Isuzu KV100 cab is wider than the 100P, and the front seats are increased to 3.
Secondly, the KV100 chassis uses a 4KH1 engine with a 120-horsepower powertrain. The 4KH1 engine features an output power of 120 horsepower, adopts electronic injection, intercooling and supercharging technology, SCR/PDF post-processing system, and a supercharger with cooling device. It provides the vehicle with strong power output and reliable performance. The powertrain design is efficient, the acceleration is rapid, and the power output is linear and smooth, which can meet the operation needs of urban freight vehicles. The 120-horsepower powertrain strikes a balance between economy and power performance, has low fuel consumption and emission levels, meets the requirements of environmental protection and energy saving, and saves operating costs for users.

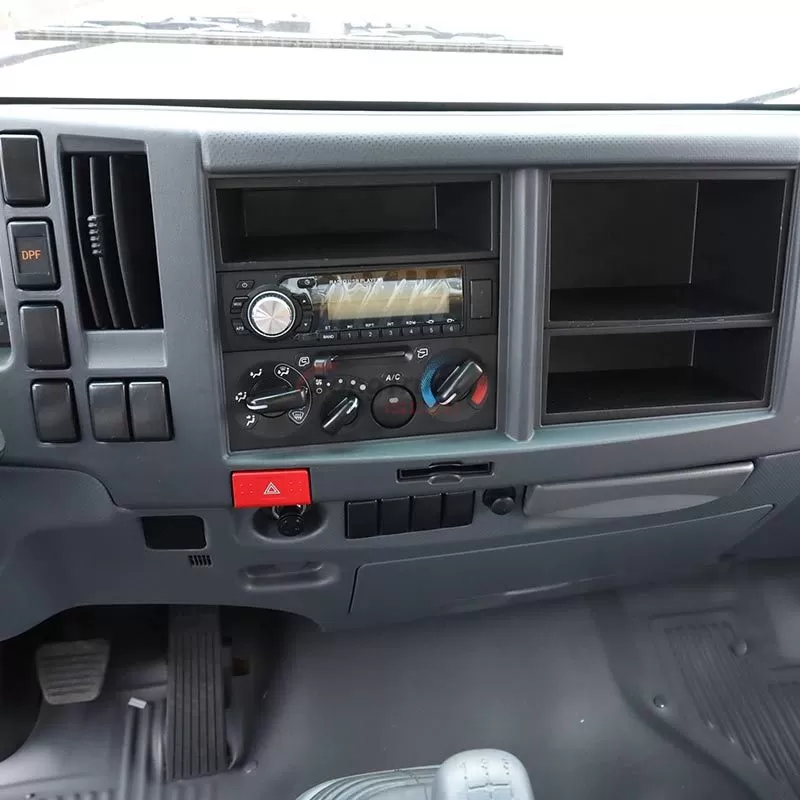

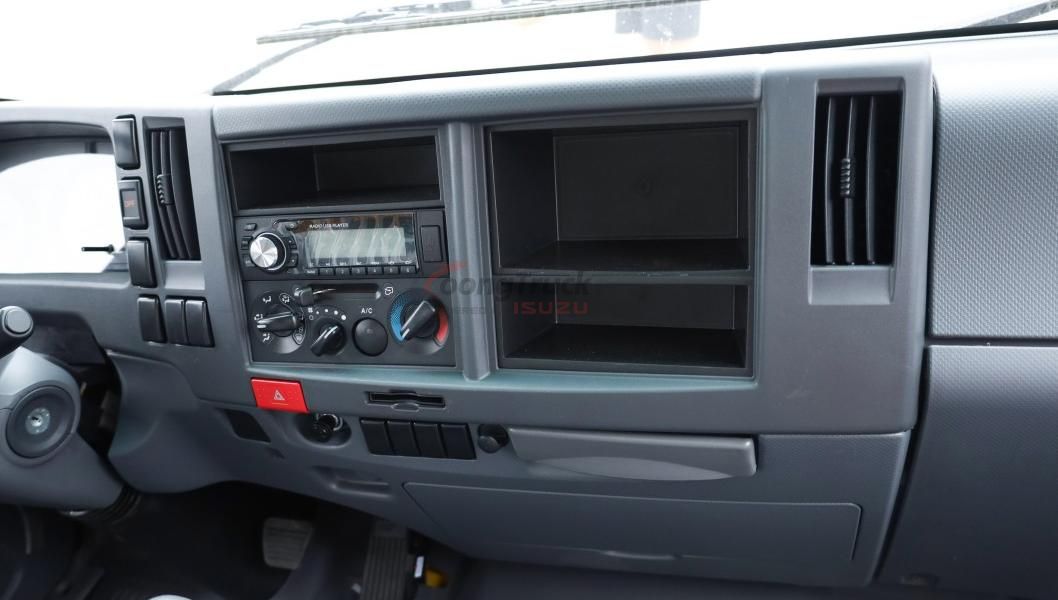

In addition, the Isuzu KV100 light-duty 120HP chassis has excellent handling performance and driving experience. The chassis suspension system is reasonably designed, and the vehicle's handling stability and comfort are improved by optimizing the suspension structure and shock absorption system. The cab design is spacious, the sitting position is comfortable, and it is equipped with comfortable seats and a humanized operating system, providing the driver with a good driving experience. The chassis is also equipped with advanced driving assistance systems such as ABS, EBD, vehicle stability control system, etc., which improve the safety and handling of the vehicle.
Finally, Isuzu KV100 cargo truck chassis have achieved low pollution and low fuel consumption throughout their life cycle, and the performance of the entire vehicle has been improved simultaneously, with lower noise, less shaking, and a quieter and more comfortable vehicle. In addition, the fuel consumption is low, and the fuel cost is 10%-15% lower than other vehicles with the same load capacity. It has high reliability and low maintenance costs. It complies with the development trend of environmental protection and energy saving, saving operating costs for users.
