Isuzu Truck Chassis
Model: Isuzu 700P
| Vehicle Type: | LHD Truck |
| Payload Capacity: | 8.1-11.4T |
| Engine Model: | 4HK1-TCG61 |
| Engine Power: | 190hp |
| Max. Torque: | 507N.m |
| Transmission: | MLD-6Q,6 Forward + 1 Reverse |
| Drive: | 4x2 |
PRODUCT DETAILS

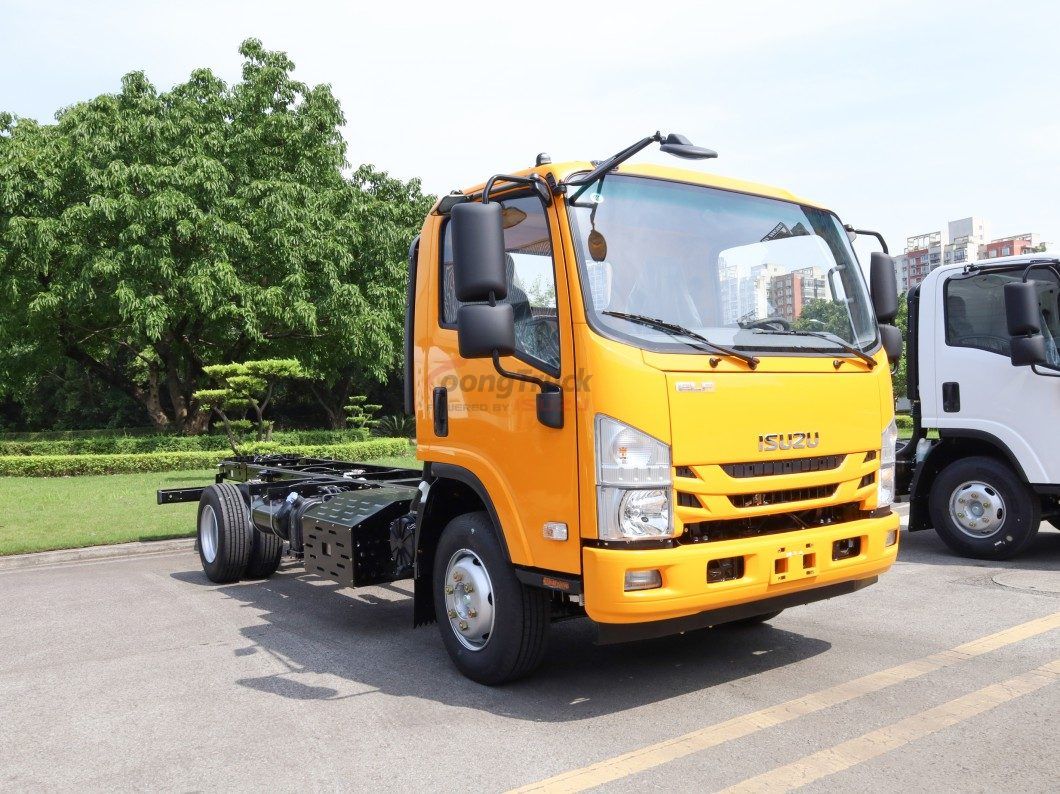

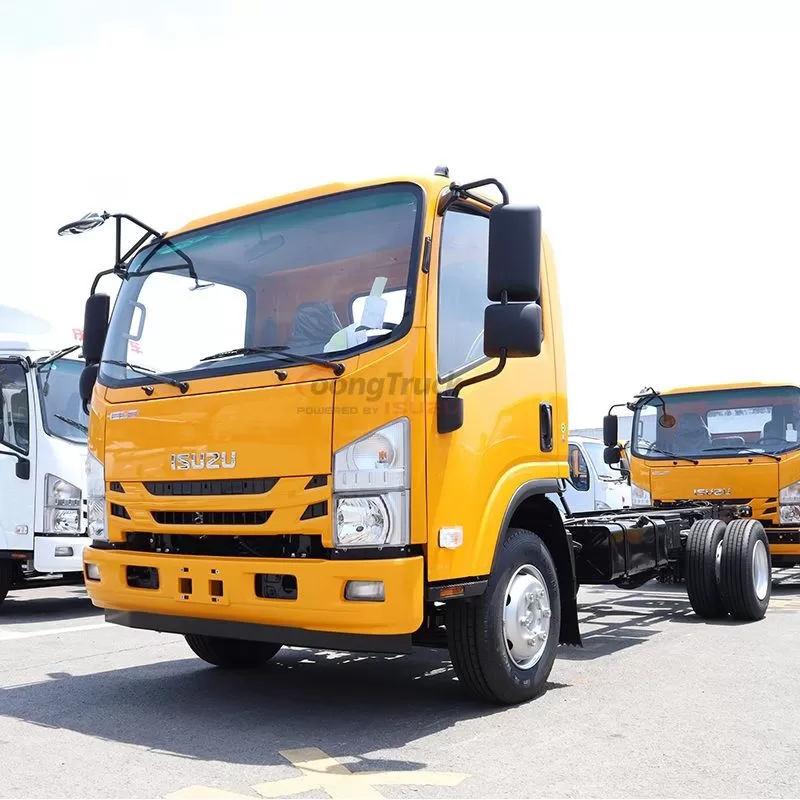

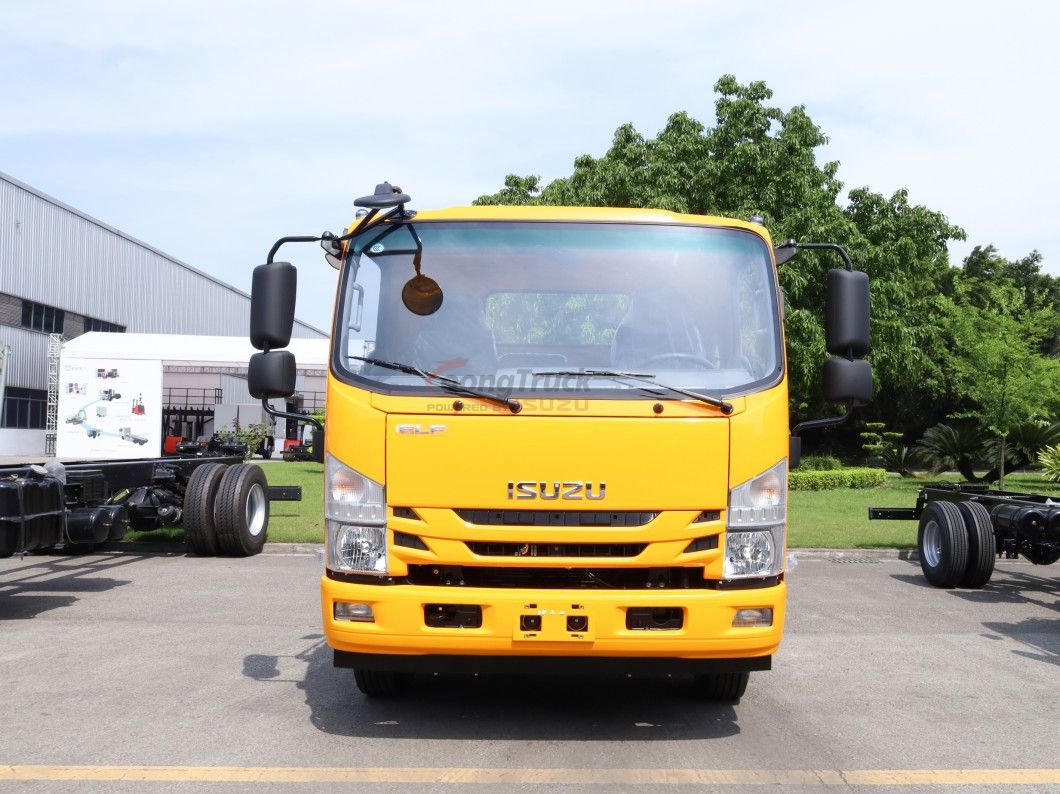

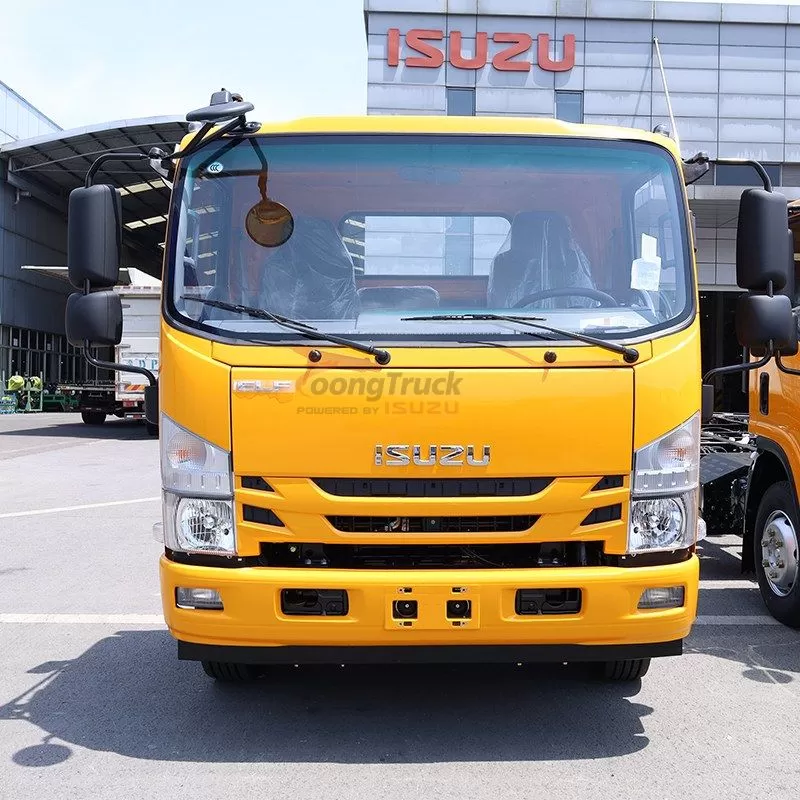

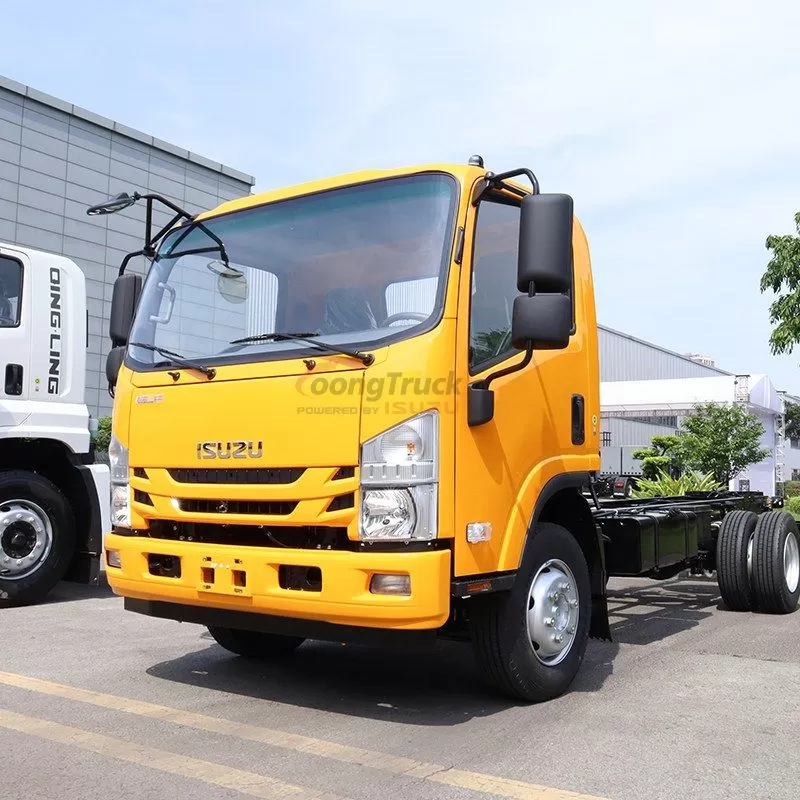

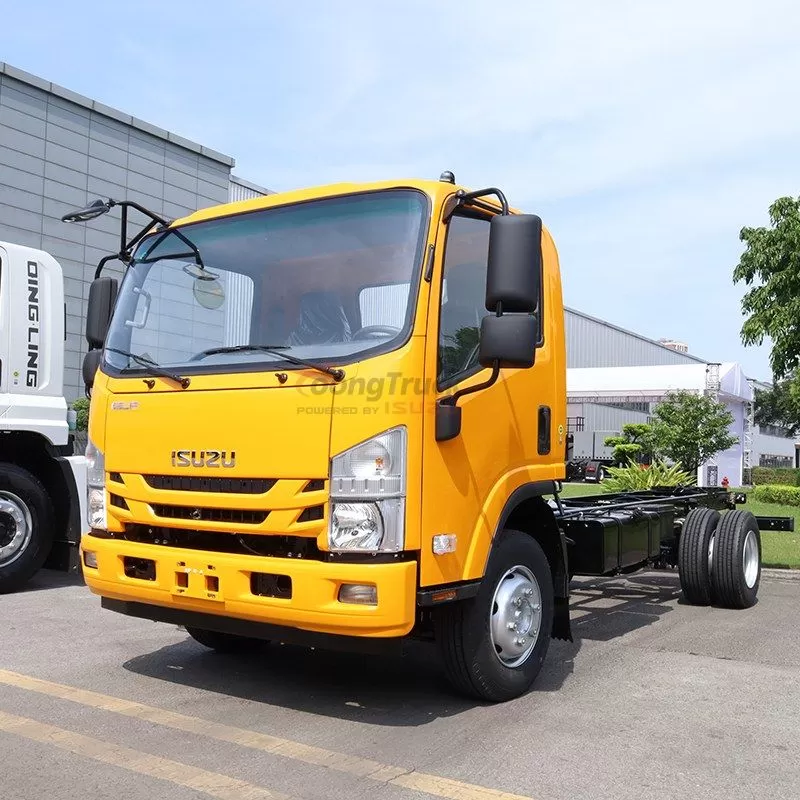

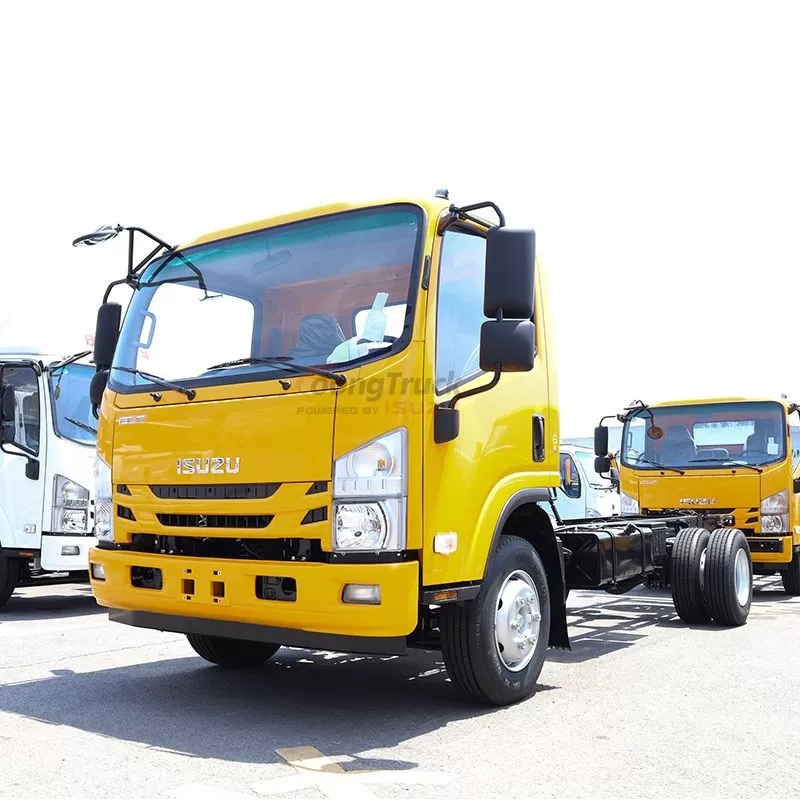

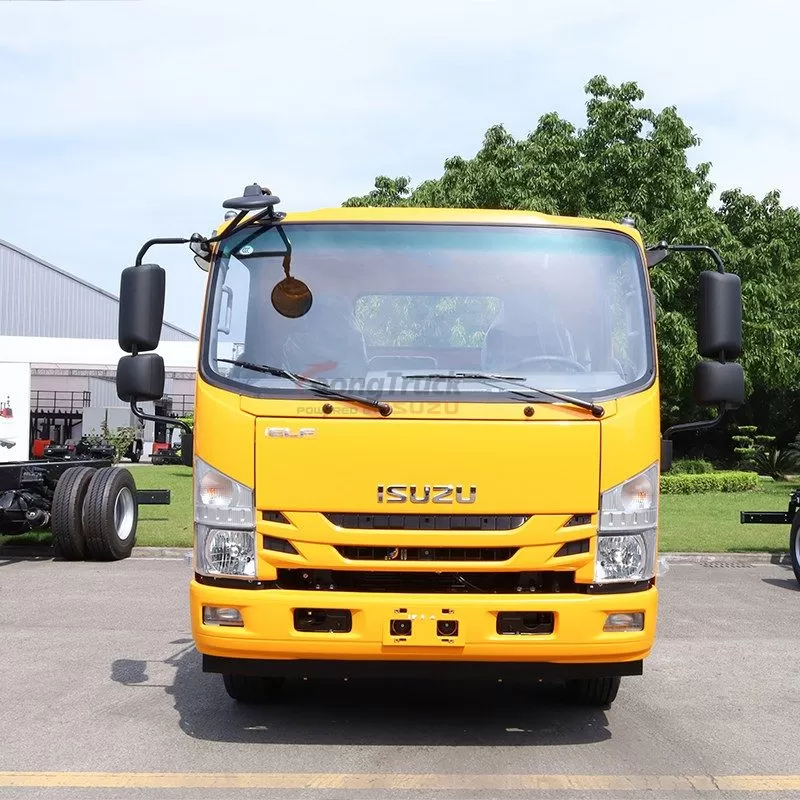

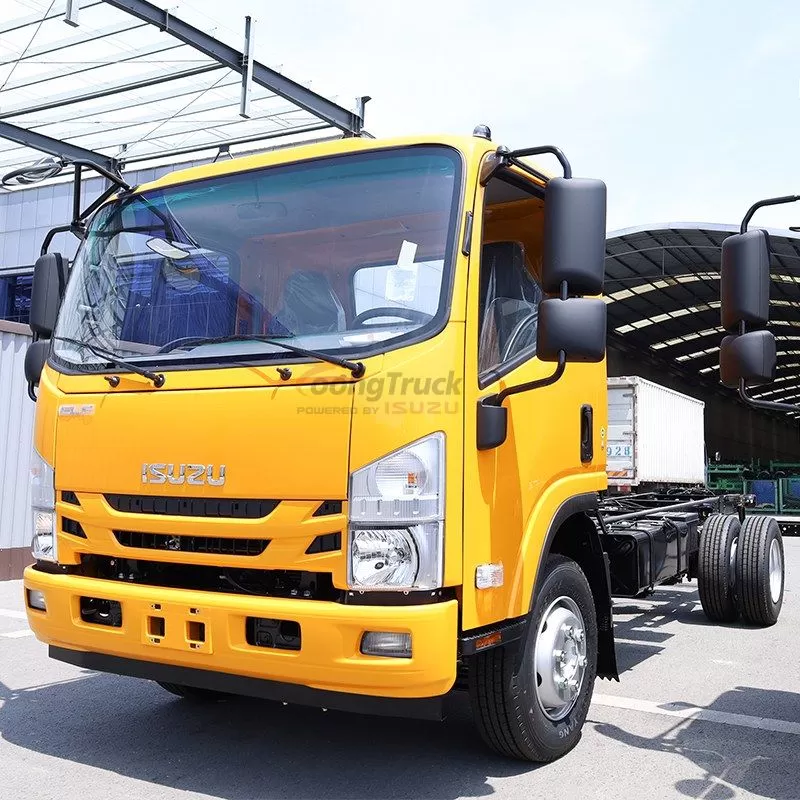

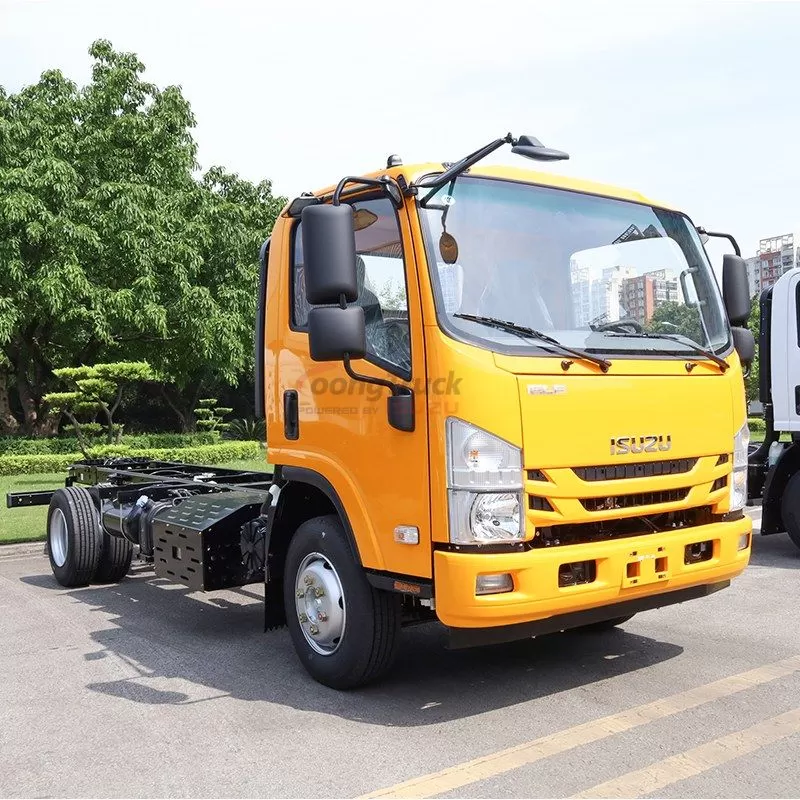

Isuzu ELF NPR 700P cargo truck chassis, also known as Isuzu 700P 4X2 cabin truck,Isuzu NPR truck chassis, has won wide acclaim in the field of cargo transportation for its outstanding performance and stability. This chassis is strong and durable, carrying the fine craftsmanship and excellent quality of the Isuzu brand. The Isuzu ELF NPR 700P cargo truck chassis is designed to efficiently handle large quantities of cargo. It supports the installation of different types of bodies, such as flatbed trucks, vans, refrigerated trucks, etc., to meet a wide range of transportation needs.

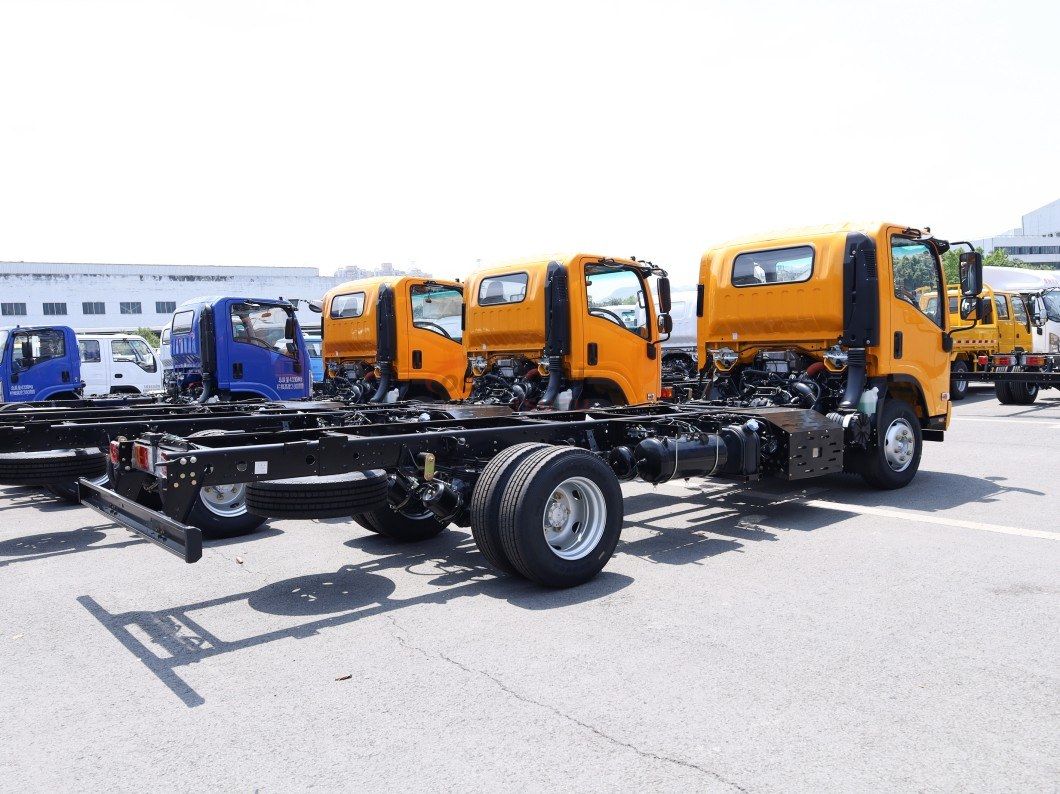

The chassis is exquisitely designed and compact, which not only ensures the overall stability of the vehicle, but also optimizes the cargo space, allowing it to carry more cargo. The steel is of high quality, and undergoes precision welding and heat treatment processes to ensure that the chassis can still maintain excellent durability and safety under high-strength and high-load working conditions.
In addition, the suspension system of the Isuzu ELF NPR 700P cargo truck chassis has also been carefully adjusted to ensure smooth driving while effectively absorbing the impact and vibration from the road, improving driving comfort. At the same time, its braking system has also been optimized to ensure rapid and effective braking in emergency situations to ensure driving safety.
| For Body Length (M) Reference | 7.5 | ||
| General Information | Wheelbase(mm) | 4175 | |
| GVW(kg) | 11100 | ||
| Curb Weight (kg) | 3420 | ||
| Max Speed (km/h) | 110 | ||
| Engine | Model | 4HK1-TCG61 | |
| Displacement (L) | 5.19 | ||
| Max Power (kw/hp) | 139kw/190hp | ||
| Max. Torque (N.m) | 507N.m | ||
| Number of Cylinder | 4 | ||
| Emission Standard | Euro3/Euro4/Euro5/Euro6 | ||
| Fuel Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | ||

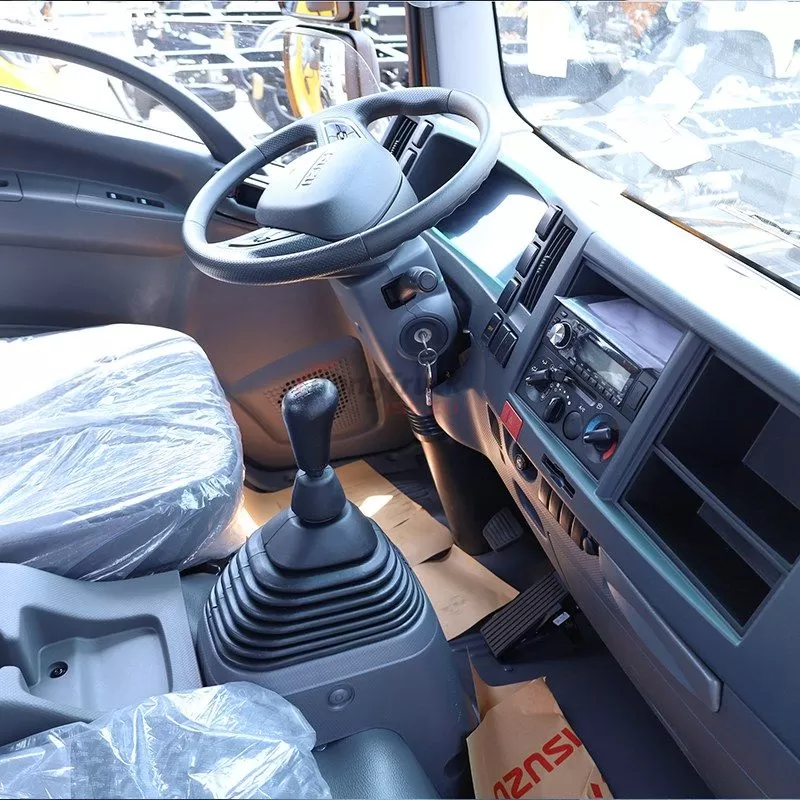

| Cabin | Cabin | Single Cabin | |
| Passengers | 3 | ||
| Chassis | Drive Type | 4x2 | |
| Brake | Air Brake | ||

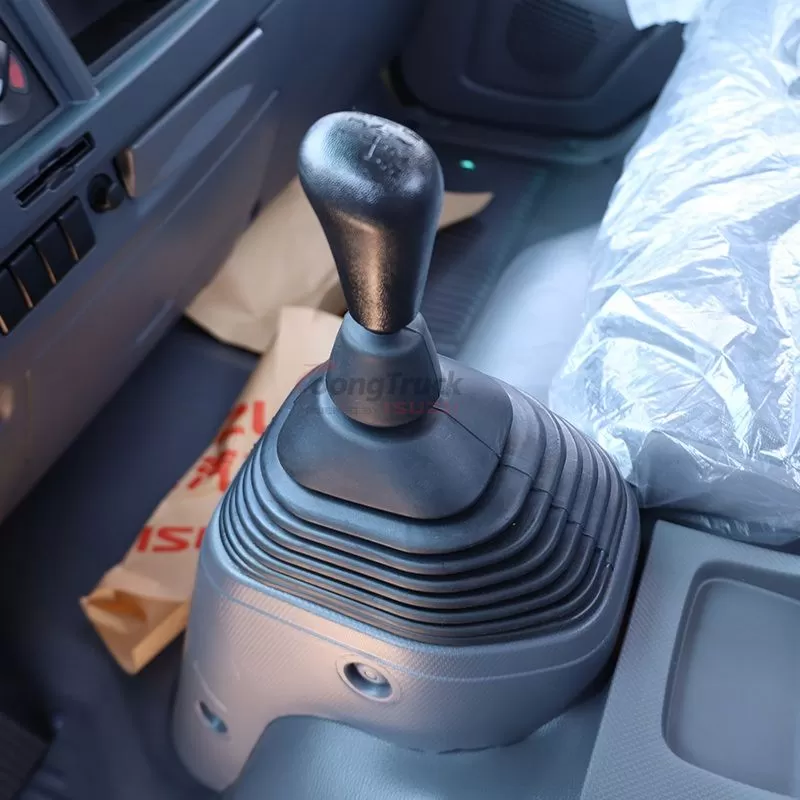

| Transmission | Type | MLD-6Q,6 Forward + 1 Reverse | |
| Tire | Number of Tires | 6 | |
| Standard | 235/75R17.5 16PR | ||

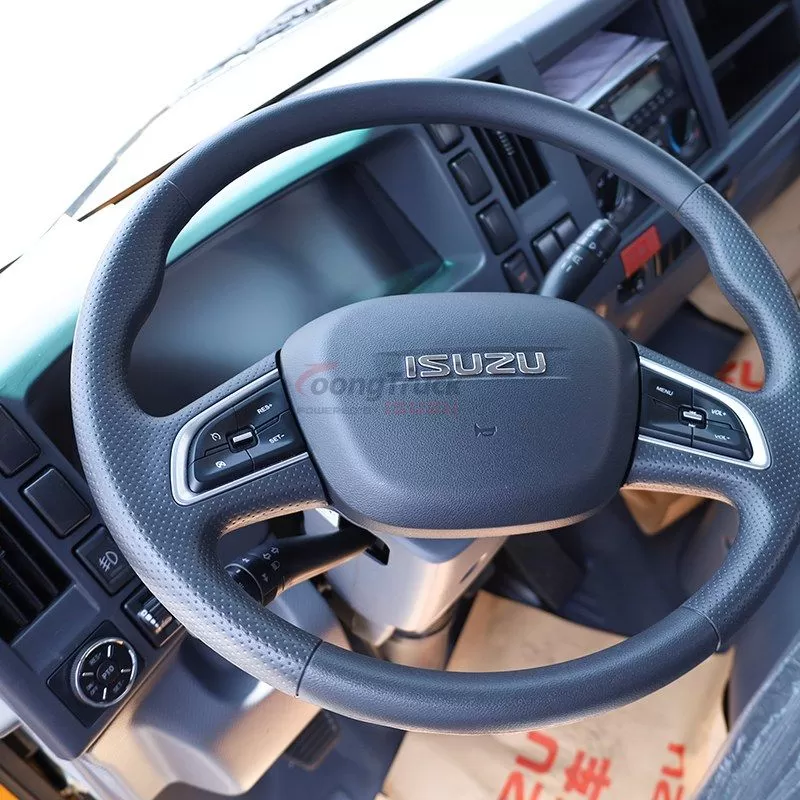

| Standard Configuration | Power steering | ● | |

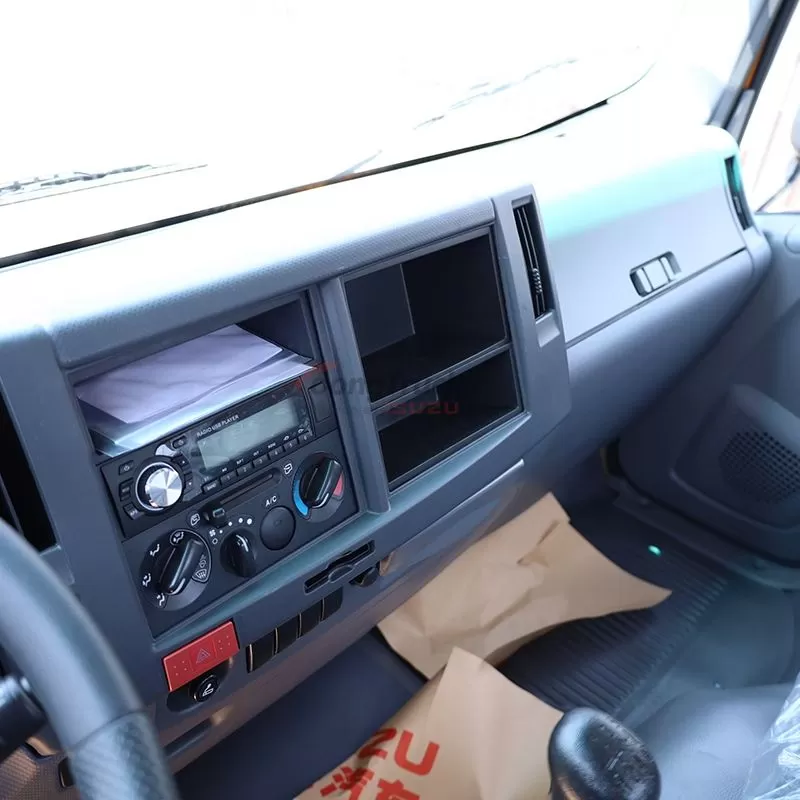

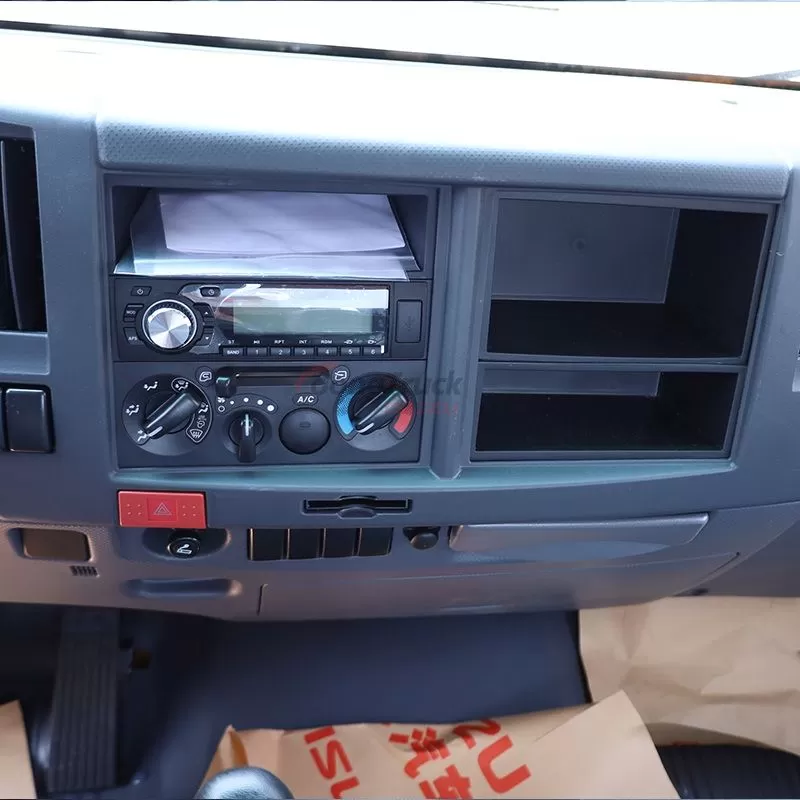

| Radio | ● | ||
| ABS | ● | ||
| A/C | ● | ||
| Tilted cabin | ● | ||
| Central lock | ● | ||
| Electric window | ● | ||
| Option Configuration 可选配置 | MP5 touch screen MP5 | ○ | |
| Remote control key | ○ | ||
| Deflector | ○ | ||
| CHASSIS DIMENSION | units：mm | ||
| Dimensions 尺寸 | Wheelbase/WB | 4175 | |
| Overall Length/OAL | 7430 | ||
| Overall Width/OW | 2170 | ||
| Overall Height/OH | 2330 | ||
| Front Tread/AW | 1680 | ||
| Rear Tread/CW | 1650 | ||
| 1. ● means standard configuration. ○ means have extra cost for optional 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range, any special request will be available on request. | |||
Isuzu ELF NPR 700P cargo truck chassis has a wide range of application scenarios, and its excellent performance and stability make it suitable for a variety of logistics and operating environments. The following is a specific application scenario analysis:
1. Logistics and transportation:
● Cargo transportation: With its strong load-bearing capacity and excellent stability, the 700P cabin truck can carry a large amount of cargo for long-distance transportation, meeting the diverse needs of the logistics industry.
● Urban distribution: The flexibility and efficiency of the chassis make it perform well in urban distribution. It is suitable for cargo procurement and distribution tasks in hotels, supermarkets, shops and other places, and can complete cargo distribution tasks quickly and accurately.
2. Construction site:
● Building materials transportation: The ELF NPR 700P 4x2 chassis can carry various building materials, such as cement, sand and stone, and provide stable transportation support for construction sites.
● Construction site operations: The chassis's durability and excellent performance also make it a powerful assistant for construction site operations, such as lifting equipment, earthwork transportation, etc.
3. Agricultural transportation:Agriculture and agricultural products: It can be used in the harvest season in the agricultural field to transport agricultural products and farm tools. The stability and large capacity of the chassis can meet the transportation needs of different agricultural products.
4. Safety:
● The braking system has been optimized to ensure rapid and effective braking in emergency situations to ensure driving safety.
● The chassis structure design takes into account the collision energy absorption effect, which can effectively protect the lives of drivers and passengers in the event of a collision.
5. Fuel economy:
● The diesel engine is highly efficient and low-consumption, making the vehicle more economical and fuel-efficient during driving.
● The optimized power system and transmission system further improve fuel utilization and reduce transportation costs.
6. Technical configuration:
● The chassis adopts advanced electronically controlled high-pressure common rail injection technology, which improves the combustion efficiency and power performance of the engine.
● Equipped with multi-layer sealing technology, the noise in the cab is lower and the driving environment quality is improved.
