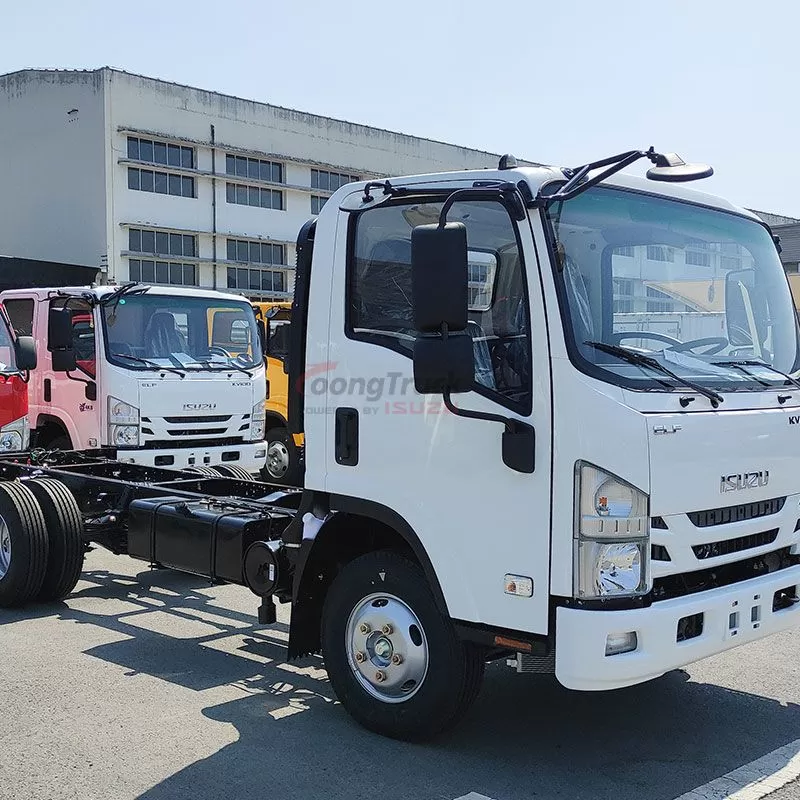

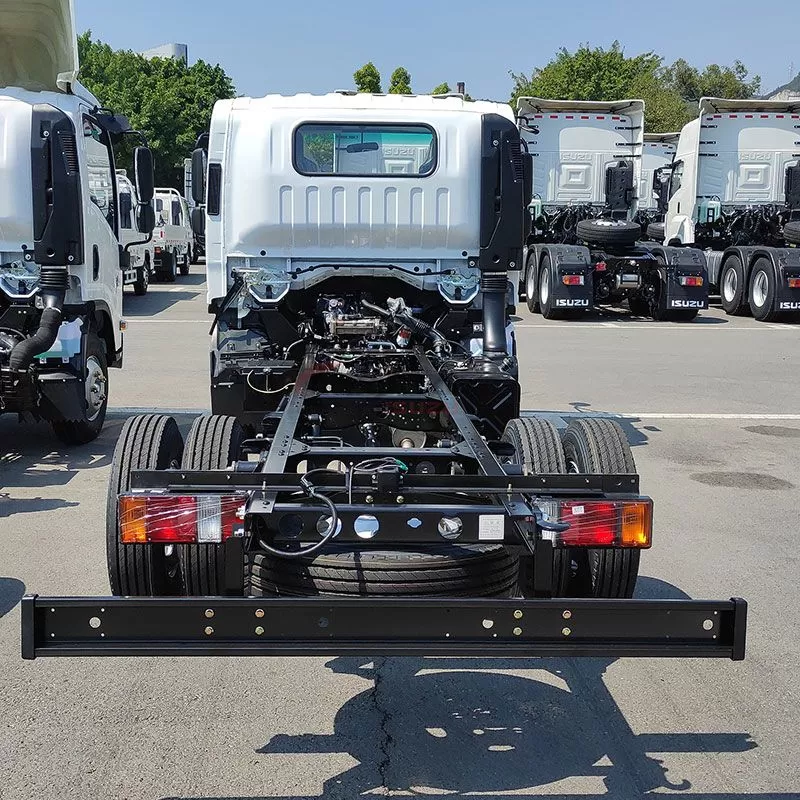

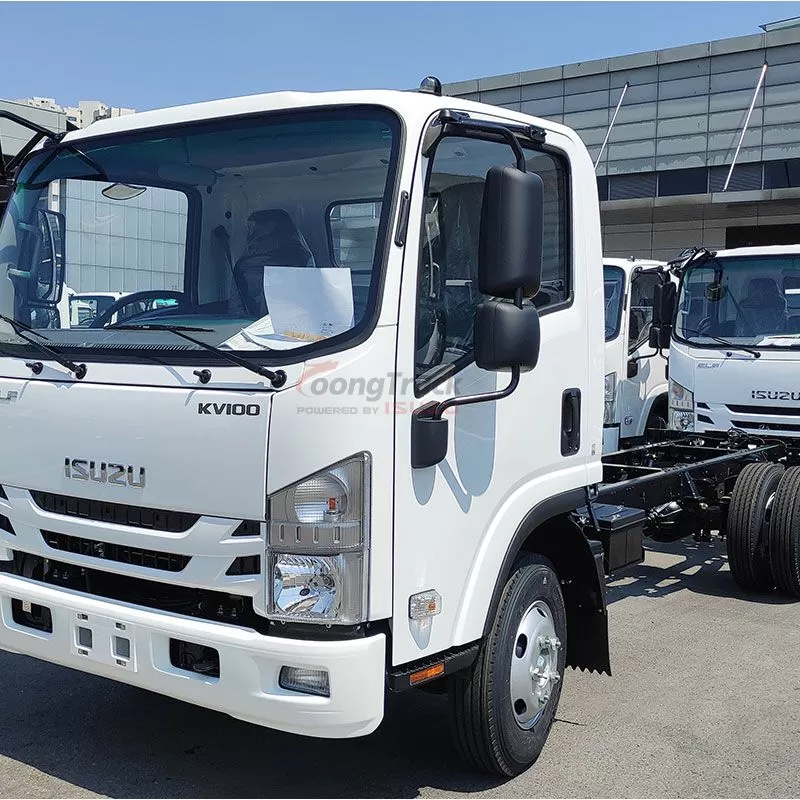

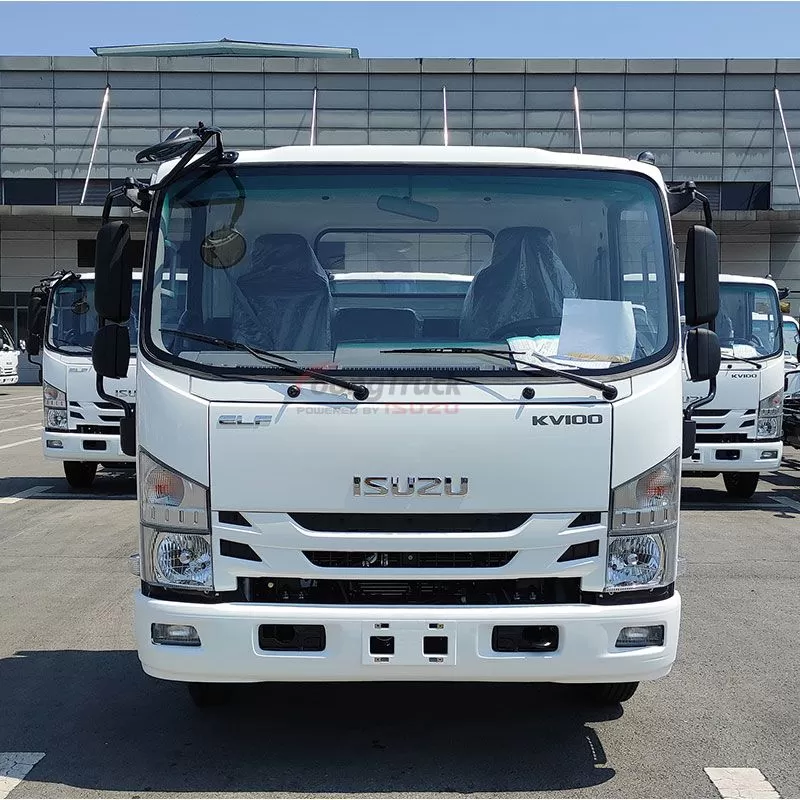

The Isuzu KV100 chassis is economical, practical, efficient and reliable, and is suitable for various light transport tasks, such as short-distance urban distribution, urban logistics transportation, etc. The Isuzu KV100 chassis has a solid structural design, abundant power, stable control, safety and reliability, and is a small commercial vehicle chassis favored by users.
| Work capacity: | 3～6tons |
| Engine power: | 120HP |
| Engine type: | 4HK1CN6LB |
| Axle drive: | 4x2,LHD |
| Gear box: | MSB-5MT |
| Remarks: | Isuzu KV100 3x cabin truck chassis |
| General information | Wheelbase(mm) | 3815 | ||||||||||
| GVW (kg) | 7300 | |||||||||||
| Curb Weight (kg) | 2250 | |||||||||||
| Payload (T) | 4.2 | |||||||||||
| Max Speed (km/h) | 98-105 | |||||||||||
| Engine | Model | 4KH1CN5MD | ||||||||||
| Displacement (L) | 2.999 | |||||||||||
| Rated Power (kw/rpm) | 85(115hp)/2900 | |||||||||||
| Max. Torque (N.m/rpm) | 220/1700 /Optional 277/1500 | |||||||||||
| Number of cylinder | 4 Cylinders | |||||||||||
| Injection system | high pressure common-rail diesel injection | |||||||||||
| Emission Standard | Euro V | |||||||||||
| Fuel type | Diesel | |||||||||||
| Transmission | Transmission | MSB | ||||||||||
| Control | Manual | |||||||||||
| Gears | 5 Forward + 1 Reverse | |||||||||||
| Cab | Cabin | single | ||||||||||
| Diver and Passengers | 1+2 | |||||||||||
| Chassis | Drive Type | 4x2 | ||||||||||
| Brake | Oil brake | |||||||||||
| Tire | Tires | 4 | ||||||||||
| Standard | 7.00R16 14PR,7.00-16 14PR | |||||||||||
| Configuration | Power steering |  | ||||||||||
| Radio | | |||||||||||
| ABS | | |||||||||||
| A/C | | |||||||||||
| Notes Equipped Optional | ||||||||||||
| Overall DIMENSION | units：mm | |||||||||||
| Model | Wheelbase/WB | 3815 | ||||||||||
| Overall Length/OAL | 6760 | |||||||||||
| Overall Width/OW | 1995 | |||||||||||
| Overall Height/OH | 2260 | |||||||||||
