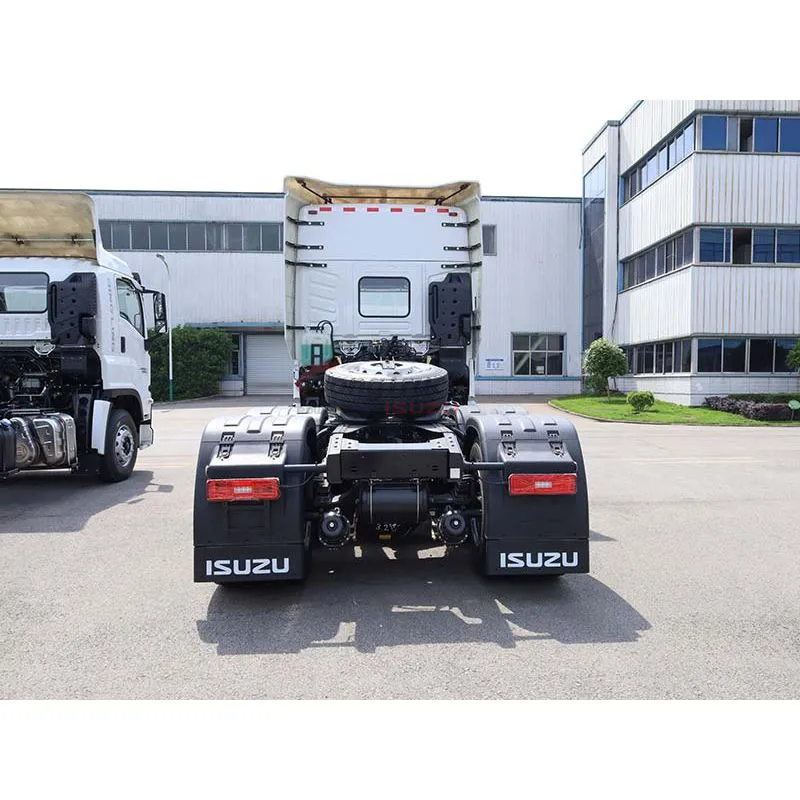

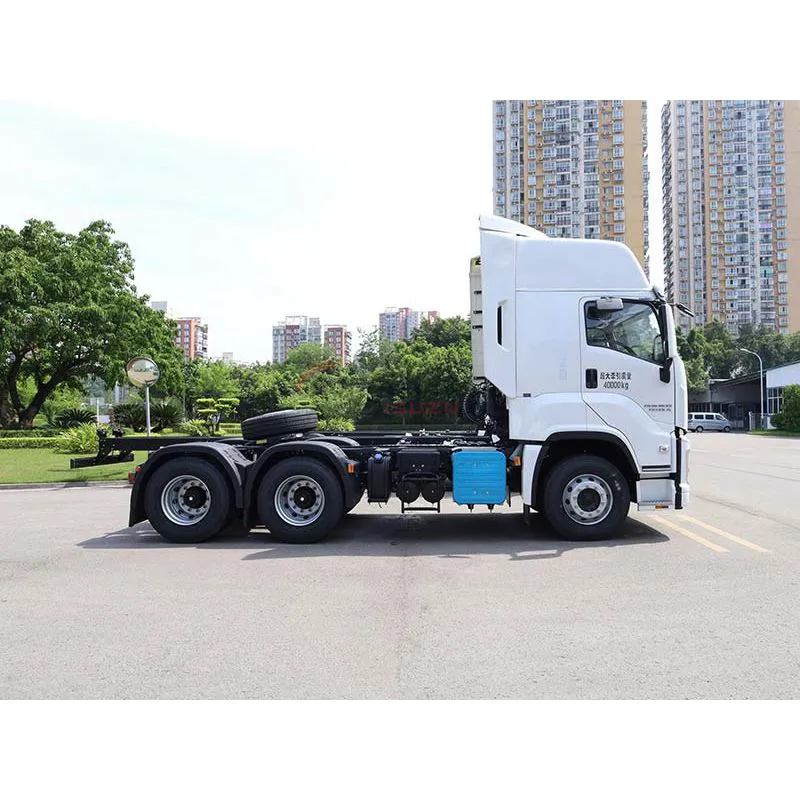

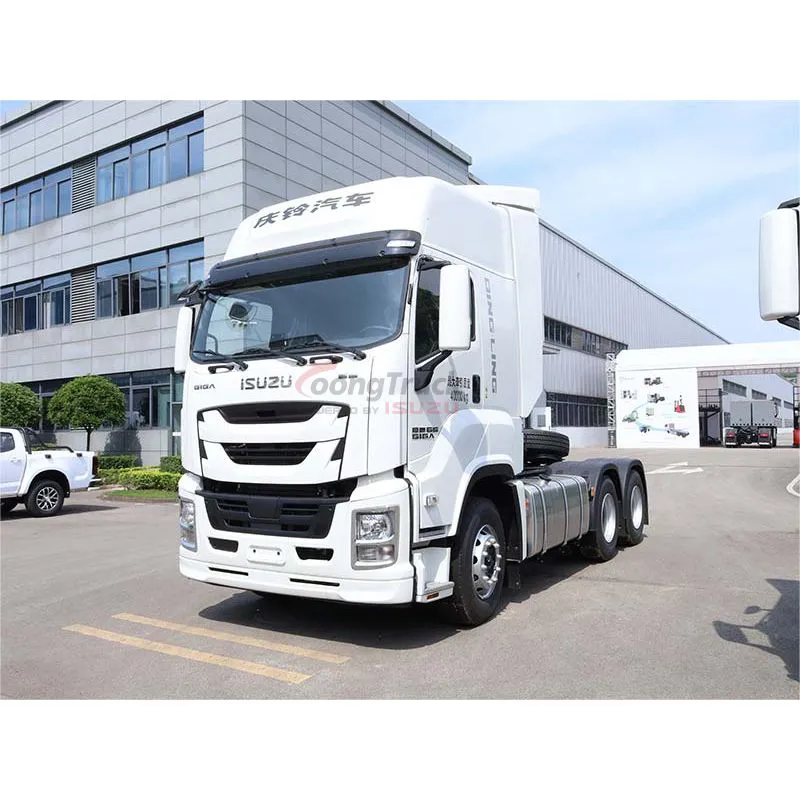

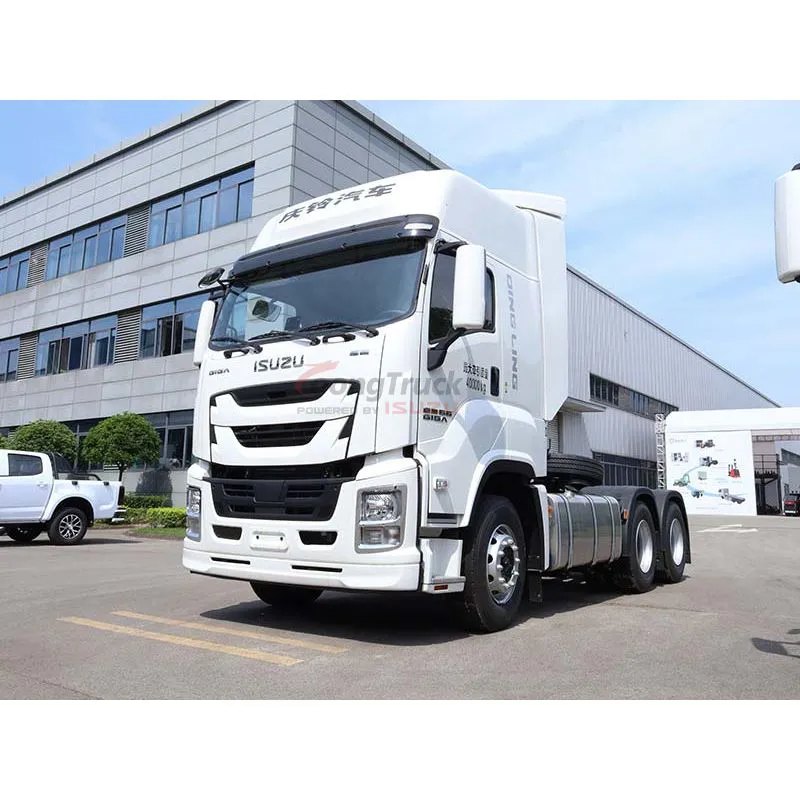

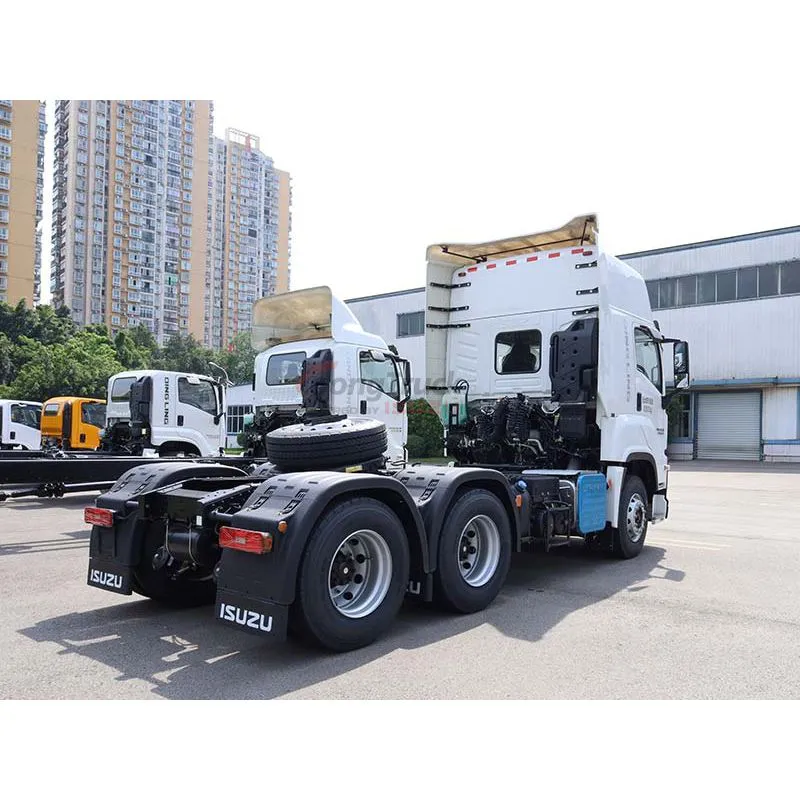

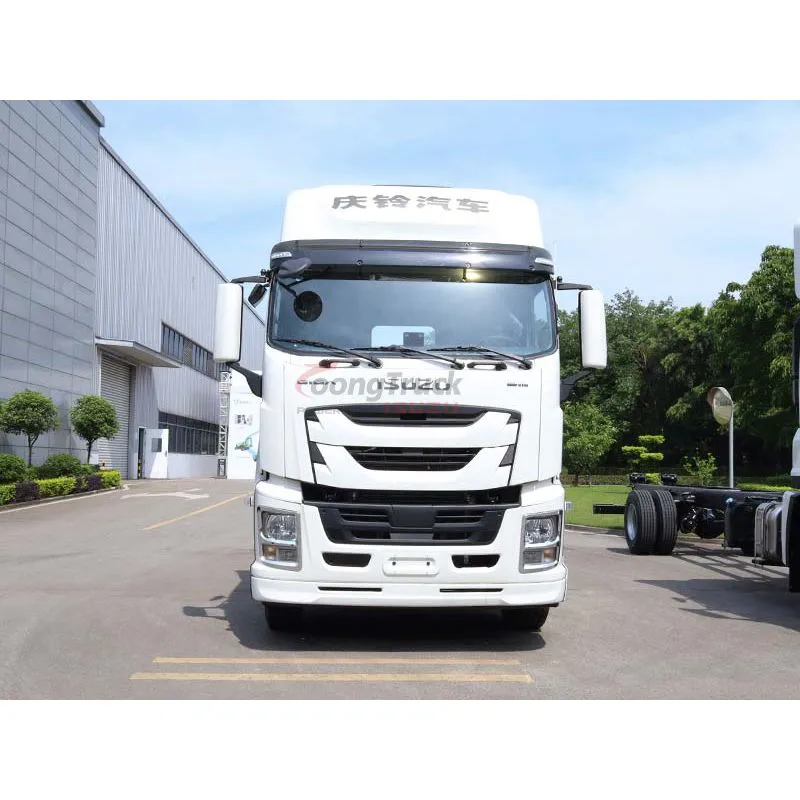

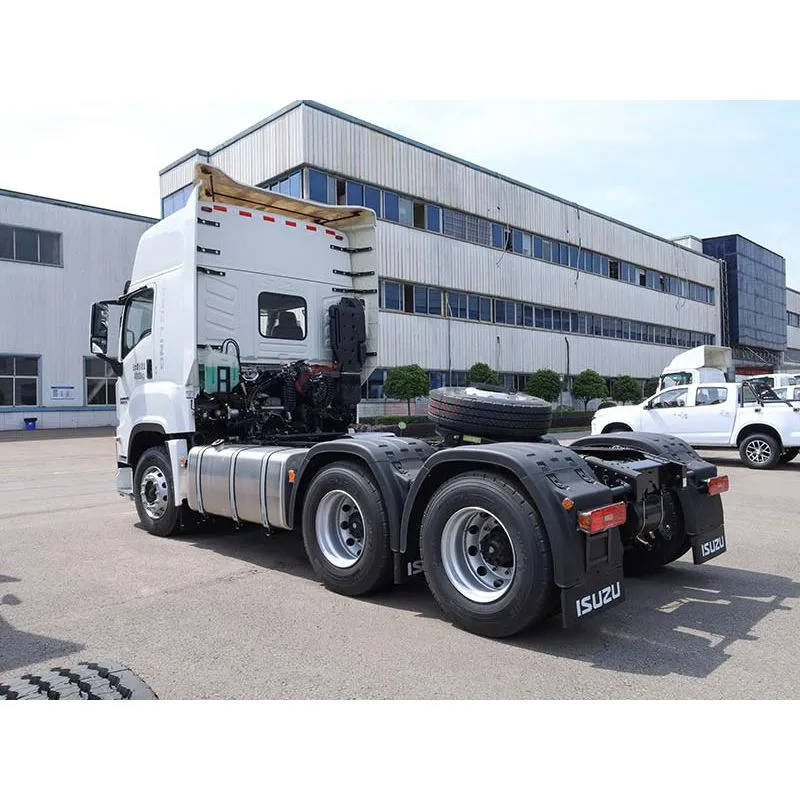

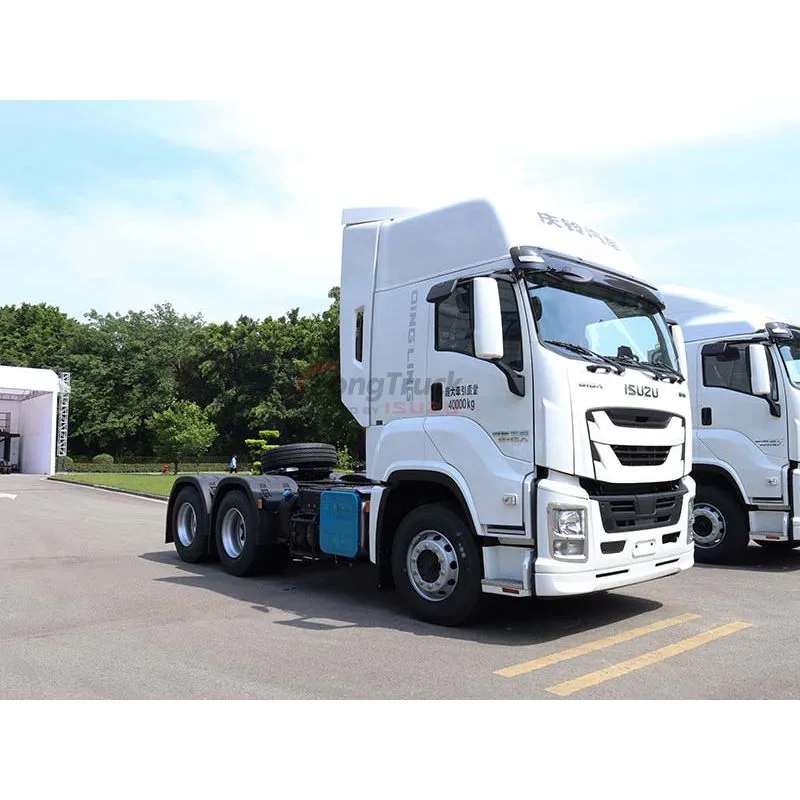

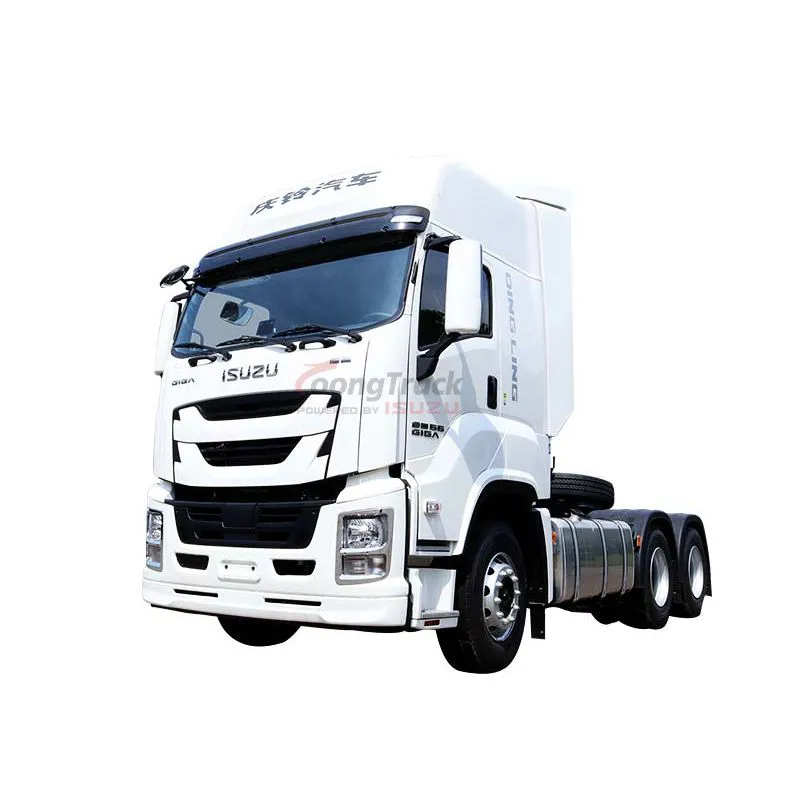

Isuzu Truck Chassis
Features:
High end, intelligent, home-based and customized
It has high horsepower, automatic gear, disc brake, etc. to bring more value and meet more requirements of users.
Specification
| General information | Chassis model | Tractor head | Tractor head |
| Wheelbase(mm) | 3385+1370 | 3385+1370 | |
| Drive Type | 6X4 | 6x4 | |
| GVW (kg) | 25000 | 25000 | |
| Curb Weight (kg) | 8870 | 8870 | |

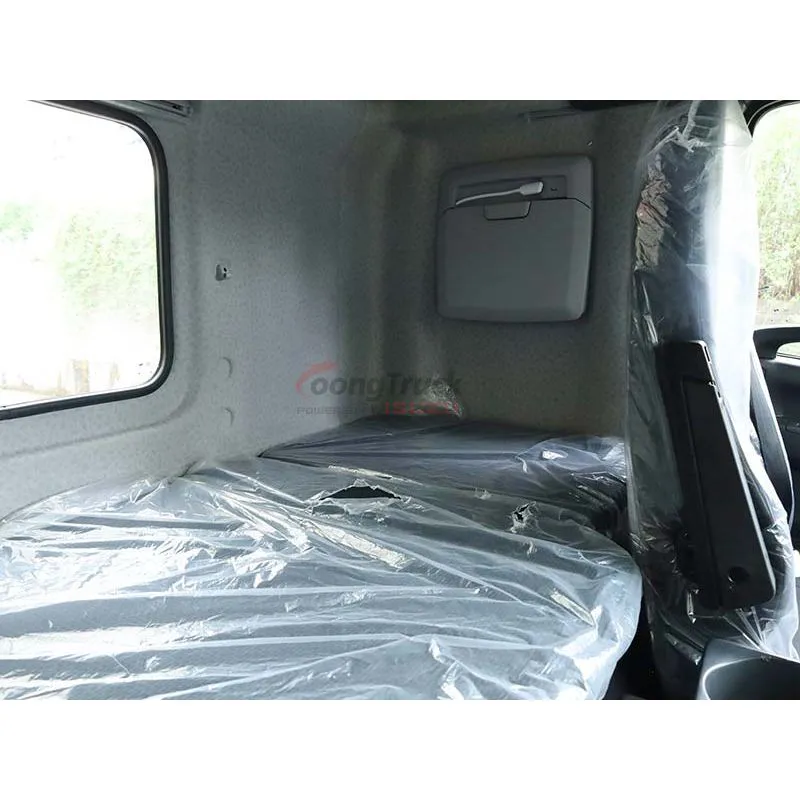

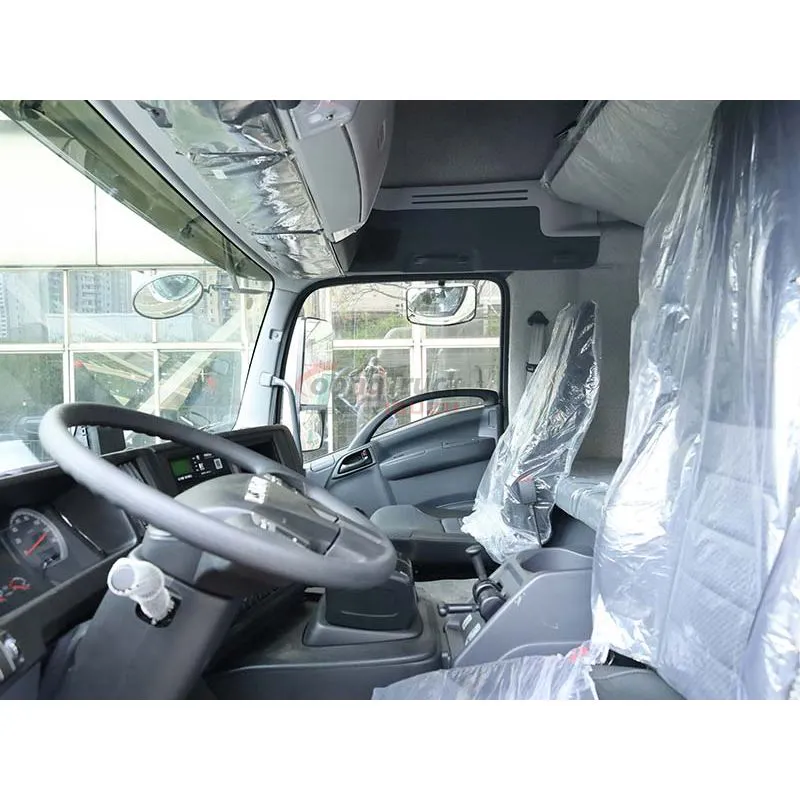

| Cabin | single | single | |
| Driver and Passenger | 2 | 2 | |
| Engine | Model | 6WG1-TCG61 | 6WG1-TCG62 |
| Type | 6 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | ||
| Emission Standard | Euro VI | ||
| Displacement (L) | 15.681 | ||
| Rated Power (kw/rpm) | 460HP/338KW | 520HP/382KW | |
| Max. Torque (N.m/rpm) | 2256N.m | 2256N.m | |
| Transmission | Model | ZF 16S | ZF 16S |
| 16 Forward + 2 Reverse | 16 Forward + 2 Reverse | ||
| Fuel tank | Capacity | 600L | 600L |
| Material | aluminium alloy | aluminium alloy | |
| Brake System | Service brake | front and rear drum brake | front and rear drum brake |
| Brake(Air/Oil) | Air brake | Air brake | |
| Parking brake | Air cut brake valve | Air cut brake valve | |
| Max. Speed (km/h) | 110 | 110 | |
| standard Configuration | Tires | 295/80R22.5 | 295/80R22.5 |

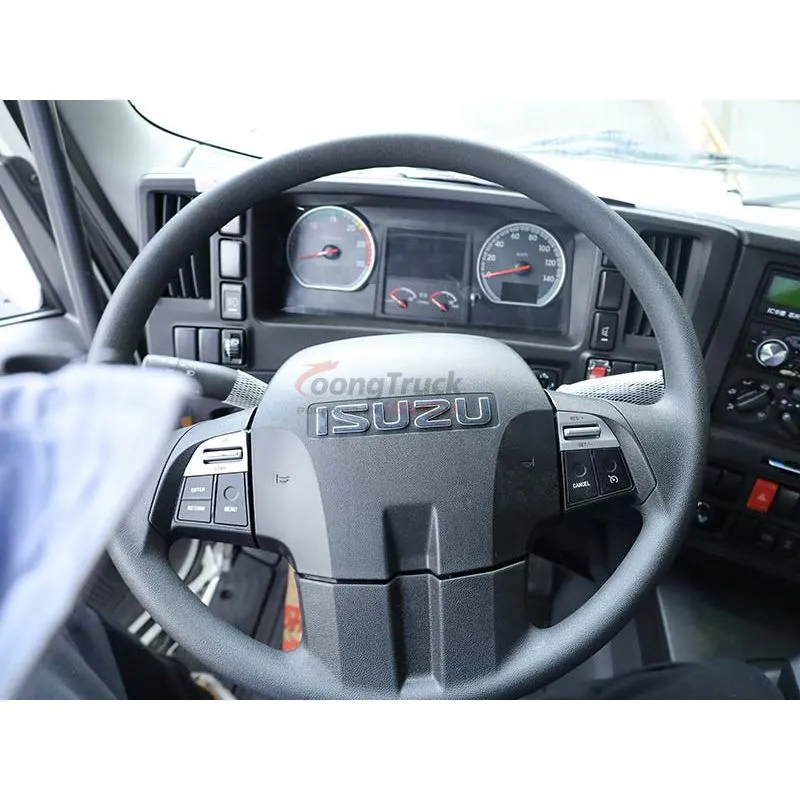

| Power steering | ● | ||
| Radio | ● | ||
| Dashcam | ● | ||
| A/C | ● | ||
| Tilted cabin | ● | ||
| Exhuast brake | ● | ||
| Central lock | ● | ||
| Electric window | ● | ||
| Deflector | ● | ||
| Dimensions | Length OAL (mm) | 6895 | 6895 |
| Width OW (mm) | 2540 | 2540 | |
| Height OH (mm) | 3970 | 3970 | |
| Front Overhang FOH (mm) | 1370 | 1370 | |
| Rear Overhang ROH (mm) | 770 | 770 | |
| Front Tread AW (mm) | 2065 | 2065 | |
| Rear Tread CW (mm) | 1875/1875 | 1875/1875 | |
1. ● means standard configuration.  means option configurtaion 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range, any special request will be available on request. | |||
