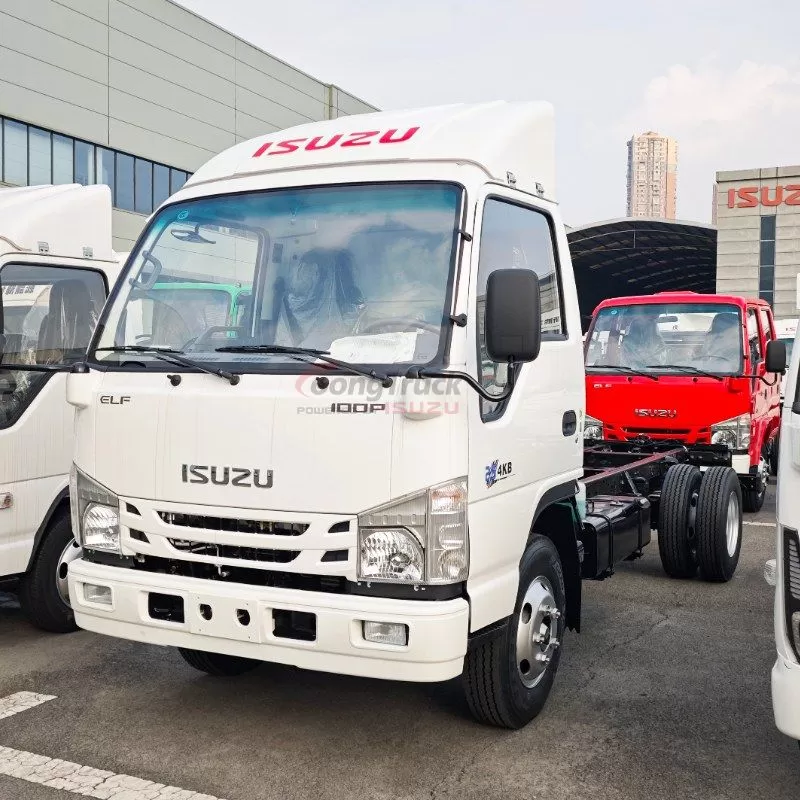

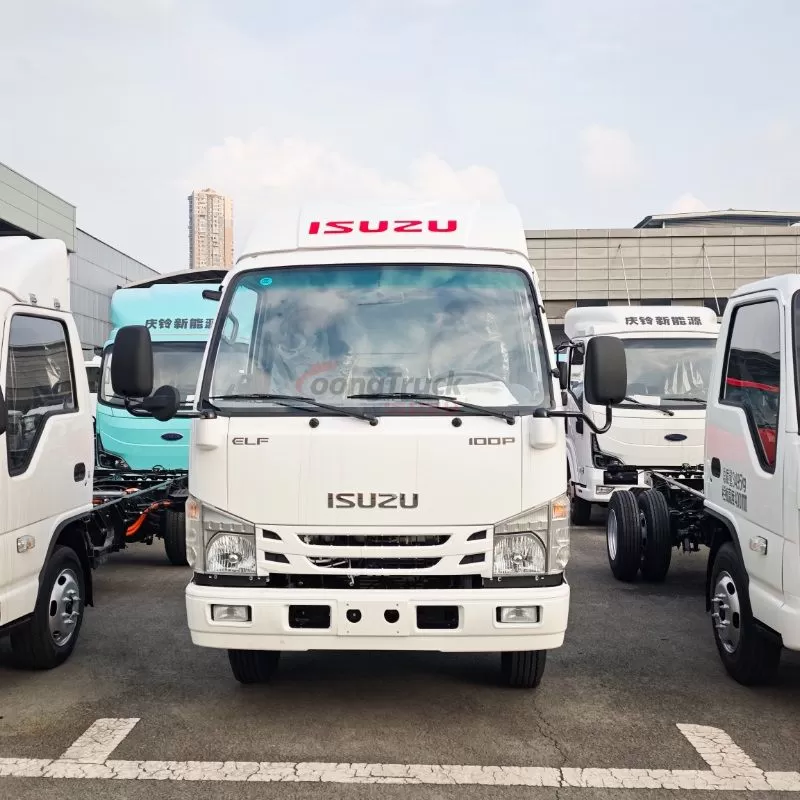

ISUZU 100P

Vehicle Type:	LHD Truck
Payload Capacity:	2-5tons
Engine Model:	4KH1CN6LB
Engine Power:	88kw
Max. Torque:	290N.m
Transmission:	Manual,MSB
Drive:	4x2

Inquire Now Next Product

PRODUCT DETAILS

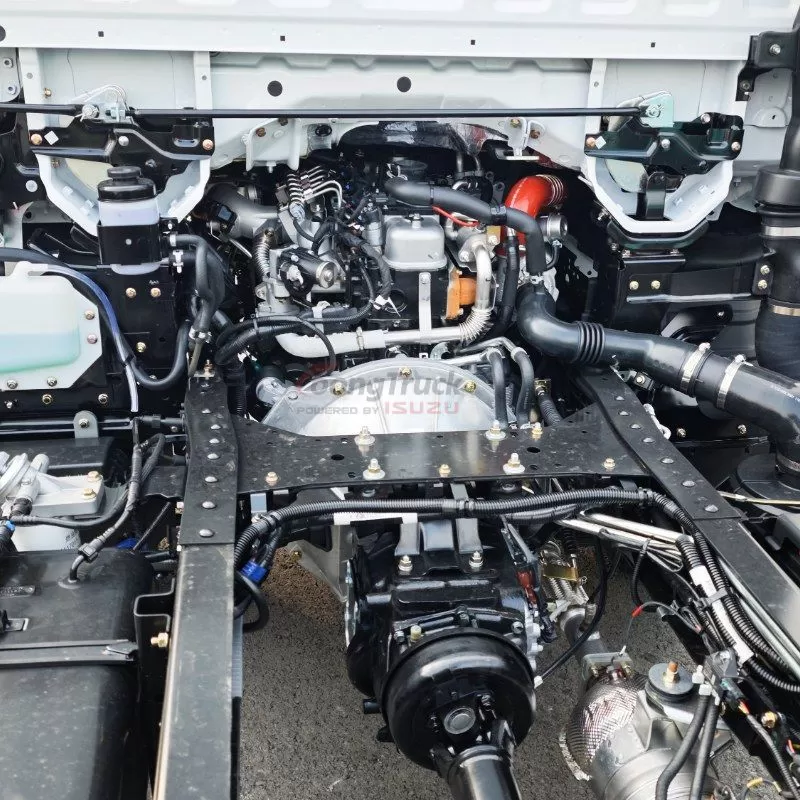

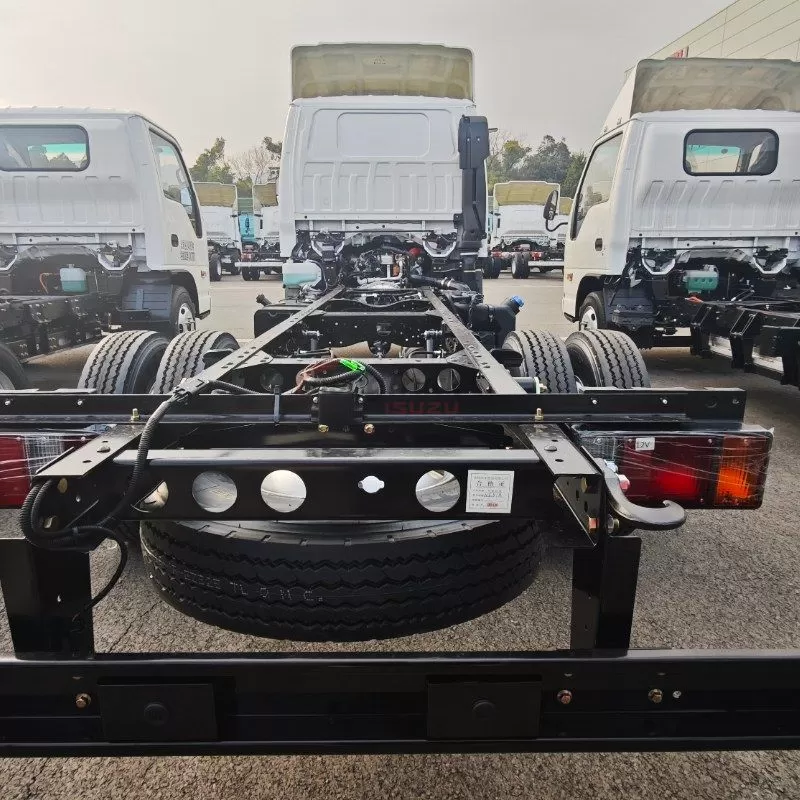

The ISUZU 100p chassis distinguishes itself as a paragon of reliability, designed to thrive in challenging commercial settings. At its heart is a fuel-efficient engine that meets Euro VI standards, generating a strong 132 horsepower and 290 Newton-meters of torque—ideal for navigating busy city traffic or carrying loads up to its 8.28-ton gross vehicle weight. Mated to a seamless 5-speed manual gearbox, it achieves a balance between agility and fuel efficiency, reducing operational expenses for fleet operators. Safety is a top priority: fitted with ABS, air brakes, and a strengthened frame, it ensures steady braking even when carrying heavy cargo, while power steering boosts maneuverability in confined areas. Its 3815mm wheelbase hits a clever sweet spot—compact enough to tackle narrow urban roads yet roomy enough to support diverse body setups, from delivery vehicles to service trucks. Constructed from high-quality steel, the chassis resists rust and wear, offering long-lasting durability with little need for upkeep

High-Quality Isuzu 100p 130HP 3.6m One Row Truck Chassis

General information	Chassis model	100p light truck chassis
	Wheelbase(mm)	3360
	Drive Type	4X2
	GVW (kg)	7300
	Curb Weight (kg)	2250
	Cabin	single
	Driver and Passenger	2
Engine	Model	4KH1CN6LB
	Type	4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling.	Emission Standard	Euro VI

			Displacement (L)	2.999
	Rated Power (kw/rpm)	88kw
	Max. Torque (N.m/rpm)	290N.m
	Transmission	Model	Manual,MSB
			5 Forward + 1 Reverse
Brake System	Service brake	Double circuit, air drive
	Brake(Oil/Air)	air brake
	Parking brake	Central drum brake

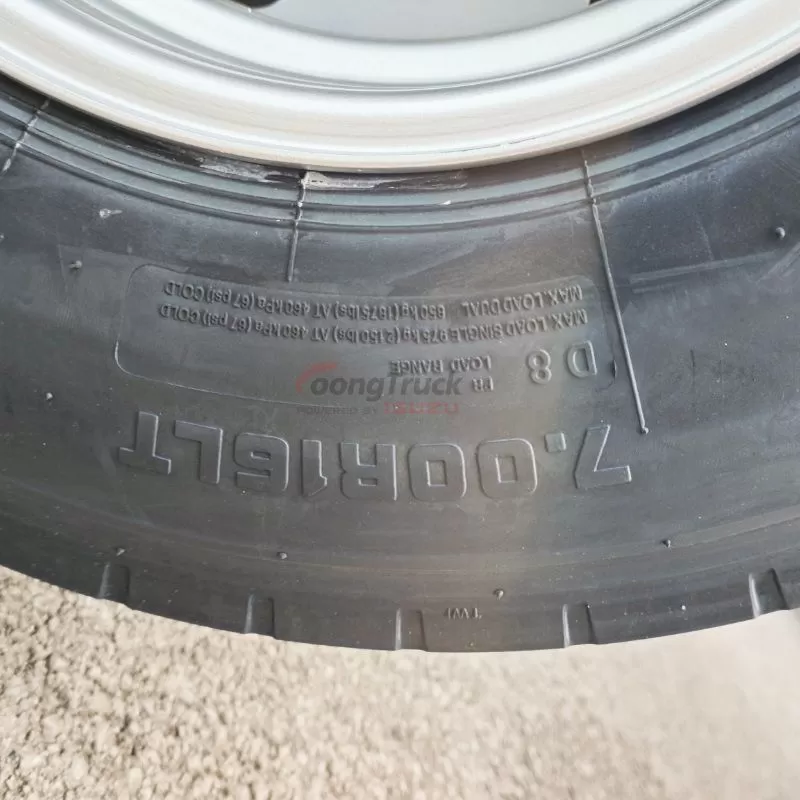

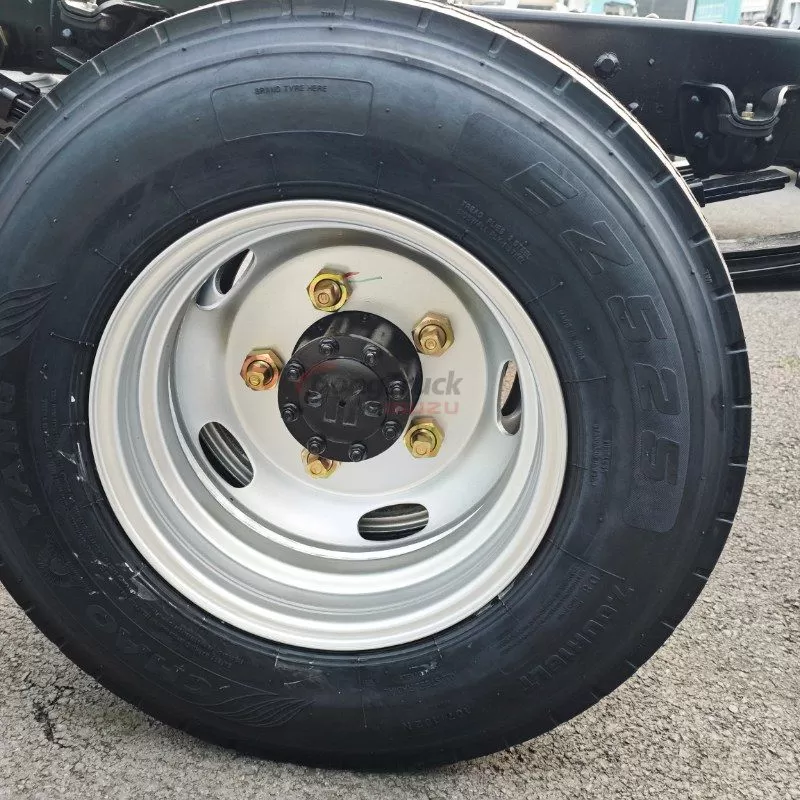

standard Configuration	Tires	7.00R16LT 14PR,7.00-16LT 14PR
	Power steering	●
	Radio	●
	ABS	●
	A/C	●
	Tilted cabin	●
	Exhuast brake	●
Option configuration	Central lock	○
	Electric window	○
	Deflector	○
Dimensions	Length OAL (mm)	5900
	Width OW (mm)	1880
	Height OH (mm)	2200
	Front Tread AW (mm)	1504
	Rear Tread CW (mm)	1425
1. ● means standard configuration. ○ means option configurtaion
2. All above information is for reference only, and will be updated timely without notice;
3. The listed models are part of the full products range, any special request will be available on request.

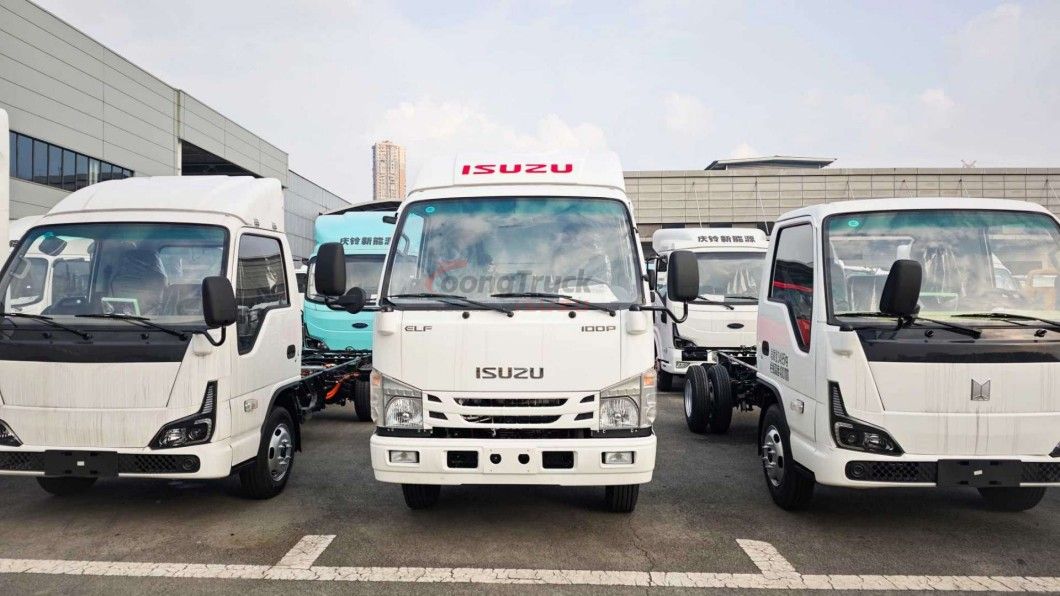

High-Quality Isuzu 100p 130HP 3.6m One Row Truck Chassis

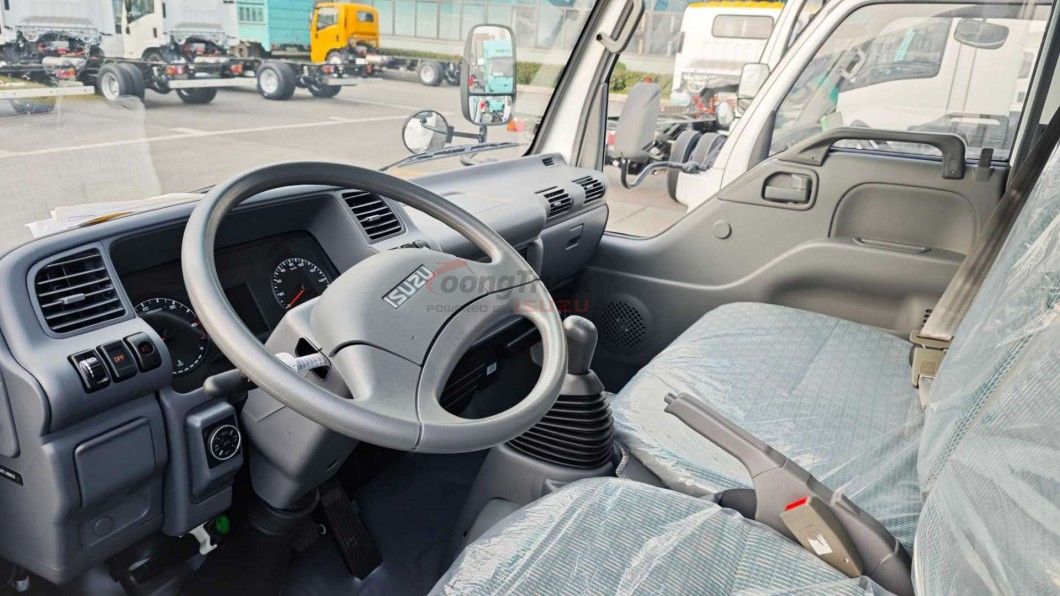

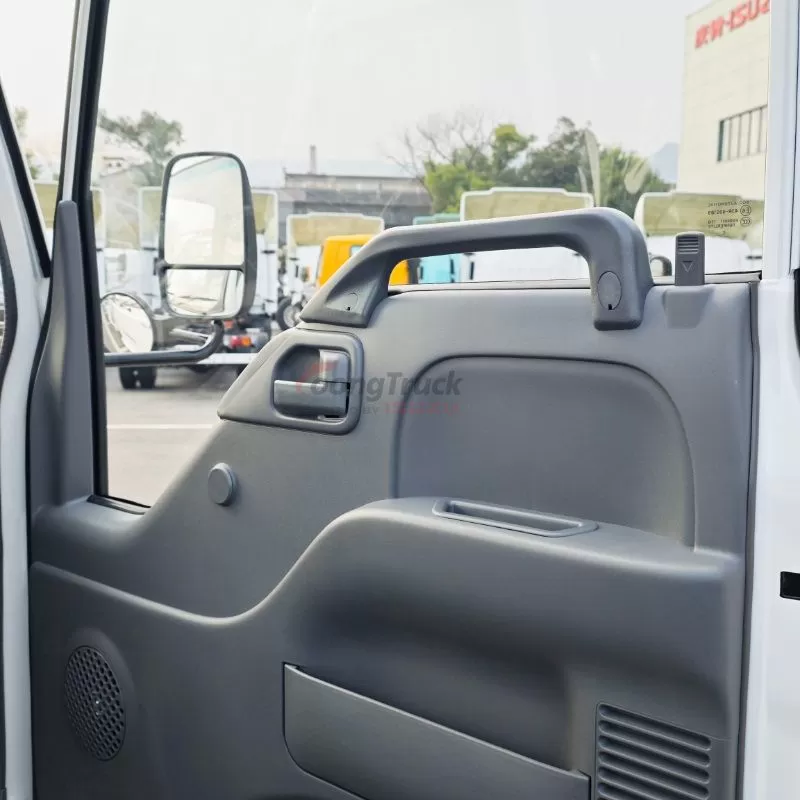

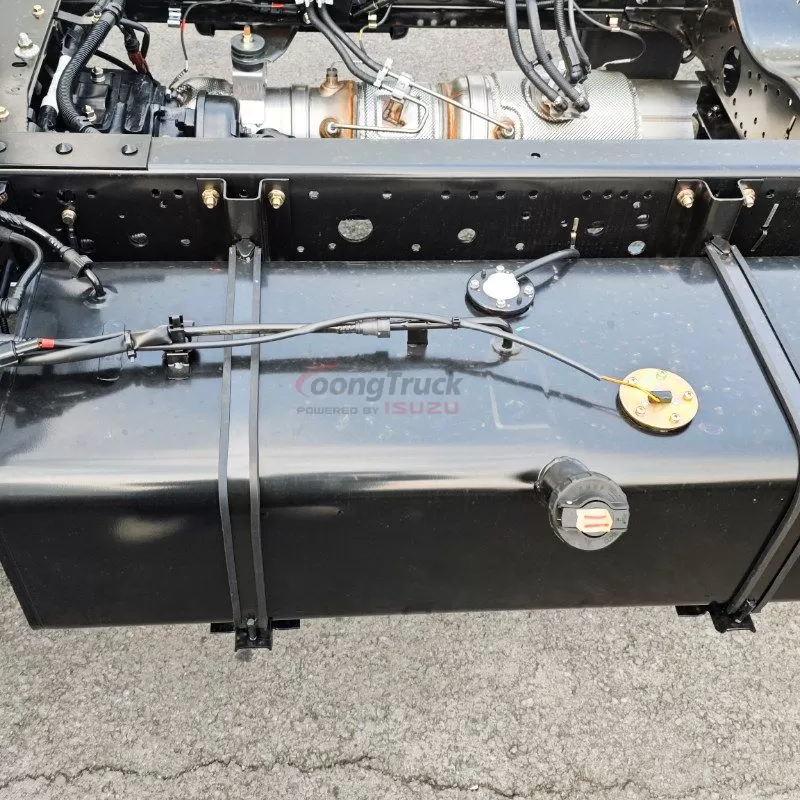

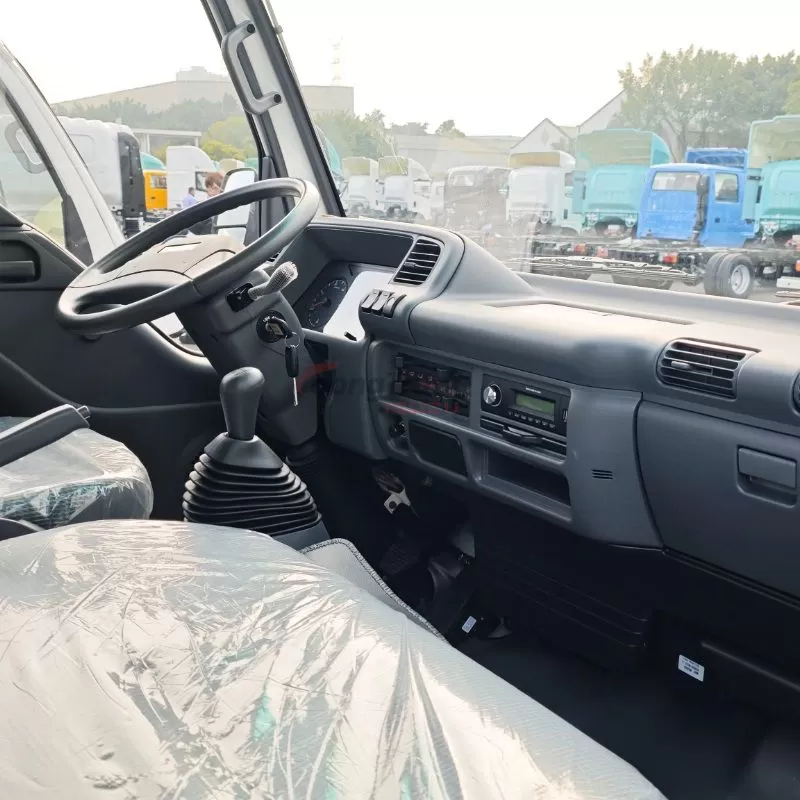

Beyond its impressive performance, the ISUZU 100p chassis places a strong emphasis on practicality and adaptability, cementing its status as a versatile option across various industries. Measuring 6950mm in length and 2130mm in width, it provides generous room for customized body installations, while its 2315mm height ensures straightforward passage under low bridges or within urban parking structures. The driver’s cabin is crafted with comfort in mind: it includes air conditioning, a tiltable design for hassle-free maintenance access, and ergonomically designed seats to ease tiredness during extended work hours. Optional add-ons such as central locking and electric windows enhance convenience, allowing the chassis to be tailored to specific operational needs. Equipped with a 100-liter fuel tank, it reduces the need for frequent refueling, extending the daily operational range. Whether configured as a refrigerated unit for perishable goods, a flatbed for construction supplies, or a cargo van for logistics operations, its flexible structure adapts effortlessly. Supported by ISUZU’s long-standing reputation for engineering excellence, this chassis is more than just a vehicle—it’s a long-term investment in efficiency, safety, and overall productivity.
