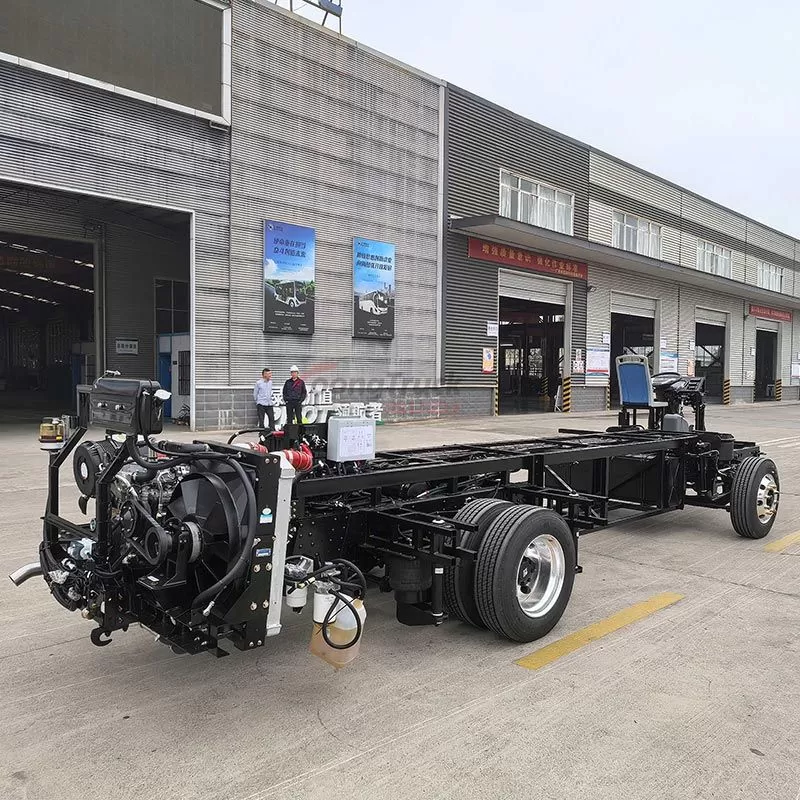

Rear Engine Bus Chassis - Ideal for School, Coach, and Transit Buses

Rear Engine Bus Chassis - Ideal for School, Coach, and Transit Buses

This Rear Engine Bus Chassis is designed for reliable and efficient bus manufacturing. With its engine positioned at the rear, it offers optimal weight distribution, enhancing vehicle stability and handling. The sturdy chassis provides a solid foundation, ensuring durability for extensive operations. It’s well - suited for various bus types like school, transit, and coach buses, supporting the creation of comfortable and safe passenger compartments while delivering robust performance for daily transportation needs.

Wheelbas:	4100
Engine power:	150HP
Engine type:	4HK1-TCG60
Axle drive:	4X2,LHD
Over All Size:	8210X2325X1700
Gear box:	MLD-6Q

Inquire Now Next Product

PRODUCT DETAILS

The company can independently make a full range of chassis products from 6m-12m,including unpowered chassis and powered chassis,which have been sold to countries such as Peru,Vietnam,Kenya and Korea.

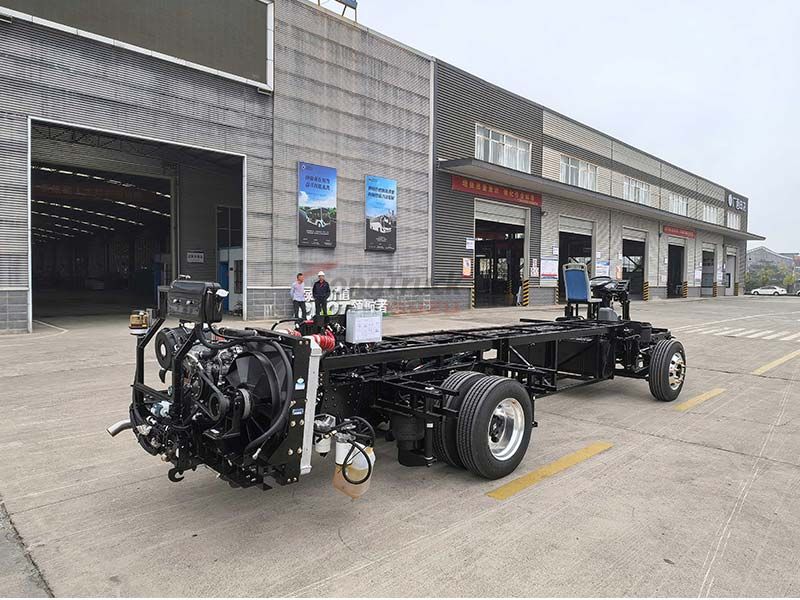

Rear Engine Bus Chassis - Ideal for School, Coach, and Transit Buses

后置巴士底盘技术规格 Rear engine bus chassis technical specifications
基本信息 GENERAL INFORMATION	车型	MODEL	HZ6850A2
	轴距	WHEELBASE	4100
	发动机型号	ENGINE	4HK1-TCG60
	最大额定功率(KW)	MAX.POWER(KW)	150
	最大扭矩(N.M)	MAX.TORQUE(N.M)	647
	排放水平	EMISSION STANDARD	Euro Ⅳ
	排放路线	EMISSION TREATMENT	取消后处理，直排Cancel post-processing, direct discharge
	总质量 (Kg)	GVW (Kg)	12700
	整备质量 (Kg)	CURB WEIGHT (Kg)	4200
	前轮距 (mm)	FRONT WHEEL TREAD (mm)	1938
	后轮距 (mm)	REAR WHEEL TREAD (mm)	1784
	前悬 (mm)	FRONT OVERHANG (mm)	1700
	后悬 (mm)	REAR OVERHANG (mm)	2410
	接近角 (mm)	APPROACHING ANGLE (°)	10
	离去角 (°)	DEPARTURE ANGLE (°)	9
	最大爬坡能力	MAXIMUM GRADABILITY	≥30%
	最小转弯直径(m)	MINIMUM TURNING DIAMETER(m)	16
	离地间隙(mm)	GROUND CLEARANCE(mm)	≥110
	车身尺寸（长X宽X高）	OVER ALL SIZE	8210X2325X1700
离合器 CLUTCH	形式	TYPE	带膜片弹簧的干式单板 DIAPHRAGM SPRING,DRY,SINGLE PLATE
	尺寸(mm)	SIZE (mm)	350
变速箱 TRANSMISSION	品牌/型号	BRAND / MODEL	MLD-6Q
	速比	GEAR RATIO	6.720/4.244/2.580/1.540/1.000/0.713R:4.783
车架 FRAME	宽度(mm)	WIDTH (mm)	800
	横截面尺寸	CROSS SECTION SIZE (mm)	190706
前桥 FRONT AXLE	承载能力(kg)	LOADING CAPACITY (kg)	4200
转向系统 STEERING SYSTEM	形式	TYPE	机械式 MECHANICAL
	品牌	BRAND	/
	转向助力	STEERING SYSTEM	液压动力转向 HYDRAULIC POWER STEERING

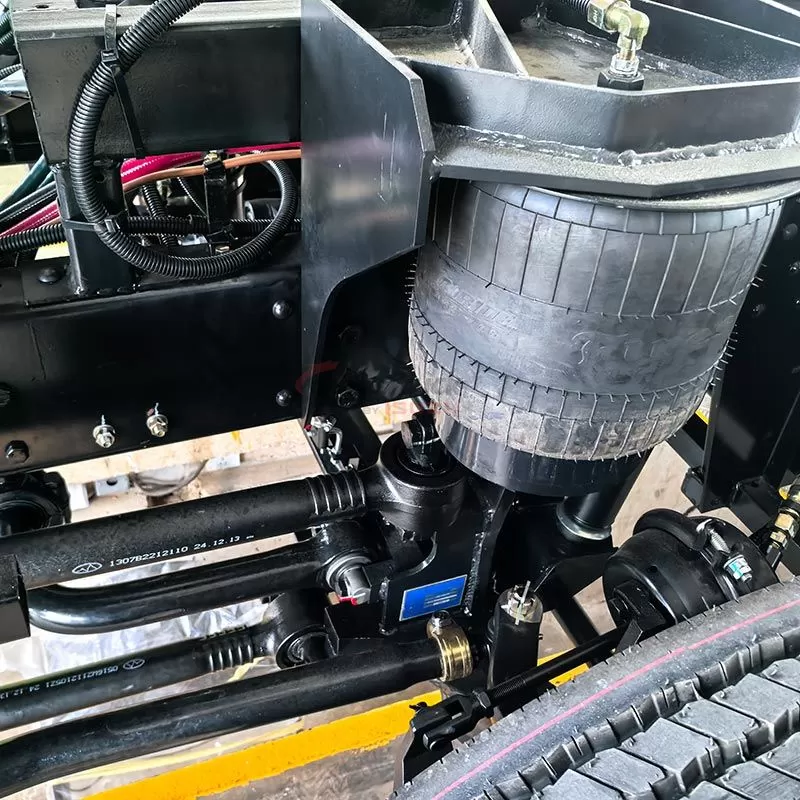

悬架系统 Suspension system	前	FRONT	空气悬架，2气囊，2减震器，带平衡杆 Air suspension, 02 air bags, stabilizers, 02 shock absorber
	后	REAR	空气悬架，4气囊，4减震器，带平衡杆，C型梁 Air suspension, 04 air bags, stabilizers, 04 shock absorber, C beam
后桥 REAR AXLE	承载能力(kg)	LOADING CAPACITY	8500
制动方式 BRAKE MODE	主制动	MAIN BRAKE	气制动AIR BRAKE
	辅助制动	AUXLIARY BRAKE	排气制动 EXHAUST BRAKE
	ABS防抱死系统	ABS Anti-lock Braking Syetem	●采用WABCO
轮胎规格 TIRE TYPE	轮胎尺寸	TYRE SIZE	245/70R19.5 16PR
	材料	MATERIAL	铝合金钢圈 MATERIAL: aluminium alloy
电气系统 ELECTRICAL SYSTEM	仪表	instrument	●
	电池容量	BATTERY	12V-100A*h(2只)串联series connection
	发电机	ALTERNATOR	24V/150A
尾灯、雾灯 LIGHT	尾灯	TAIL LIGHT	○
	雾灯	FOG LIGHT	○
通用配置 GENERAL CONFIGURATION	燃油箱容量 (L)	FUEL TANK CAPACITY (L)	200L
	油箱锁	FUEL TANK LOCK	○
	简易座椅	Simple seats	●
	后视镜	DOOR REARVIEW MIRROR	○
	前大灯高度可调	FRONT HEADLAMP (HEIGHT ADJUSTABLE)	○
	倒车警报	REVERSE GEAR ALARM	○
	前后稳定杆	Front and rear stabilizer bars	●
	前悬加长400mm	Front suspension extended by 400mm	○
● Means it is equipted; ○ Means it is optional

说明：主要部件采用进口品牌，萨克斯减振器，凡士通气囊，巴士德高度阀，克诺尔卡福溢流阀。 Description: The main components are imported brands, Sachs shock absorber, Firestone airbag, Baste height valve, Knorr-Carver relief valve.
