| Work capacity: | 2-5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu 100P light truck chassis |
PRODUCT DETAILS

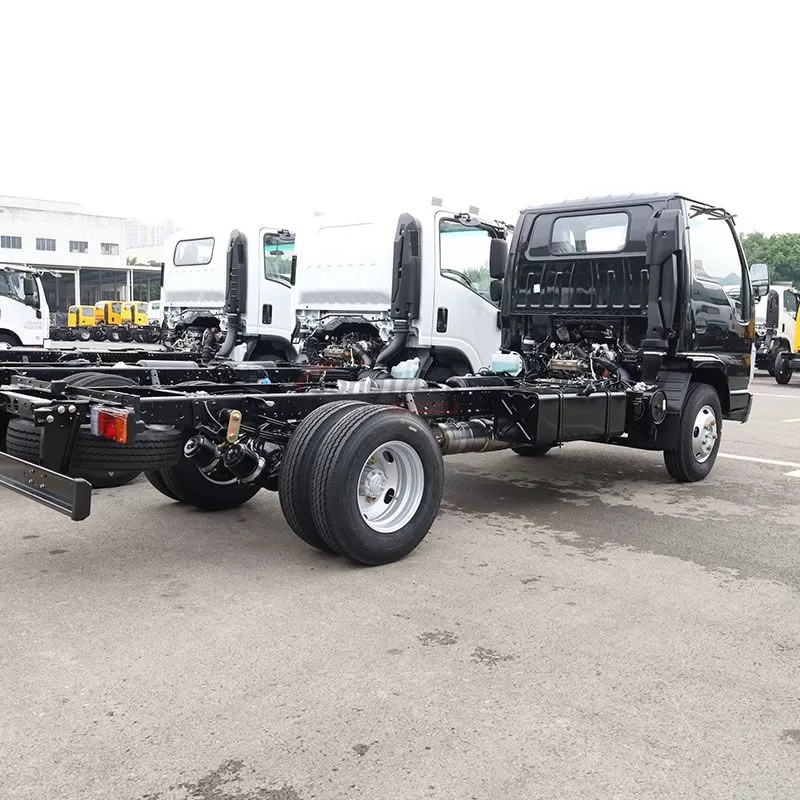

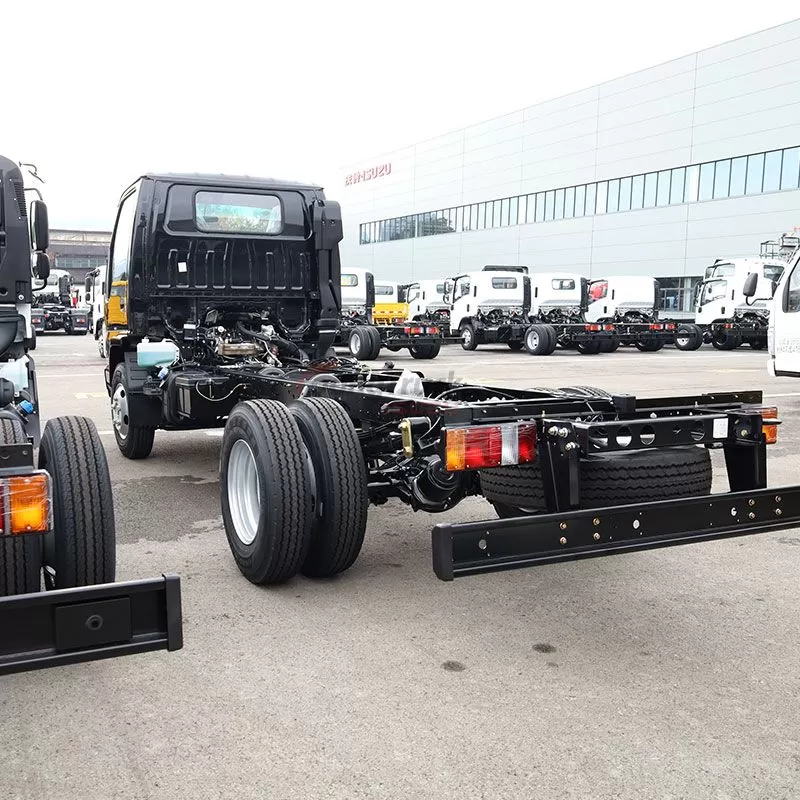

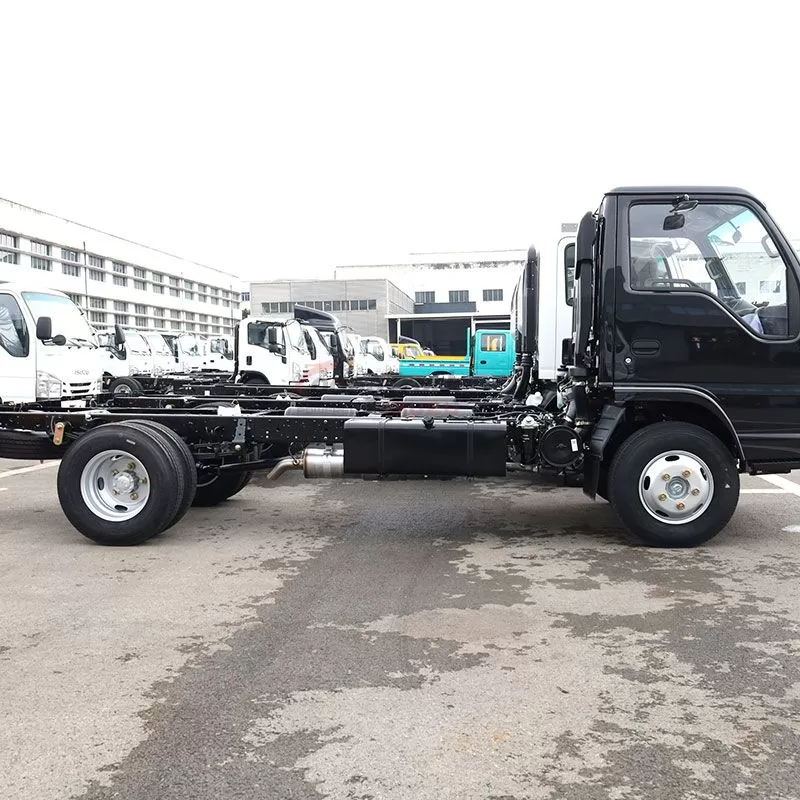

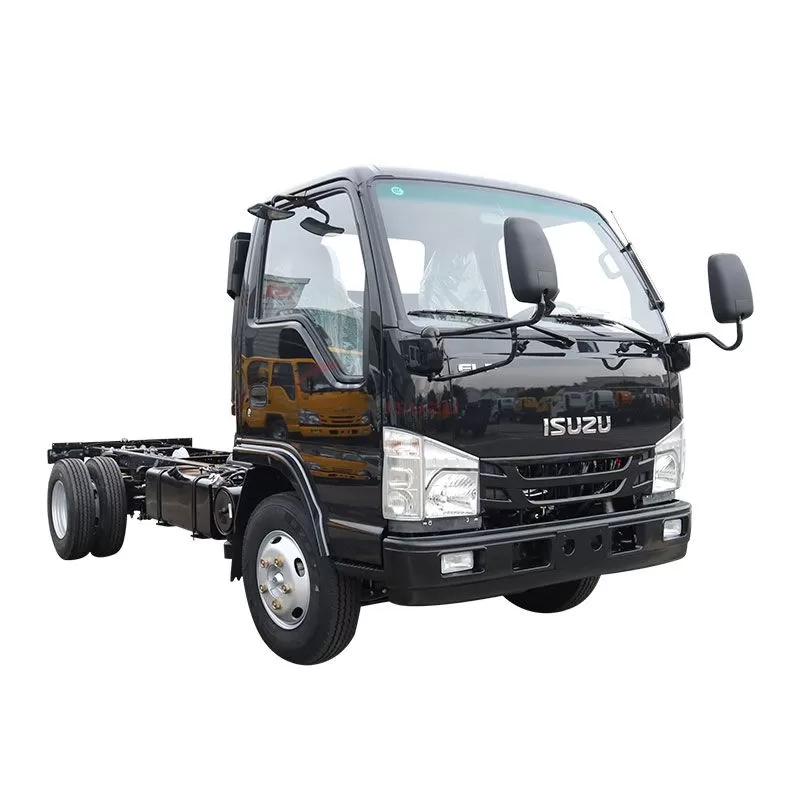

The Isuzu 100P Chassis sets the benchmark for commercial vehicle reliability, featuring a robust Isuzu 4KH1-CN6LB 3.0L turbo-diesel engine delivering 120 HP and 375 Nm of torque . Paired with a 5-speed manual transmission (MSB-5), it ensures seamless power delivery and fuel efficiency across urban and rural routes. The ladder-type frame (700mm width) and multi-leaf spring suspension (front: 8 leaves; rear: 6+5 leaves) provide a 7.3-ton GVW capacity, with a 4.8-ton rear axle designed to handle heavy payloads while maintaining stability . Safety is prioritized with ABS, hydraulic drum brakes, and a vacuum servo system, ensuring precise control even under full load. The 7.00R16 radial tires (8PR) offer exceptional grip and durability on diverse terrains, while the 100L fuel tank minimizes refueling stops for maximum uptime . Engineered for Euro V emissions compliance (DPF+SCR technology), it balances power with environmental responsibility, ideal for industries requiring eco-friendly operations . For fleet managers, the modular design allows easy integration of refrigerated units, cargo boxes, or tipper bodies, supported by Isuzu’s global engineering heritage and 24/7 after-sales network . Whether navigating tight city streets or rugged construction sites, the 100P Chassis combines Japanese craftsmanship with low maintenance costs, ensuring years of dependable service.
General information | Chassis model | 100p light truck chassis |
Wheelbase(mm) | 3360 | |
Drive Type | 4X2 | |
GVW (kg) | 7300 | |
Curb Weight (kg) | 2250 | |

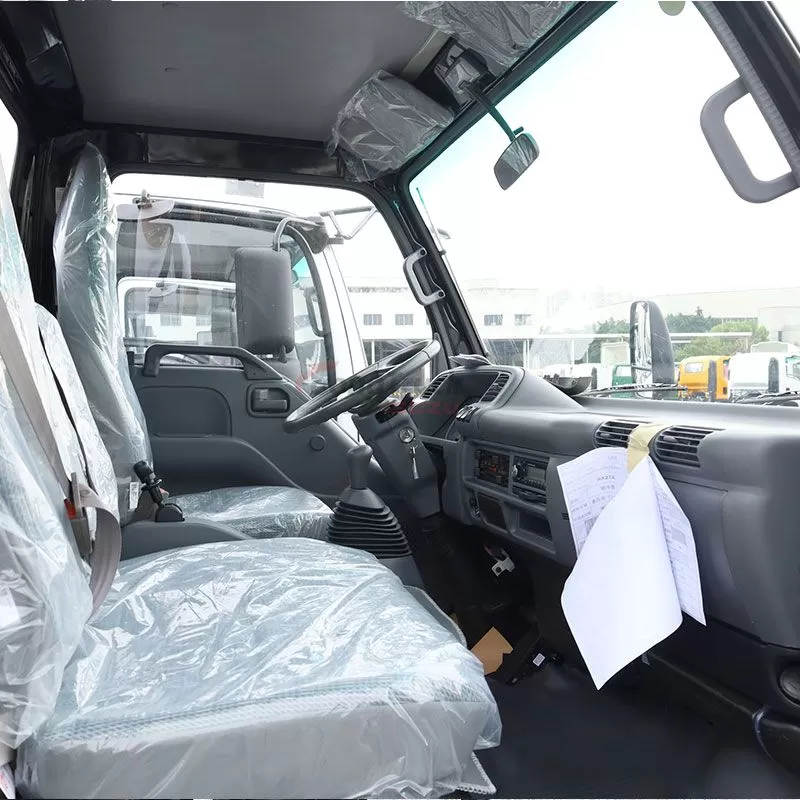

Cabin | single | |
Driver and Passenger | 2 | |
Engine | Model | 4KH1CN6LB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 88kw | |
Max. Torque (N.m/rpm) | 290N.m | |
Transmission

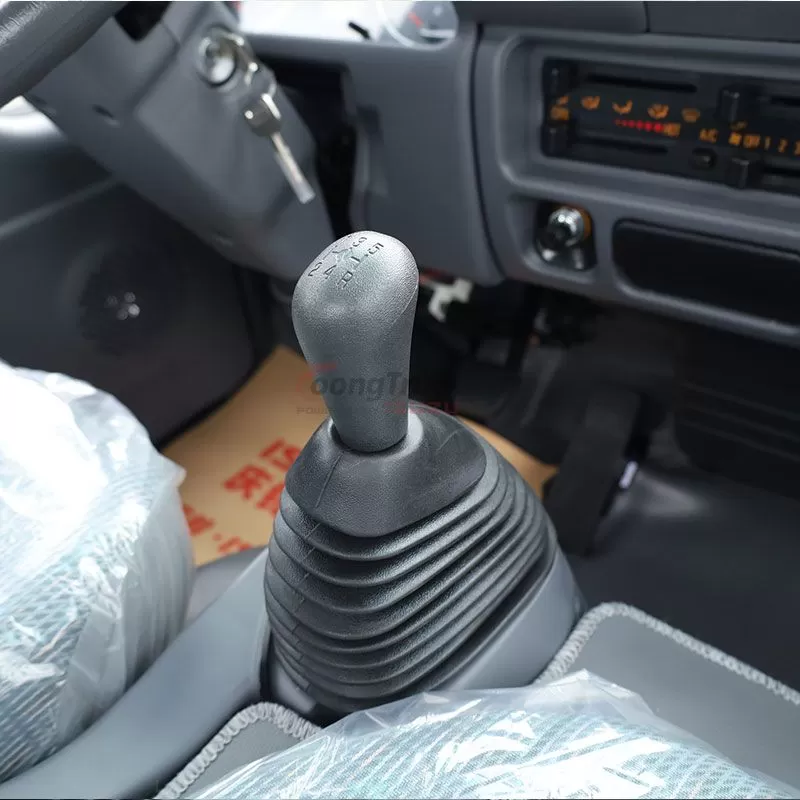

| Model | Manual,MSB |
5 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR |
Power steering |
| |

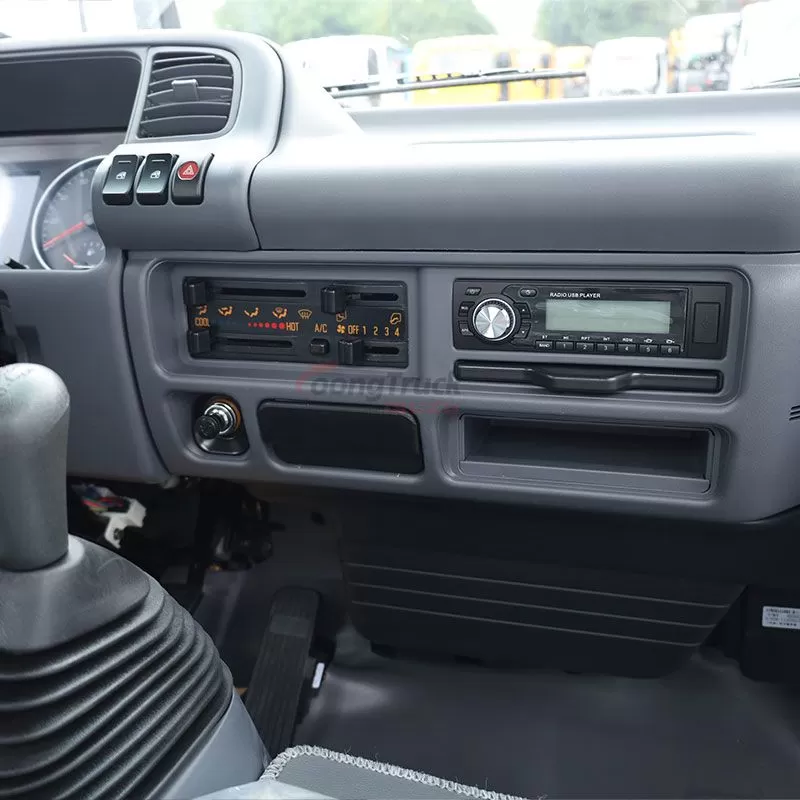

Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock |
|
Electric window |
| |
Deflector |
| |

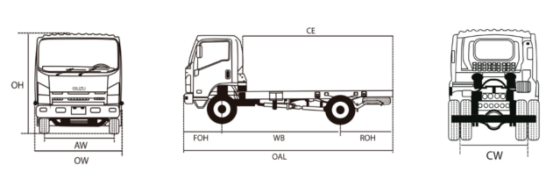

Dimensions | Length OAL (mm) | 5900 |
Width OW (mm) | 1880 | |
Height OH (mm) | 2200 | |
Front Tread AW (mm) | 1504 | |
Rear Tread CW (mm) | 1425 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||
The Isuzu 100P Chassis redefines adaptability, catering to industries from logistics to construction. Its 3360mm wheelbase and narrow 1860mm width enable agile maneuvering in confined spaces, making it the go-to choice for urban delivery fleets . The 4.275m cargo box (1.79m width) supports 3.5-ton payloads, while customizable configurations—such as refrigerated vans (with thermal insulation) or dump trucks (hydraulic lifting system)—meet specialized needs . In construction and agriculture, the chassis excels with its heavy-duty rear axle (4.8 tons) and reinforced subframe (manganese steel), ensuring reliable transport of equipment and materials . The 4JB1-CN engine (98 HP, 220 Nm torque) delivers optimal power for off-road tasks, while the 5-speed transmission allows precise gear control on steep inclines . For public services, the 100P Chassis supports conversions into water sprinklers (5000L capacity) and sanitation vehicles, leveraging its low noise and vibration levels for urban environments . Fleet operators benefit from Isuzu’s 40+ years of expertise in China, including nationwide service centers and extended warranty options (up to 5 years/150,000 km) . With fuel efficiency optimized by Isuzu’s Intelligent Fuel-Saving System, the 100P Chassis reduces operational costs by up to 15% compared to competitors . Its ergonomic cab (air conditioning, power steering) enhances driver comfort, while the 360° visibility (multi-mirror setup) minimizes blind spots for safer operations . From last-mile delivery to heavy-duty projects, the Isuzu 100P Chassis is more than a platform—it’s a future-proof investment in productivity.
