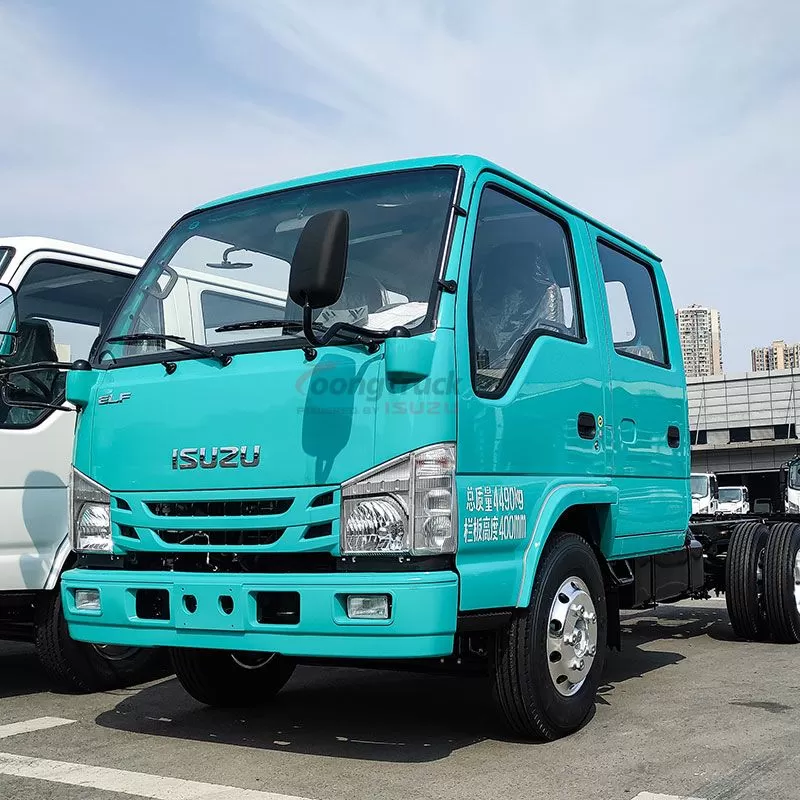

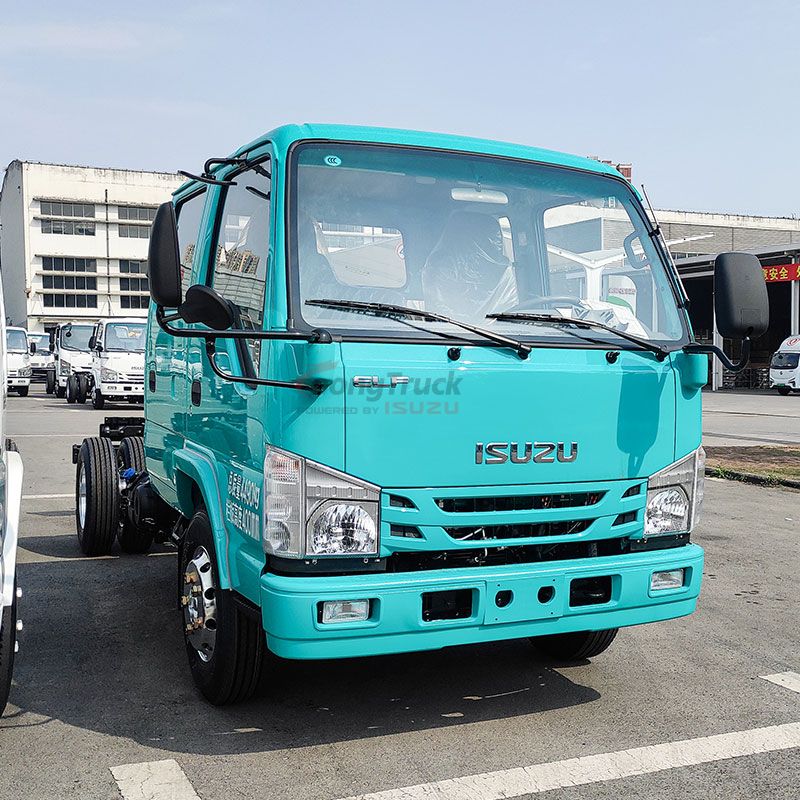

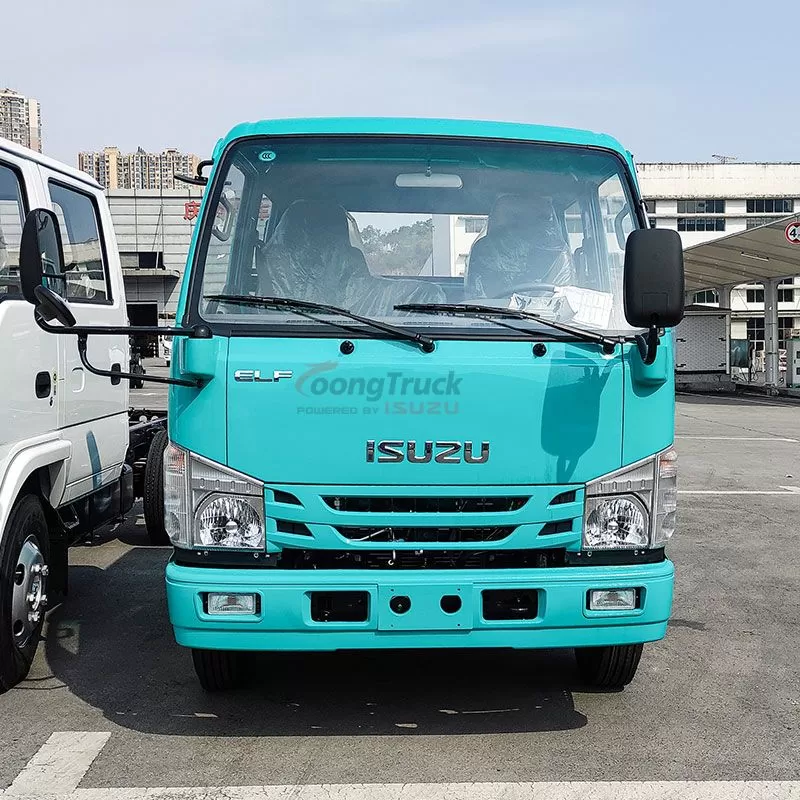

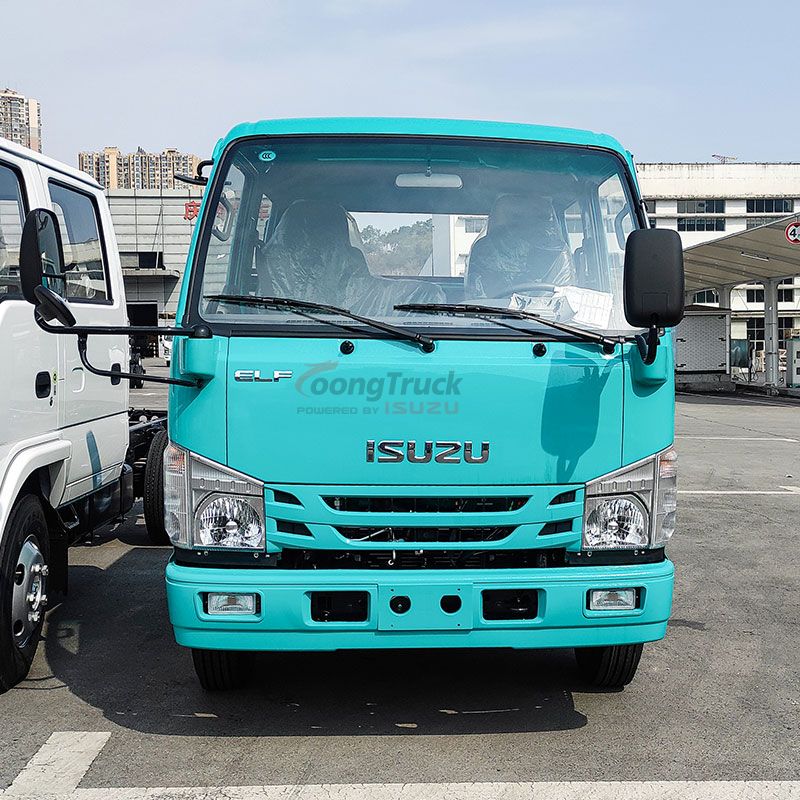

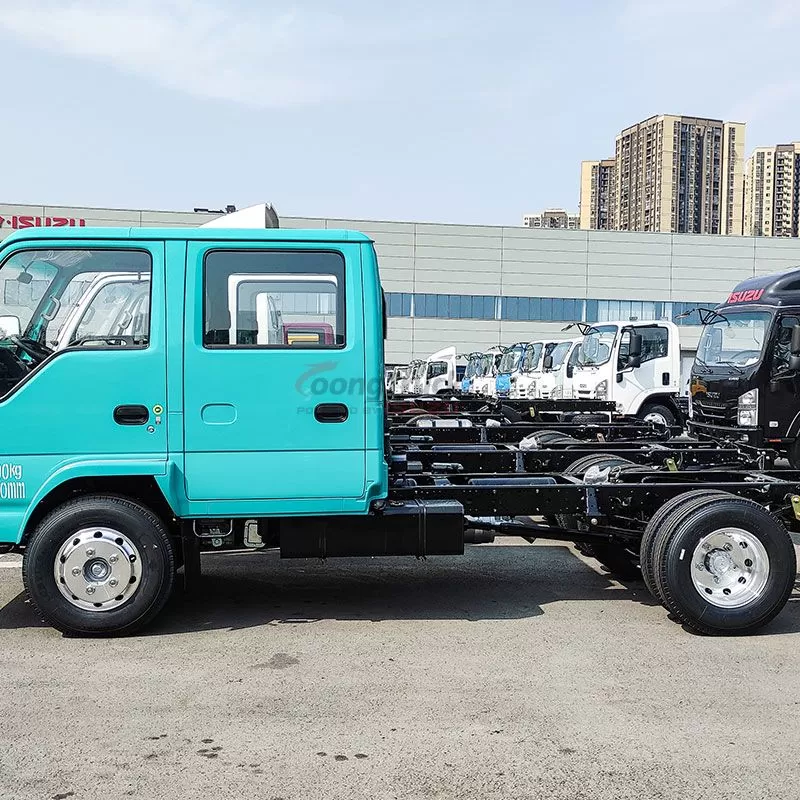

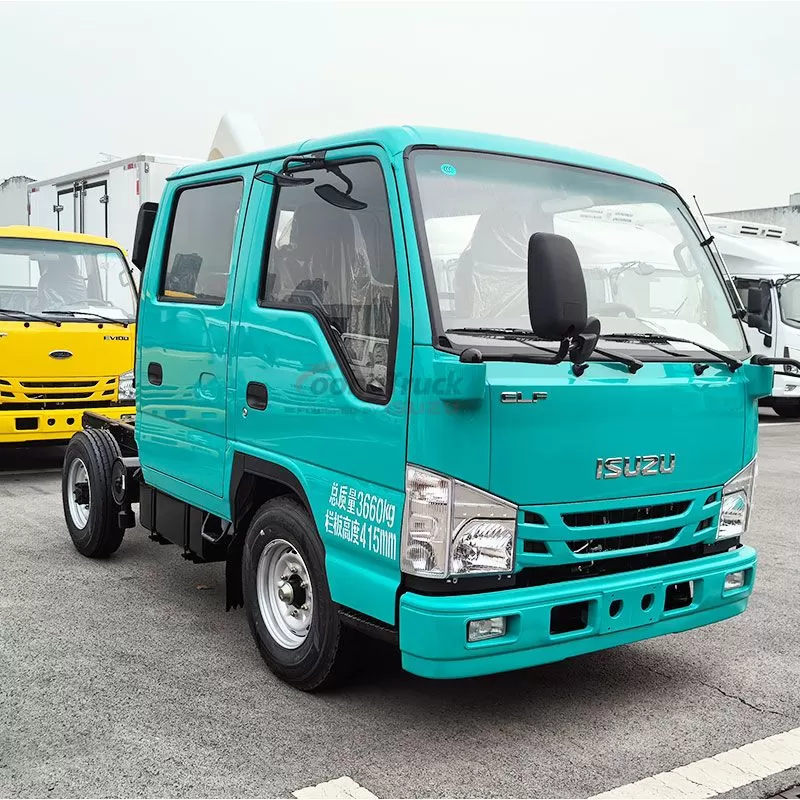

The Isuzu 100P Double Cab Chassis blends rugged reliability with efficiency. Powered by a 2.5L turbo diesel engine, it handles 1.8T payloads effortlessly. Its 5-seat crew cab and durable frame suit municipal work, urban delivery, and custom conversions. Low maintenance, fuel efficiency, and proven performance make it a trusted choice for heavy-duty tasks.
| Work capacity: | 2-5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu 100P light truck chassis |
PRODUCT DETAILS

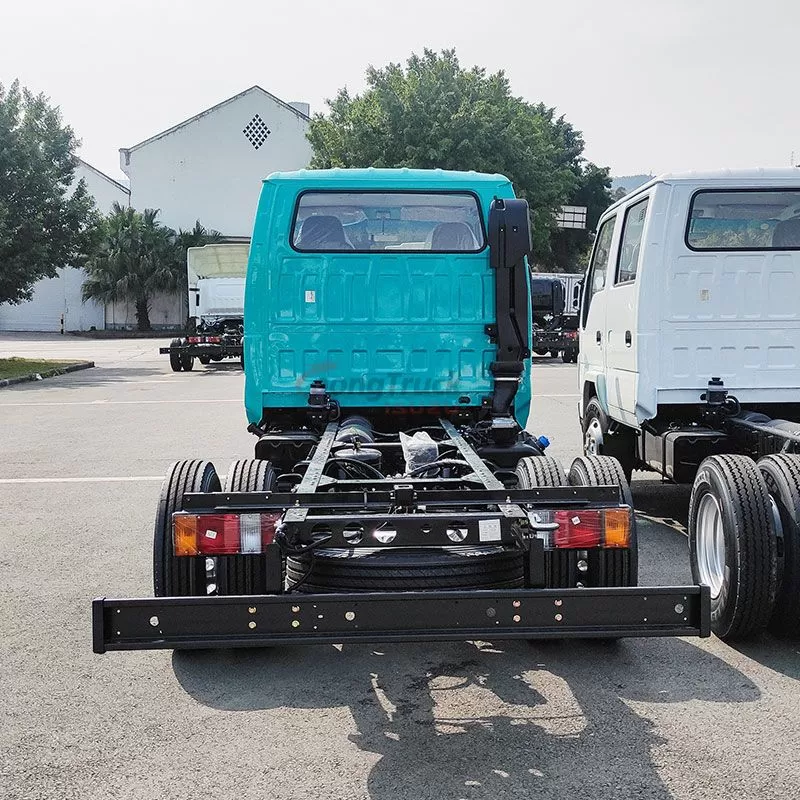

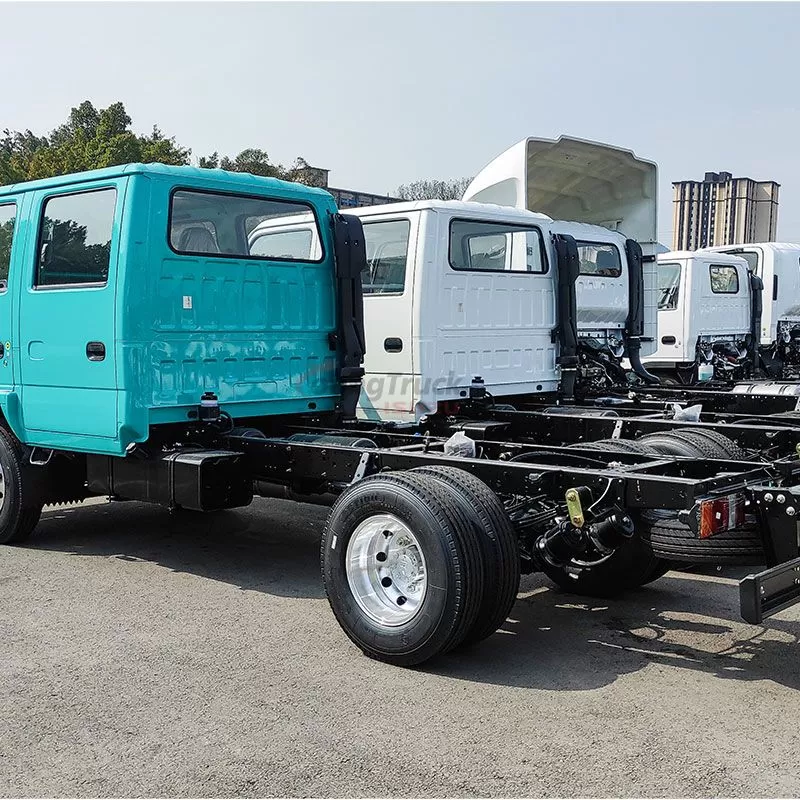

Powered by the proven 2.5L 4KK1 turbo diesel engine, the Isuzu 100P Double Cab Chassis delivers reliable performance for heavy-duty tasks. Generating 132HP and 290Nm of torque at 1300 RPM, it balances power and fuel efficiency, ideal for long workdays. With a 1.8T payload capacity and 3-ton rear axle, it handles construction materials, municipal equipment, or delivery goods effortlessly. The robust frame, reinforced with 3+2 leaf springs, ensures durability over rough terrain, while the 7.00R16LT heavy-duty tires provide stable traction. Its 84L fuel tank extends operational range, reducing refuel stops during urban or rural assignments. Engineered for low maintenance, the MSB 5-speed transmission and corrosion-resistant components minimize downtime, keeping your operations running smoothly.
General information | Chassis model | 100p light truck chassis |
Wheelbase(mm) | 3360 | |
Drive Type | 4X2 | |
GVW (kg) | 7300 | |
Curb Weight (kg) | 2250 | |
Cabin | Double | |
Driver and Passenger | 4 | |
Engine | Model | 4KH1CN6LB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 88kw | |
Max. Torque (N.m/rpm) | 290N.m | |
Transmission
| Model | Manual,MSB |
5 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR |
Power steering |
| |
Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock | ○ |
Electric window | ○ | |
Deflector | ○ | |

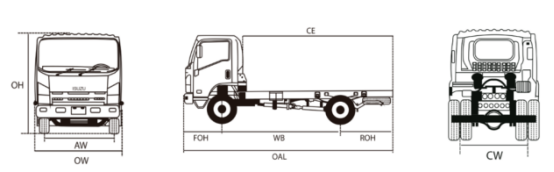

Dimensions | Length OAL (mm) | 5900 |
Width OW (mm) | 1880 | |
Height OH (mm) | 2200 | |
Front Tread AW (mm) | 1504 | |
Rear Tread CW (mm) | 1425 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||
The Isuzu 100P’s 5-seat double cab combines functionality with comfort, featuring ergonomic seating and optional air conditioning for crew comfort during long shifts. Designed for versatility, its flexible chassis supports seamless customization—perfect for converting into fire trucks, aerial work platforms, or utility vehicles. Compliance with international standards (ISO, CE) ensures global usability, while the compact design enhances maneuverability in tight urban spaces. Backed by Isuzu’s legacy of reliability, it comes with a 5-year warranty and 24/7 technical support. Whether for municipal projects, urban delivery, or specialized missions, this chassis blends ruggedness, efficiency, and adaptability to meet diverse operational needs.
