A versatile, high-performance commercial truck chassis engineered for urban logistics, construction, and custom conversions. Equipped with the 4KB1 diesel engine (360 N·m torque), it delivers robust power and fuel efficiency (11-12L/100km). Lightweight yet durable (2.7-ton curb weight, 1.8-5-ton payload), it supports refrigerated, flatbed, and specialized body builds. Built to Euro 6/China 6b standards with DPF+SCR aftertreatment, it ensures low emissions and compliance. With 600,000 km engine durability and minimal maintenance, it’s the cost-effective choice for fleets. Visit [website] or contact +86 189 4292 3930 for tailored solutions.
| Work capacity: | 2-5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu 100P light truck chassis |
PRODUCT DETAILS

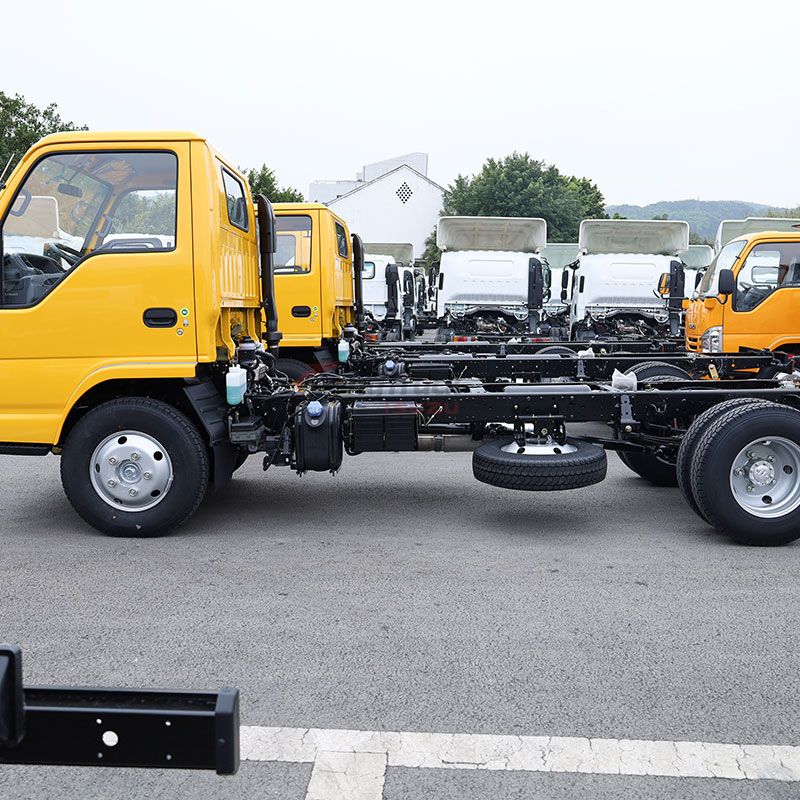

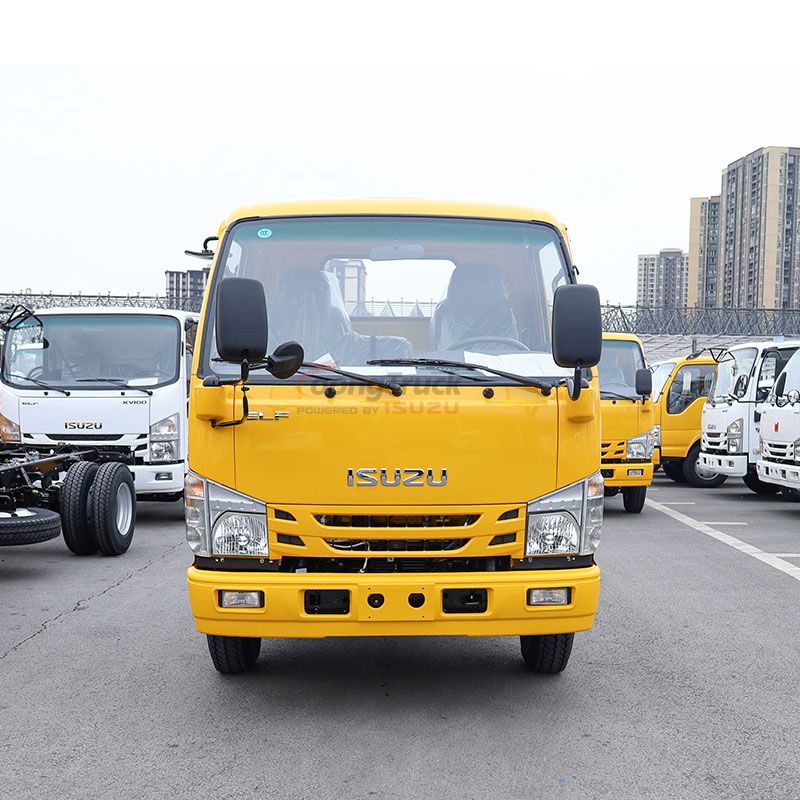

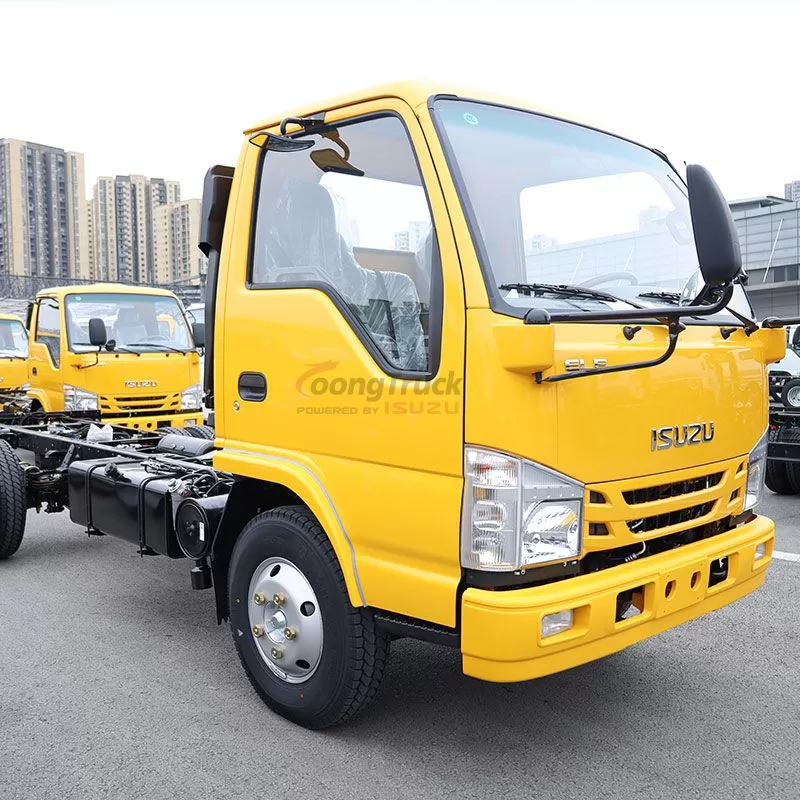

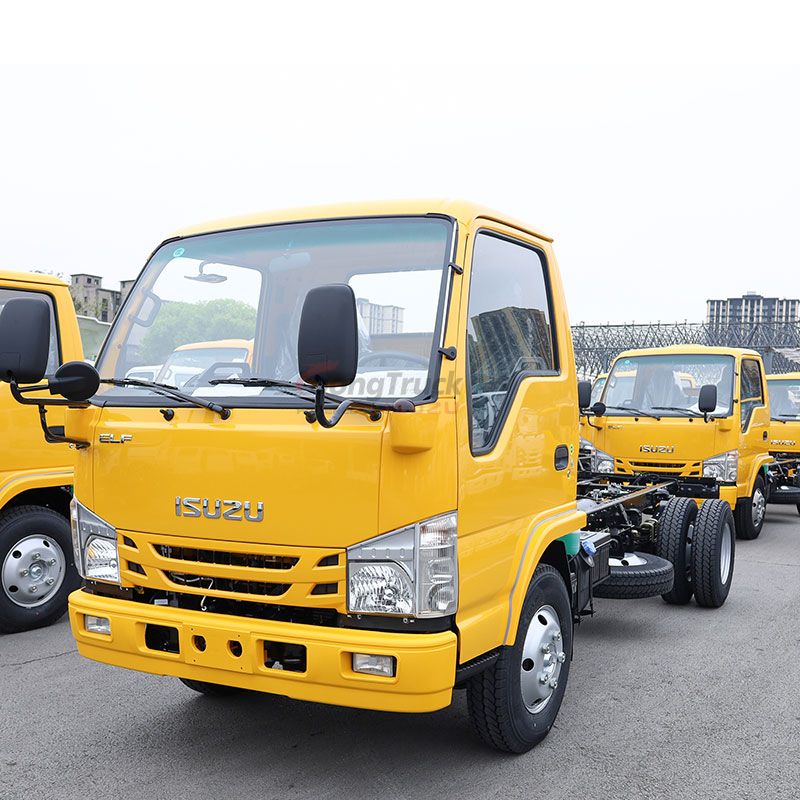

The Isuzu 100P Chassis Cab redefines commercial truck reliability with its robust 4JB1-CN turbocharged diesel engine, delivering 220 N·m of torque at 1,700 rpm to tackle the toughest urban and intercity logistics challenges. Paired with a 5-speed manual transmission (ISUZU MSB-5MT) and reinforced ladder-frame chassis, it supports payloads up to 4.5 tons while maintaining a lightweight 2.55-ton curb weight, ensuring optimal fuel efficiency of 11-12L/100km . The front/rear suspension system—featuring semi-elliptical leaf springs with double-acting shock absorbers—delivers a smooth ride even on uneven terrain, while the drum brake system with ABS ensures responsive stopping power . Compliant with Euro IV/V emissions standards (DPF+DOC aftertreatment), it meets global environmental regulations without compromising performance. Built to endure 600,000 km of rigorous use, the 100P’s engine undergoes 1,000+ hours of endurance testing, backed by a 5-year/200,000 km warranty for peace of mind . Key technical highlights include a 100L fuel tank, 7.00R16 radial tires, and a 3360mm wheelbase for agile maneuverability in tight spaces. Whether configured as a refrigerated truck, flatbed, or fire engine, the 100P’s modular design allows seamless integration with specialized bodies, making it the preferred choice for fleets prioritizing durability and adaptability.
General information | Chassis model | 100p light truck chassis |
Wheelbase(mm) | 3360 | |
Drive Type | 4X2 | |
GVW (kg) | 7300 | |
Curb Weight (kg) | 2250 | |
Cabin | single | |
Driver and Passenger | 2 | |
Engine | Model | 4KH1CN6LB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 88kw | |
Max. Torque (N.m/rpm) | 290N.m | |
Transmission
| Model | Manual,MSB |
5 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR |
Power steering |
| |
Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock |
|
Electric window |
| |
Deflector |
| |
Dimensions | Length OAL (mm) | 5900 |
Width OW (mm) | 1880 | |
Height OH (mm) | 2200 | |
Front Tread AW (mm) | 1504 | |
Rear Tread CW (mm) | 1425 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||
From e-commerce delivery to emergency response, the Isuzu 100P Chassis Cab excels in mission-critical applications. Its compact 5.95m overall length and 13.6m turning radius enable effortless navigation through congested city streets, while the 1.88m-wide chassis accommodates custom builds like 4.275m-long refrigerated compartments for pharmaceutical logistics or 5-ton dump bodies for construction sites . A leading Chinese logistics company reduced delivery times by 20% and maintenance costs by 30% after adopting the 100P, citing its low downtime and nationwide service network . The ergonomic cabin—equipped with air conditioning, power steering, and a 7-inch infotainment system—enhances driver comfort during long shifts, while the reinforced cab structure ensures occupant safety in high-impact scenarios . Recent export successes include 2 units of 100P dump trucks delivered to Angola for mining operations and a 2,500L water rescue fire engine deployed in Albania’s emergency services . With over 100,000 units sold globally, the 100P is trusted by Walmart, Pfizer, and municipal fleets for its unwavering reliability. Backed by Isuzu’s 24/7 support network—including preventive maintenance programs and genuine parts availability—it minimizes downtime and maximizes ROI. Transform your operations with a chassis engineered to outperform in any environment.
