700p Medium-Duty Chassis – Ideal for Heavy-Duty Cargo Van & Trailer Upfitting, Euro VI Compliant

700p Medium-Duty Chassis – Ideal for Heavy-Duty Cargo Van & Trailer Upfitting, Euro VI Compliant

Isuzu 700P Medium-Duty Chassis is tailored for commercial upfitting—ideal for cargo vans, trailers, refrigerated units, and more. Equipped with a Euro VI-compliant engine, it delivers reliable power and impressive payload capacity. Its robust frame ensures durability, while standardized mounting points simplify customization. A cost-effective choice for logistics, municipal, and distribution needs.

Engine power:	189HP
Engine type:	4HK1-TCG61
Axle drive:	4x4,LHD
Gear box:	Manual MLD-6Q
Remarks:	Isuzu 700P medium truck chassis

Inquire Now Next Product

PRODUCT DETAILS

The Isuzu 700P Medium-Duty Chassis combines power and adaptability, making it a top choice for commercial upfitting. Its Euro VI-compliant diesel engine delivers 190hp and 510N·m of torque, striking a perfect balance between performance and fuel efficiency—critical for both urban deliveries and regional hauls. The reinforced ladder frame, crafted from high-tensile steel, supports a 6,000kg payload, while the 3,815mm wheelbase ensures stable handling even with heavy or even loads. Designed for seamless customization, it features standardized mounting points that simplify integration with cargo vans, refrigerated units, utility trucks, and more. The advanced suspension system—leaf springs paired with hydraulic shock absorbers—minimizes vibrations, protecting cargo and extending chassis life. Whether for logistics fleets, municipal services, or specialty transport, the 700P chassis offers a robust, flexible foundation for tailored commercial solutions.

700p Medium-Duty Chassis – Ideal for Heavy-Duty Cargo Van

General information	Chassis model	KV100 light truck chassis
	Wheelbase(mm)	3360
	Drive Type	4X4
	GVW (kg)	7300
	Curb Weight (kg)	2300
	Cabin	single
	Driver and Passenger	3
Engine	Model	4HK1-TCG61
	Type	4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling.


	Emission Standard	Euro VI
	Displacement (L)	5.193
	Rated Power (kw/rpm)	189hp
	Max. Torque (N.m/rpm)	290N.m
Transmission	Model	Manual,MSB
Transmission	Model	5 Forward + 1 Reverse
Brake System	Service brake	Double circuit, air drive
	Brake(Oil/Air)	air brake
	Parking brake	Central drum brake
standard Configuration	Tires	7.00R16LT 14PR,7.00-16LT 14PRR
	Power steering	●
	Radio	●
	ABS	●
	A/C	●
	Tilted cabin	●
	Exhuast brake	●
Option configuration	Central lock	○
	Electric window	○
	Deflector	○

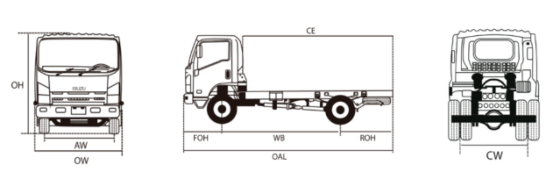

Dimensions	Length OAL (mm)	5995
	Width OW (mm)	2030
	Height OH (mm)	2280
	Front Tread AW (mm)	1504
	Rear Tread CW (mm)	1425
1. ● means standard configuration. ○ means option configurtaion
2. All above information is for reference only, and will be updated timely without notice;
3. The listed models are part of the full products range, any special request will be available on request.

700p Medium-Duty Chassis – Ideal for Heavy-Duty Cargo Van

Built for long-term reliability, the Isuzu 700P Chassis reduces operational costs with durable components and easy maintenance. Its anti-corrosion coating boosts longevity by 30% in harsh environments, while the high-efficiency cooling system handles continuous heavy use without overheating. Driver safety is prioritized with ABS+EBD for stable braking, a spacious cab with ergonomic controls, and a clear instrument panel for real-time performance tracking. Fleet managers benefit from its impressive fuel economy (up to 8.5L/100km) and global parts availability, ensuring minimal downtime. From refrigerated transport to urban delivery vans, this chassis adapts effortlessly to diverse needs, proving its worth as a cost-effective, trusted solution for businesses scaling their commercial operations.
