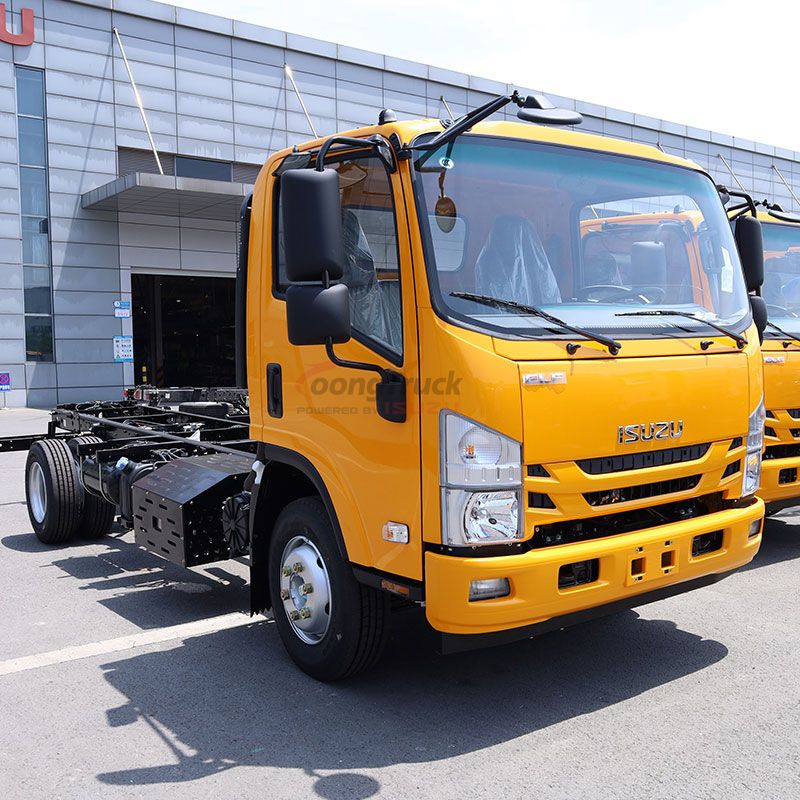

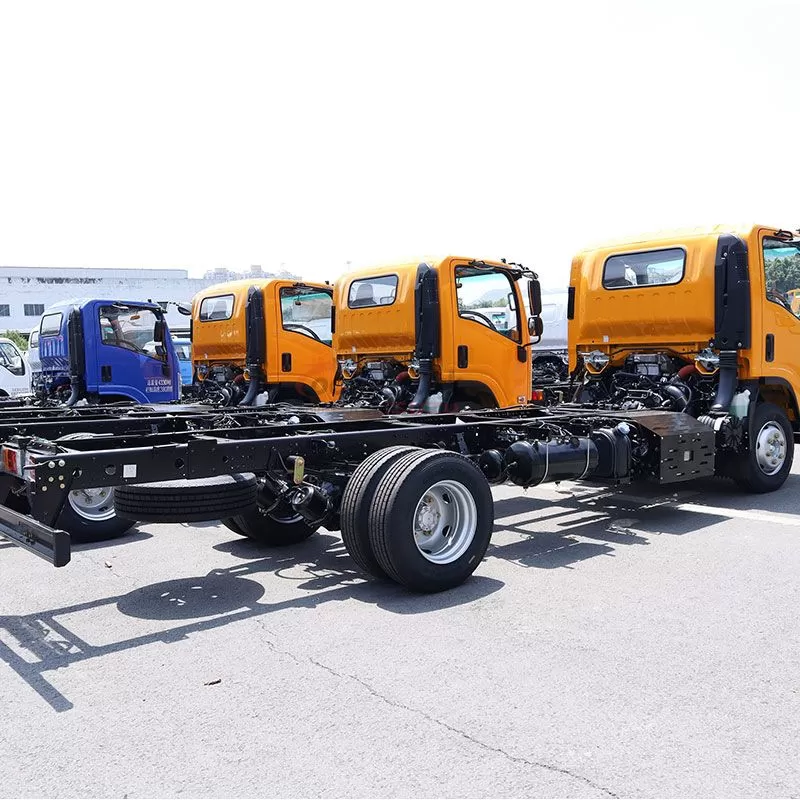

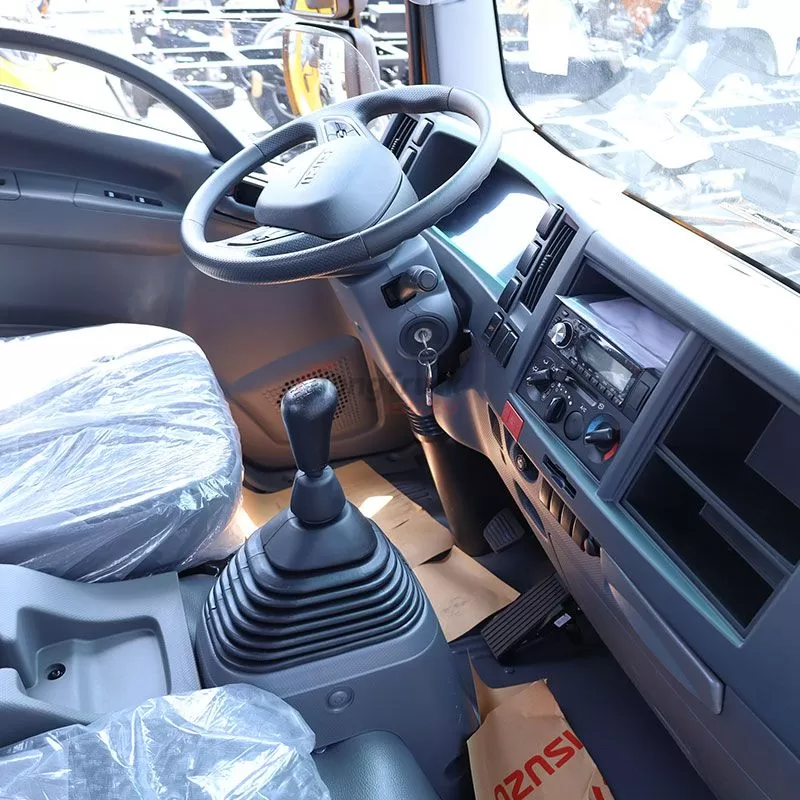

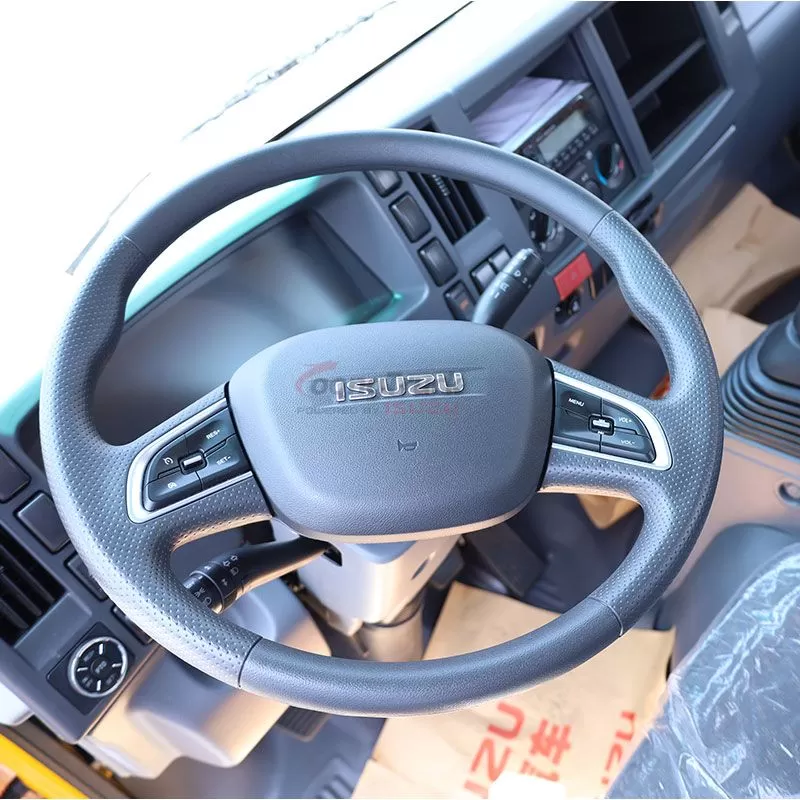

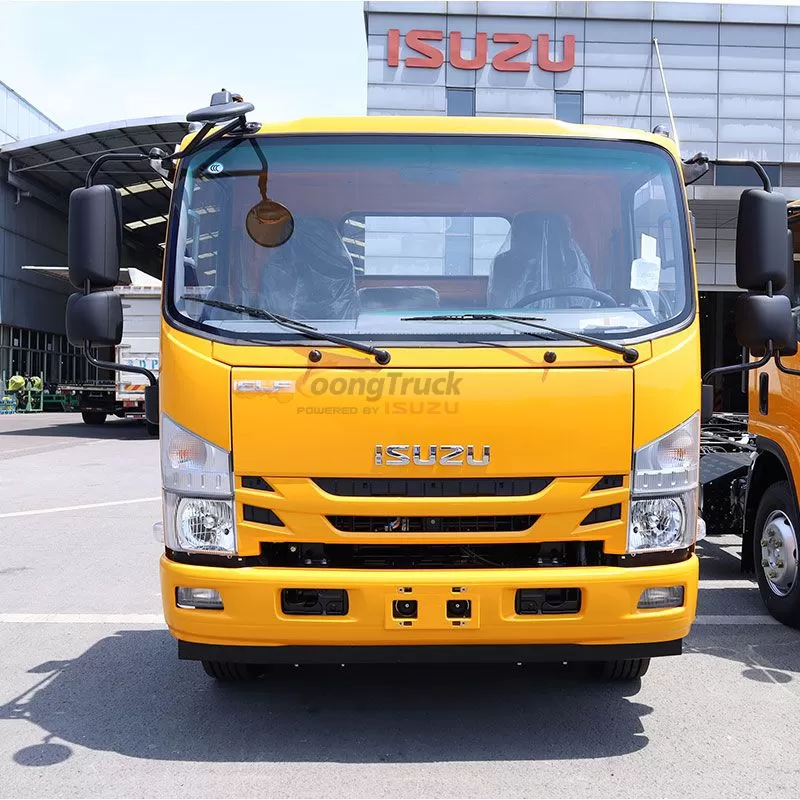

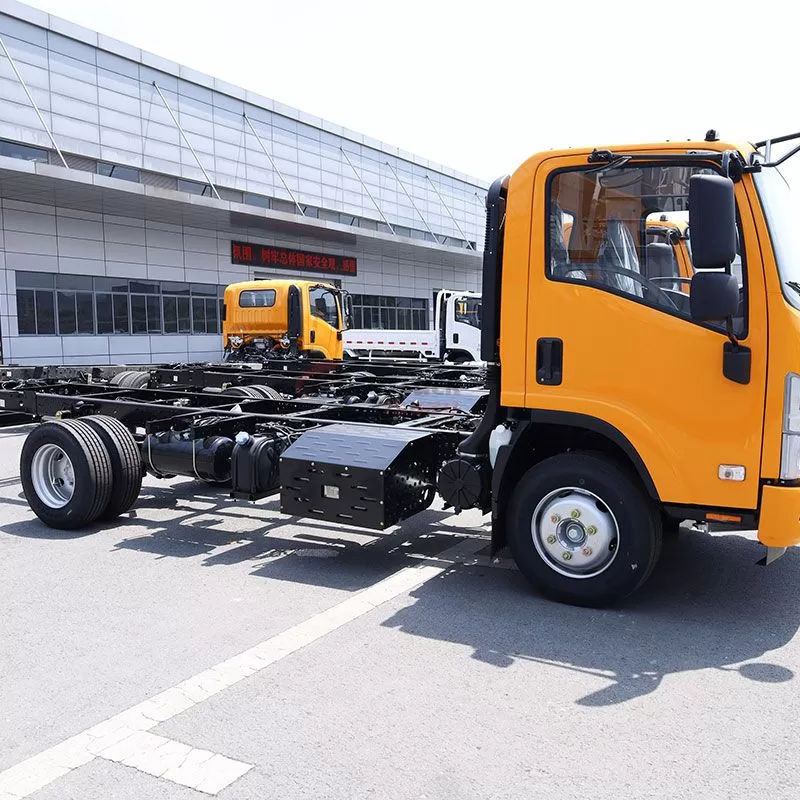

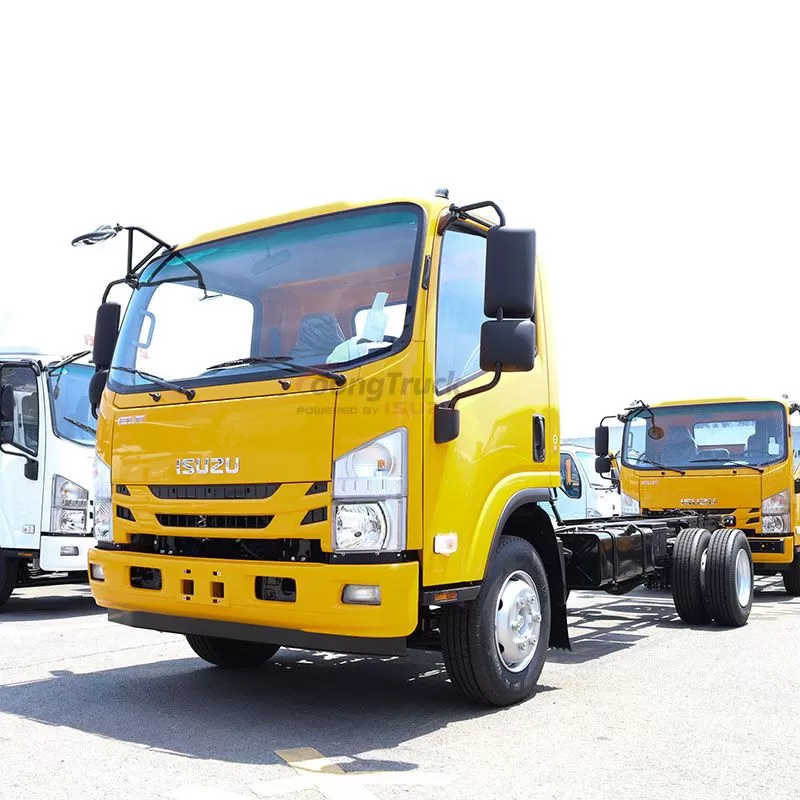

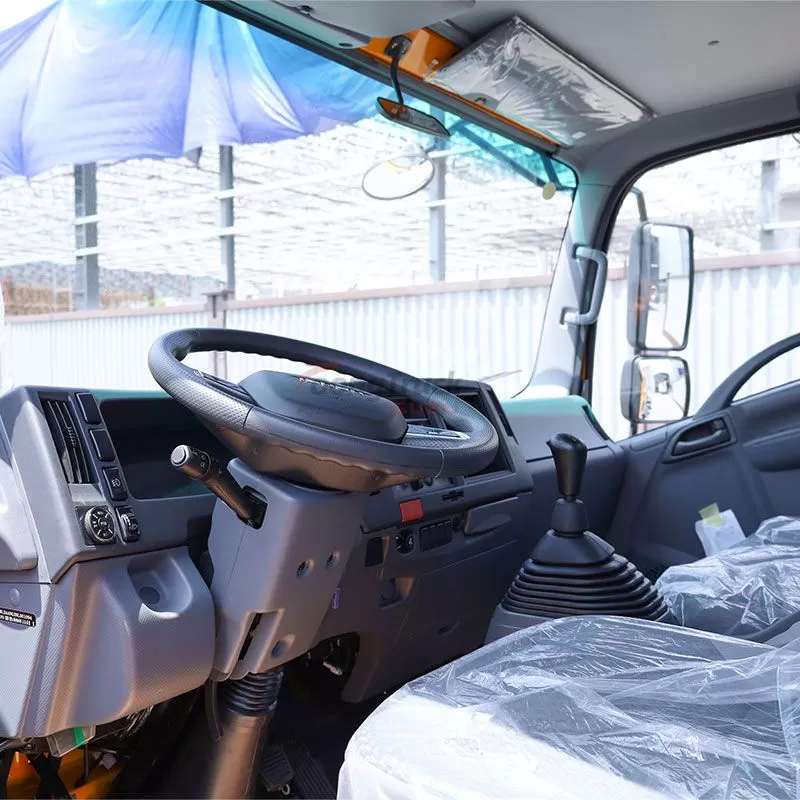

This 700p chassis is equipped with 189HP 4HK1-TCG61 engine, manual ISUZU MLD-6Q transmission with 6 forward gears and 1 reverse gear, newly developed chassis with 3 seats, wheelbase 3360mm, GVW 10550kg; multifunction steering wheel, rear view camera, modern body design, low fuel consumption, low maintenance cost, highly manoeuvrable.
| Work capacity: | 7tons |
| Engine power: | 189HP |
| Engine type: | 4HK1-TCG61 |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MLD-6Q |
| Remarks: | Isuzu 700P medium truck chassis |
PRODUCT DETAILS
General information | Chassis model | 700p QL1110ANHAY PE45A |
Wheelbase(mm) | 3360 | |
Drive Type | 4X2 | |
GVW (kg) | 10550 | |
Curb Weight (kg) | 3240 | |
Cabin | single | |
Driver and Passenger | 3 | |
Engine | Model | 4HK1-TCG61 |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 5.193 | |
Rated Power (kw/rpm) | 139KW | |
Max. Torque (N.m/rpm) | 510N.m | |
Transmission

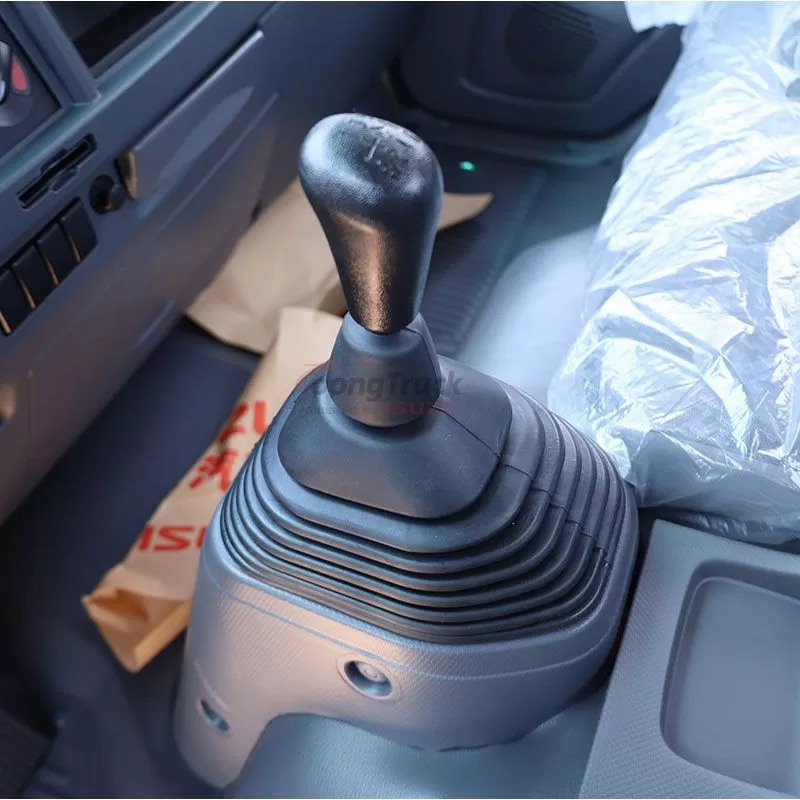

| Model | Manual,ISUZU MLD-6Q |
6 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 235/75R17.5 16PR |
Power steering |
| |

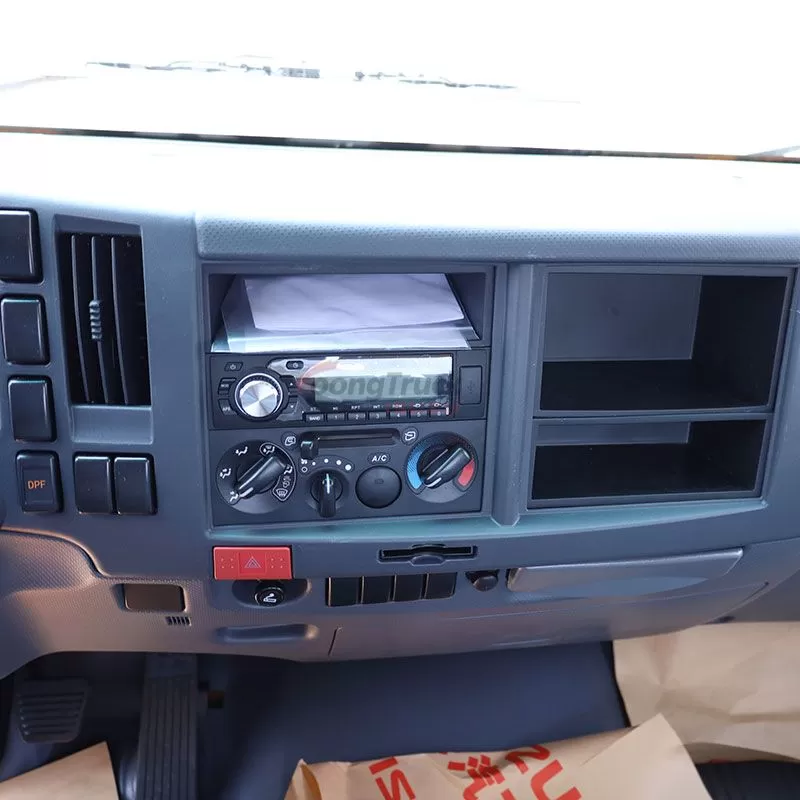

Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock |
|
Electric window |
| |
Deflector |
| |
Dimensions | Length OAL (mm) | 5995 |
Width OW (mm) | 2170 | |
Height OH (mm) | 2330 | |
Front Tread AW (mm) | 1680 | |
Rear Tread CW (mm) | 1650 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||
In addition to its powerful mechanical components, the Isuzu 700P chassis comes with a host of modern features that enhance both safety and efficiency. The rear - view camera is a crucial addition, providing drivers with a clear view of what's behind the vehicle, reducing the risk of accidents during reversing maneuvers. Its modern body design is not just for aesthetics; it's been optimized to improve aerodynamics, which in turn leads to low fuel consumption. Maintenance is also a breeze with this chassis. Thanks to its well - engineered design and high - quality components, the 700P has a low maintenance cost, saving you time and money in the long run. Furthermore, its high manoeuvrability makes it easy to handle in tight spaces, whether it's making deliveries in crowded urban areas or navigating through industrial yards. Overall, the Isuzu 700P chassis is a well - rounded solution for commercial vehicle requirements.
