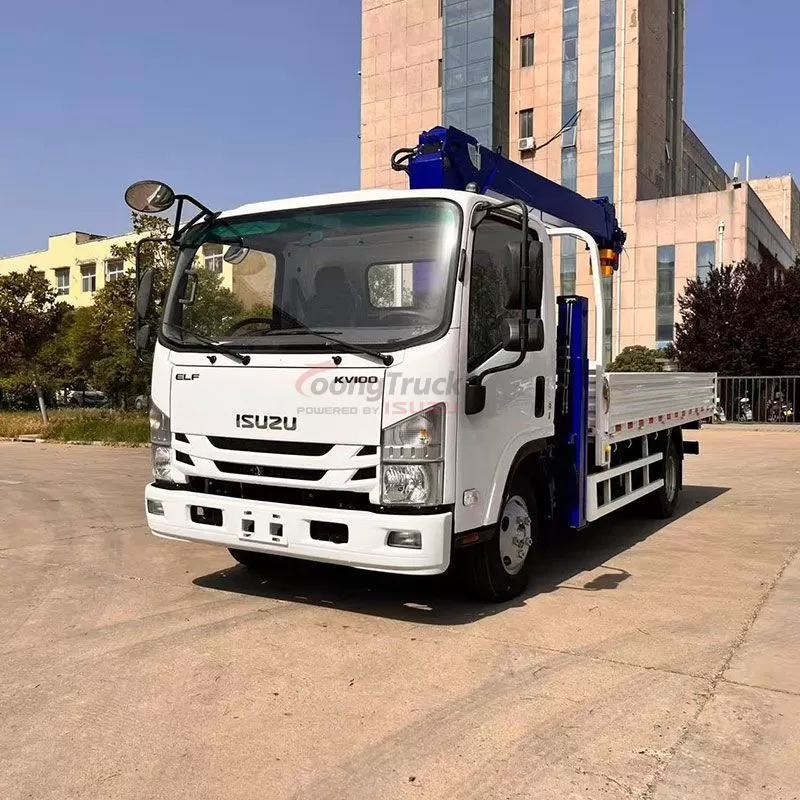

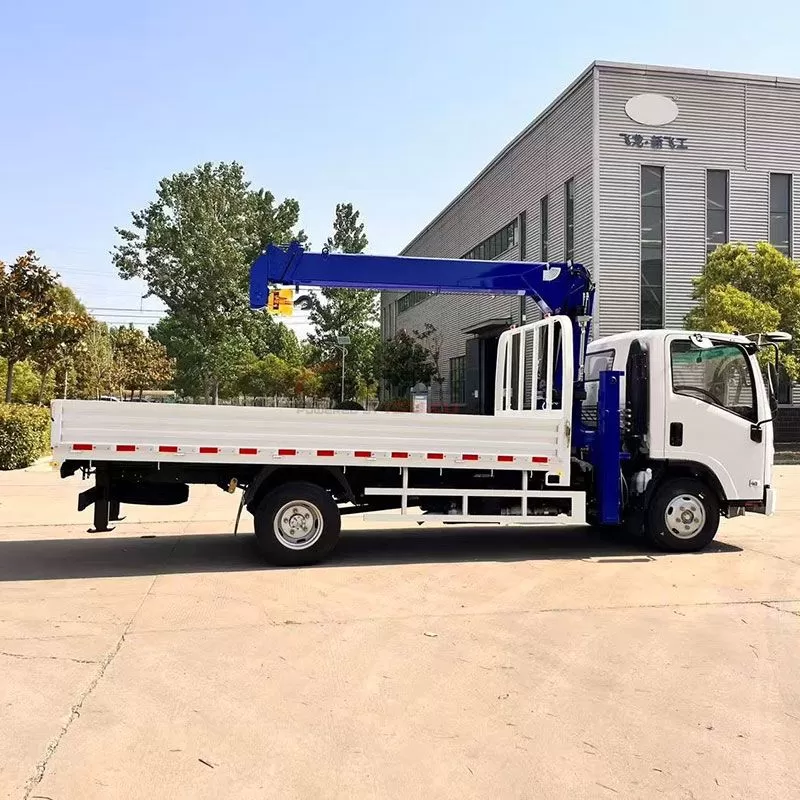

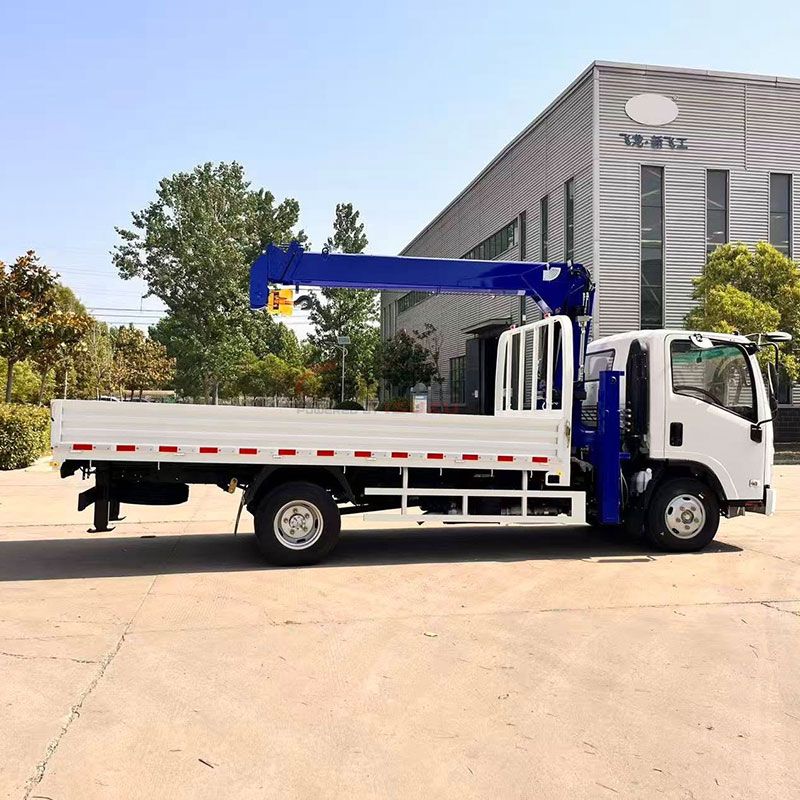

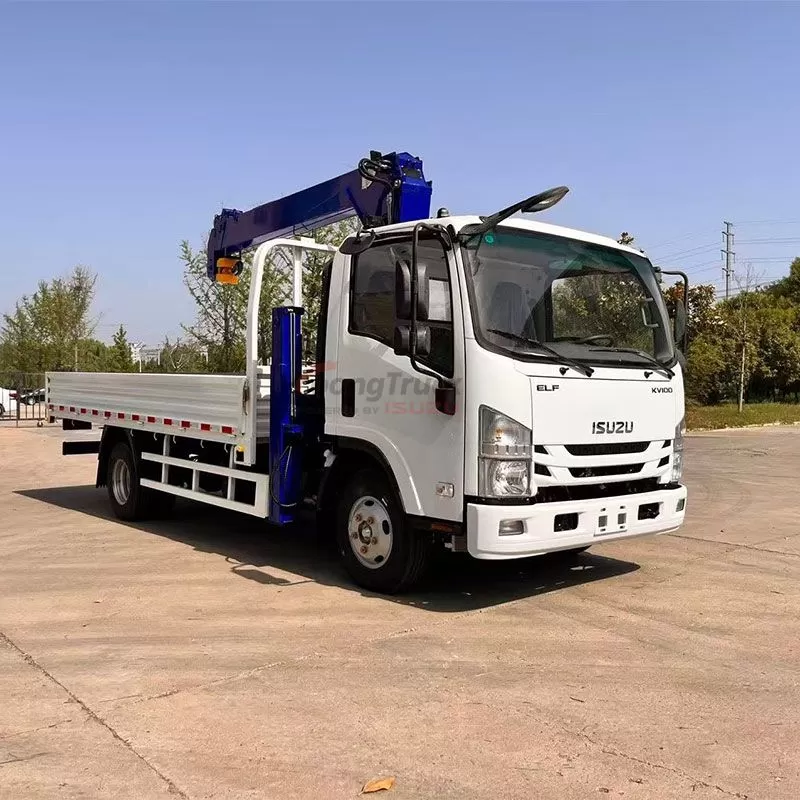

The Isuzu KV100 straight-arm truck-mounted crane blends rugged reliability with precision lifting. Built for heavy-duty tasks, it delivers consistent performance across logistics, construction, and municipal work. Compliant with strict standards, its efficient engine balances power and fuel economy. The intuitive controls and stable chassis ensure safe, easy operation, even in tight spaces. Ideal for hauling equipment, loading goods, or on-site lifting—this crane transforms your KV100 into a versatile workhorse, boosting productivity for every job.
| Work capacity: | 5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu KV100 Crane Truck |
PRODUCT DETAILS

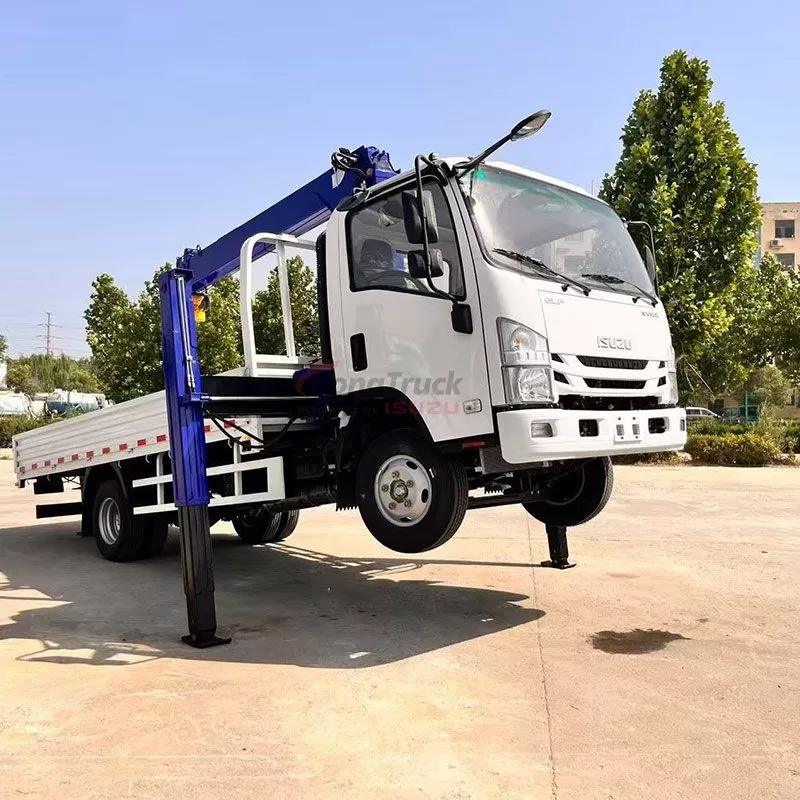

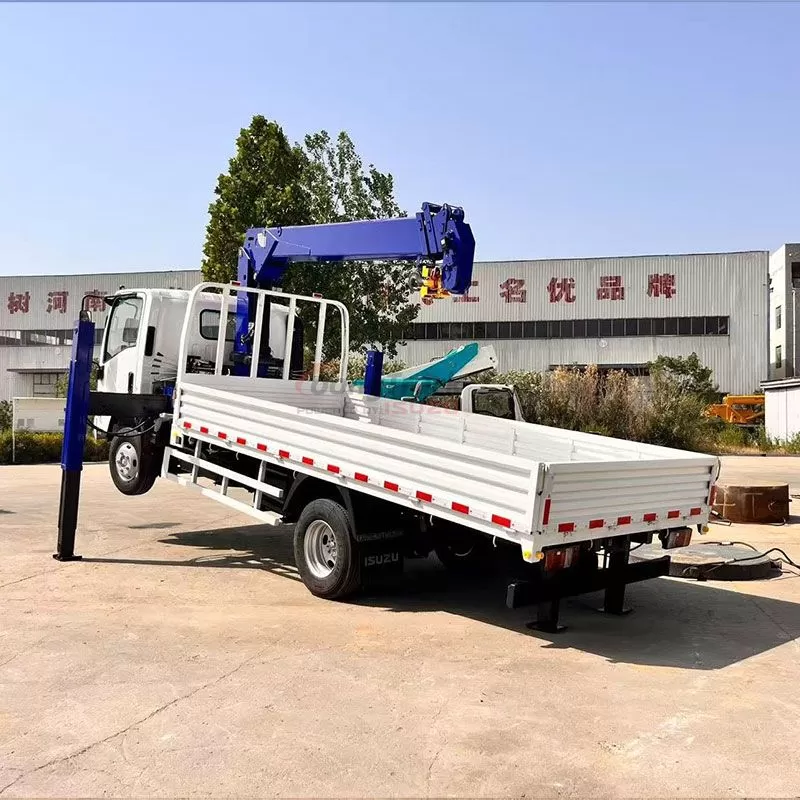

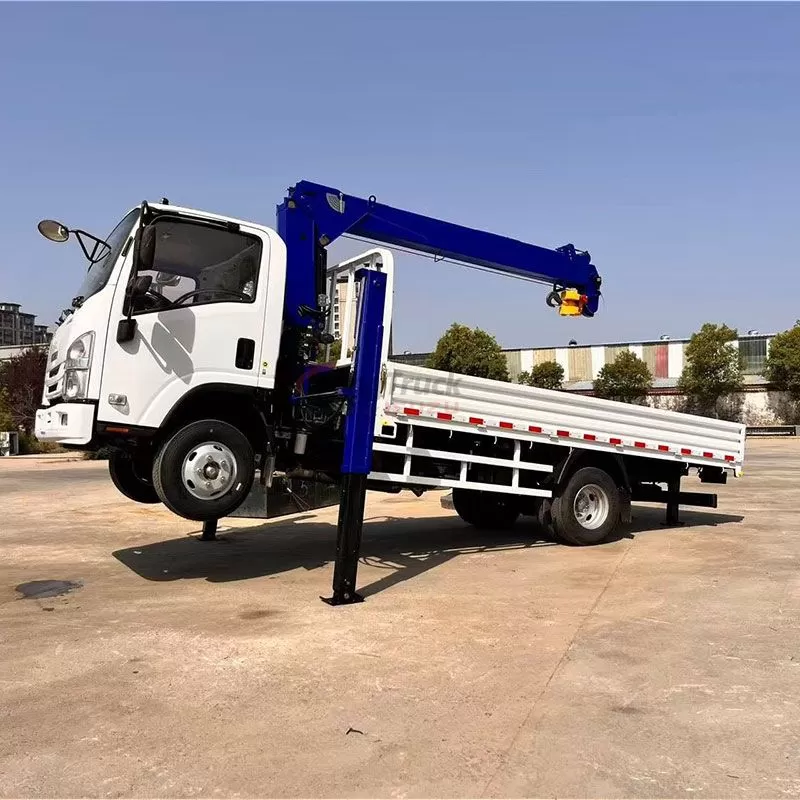

The Isuzu KV100 straight-arm truck-mounted crane redefines heavy lifting efficiency, powered by Isuzu‘s 4KH1CN6LB engine delivering 130hp and 380Nm torque—blending robust performance with fuel economy to cut operational costs. Its straight arm, with 5-8m reach options, handles 5-8 tons, ideal for machinery, construction materials, or industrial loads. A precision hydraulic system ensures smooth, controlled movements even under full load. Safety features include adjustable outriggers for stability on uneven ground, overload protection, ABS, and a reinforced chassis, meeting global standards. The ergonomic control panel with joysticks and digital indicators lets operators handle complex lifts accurately, reducing training time and boosting productivity.
General information | Chassis model | KV100 light truck chassis |
Wheelbase(mm) | 3360 | |
Drive Type | 4X2 | |
GVW (kg) | 7300 | |
Curb Weight (kg) | 2300 | |
Cabin | single | |
Driver and Passenger | 3 | |
Engine | Model | 4KH1CN6LB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 88kw | |
Max. Torque (N.m/rpm) | 290N.m | |
Transmission
| Model | Manual,MSB |
5 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR |
Power steering |
| |
Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock |
|
Electric window |
| |
Deflector |
| |
Dimensions | Length OAL (mm) | 5995 |
Width OW (mm) | 2030 | |
Height OH (mm) | 2280 | |
Front Tread AW (mm) | 1685 | |
Rear Tread CW (mm) | 1685 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||
Designed for versatility, the KV100 adapts to logistics hubs and remote sites. Its 6.2-7.5m length eases maneuvering in narrow areas, while the 3.2-ton truck payload allows simultaneous tool/material transport, eliminating extra vehicles. Weather-resistant components—corrosion-proof hydraulic lines and sealed controls—ensure reliability in rain, dust, or extreme temps, minimizing downtime. The cabin prioritizes comfort with adjustable suspension seats, AC, and noise insulation for long shifts. Maintenance is simplified via accessible service points and durable parts, supported by Isuzu’s global network. This crane transforms the KV100 into a multi-functional workhorse, streamlining workflows across municipal, warehouse, and construction tasks.
