| Work capacity: | 5tons |
| Engine power: | 130HP |
| Engine type: | 4KH1CN5HD |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB |
| Remarks: | Isuzu kv100 Refrigerated Truck |
PRODUCT DETAILS
The Isuzu KV100 Refrigerated Truck stands out with its remarkable performance and generous capacity. Its 3815mm wheelbase provides a stable foundation, ensuring smooth handling even on challenging roads. With a gross vehicle weight (GVW) of 7300kg, it's engineered to take on substantial loads. The payload capacity of 5050kg means you can transport large quantities of ice cream or other perishable goods in one go, reducing the need for frequent trips. Under the hood, the 4KH1CN5HD diesel engine is a true powerhouse. Meeting the Euro 5 emission standard, it not only offers environmental benefits but also delivers reliable power with a rated output of 96kw. The manual 5 - speed transmission gives the driver full control over the vehicle's performance, allowing for seamless gear shifts in various driving conditions. Whether it's navigating city streets during rush hour or cruising on the highway, the KV100 is up to the task. This combination of power and capacity makes it an efficient and dependable choice for ice cream distribution businesses.
| Product Name | KV100 Refrigerated Truck | |
| Drive Type | 4X2 | |
| Wheelbase | Length (mm) | 3815 |
| Cabin chassis Weights | ||
| GVW (kg) | 7,300 | |
| Curb Weight (kg) | 2,250 | |
| Payload(kg) | 5050 | |
| Axle payload（kg) | Front Axle | 2580 |
| Rear Axle | 4720 | |
| Size | ||
| cabin chassis truck size | Length*Width*Height (mm) | 6760x 1995 x2260 |
| Wheel Distance（mm) | Front | 1680 |
| Rear | 1525 | |
| Cab | ||
| Double/Single | single | |
| Driver & Passenger | 3 | |
| Engine | ||
| Model | 4KH1CN5HD,diesel, cancel DPF | |
| Emission Standard | Euro 5 | |
| Displacement (L) | 2.999 | |
| Rated Power (KW) | 96kw(130hp) | |
| Max. Torque (N.m/rpm) | 277/1500 | |
| Type类型 | 4 Cylinders in line,high presure, electrical common-rail diesel fuel injection system,water cooling , turbo charging, inter cooling. | |
| Gear | ||
| Transmission | Manual ,MSB,5 forward+1 reverse | |
| Brake | ||
| Brake System | Oil brake | |
| Max. Speed (km/h) | 110 | |
| Standard Configurations | ||
| Tire | 7.00R16 14PR | |
| Power Steering | ● | |
| Radio | ● | |
| A/C | ● | |
| ABS | ● | |
| Tilted cabin | ● | |
| Fuel Tank | 100L | |
| Specifcations of cargo box | ||
| Material材料 | Glass fiber reinforced plastics inside and outside, and the thickness is 2.0mm. the middle is the polyurethane material Locks and door frames are made of 304 stainless steel, Lightweight high-strength steel for subframe | |
| Specifcations of Refrigerator | ||
| Refrigerator unit | VATNA 400H-B | |
| ATP- N° | BxRe1063 | |
| Model | VATNA408-8 | |
| Cold storage capacity | 76800KJ | |
| K*Ms | 19.15W/°C | |
| Electric compressor model | CT423 | |
| Electric compressor cylinder number | 2 | |
| Number of electric compressor cylinders | 258cm³ | |
| Refrigerant | R404A | |
| Backup motor voltage | 400/3/50HZ | |
| Specifcations of Refrigerator | ||

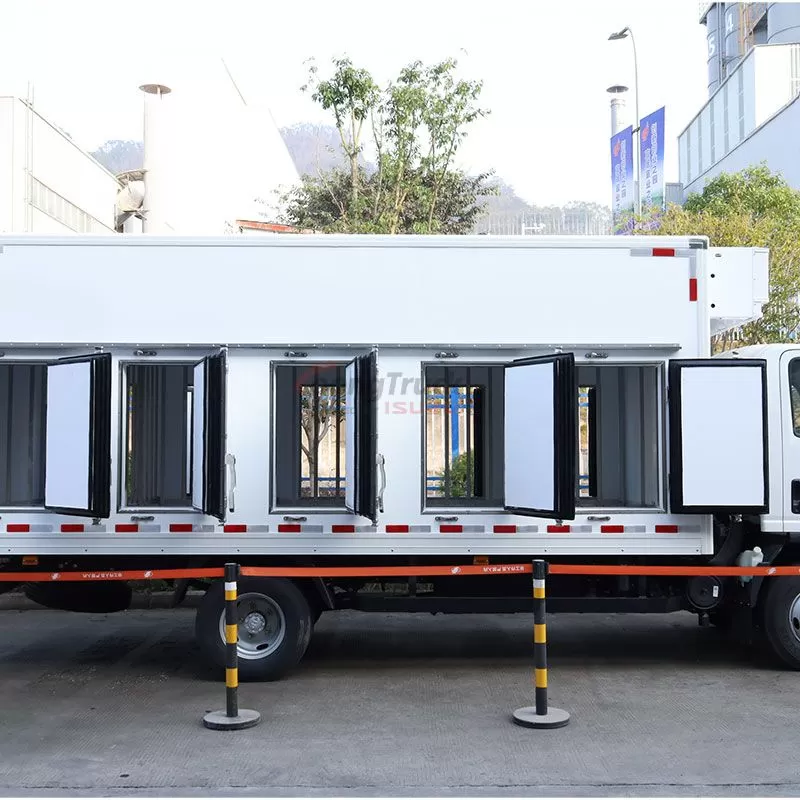

| Door | 5 doors on the left and right,totally 10 doors | |
| The dimension of the door | Length*Width*Height (mm) | 560×945 |
| The inner dimension of the box body | Length*Width*Height (mm) | 5000X1900X1800(17.1m³) |
| Others | aluminum pattern floor lights inside box With 15mm high overall bending skirt | |
When it comes to preserving the quality of ice cream, the Isuzu KV100 Refrigerated Truck doesn't disappoint. It is equipped with the VATNA 400H - B fridge, which offers excellent cooling performance to keep your products at the optimal temperature throughout the journey. This ensures that the ice cream remains in perfect condition, maintaining its texture and taste. In addition to its refrigeration capabilities, the truck also offers a range of comfort and convenience features. With 10 side doors, loading and unloading of goods becomes a breeze, saving valuable time during delivery operations. The inclusion of air - conditioning (A/C) ensures a comfortable working environment for the driver, especially during long hours on the road. This not only improves driver satisfaction but also helps to enhance productivity. Other standard features like power steering and a radio add to the overall convenience and enjoyment of operating this high - quality refrigerated truck.
