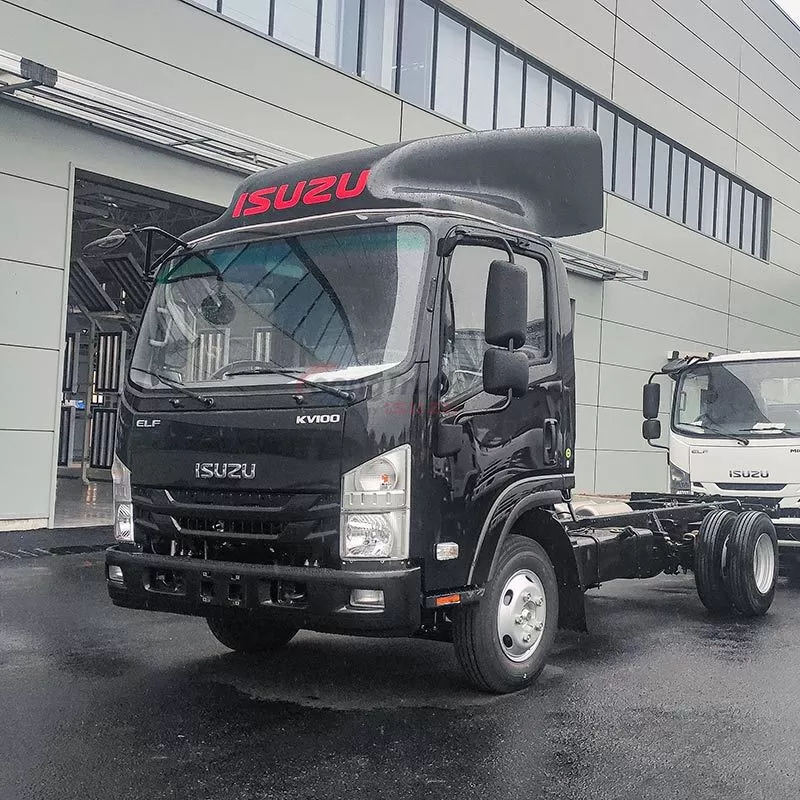

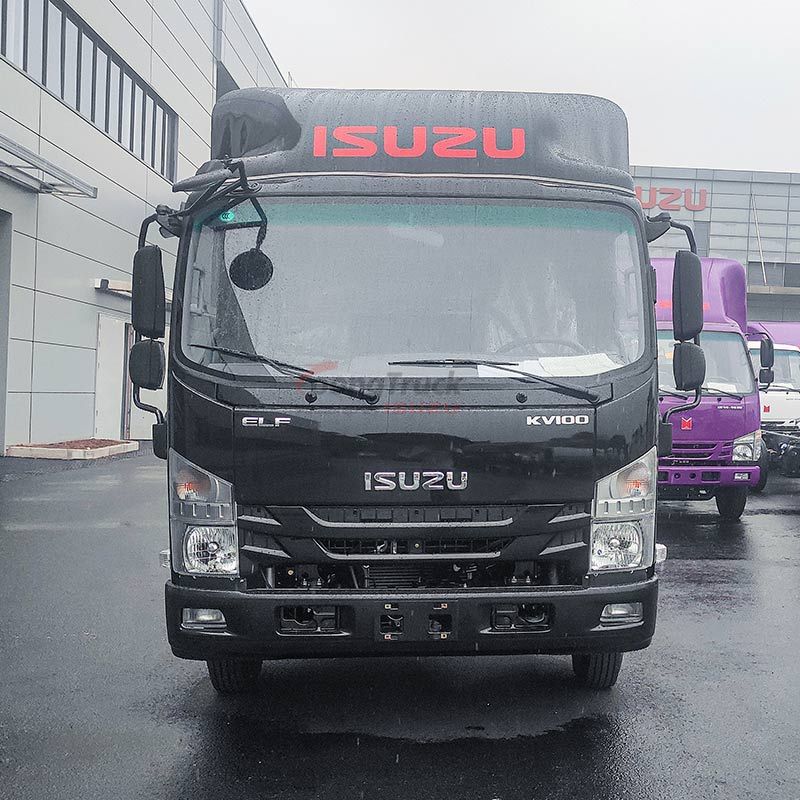

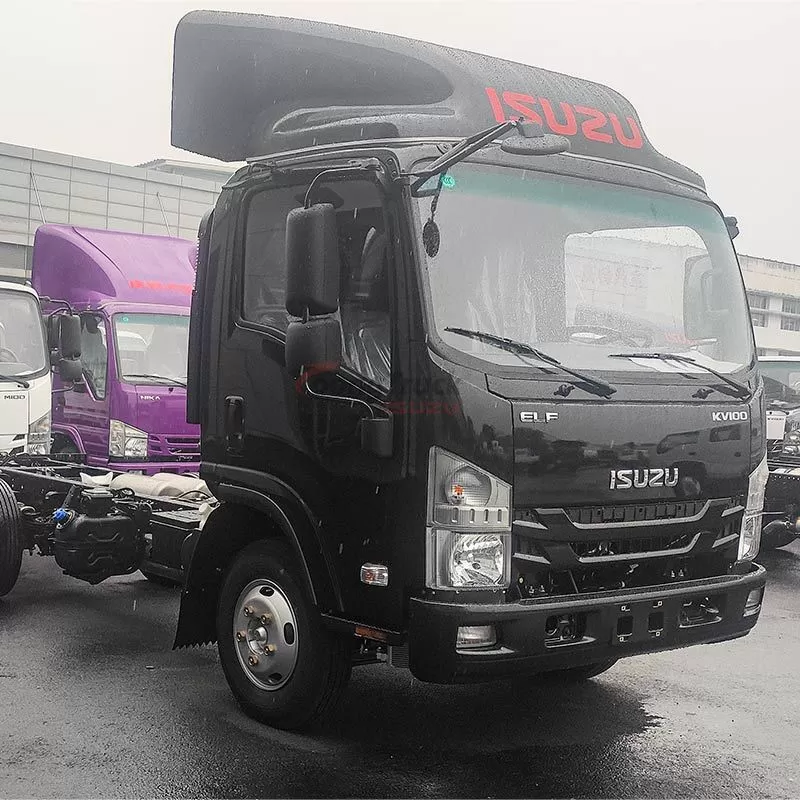

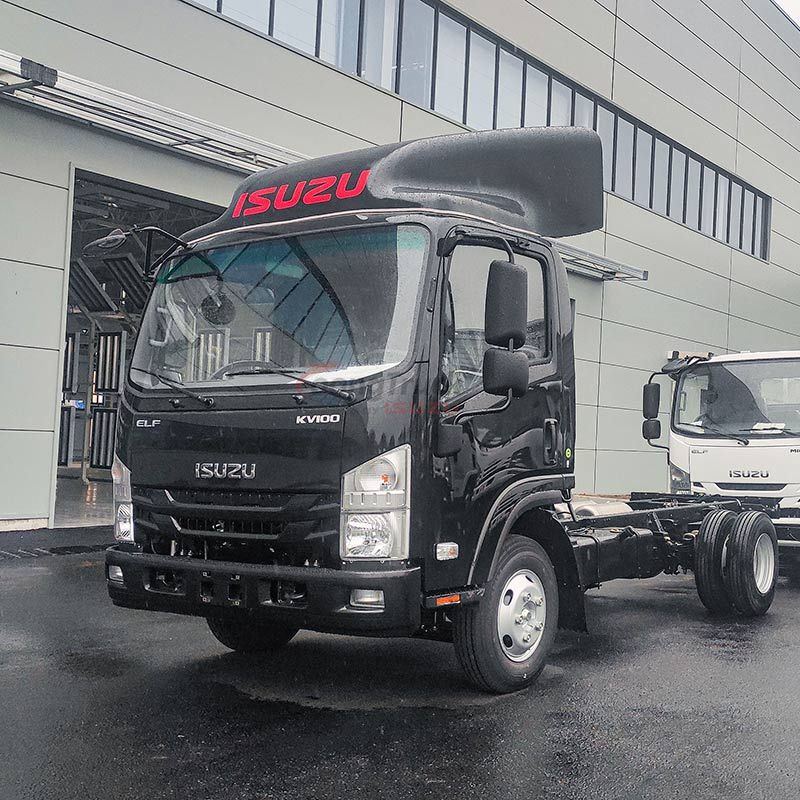

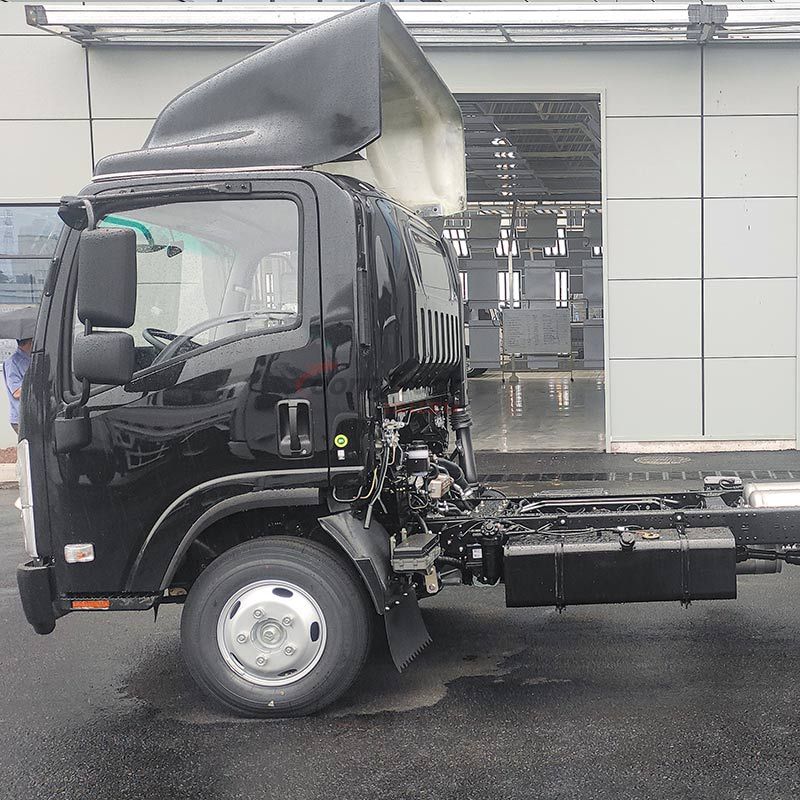

The Isuzu KV100 chassis is a robust, customization-ready foundation built for reliability. With exceptional load capacity and high rigidity, it adapts seamlessly to refrigerated, logistics, or engineering upfits. Ideal for custom commercial vehicles, it delivers durability and stability across urban and industrial applications—your trusted base for tailored fleet solutions.
| Work capacity: | 5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu KV100 Light Truck Chassis |
PRODUCT DETAILS
The Isuzu KV100 chassis stands out with its robust construction and versatile design, making it a top choice for commercial customization. Its high-strength steel frame delivers exceptional rigidity, supporting a maximum payload capacity of up to 3,500 kg—ideal for fitting refrigerated units, cargo boxes, or utility bodies. The chassis’ compact wheelbase enhances maneuverability in tight urban spaces, while reinforced suspension ensures stability even with heavy loads. Under the hood, it features Isuzu’s 4KH1CN6LB turbocharged diesel engine, generating 130 horsepower and 350 Nm of torque. This engine balances power and efficiency, meeting strict emission standards, and paired with a smooth 5-speed manual transmission, it offers precise gear shifts for seamless acceleration and optimal fuel economy, crucial for long-haul or frequent stop-and-go operations.
General information | Chassis model | KV100 light truck chassis |
Wheelbase(mm) | 3360 | |
Drive Type | 4X2 | |
GVW (kg) | 7300 | |
Curb Weight (kg) | 2300 | |
Cabin | single | |
Driver and Passenger | 3 | |
Engine | Model | 4KH1CN6LB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 88kw | |
Max. Torque (N.m/rpm) | 290N.m | |
Transmission
| Model | Manual,MSB |
5 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR |
Power steering |
| |
Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock |
|
Electric window |
| |
Deflector |
| |

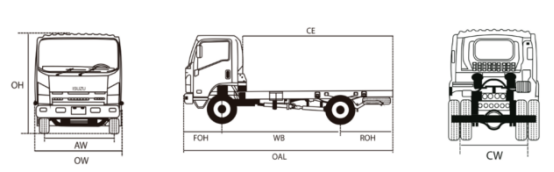

Dimensions | Length OAL (mm) | 5995 |
Width OW (mm) | 2030 | |
Height OH (mm) | 2280 | |
Front Tread AW (mm) | 1685 | |
Rear Tread CW (mm) | 1685 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||
Engineered for adaptability, the Isuzu KV100 chassis excels in diverse applications. Its modular design simplifies upfitting, allowing easy integration with specialized equipment like crane mounts or tool storage. The chassis’ corrosion-resistant undercarriage extends service life, reducing maintenance costs. The 4JJ1-TCS engine’s advanced fuel injection system optimizes combustion, ensuring consistent performance in varying terrains, from city streets to rural roads. The 5-speed transmission, with its well-calibrated gear ratios, handles low-speed heavy lifting and high-speed cruising with equal ease, minimizing driver fatigue. Whether for last-mile delivery or industrial logistics, this chassis combines durability, power, and flexibility to meet evolving commercial needs.
