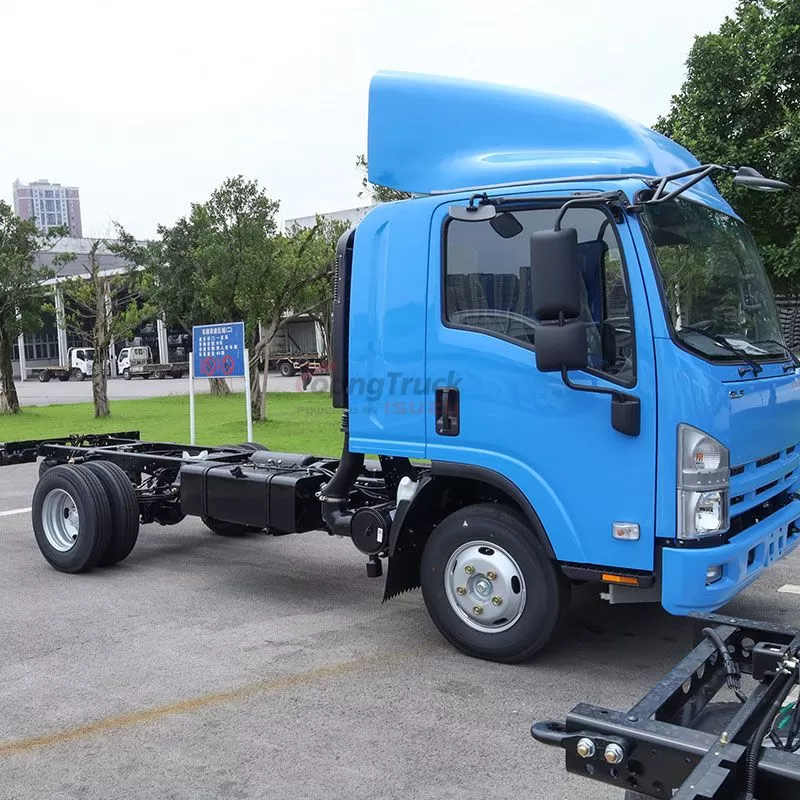

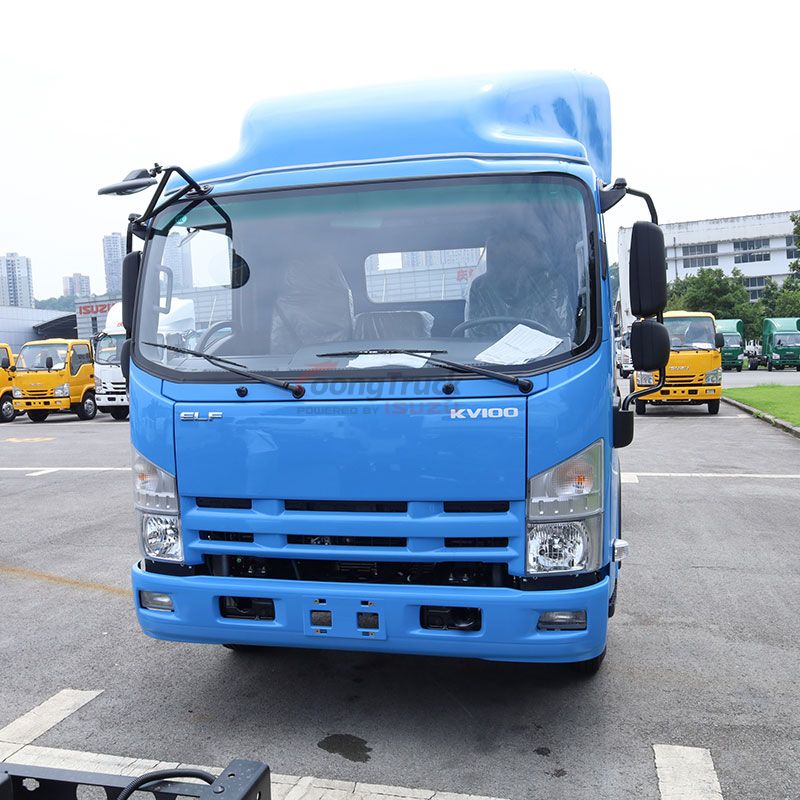

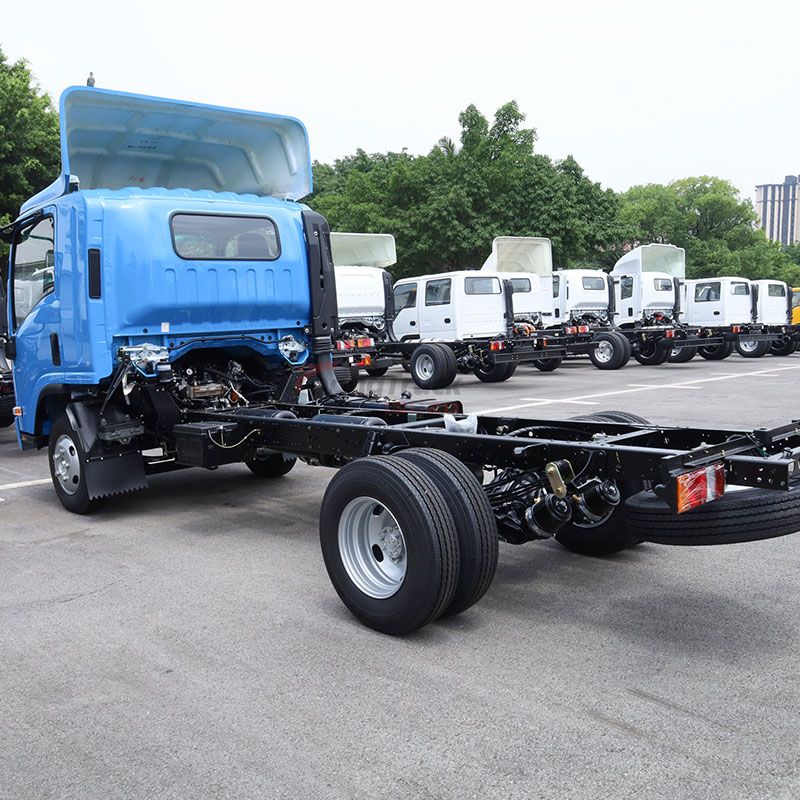

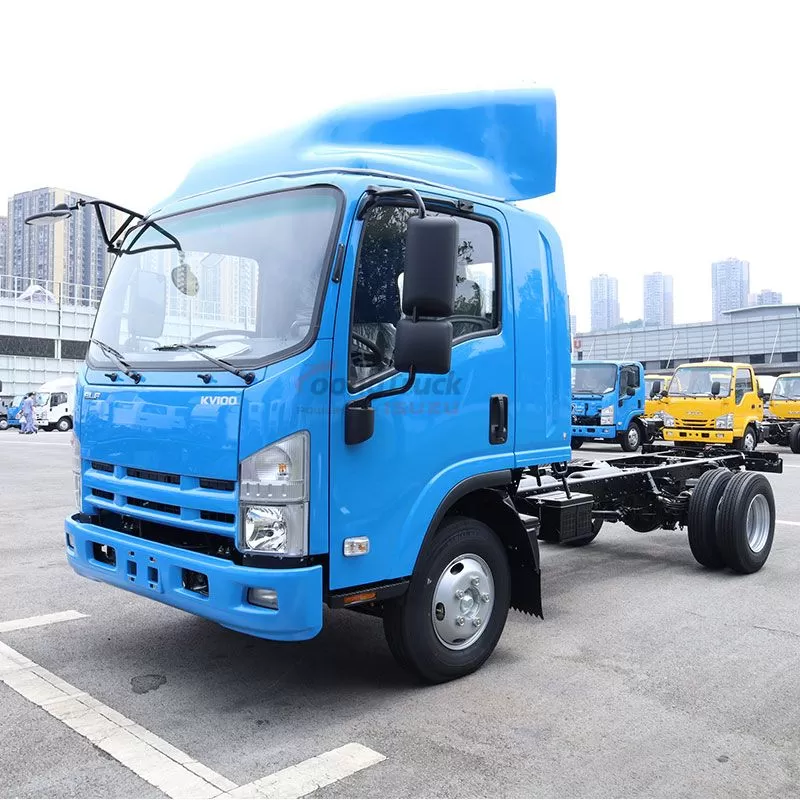

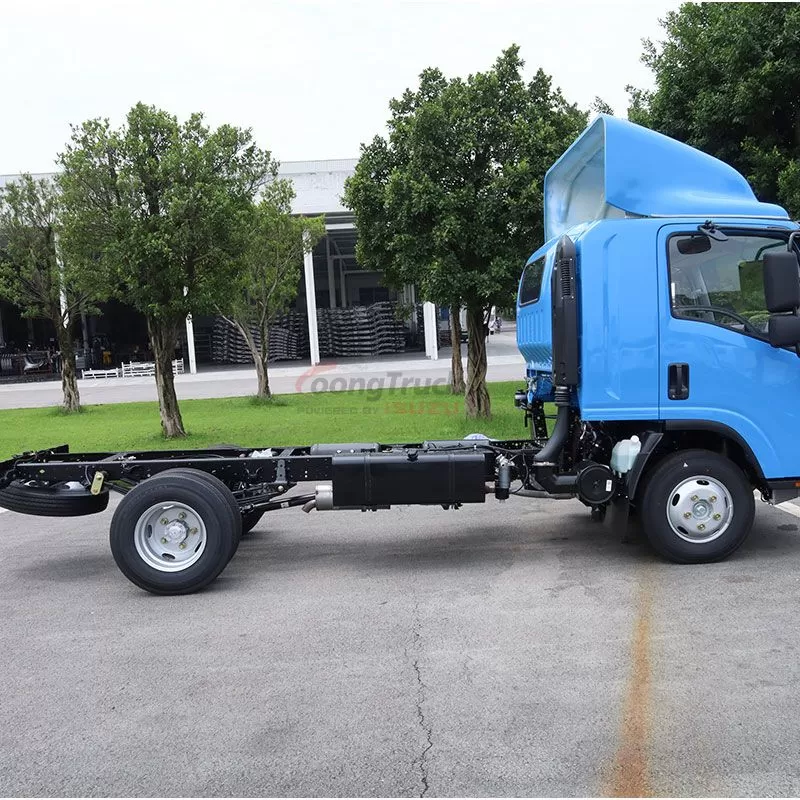

The Isuzu KV100 chassis is your ideal light-duty commercial foundation, engineered for urban agility and reliable performance. Its compact design navigates tight city streets with ease, while a fuel-efficient engine balances power and economy—perfect for delivery, logistics, or small-scale operations. Built with durable materials to withstand daily use, it offers versatile customization for various body types. Trust the KV100 to streamline your workflow, reduce downtime, and elevate your fleet’s efficiency.
| Work capacity: | 5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu KV100 Light Truck Chassis |
PRODUCT DETAILS

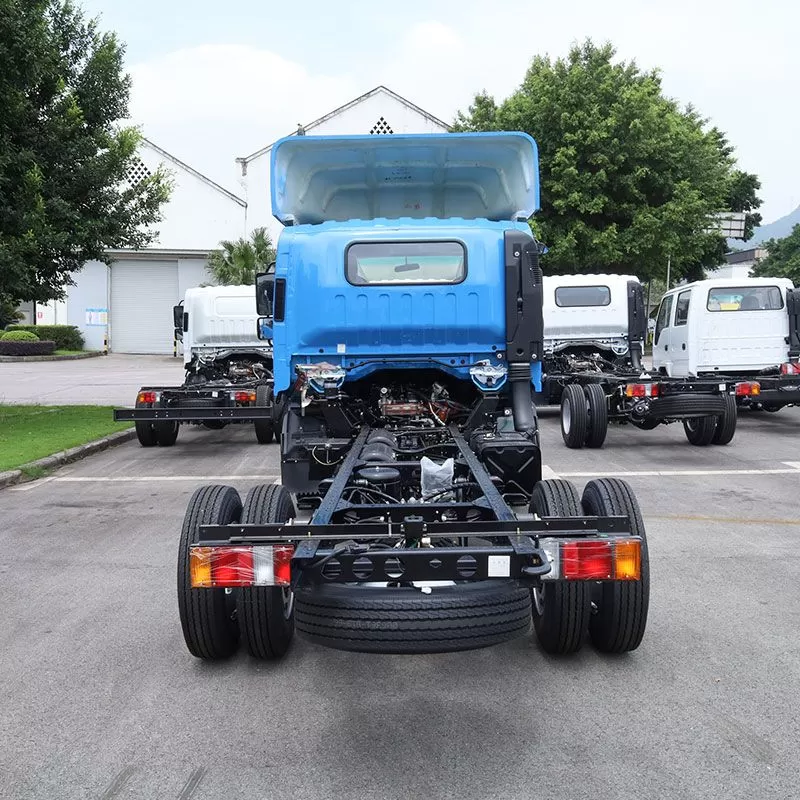

The Isuzu KV100 chassis is built to deliver consistent performance in demanding urban environments, starting with its robust powertrain. Powered by the 4JJ1-TCS 3.0L diesel engine, it generates 130 hp and 320 Nm of torque, providing ample strength for carrying loads up to 3.5 tons. This engine is paired with a 5-speed manual transmission, engineered for precise gear shifts that optimize fuel efficiency—critical for frequent stop-and-go driving. The chassis’s compact dimensions, including a wheelbase ranging from 3,000mm to 4,200mm and a turning radius of 11.8 meters, ensure effortless navigation through narrow streets, crowded parking lots, and tight loading bays. Its suspension system, combining front independent coils and rear leaf springs, balances load stability with ride comfort, reducing vibrations even on uneven roads. Reinforced with high-tensile steel, the ladder frame resists bending under pressure, while the anti-lock braking system (ABS) enhances safety by preventing wheel lock during sudden stops, making it a reliable choice for daily commercial use.
General information | Chassis model | KV100 light truck chassis |
Wheelbase(mm) | 3360 | |
Drive Type | 4X2 | |
GVW (kg) | 7300 | |
Curb Weight (kg) | 2300 | |
Cabin | single | |
Driver and Passenger | 3 | |
Engine | Model | 4KH1CN6LB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 88kw | |
Max. Torque (N.m/rpm) | 290N.m | |

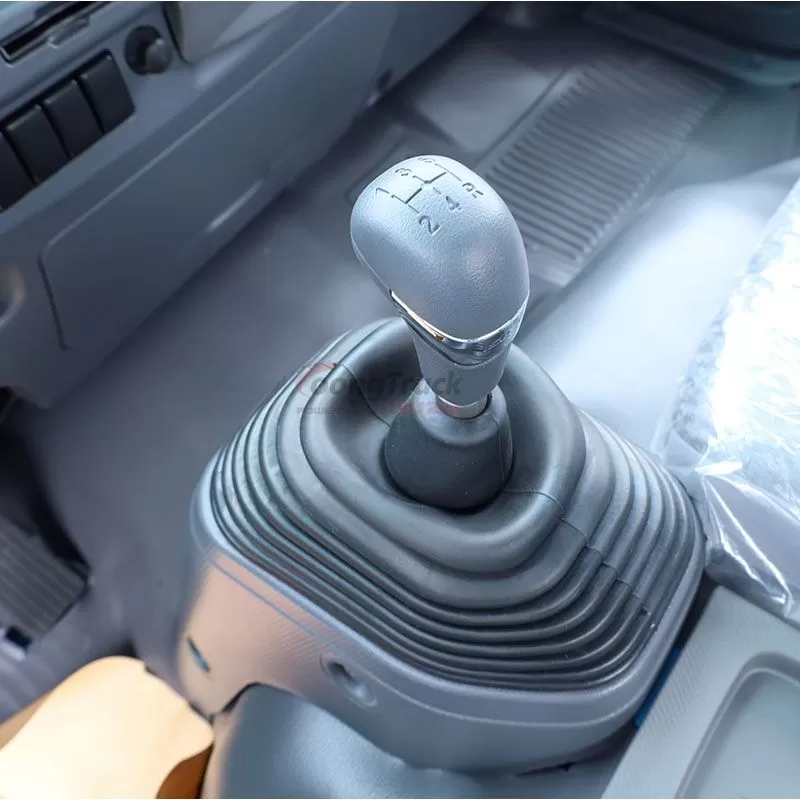

Transmission
| Model | Manual,MSB |
5 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PRR |
Power steering |
| |
Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock | ○ |
Electric window | ○ | |
Deflector | ○ | |

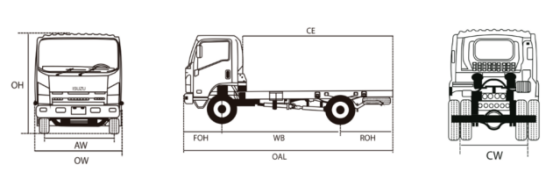

Dimensions | Length OAL (mm) | 5995 |
Width OW (mm) | 2030 | |
Height OH (mm) | 2280 | |
Front Tread AW (mm) | 1504 | |
Rear Tread CW (mm) | 1425 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||

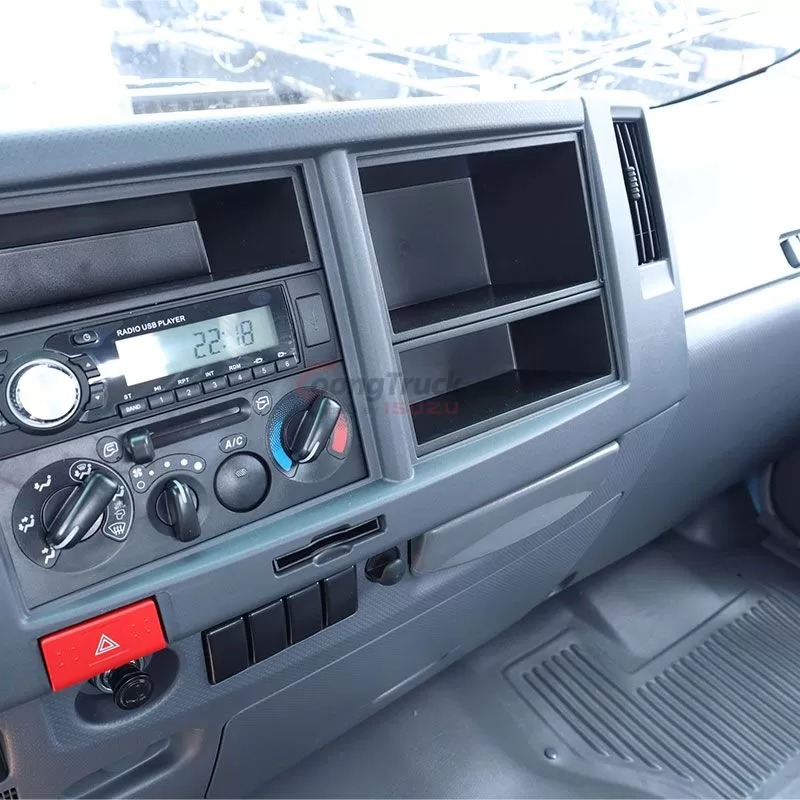

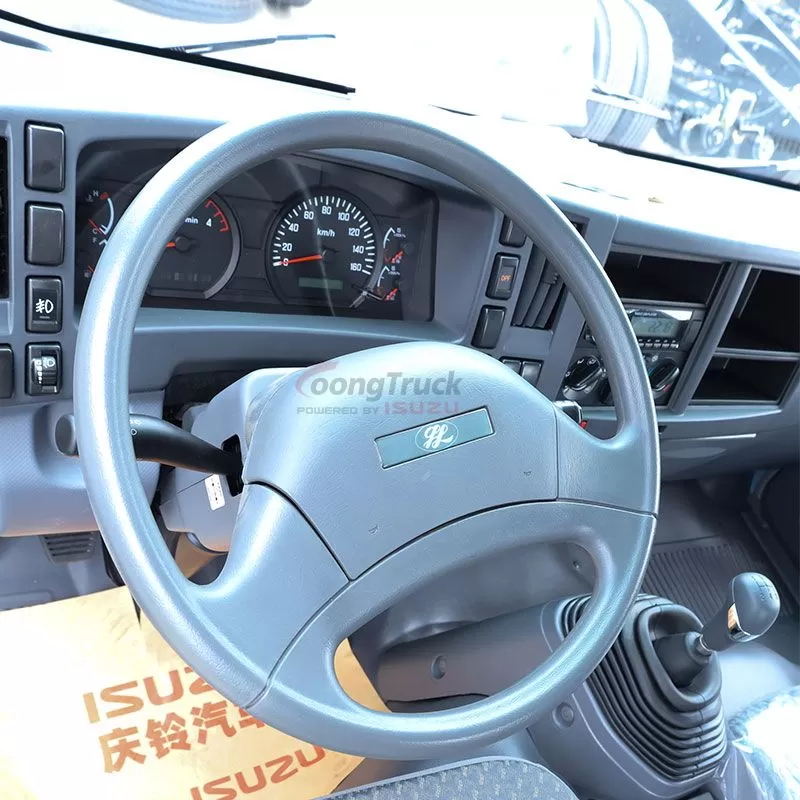

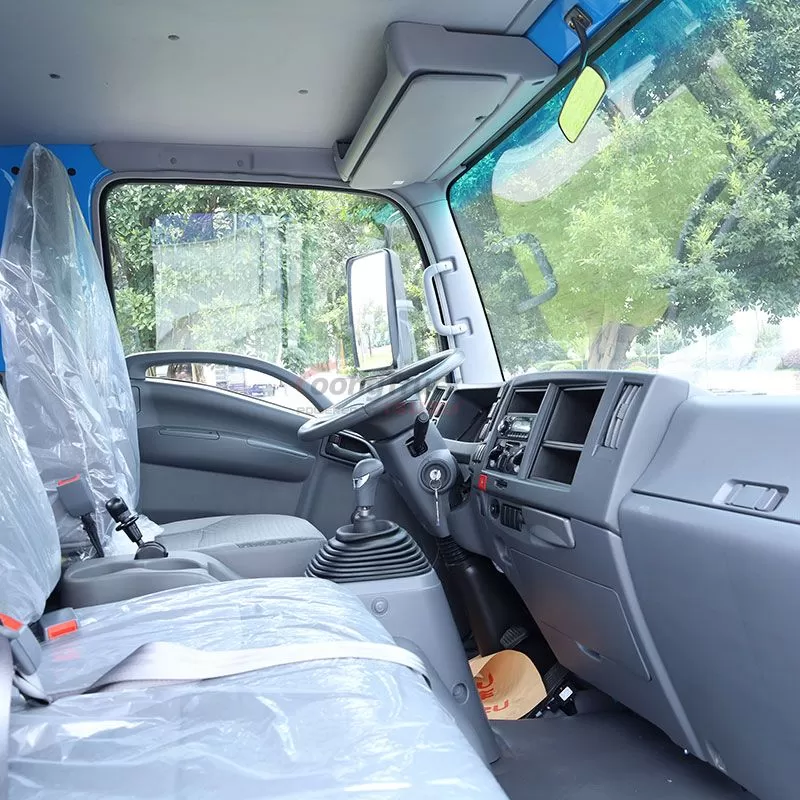

Beyond performance, the Isuzu KV100 chassis excels in versatility and durability, designed to adapt to diverse business needs. Its modular architecture supports seamless customization, accommodating body types such as delivery vans, refrigerated units, flatbeds, and utility trucks—ideal for logistics, food service, or small-scale construction. Pre-drilled mounting points simplify upfitting, reducing conversion time and costs. Built to withstand harsh conditions, it features galvanized components and a corrosion-resistant underbody coating, extending lifespan and minimizing rust-related maintenance. The cab layout prioritizes driver comfort: ergonomic controls within easy reach, a supportive seat with adjustable lumbar support, and ample legroom reduce fatigue during long shifts. Additional storage compartments keep tools and documents organized, while large windows enhance visibility. Backed by Isuzu’s global service network, the KV100 offers accessible parts and maintenance, ensuring minimal downtime. Whether you’re expanding your fleet or starting a new venture, this chassis delivers the durability, flexibility, and efficiency to drive your business forward.
