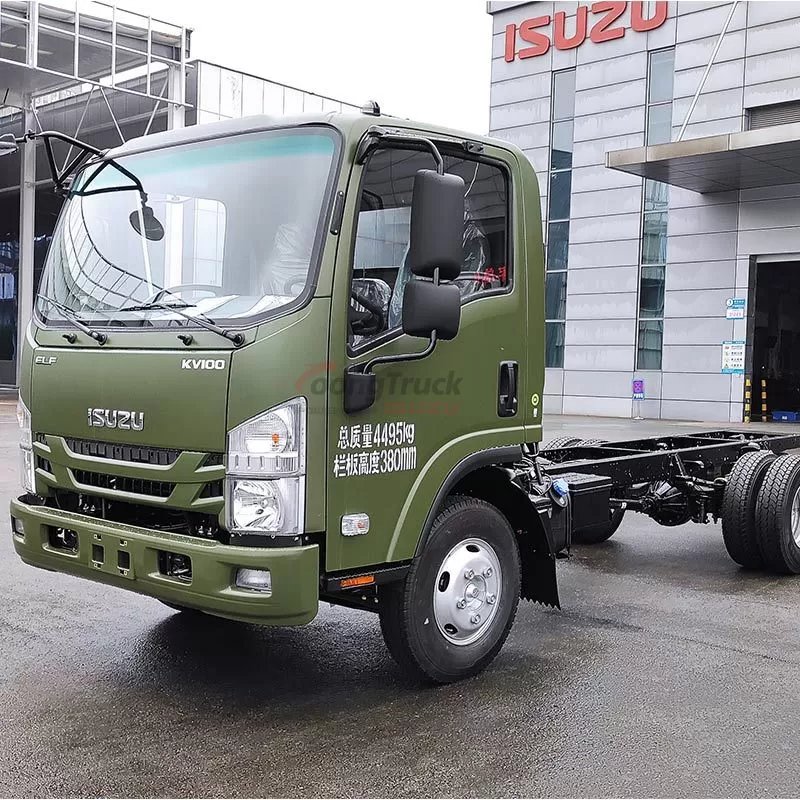

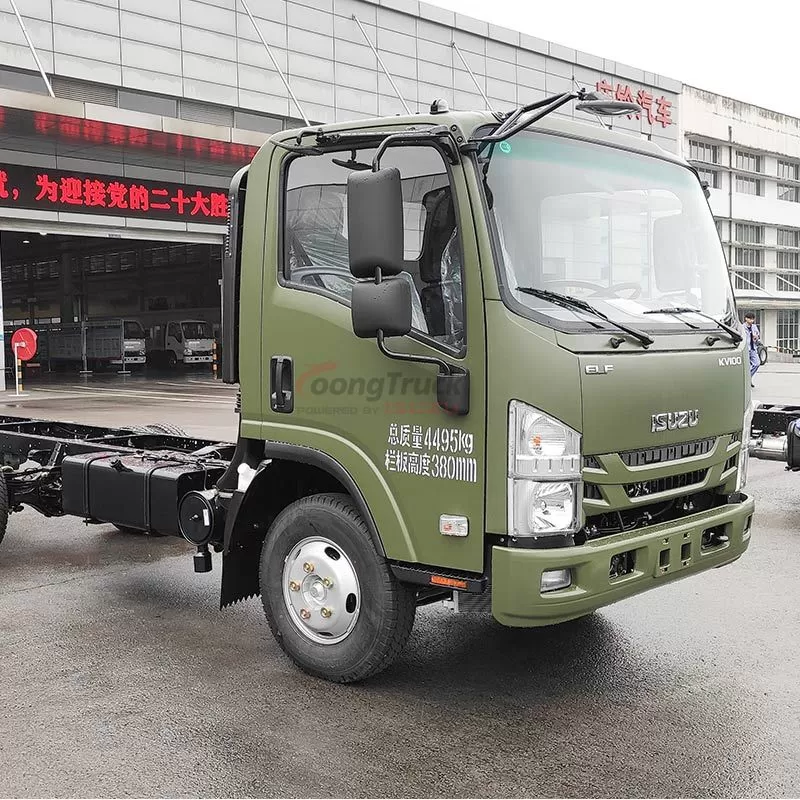

Designed for urban logistics, the KV100 features a 4KH1CN6LB Euro 6 diesel engine (120HP) with 11.3L/100km fuel efficiency. Boasting a 4.5-ton payload and 4130x2300mm cargo bed, it suits delivery, construction, and cold chain needs. Built with Isuzu’s durable chassis and safety features like ABS+EBD, it balances performance with low maintenance. Customizable stake/van bodies available. Your reliable partner for efficient commercial hauling.
| Work capacity: | 5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |

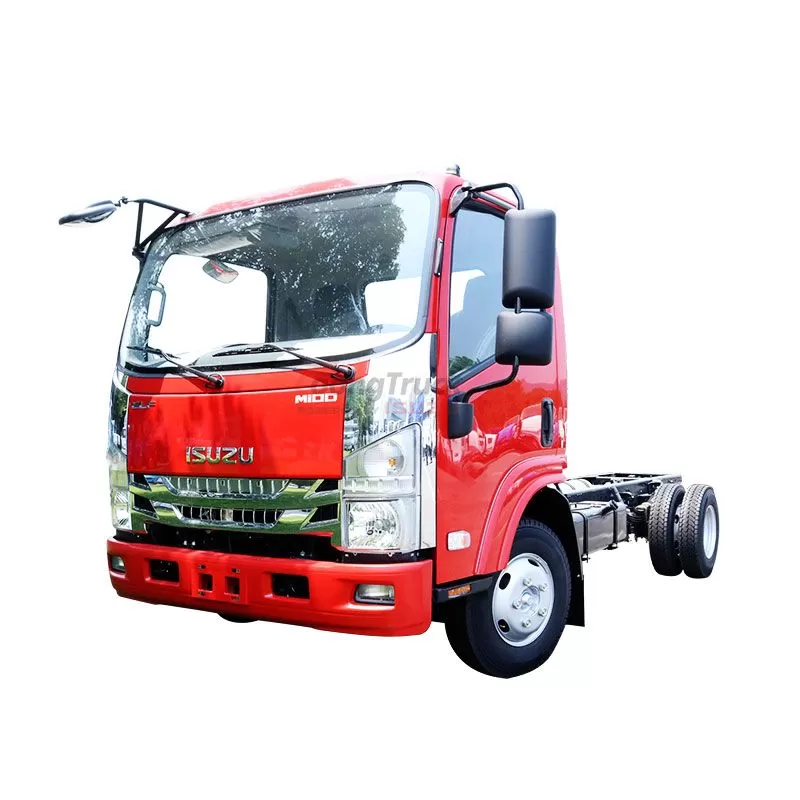

| Remarks: | Isuzu KV100 Light Truck Chassis |
PRODUCT DETAILS
The Isuzu KV100 Euro 6 Light Duty Truck redefines commercial efficiency with its 4KH1CN6LB diesel engine (120HP, 290N·m torque), meeting strict Euro 6 emissions standards while delivering 11.3L/100km fuel economy. Engineered for urban logistics, its 4.5-ton payload capacity and 4130×2300×2300mm cargo bed balance versatility with practicality. The truck’s "Triple Lightweight Technology" reduces weight by 15% without compromising durability, ideal for maximizing payloads. Safety features like ABS+EBD, lane departure warning, and a reinforced cabin ensure secure operations, while the 5-speed manual transmission and heavy-duty chassis handle challenging terrains with ease. Perfect for e-commerce delivery, construction, or cold chain transport, the KV100 combines reliability with low total cost of ownership.
General information | Chassis model | KV100 light truck chassis |
Wheelbase(mm) | 3360 | |
Drive Type | 4X2 | |
GVW (kg) | 7300 | |
Curb Weight (kg) | 2300 | |
Cabin | single | |
Driver and Passenger | 3 | |
Engine | Model | 4KH1CN6LB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 88kw | |
Max. Torque (N.m/rpm) | 290N.m | |
Transmission
| Model | Manual,MSB |
5 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR |
Power steering |
| |
Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock |
|
Electric window |
| |
Deflector |
| |

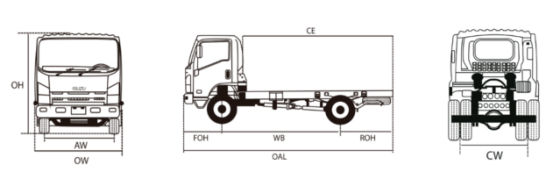

Dimensions | Length OAL (mm) | 5995 |
Width OW (mm) | 2030 | |
Height OH (mm) | 2280 | |
Front Tread AW (mm) | 1685 | |
Rear Tread CW (mm) | 1525 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||
Designed as a versatile workhorse, the Isuzu KV100 Euro 6 caters to diverse industries—from last-mile delivery fleets to construction material hauling. Its open fence-style cargo bed enables quick loading/unloading, while customizable options (refrigerated vans, stake bodies) adapt to specific needs. The truck’s 1 million km engine lifespan and minimal maintenance requirements make it a trusted choice for fleet managers. Backed by Isuzu’s 35+ years of technical excellence, the KV100 integrates modern comforts like an LCD dashboard, automatic AC, and smart connectivity for driver fatigue reduction. With successful deployments in Vietnam’s logistics networks and Algeria’s construction sector, this truck proves its mettle in real-world scenarios. Contact us for a tailored solution today.
