The Isuzu KV100 chassis is a top - performing light - truck solution. It offers quick power response and multiple gear ratios for various road conditions. Its high - strength steel chassis ensures durability and heavy - load capacity, while the optimized suspension guarantees stability. With fuel - efficient technology and low maintenance costs, plus wide adaptability to different truck bodies, it’s ideal for diverse transport needs.
| Work capacity: | 5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu KV100 light truck chassis |
PRODUCT DETAILS
The Isuzu KV100 chassis stands out as a premium light-truck solution, powered by an efficient engine that delivers rapid power response for seamless city driving or highway cruising. Its multiple gear ratios (4.875/5.571/6.142) adapt to diverse road conditions, while the high-strength steel chassis ensures exceptional durability and heavy-load capacity. The 3+2 leaf spring suspension is optimized to balance stability and comfort, filtering vibrations on rough terrain.
General information | Chassis model | KV100 QL1043BUHAY NW57A |
Wheelbase(mm) | 3360 | |
Drive Type | 4X2 | |
GVW (kg) | 7300 | |
Curb Weight (kg) | 2300 | |
Cabin | single | |
Driver and Passenger | 3 | |
Engine | Model | 4KH1CN6LB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 88KW | |
Max. Torque (N.m/rpm) | 290N.m | |
Transmission | Model | Manual,MSB |
5 Forward + 1 Reverse | ||
Fuel tank | Capacity | 75L |
Material | carbon steel | |
Brake System | Service brake | Double circuit, hydraulic drive |
Brake(Oil/Air) | hydraulic brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR |
Power steering |
| |
Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock |
|
Electric window |
| |
Deflector |
| |

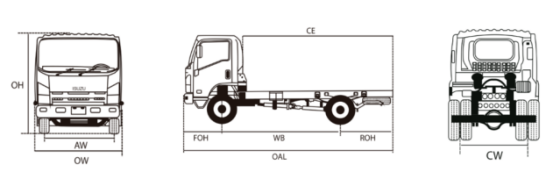

Dimensions | Length OAL (mm) | 5995 |
Width OW (mm) | 2030 | |
Height OH (mm) | 2280 | |
Front Tread AW (mm) | 1685 | |
Rear Tread CW (mm) | 1685 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||
Equipped with fuel-efficient technology, the KV100 reduces operational costs through adaptive emission and thermal management systems. Its low-maintenance design minimizes downtime, ideal for fleet operations. The chassis’ wide adaptability supports various truck bodies—van, flatbed, refrigerated—catering to logistics, construction, and cold-chain transport. With a lightweight design (225kg weight reduction) and 4x2 drive, it combines agility with reliable performance for diverse commercial needs.
