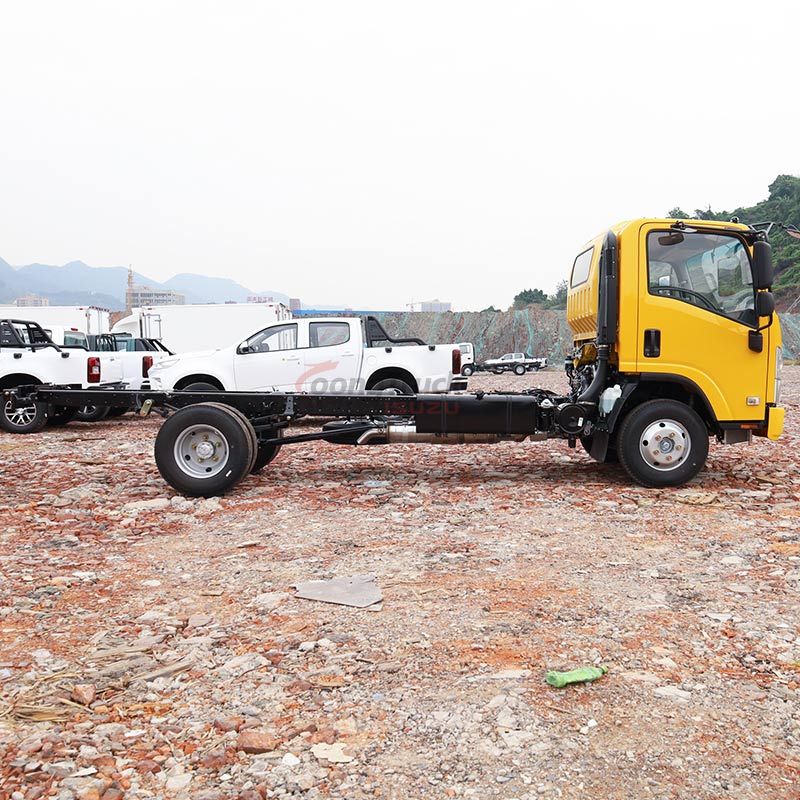

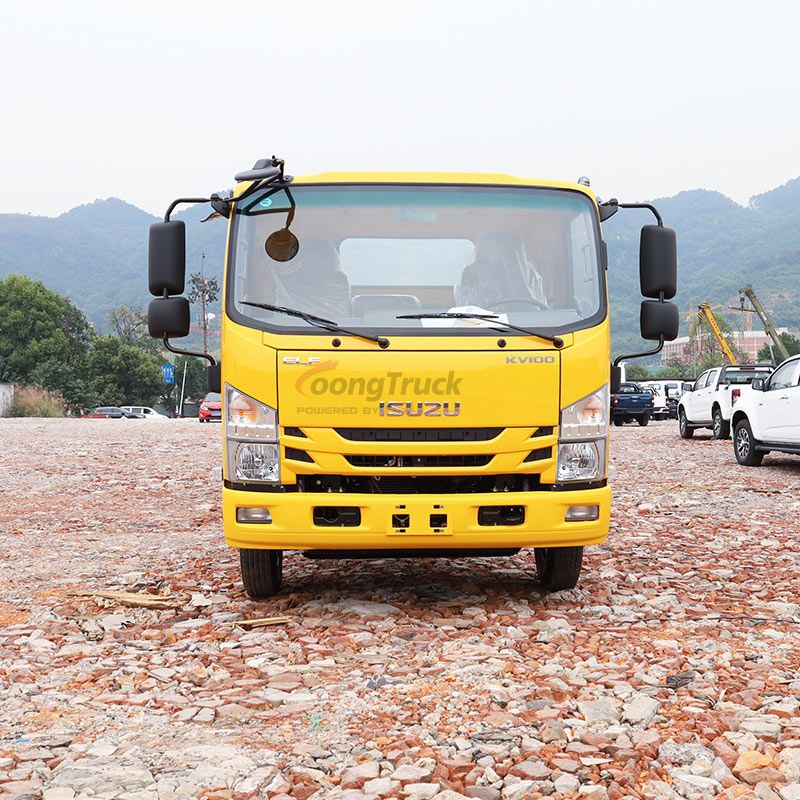

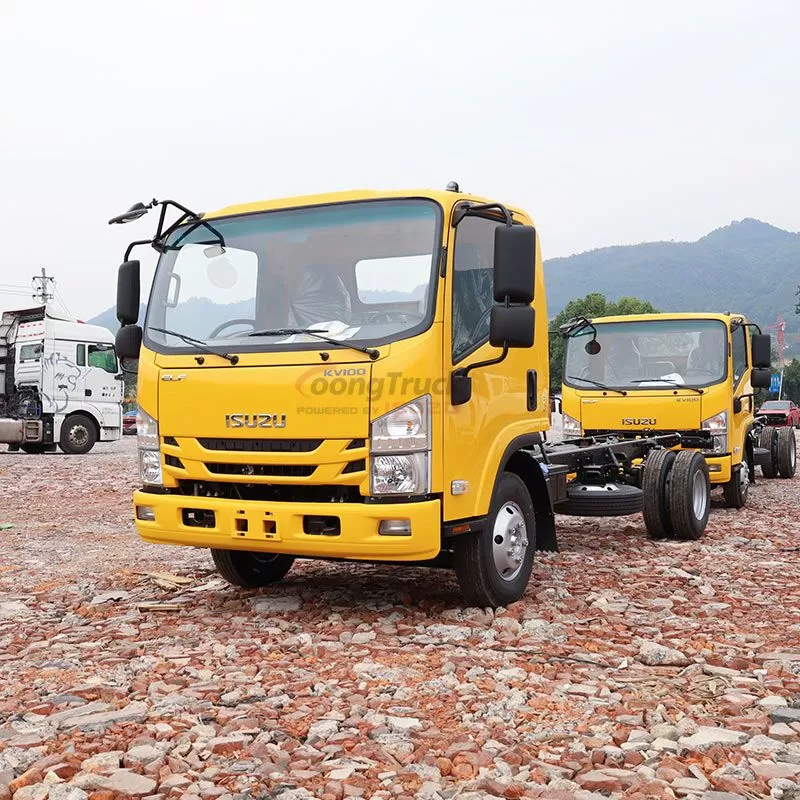

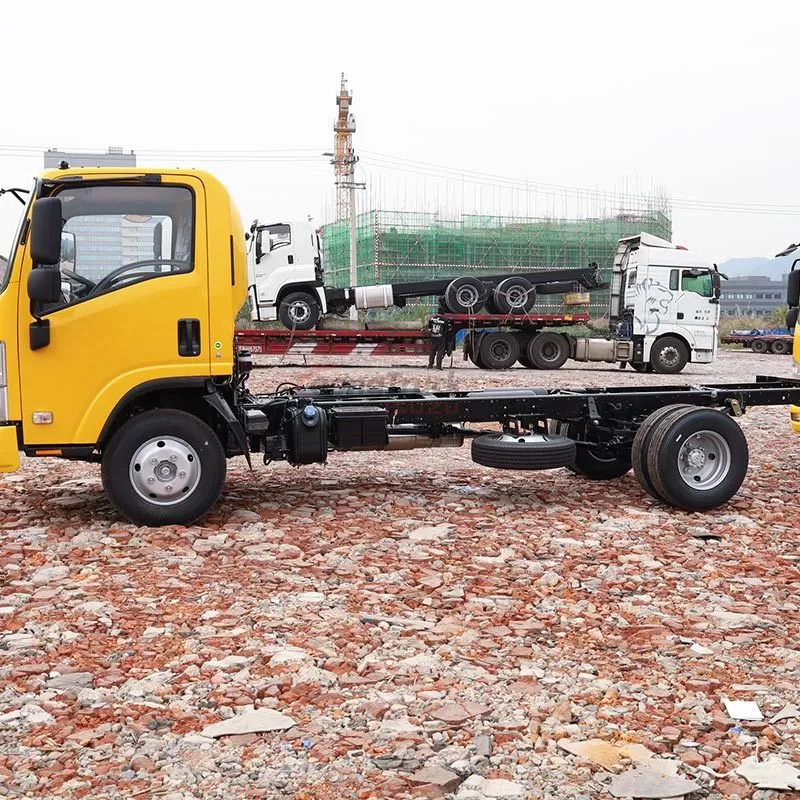

The Isuzu KV100 chassis truck delivers rugged reliability and versatile performance for commercial applications. Engineered with a fuel-efficient diesel powertrain and heavy-duty frame, this chassis serves as a robust base for cargo trucks, refrigerated vehicles, and specialized builds. Its modular design allows easy customization, while Isuzu’s renowned durability ensures long-term operation for logistics, construction, and municipal fleets.
| Work capacity: | 5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu KV100 Light Truck Chassis |
PRODUCT DETAILS
The Isuzu KV100 chassis truck is a versatile commercial vehicle platform engineered for heavy-duty performance and adaptability. Built on a robust high-strength steel frame, it delivers exceptional durability for demanding applications such as logistics, construction, and municipal services. Equipped with the 4KH1 CN6 LB diesel engine (120 HP, 2999cc), it balances power and fuel efficiency, achieving up to 15% lower fuel costs compared to competitors . The 4x2 drivetrain, MSB-5 manual transmission, and 3360mm wheelbase ensure stability and maneuverability across urban streets or rugged terrain. With a GVW of 8,400 kg and payload capacity of 5,450 kg, it handles heavy loads while maintaining compliance with Euro VI emissions standards . Ideal for body conversions, its modular design supports seamless integration of cargo boxes, refrigerated units, or specialized equipment.
General information | Chassis model | KV100 light truck chassis |
Wheelbase(mm) | 3360 | |
Drive Type | 4X2 | |
GVW (kg) | 7300 | |
Curb Weight (kg) | 2300 | |
Cabin | single | |
Driver and Passenger | 3 | |
Engine | Model | 4KH1CN6LB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 88kw | |
Max. Torque (N.m/rpm) | 290N.m | |
Transmission
| Model | Manual,MSB |
5 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.00R16LT 14PR,7.00-16LT 14PR |
Power steering |
| |
Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock |
|
Electric window |
| |
Deflector |
| |

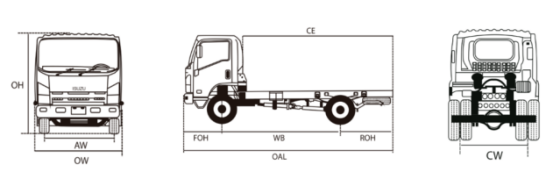

Dimensions | Length OAL (mm) | 5995 |
Width OW (mm) | 2030 | |
Height OH (mm) | 2280 | |
Front Tread AW (mm) | 1685 | |
Rear Tread CW (mm) | 1685 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||

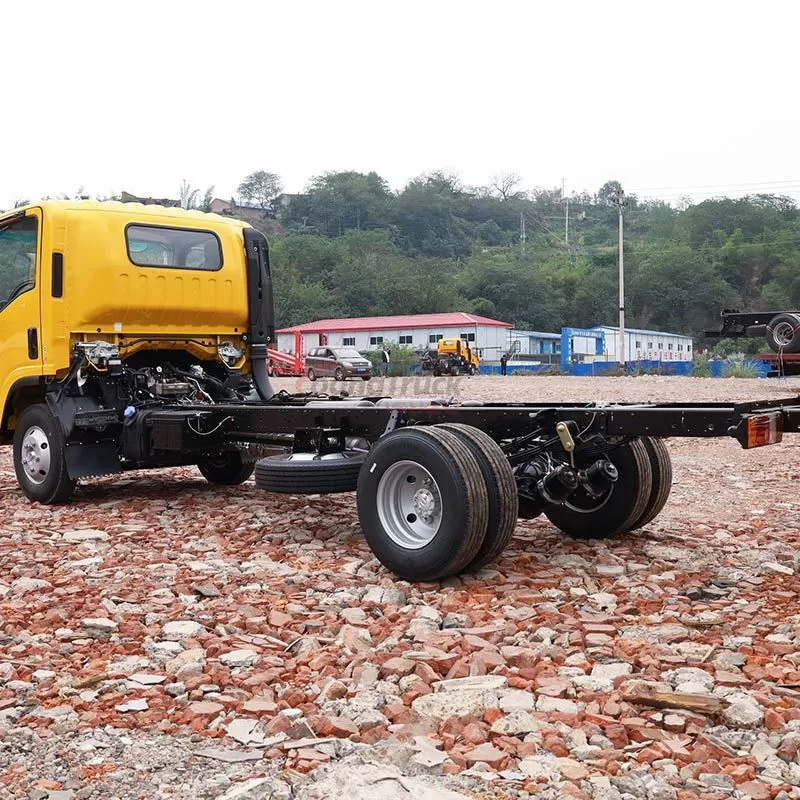

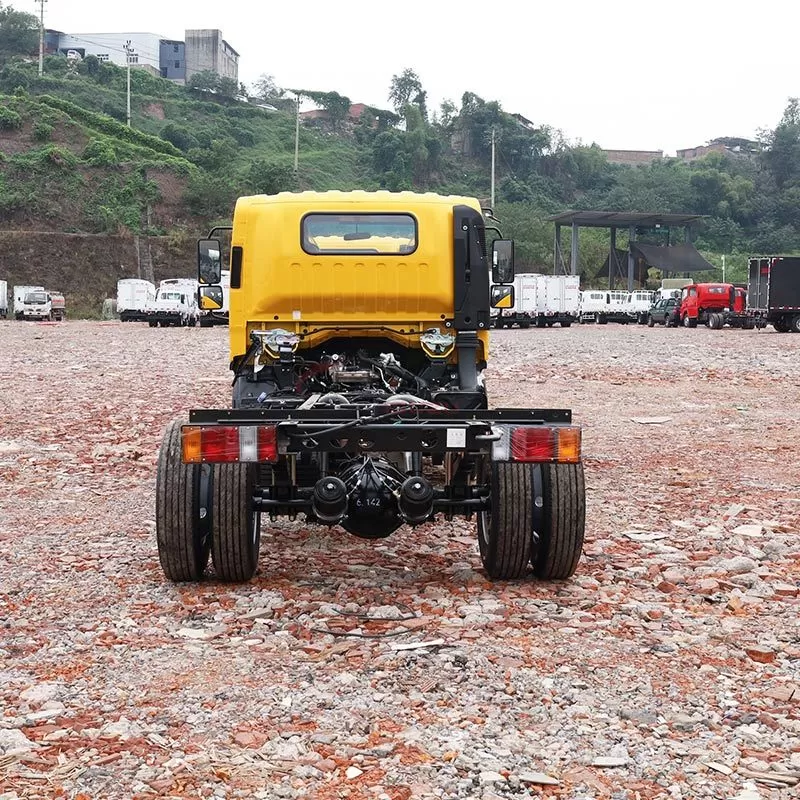

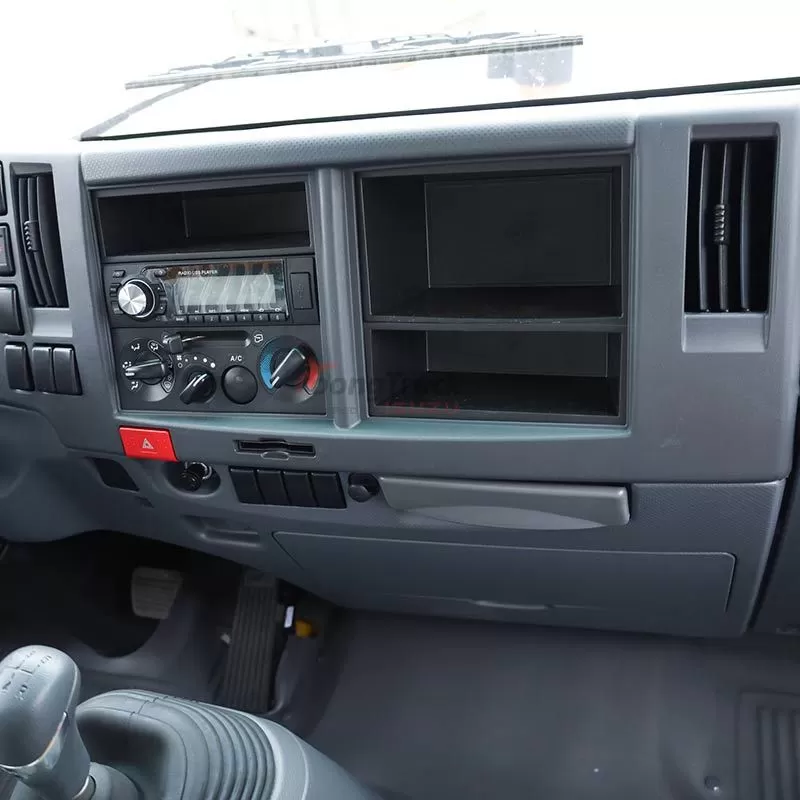

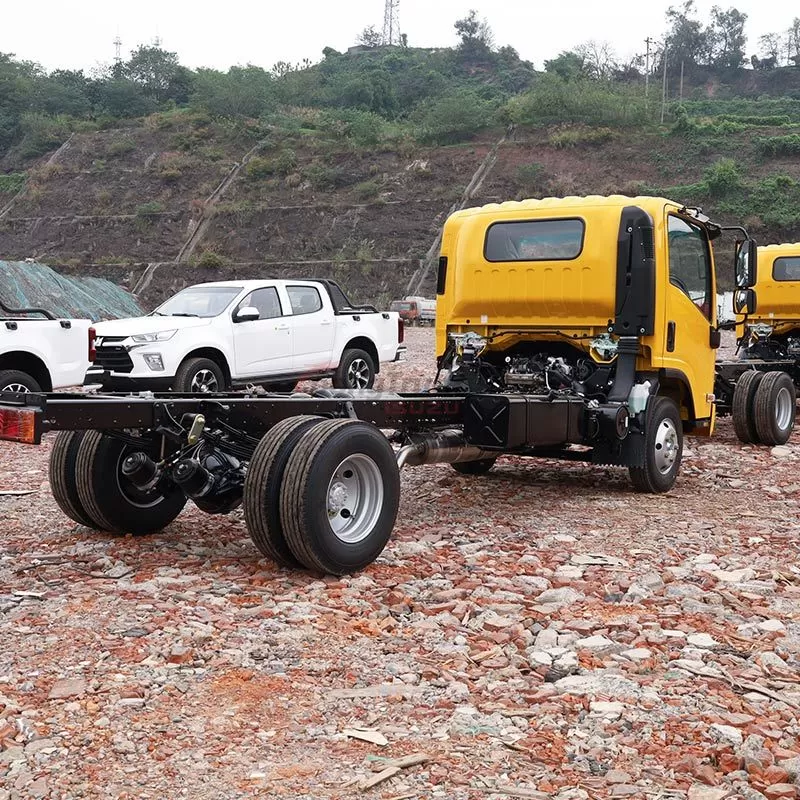

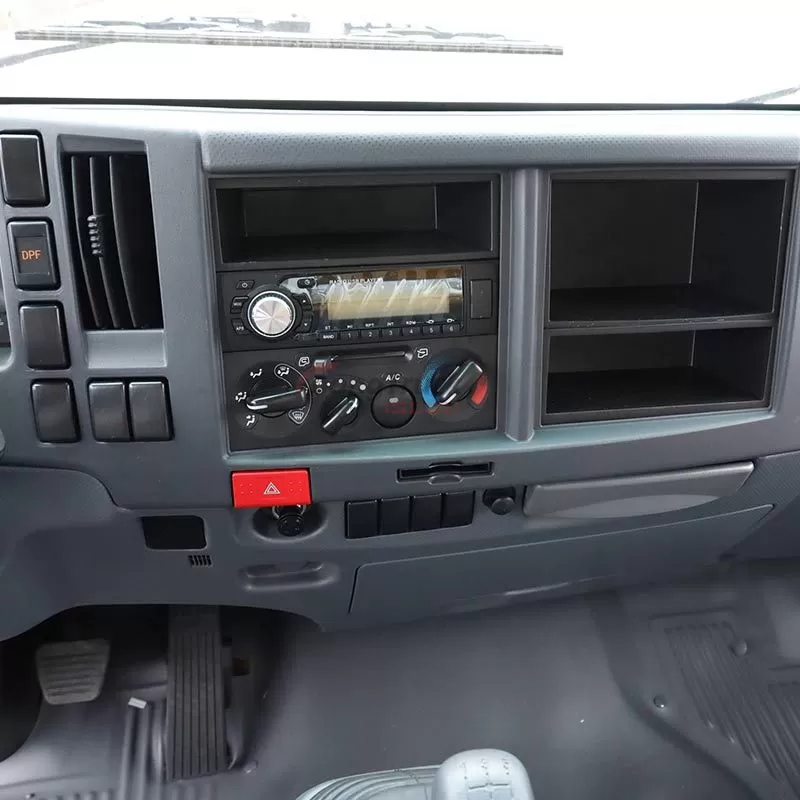

At the heart of the KV100 lies Isuzu’s advanced 4KH1 engine, featuring electronic injection, intercooled turbocharging, and SCR/PDF after-treatment for reduced emissions and reliable output. This powertrain generates 120 HP and 360 N·m of torque, enabling smooth acceleration and efficient operation in stop-and-go urban traffic . The chassis incorporates a reinforced suspension system with multi-leaf springs and hydraulic dampers, enhancing load-bearing capacity and ride comfort. Safety is prioritized with ABS, EBD, and a reinforced cab structure that meets international crash standards. For 2025, the KV100 introduces an upgraded intelligent cockpit with a multifunction steering wheel, digital instrument cluster, and ergonomic seating, improving driver productivity during long hauls . Its lightweight design (2,350 kg curb weight) further optimizes fuel economy without compromising structural integrity .
