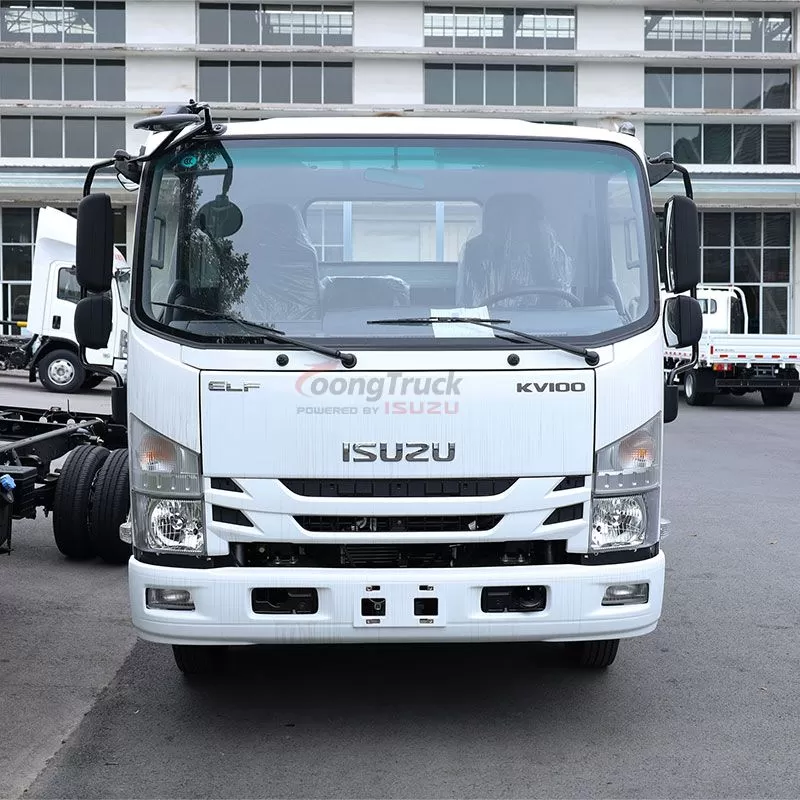

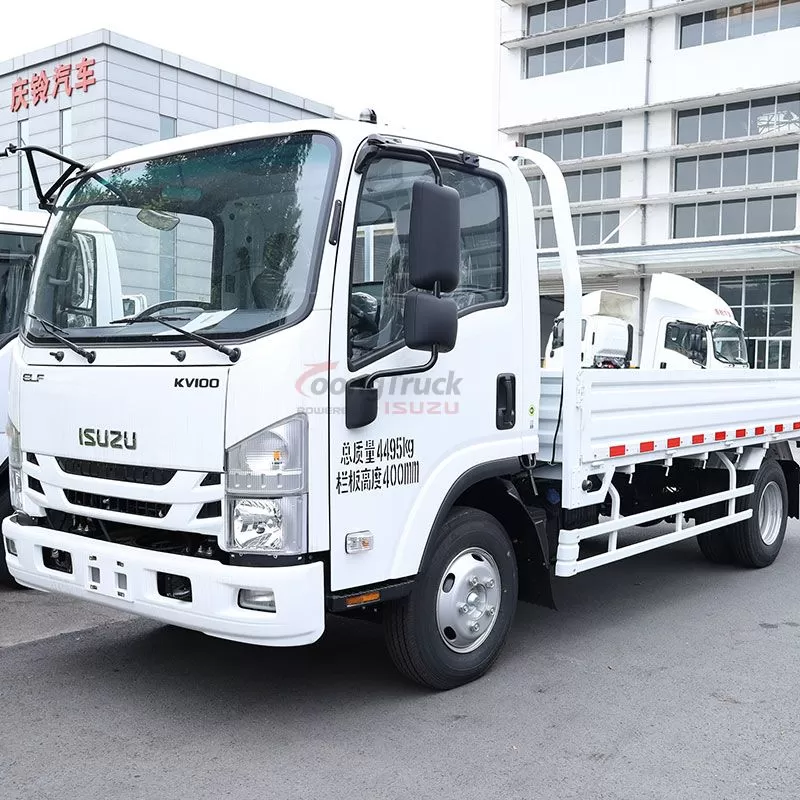

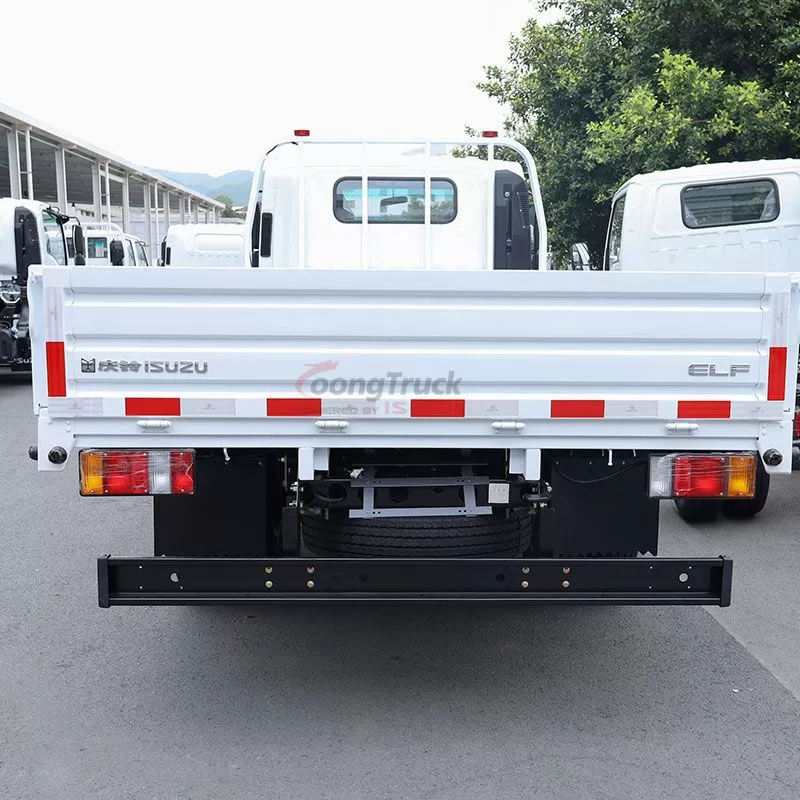

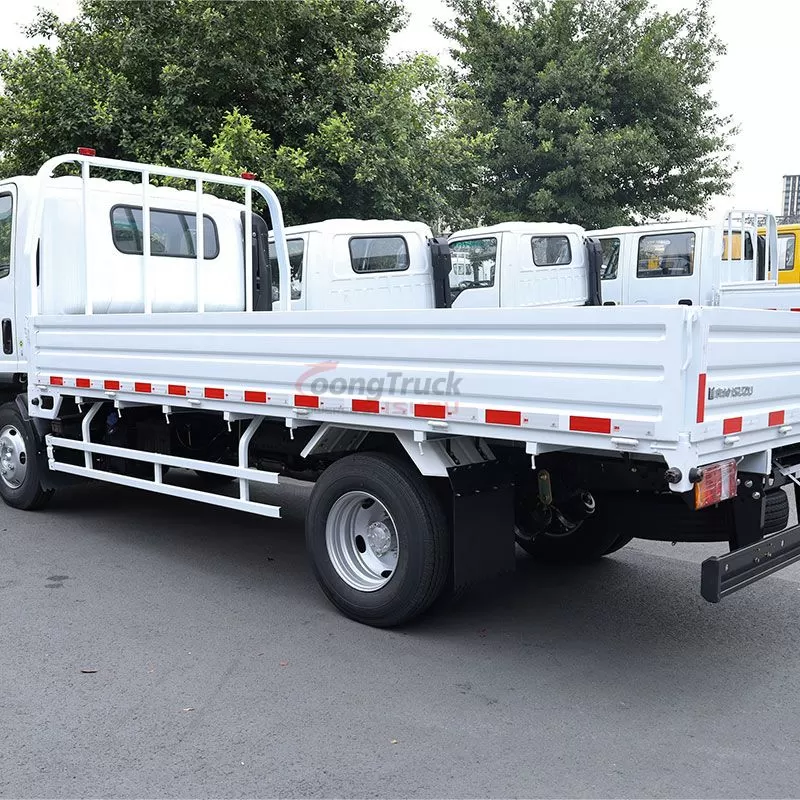

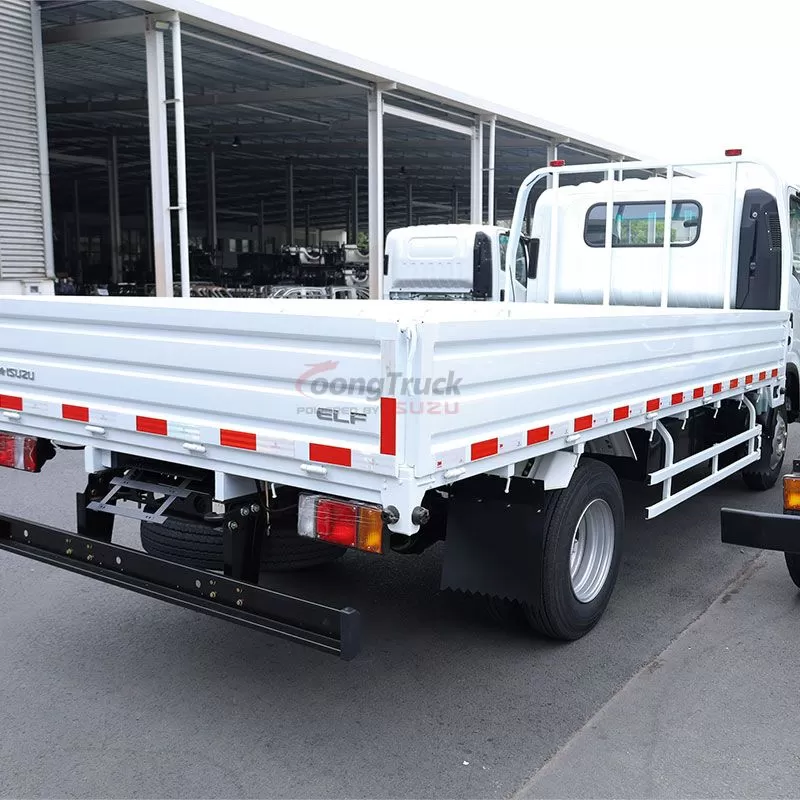

The Isuzu KV100 Flatbed Truck, powered by the efficient 4KH1CN6LBengine, offers robust torque and multiple gear ratios for diverse driving conditions. Its high - strength steel chassis ensures excellent load - bearing capacity, while the optimized suspension provides stability. With a spacious flatbed and low fuel consumption, it' s ideal for construction, logistics, and general transportation, delivering reliability and high efficiency.
| Work capacity: | 4-5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MSB-5 |
| Remarks: | Isuzu KV100 flatbed truck |
PRODUCT DETAILS
The Isuzu KV100 Flatbed Truck, driven by the 4KH1CN6LB engine (2.499L, 96kW), delivers 360Nm torque for quick response in city traffic or highway hauls. Its high-strength steel chassis supports heavy loads, while 4x2 drive and 5.571 axle ratio ensure stability on rough roads. The 3+2 leaf spring suspension balances comfort and durability.

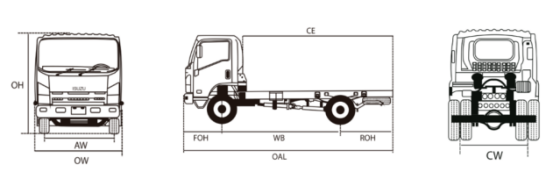

| Wheelbase (mm) | 3360 | 3815 | |
| Drive Type | 4 × 2 | ||
| Weight | GVW (kg) | 7300 | 7300 |
| Curb Weight (kg) | 2805 | 2905 | |
| Pay Load (kg) | 4300 | 4200 | |
| Overall | Length (mm) | 5995 | 6840 |
| Width (mm) | 2150 | 2150 | |
| Height (mm) | 2380 | 2380 | |
| Cab | Double/Single | Single | |
| Driver & Passenger | 1+2 | ||
| Cargo Box | Length (mm) | 4205 | 4980 |
| Length (ft) | 14 | 16 | |
| Width (mm) | 2050 | 2050 | |
| Height (mm) | 380 | 380 | |
| Engine | Model | 4KH1CN6LB | |
| Type | 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling , turbo charging, inter cooling. | ||
| Emission Standard | EURO VI | ||
| Displacement (L) | 2.999 | ||
| Rated Power (kw/rpm) | 88/3400 | ||
| Max. Torque (N.m/rpm) | 290/1700 | ||
| Transmission | MSB | ||
| Gear | 5 Forward + 1 Reverse | ||
| Axle Load | Front Axle (T) | 1.8 | 2.6 |
| Rear Axle (T) | 2.7 | 4.7 | |
| Max. Speed (km/h) | 98 | 105 | |
| Brake System | Air /Oil | Air Brake | |
| Standard Configurations | Tire | 7.00R16LT 14PR | 7.00R16LT 14PR |
| Power Steering | ● | ● | |
| Radio | ● | ● | |
| A/C | ● | ● | |
| ABS | ● | ● | |
| Optional Configurations | More details please contact us | ||
| Remark: 1. ● means standard configuration. ○ means the option is available. 2. All above information is for reference only, and will be updated timely without notice; 3. The listed models are part of the full products range,any special request will be available on request. 4. For the 2490mm wheelbase, it is equipped with single rear tire. | |||
 | |||
Featuring adaptive emission tech, this truck achieves low fuel consumption, ideal for cost-conscious fleets. The flatbed (4150×2100mm) fits construction materials or cargo pallets, with 18.7m³ loading space. Perfect for logistics, it combines a 6-speed transmission for smooth shifts and minimal maintenance needs.
