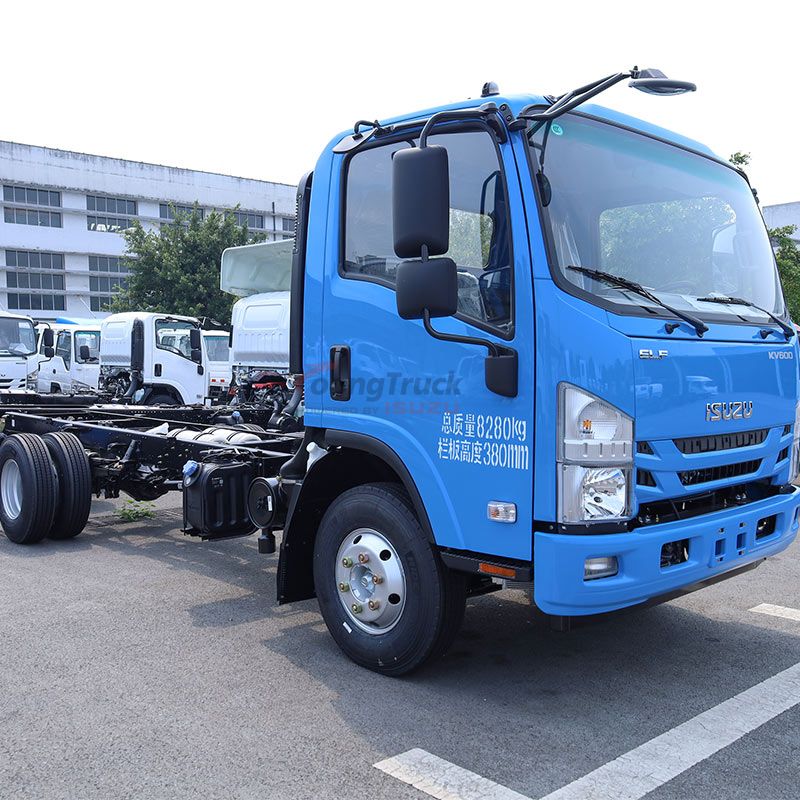

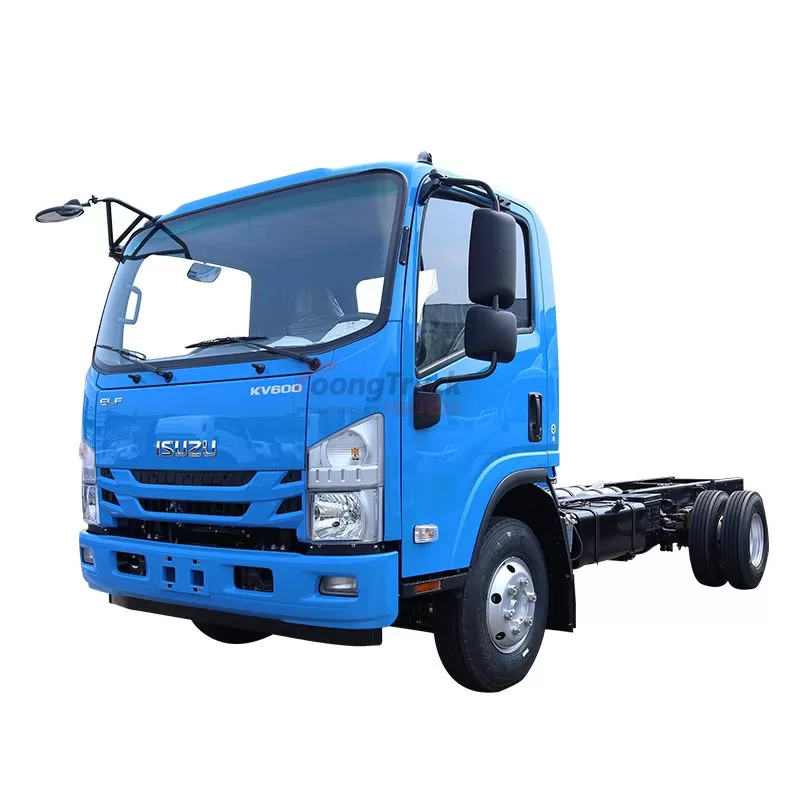

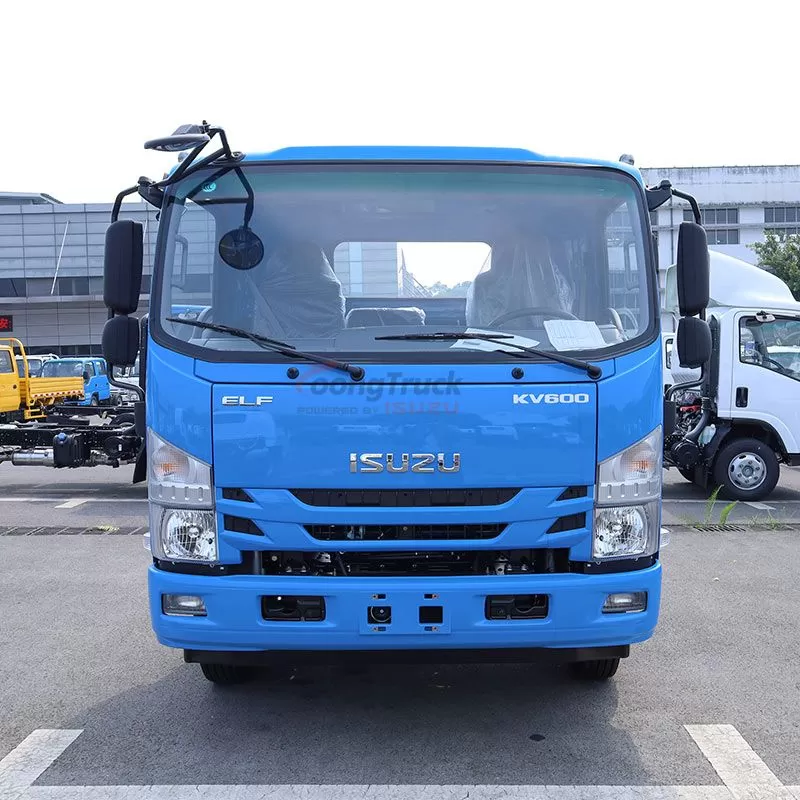

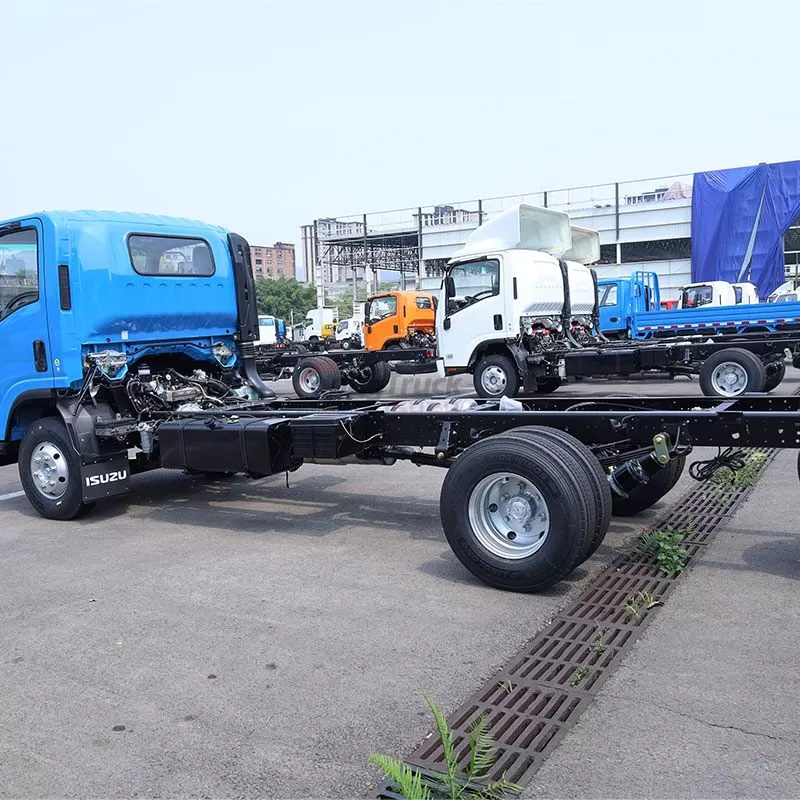

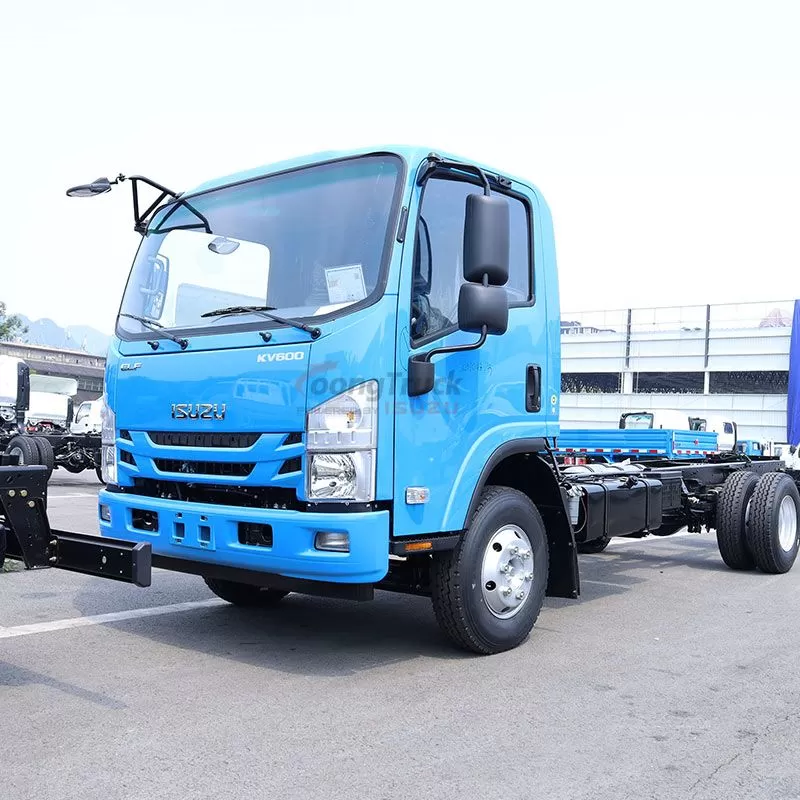

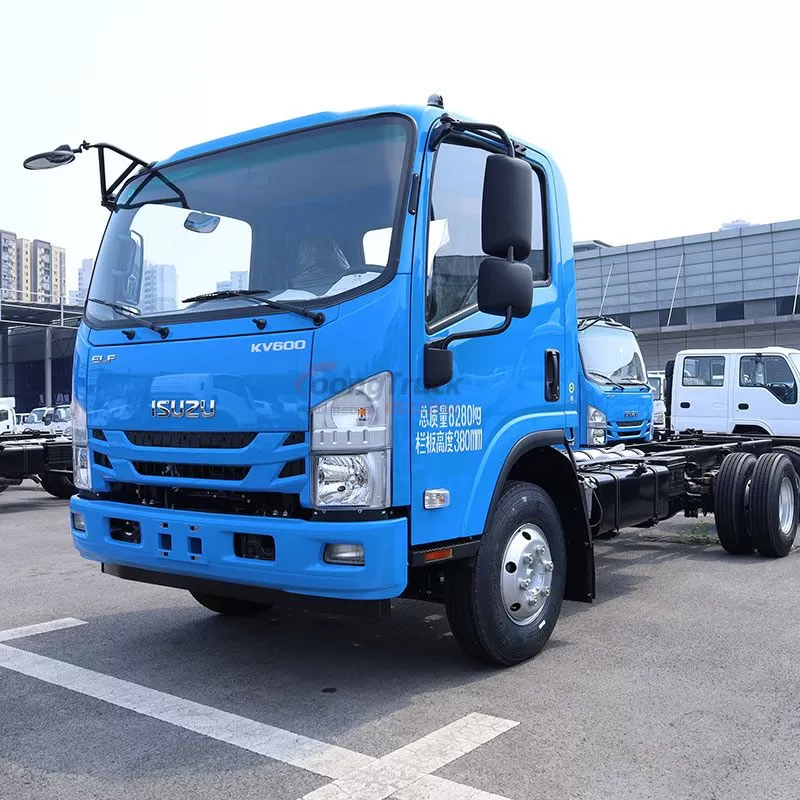

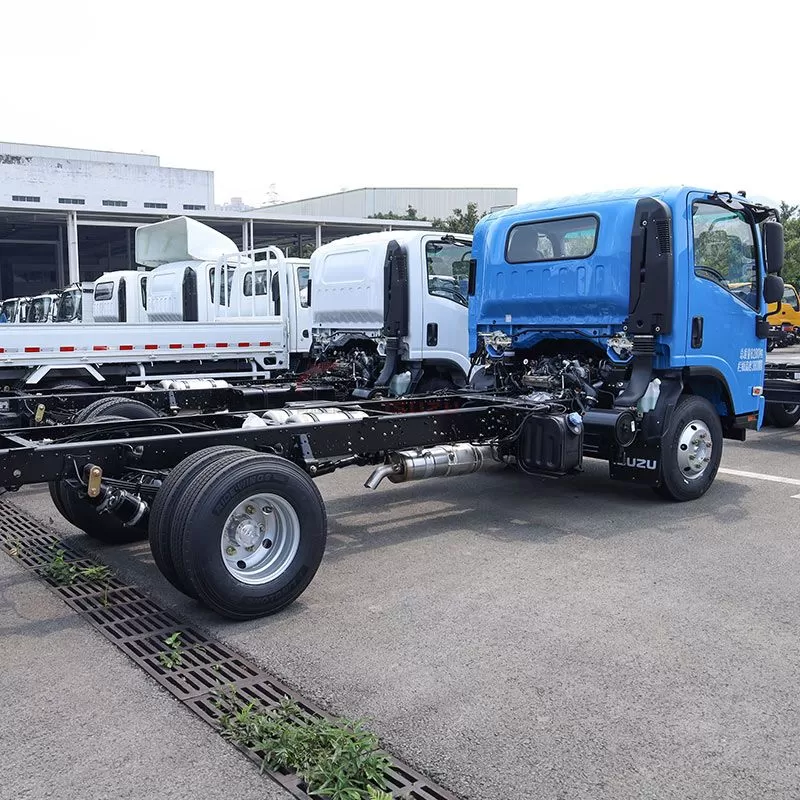

Discover the Isuzu KV600 chassis! With a 3365mm wheelbase and a GVW of 8280kg, it has a payload of 5 - 6 tons. Powered by an ISUZU 4KH1CN6HB 132hp Euro 6 engine, it offers 97kW max power. Its 4x2 drive type and air brakes ensure reliable performance for various applications.
| Work capacity: | 5-6tons |
| Engine power: | 132HP |
| Engine type: | 4KH1CN6HB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual |
| Remarks: | Isuzu KV600 Light Truck Chassis |
PRODUCT DETAILS
The Isuzu KV600 chassis is a remarkable piece of engineering designed to meet diverse transportation and commercial needs. With a wheelbase of 3365mm, it provides a stable foundation for a wide range of vehicle conversions. Boasting a Gross Vehicle Weight (GVW) of 8280kg and a curb weight of 2560kg, it offers an impressive payload capacity ranging from 5000 to 6000kg. This makes it suitable for heavy - duty tasks, whether it's transporting construction materials or delivering goods in an urban logistics setting. Under the hood, the ISUZU 4KH1CN6HB 132hp engine with a displacement of 2.999L is a real powerhouse. It complies with Euro 6 emission standards and can also operate under Euro 3 and 4 if required. With a maximum power of 97kW at 2900rpm and a maximum torque of 317 N.m between 1700 - 2900rpm, it delivers excellent performance and fuel efficiency. The electronic injection system further enhances its reliability and smooth operation.
General information | Chassis model | KV600 light truck chassis |
Wheelbase(mm) | 3365 | |
Drive Type | 4X2 | |
GVW (kg) | 8280 | |
Curb Weight (kg) | 2560 | |

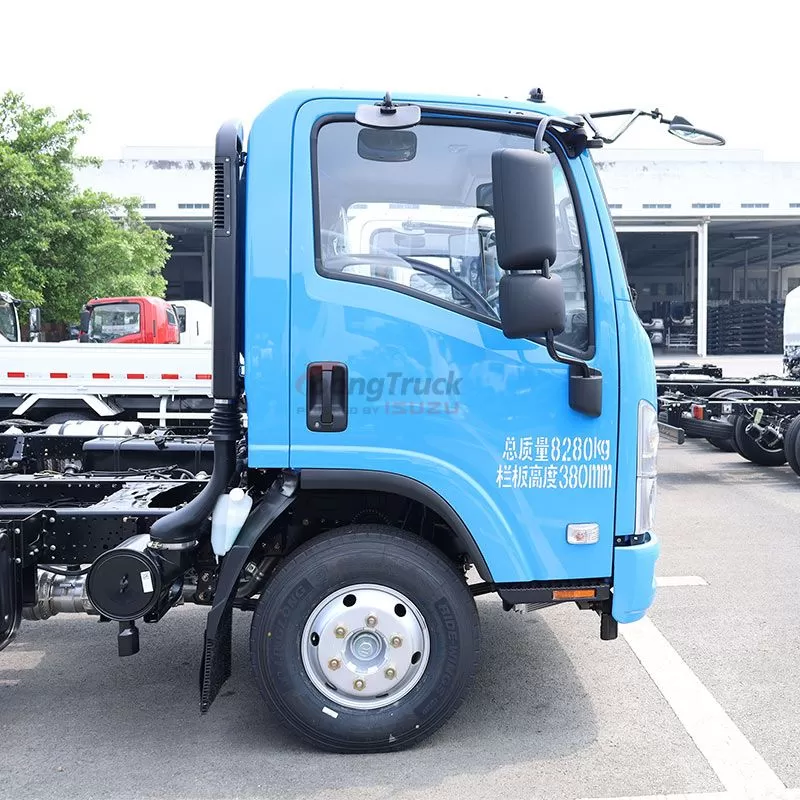

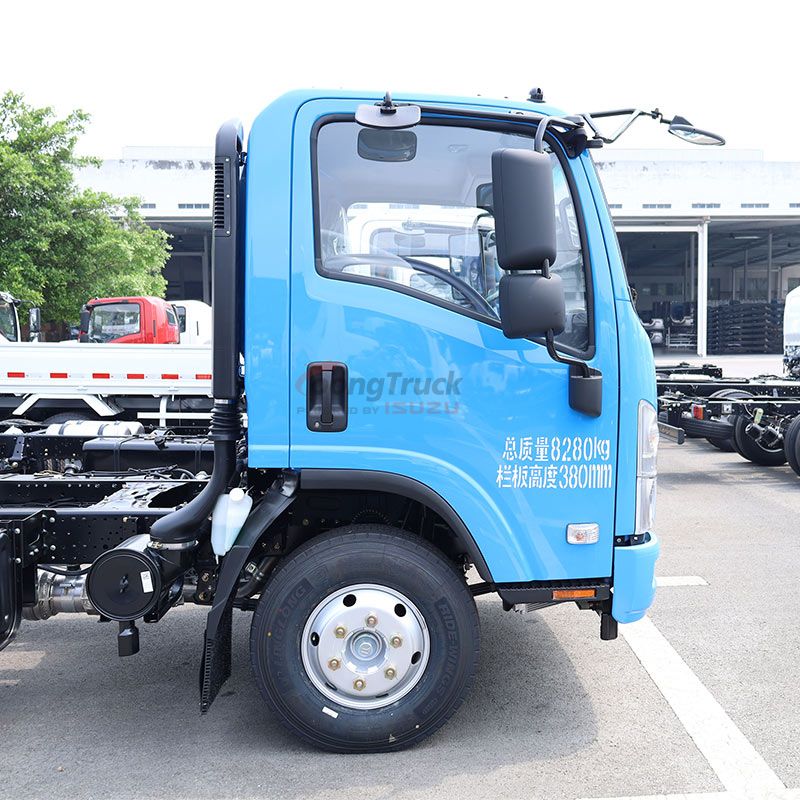

Cabin | single | |
Driver and Passenger | 3 | |
Engine | Model | 4KH1CN6HB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 97KW/2900rpm | |
Max. Torque (N.m/rpm) | 317N.m/1700-2900rpm | |

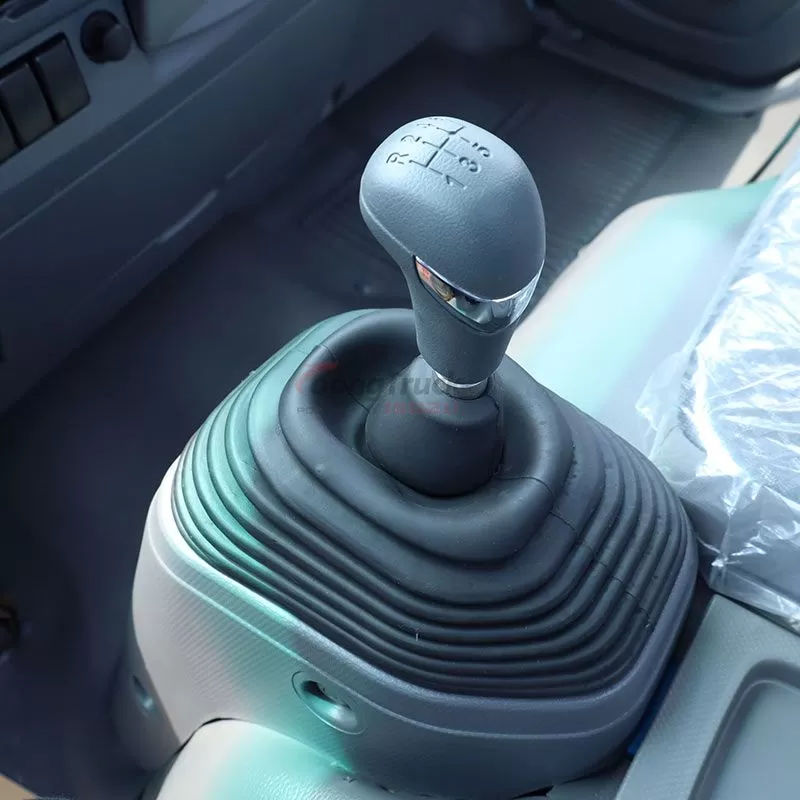

Transmission
| Model | Manual |
5 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.50R16LT 14PR |
Power steering |
| |
Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock |
|
Electric window |
| |
Deflector |
| |

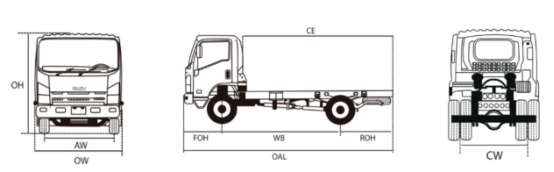

Dimensions | Length OAL (mm) | 5875 |
Width OW (mm) | 2130 | |
Height OH (mm) | 2880 | |
Front Tread AW (mm) | 2315 | |
Rear Tread CW (mm) | 1655 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||

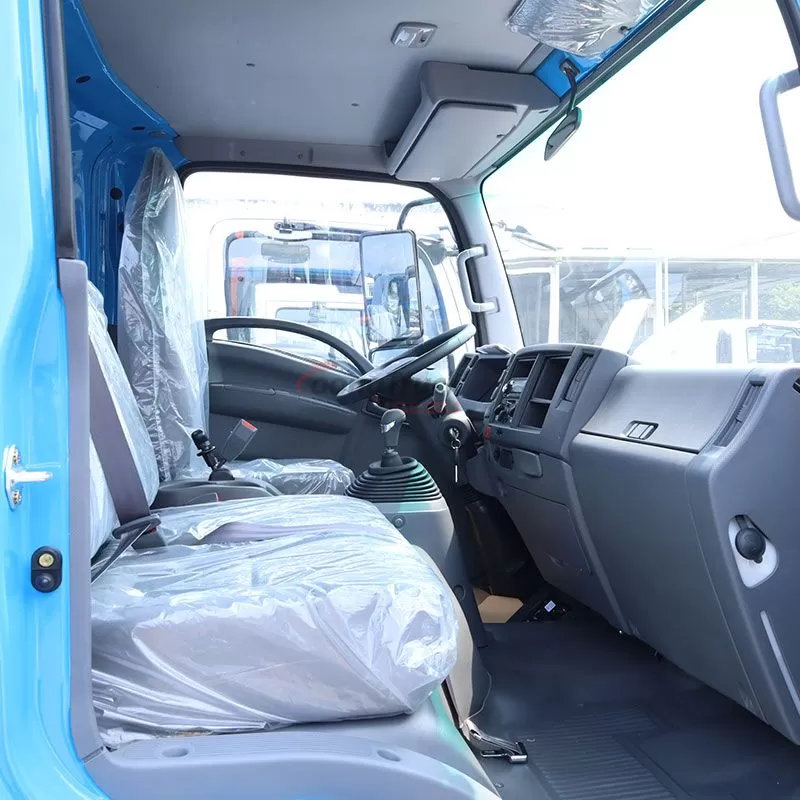

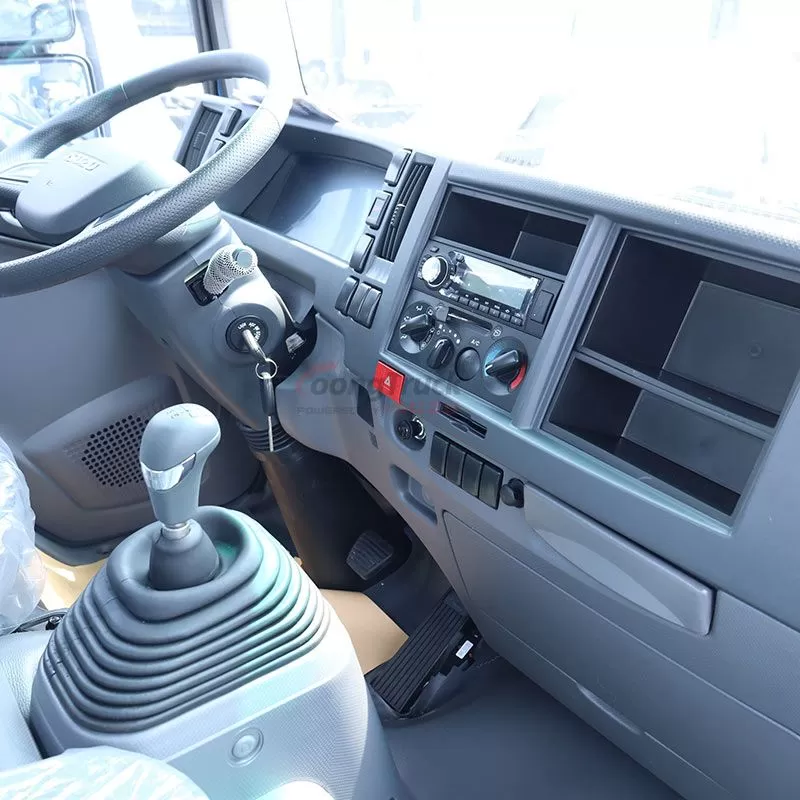

The Isuzu KV600 chassis comes with a well - thought - out set of features. It has a 4x2 drive type, which is efficient for many common applications. The leaf spring suspension provides a good balance between load - bearing capacity and ride comfort. The air brake system ensures reliable stopping power, crucial for a vehicle with such a high payload. The single cabin can accommodate up to 3 passengers, making it practical for small work crews. Standard tires are 7.50R16LT 14PR, offering good traction and durability. In terms of dimensions, with an overall length of 5875mm, width of 2130mm, and height of 2315mm, it is well - proportioned for maneuverability on the road. And while some configurations like power steering, radio, safety belts, ABS, and A/C may be optional, the KV600 chassis serves as a solid base that can be customized to meet specific business requirements.
