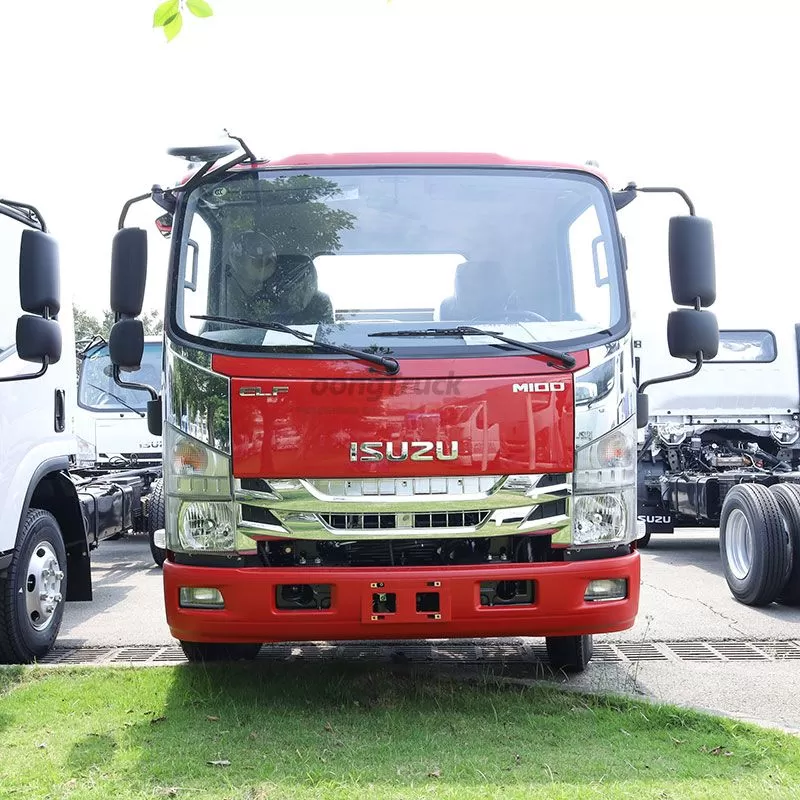

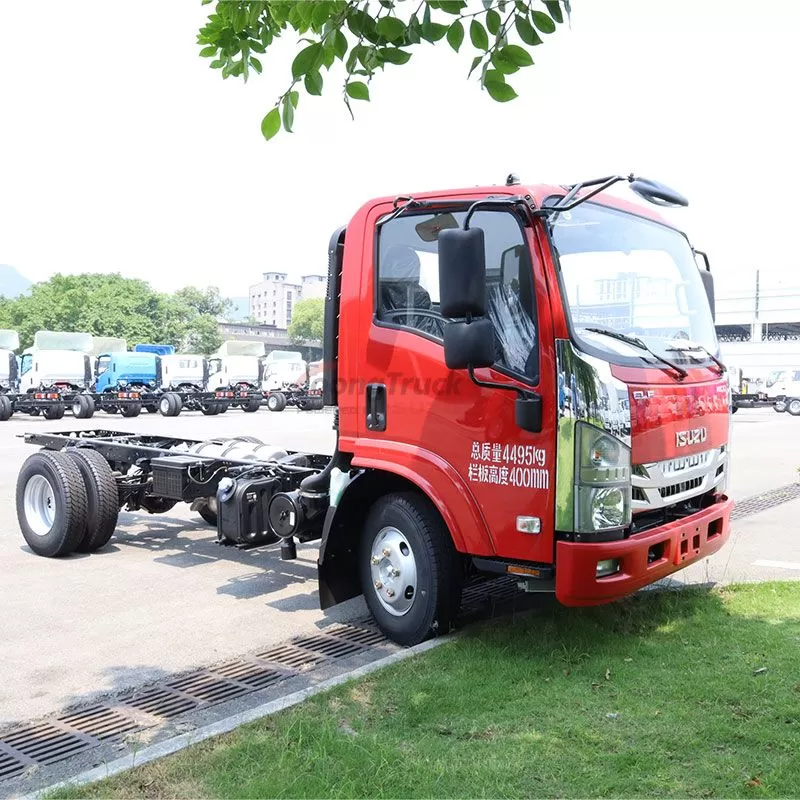

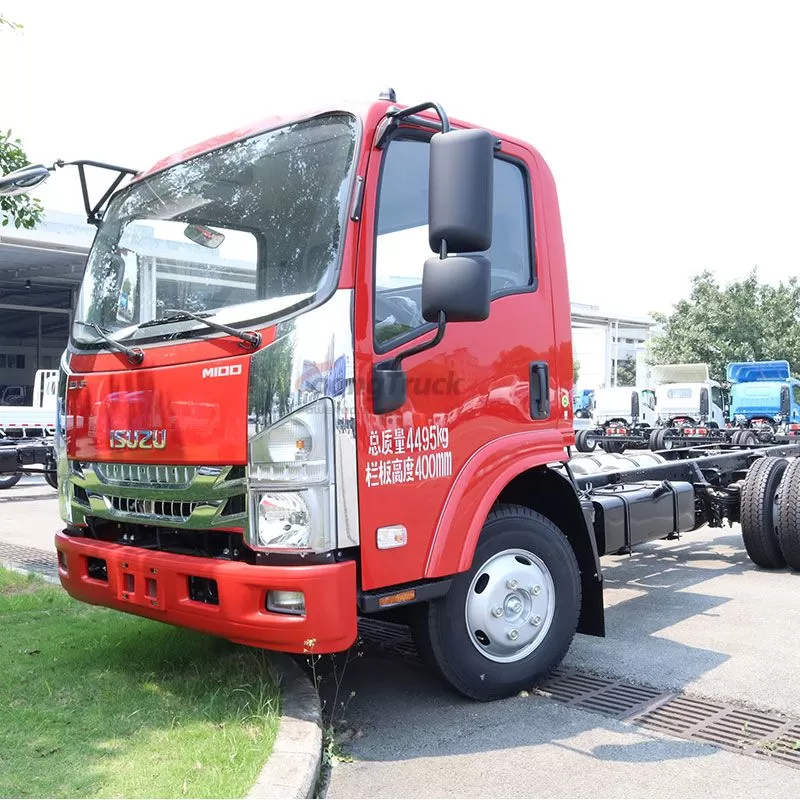

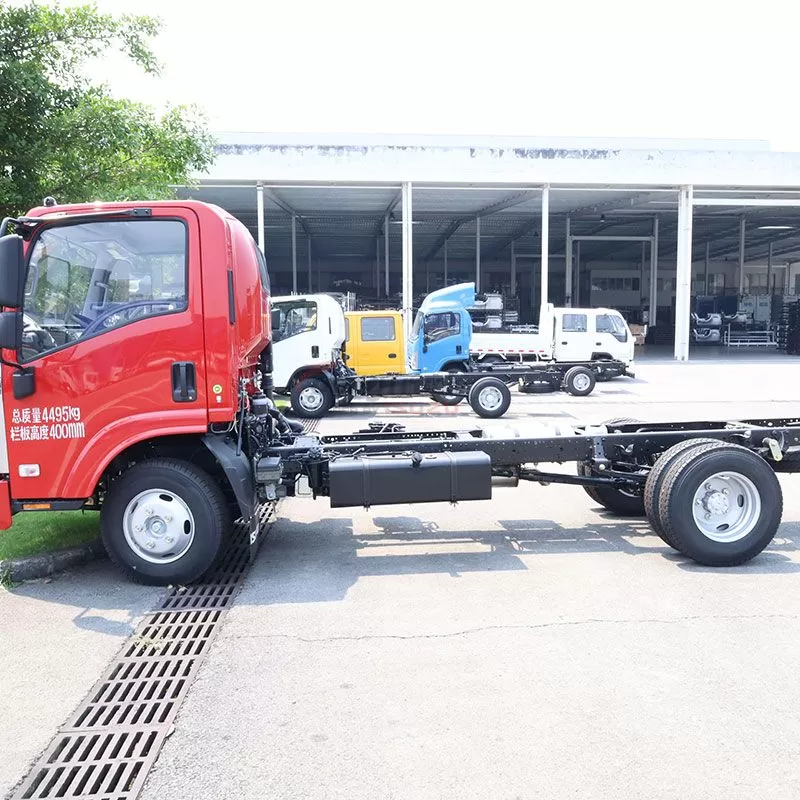

The Isuzu M100 chassis model is a top - notch choice for various commercial vehicles. It likely features a powerful engine, perhaps similar to Isuzu's reliable line, with efficient fuel consumption. With a well - designed 4x2 traction type, it offers stable performance. Standard equipment like electric windows, central locking, and ABS ensure comfort and safety. Ideal for businesses seeking a dependable chassis solution.
| Work capacity: | 2-5tons |
| Engine power: | 120HP |
| Engine type: | 4KH1CN6LB |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual |
| Remarks: | Isuzu M100 Light Truck Chassis |
PRODUCT DETAILS
The Isuzu M100 chassis model stands out as an exceptional option in the realm of commercial vehicles. Its performance is a key selling point, driven by a likely powerful engine that draws from Isuzu's long - established reputation for reliability. This engine not only delivers the necessary power for various hauling and transportation tasks but also boasts efficient fuel consumption. This fuel efficiency is a game - changer for businesses, as it significantly reduces operational costs over time. The 4x2 traction type is another well - thought - out design feature. It provides stable performance on different road surfaces, whether it's smooth highways or slightly rough urban streets. This stability is crucial for ensuring the safety of the load being transported and the overall control of the vehicle. The chassis itself is built with high - quality materials, ensuring durability and the ability to withstand the rigors of daily commercial use. It serves as a solid foundation for different body types, from delivery vans to small trucks, making it a versatile choice for a wide range of business needs.

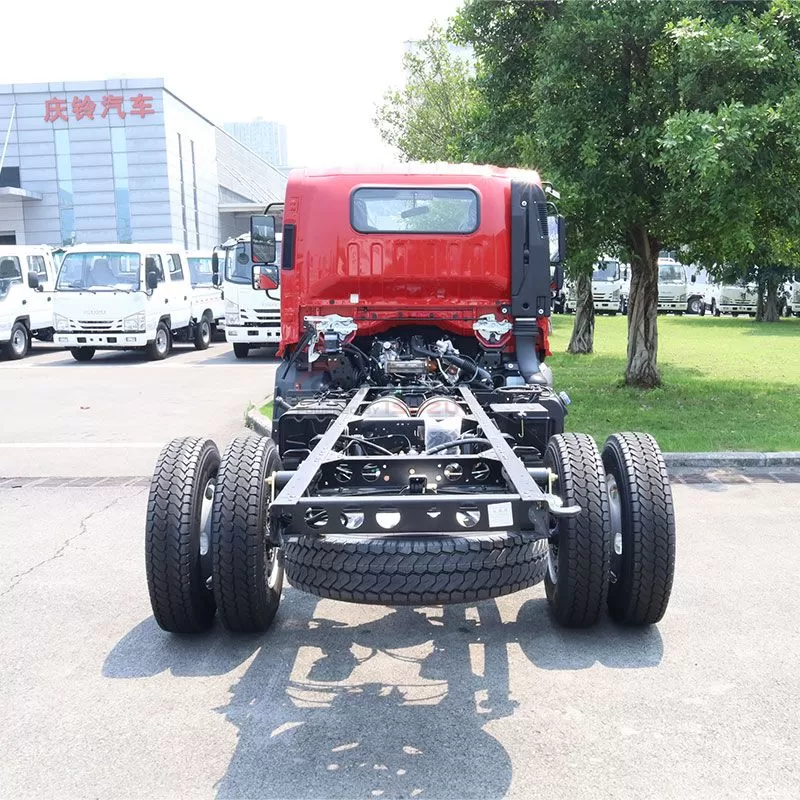

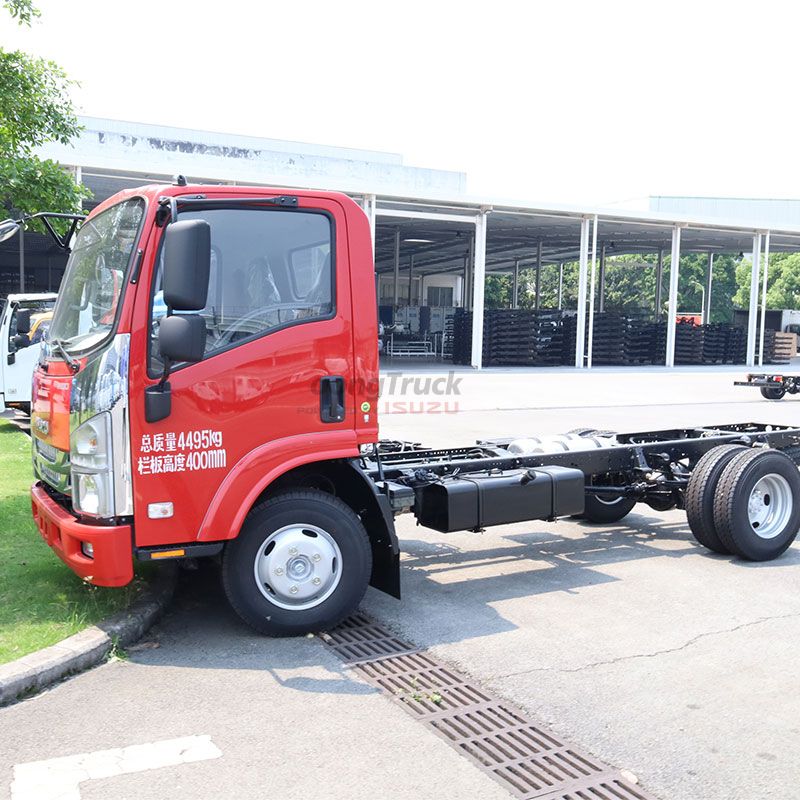

General information | Chassis model | M100 light truck chassis |
Wheelbase(mm) | 3815 | |
Drive Type | 4X2 | |
GVW (kg) | 8280 | |
Curb Weight (kg) | 2600 | |
Cabin | single | |
Driver and Passenger | 3 | |
Engine | Model | 4KH1CN6LB |
Type | 4 Cylinders in line, | |
Emission Standard | Euro VI | |
Displacement (L) | 2.999 | |
Rated Power (kw/rpm) | 88kw | |
Max. Torque (N.m/rpm) | 290N.m | |
Transmission

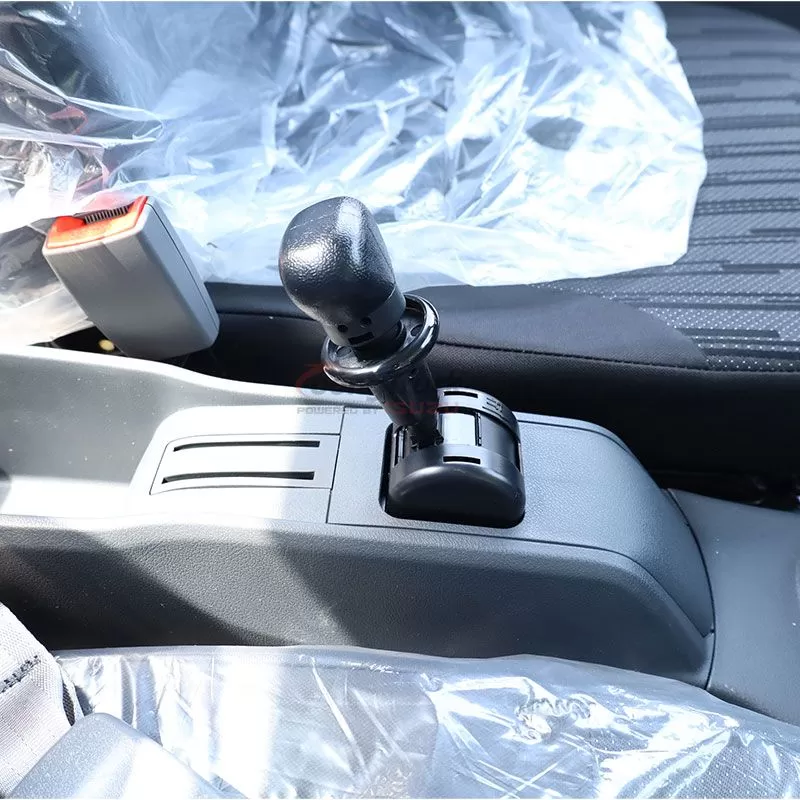

| Model | Manual |
5 Forward + 1 Reverse | ||
Brake System | Service brake | Double circuit, air drive |
Brake(Oil/Air) | air brake | |
Parking brake | Central drum brake | |
standard Configuration | Tires | 7.50R16LT 14PR |
Power steering |
| |
Radio |
| |
ABS |
| |
A/C |
| |
Tilted cabin |
| |
Exhuast brake |
| |
Option configuration | Central lock |
|
Electric window |
| |
Deflector |
| |

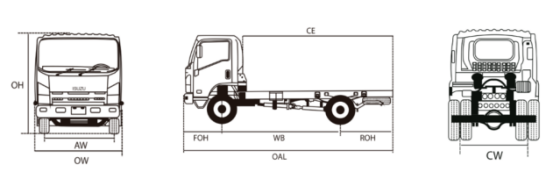

Dimensions | Length OAL (mm) | 6950 |
Width OW (mm) | 2130 | |
Height OH (mm) | 2315 | |
Front Tread AW (mm) | 1640 | |
Rear Tread CW (mm) | 1655 | |
| ||
2. All above information is for reference only, and will be updated timely without notice; | ||
3. The listed models are part of the full products range, any special request will be available on request. | ||
| ||
When it comes to comfort and safety, the Isuzu M100 chassis model doesn't disappoint. Standard equipment such as electric windows and central locking add a touch of convenience for the driver. Electric windows allow for easy adjustment, especially in varying weather conditions, while central locking provides enhanced security for the vehicle and its contents. The inclusion of ABS (Anti - lock Braking System) is a major safety feature. ABS prevents the wheels from locking up during sudden braking, enabling the driver to maintain steering control and avoid potential accidents. This is of utmost importance in commercial driving, where heavy loads can increase stopping distances. Additionally, the overall design of the chassis contributes to a smooth and comfortable ride, reducing driver fatigue during long hours on the road. For businesses that value the well - being of their drivers and the safety of their operations, the Isuzu M100 chassis is a reliable and smart choice.
