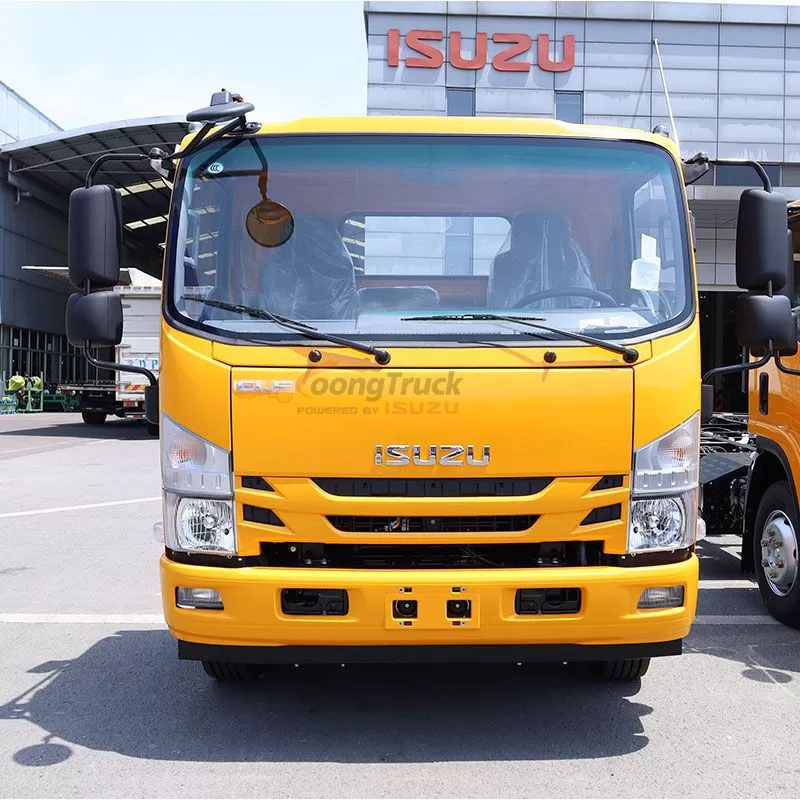

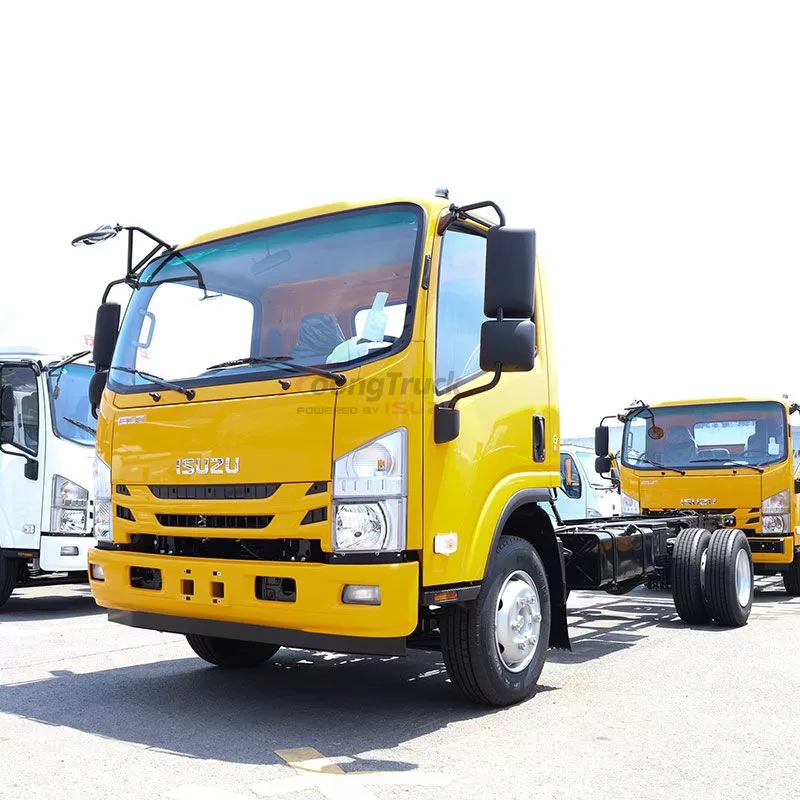

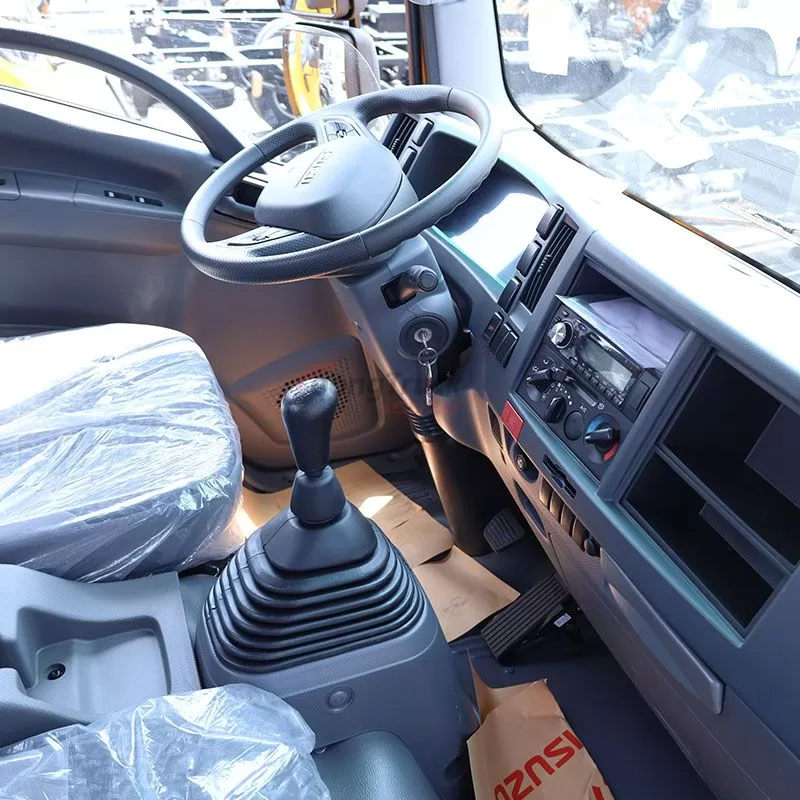

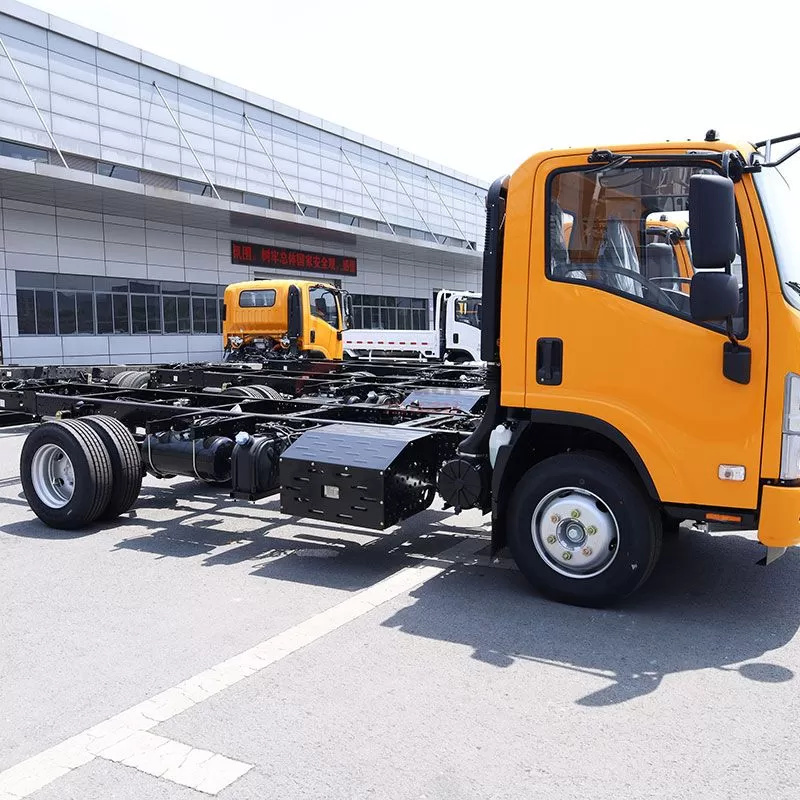

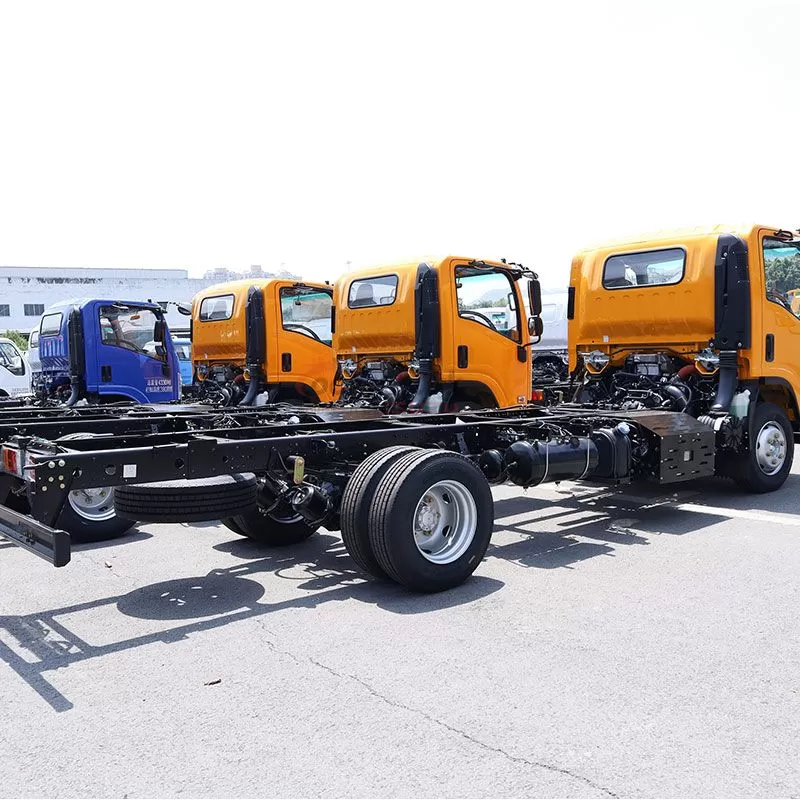

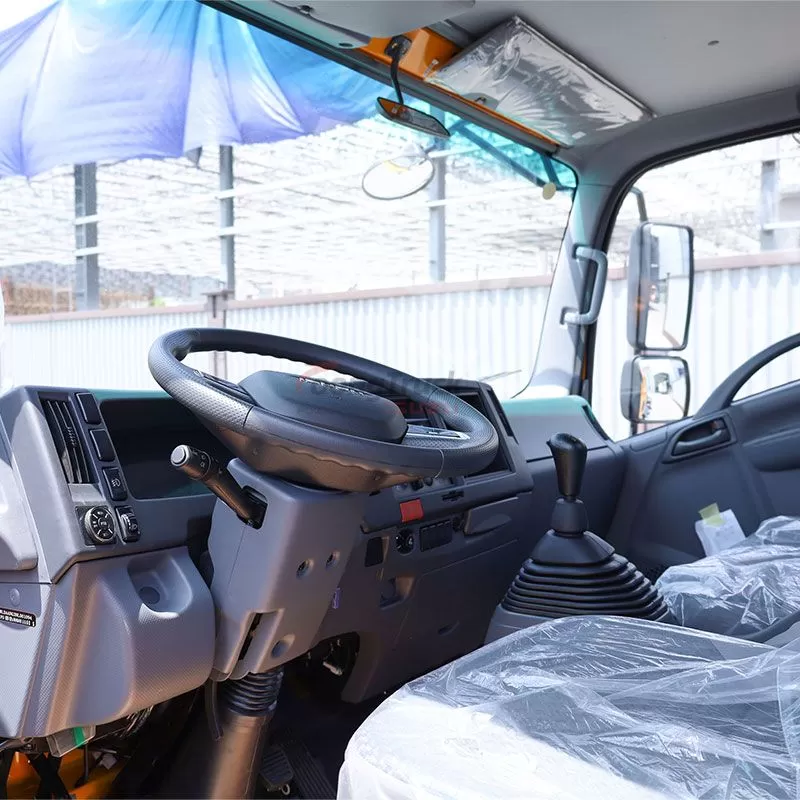

This 700P chassis is equipped with 190HP 4HK1-TCG61 engine, manual MLD-6Q transmission with 6 forward gears and 1 reverse gear, newly developed chassis with 3 seats, wheelbase 3360mm, GVW 10550kg; multi-function steering wheel, rear view camera, modern body design, low fuel consumption, low maintenance cost,highly manoeuvrable.
| Work capacity: | 5-7tons |
| Engine power: | 190HP |
| Engine type: | 4HK1-TCG61 |
| Axle drive: | 4X2,LHD |
| Gear box: | Manual MLD-6Q |
| Remarks: | Isuzu 700P NPR truck chassis |
NPR 700P Chassis Truck Parameters
| For Body size (ft) | 14ft | |||||||||||
| General information | Wheelbase(mm) | 3360 | ||||||||||
| GVW (kg) | 10550 | |||||||||||
| Curb Weight (kg) | 3240 | |||||||||||
| Payload (T) | 7 tons | |||||||||||
| Max Speed (km/h) | 98-110 | |||||||||||
| Engine | Model | ISUZU 4HK1-TCG61 189hp | ||||||||||
| Displacement (L) | 5.193 | |||||||||||
| Max. Power (kw/rpm) | 139/2600 | |||||||||||
| Max. Torque (N.m/rpm) | 510/1600 | |||||||||||
| Number of cylinder | 4 Cylinders | |||||||||||
| Injection system | Electronic injection | |||||||||||
| Emission Standard | Euro VI | |||||||||||
| Fuel type | Diesel | |||||||||||

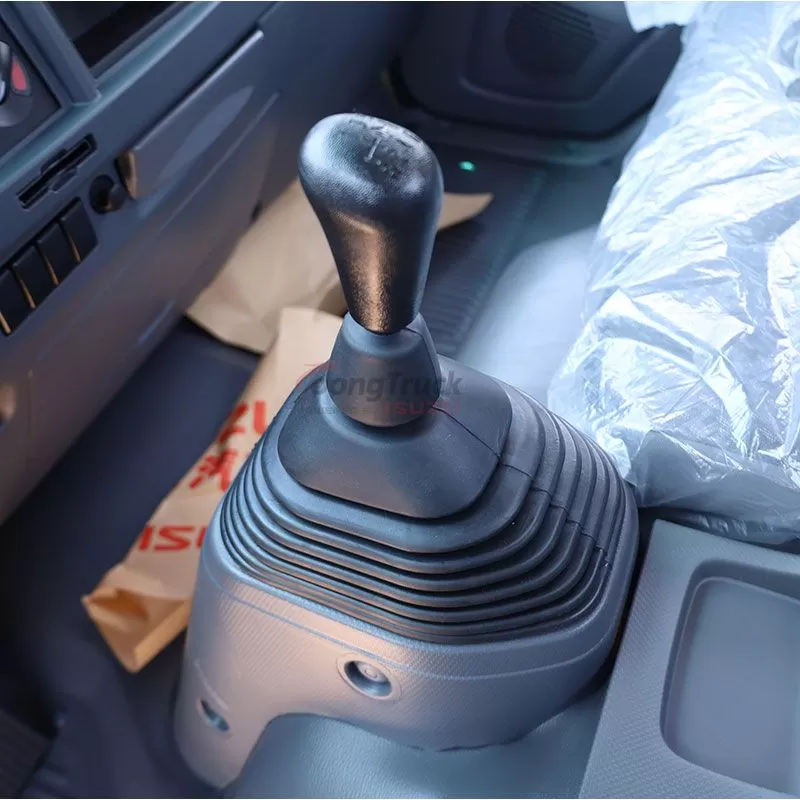

| Transmission | Transmission | ISUZU MLD-6Q | ||||||||||
| Control | Manual | |||||||||||
| Gears | 6 Forward + 1 Reverse | |||||||||||
| Cab | Cabin | Single | ||||||||||
| Passengers | 1+2 | |||||||||||

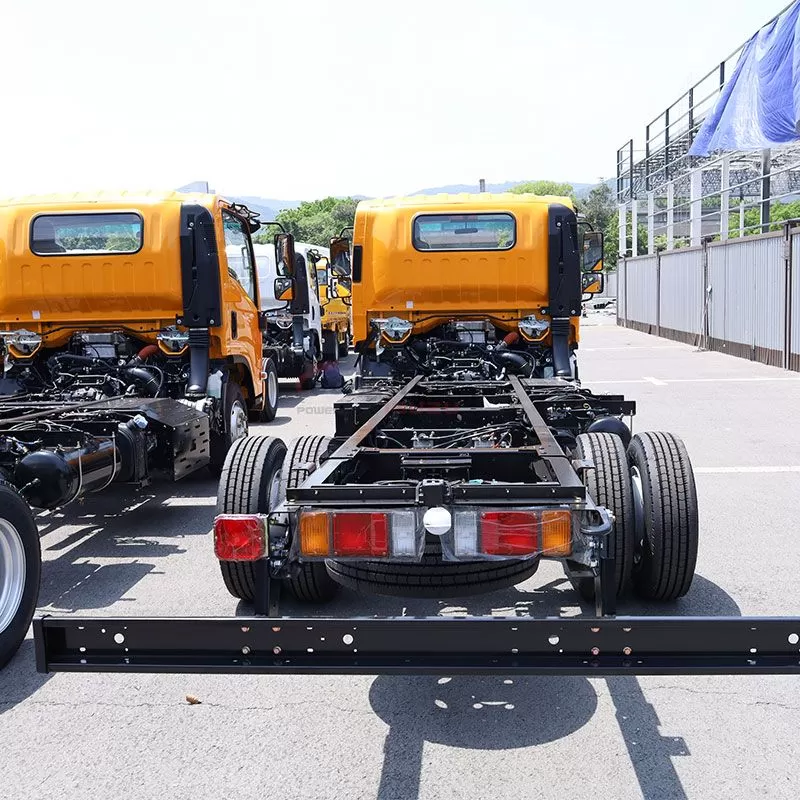

| Chassis | Drive Type | 4x2 | ||||||||||
| Suspension | Leaf Spring | |||||||||||
| Brake | Air brake | |||||||||||
| Tires | Standard | 235/75R17.5 16PR | ||||||||||
| Configuration | Power steering |  YES | ||||||||||

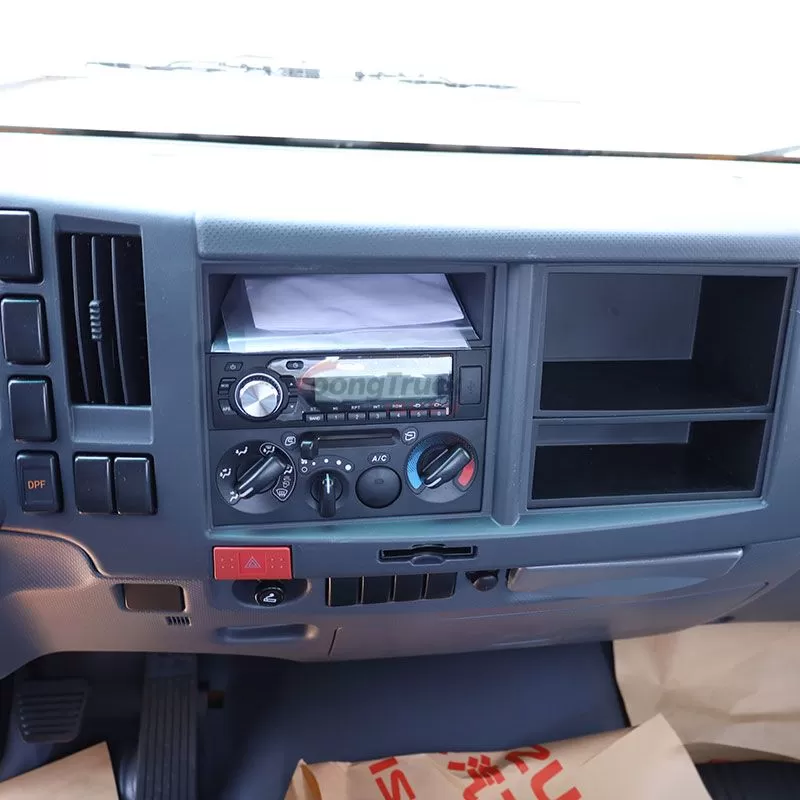

| Radio | YES | |||||||||||
| Safety Belt | YES | |||||||||||
| ABS | YES | |||||||||||
| A/C | YES | |||||||||||
| | ||||||||||||
| CHASSIS DIMENSION | units：mm | |||||||||||
| Model | Wheelbase/WB | 3360 | ||||||||||
| Overall Length/OAL | 5995 | |||||||||||
| Overall Width/OW | 2170 | |||||||||||
| Overall Height/OH | 2330 | |||||||||||
| Front Tread | 1680 | |||||||||||
| Rear Tread | 1650 | |||||||||||
